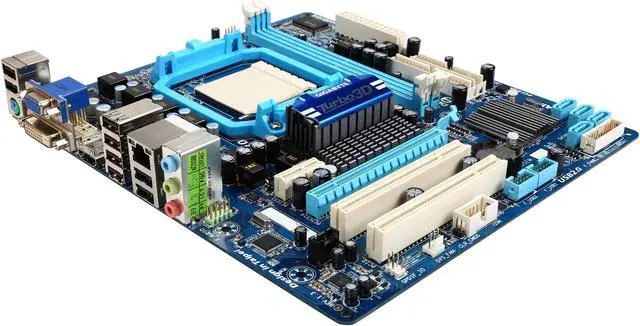

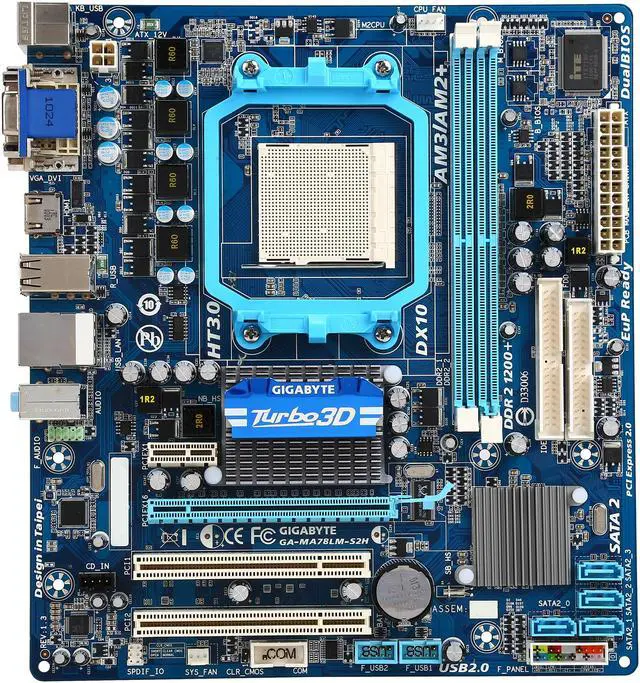

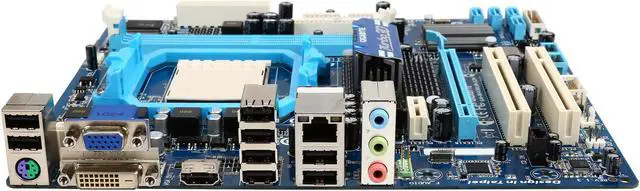

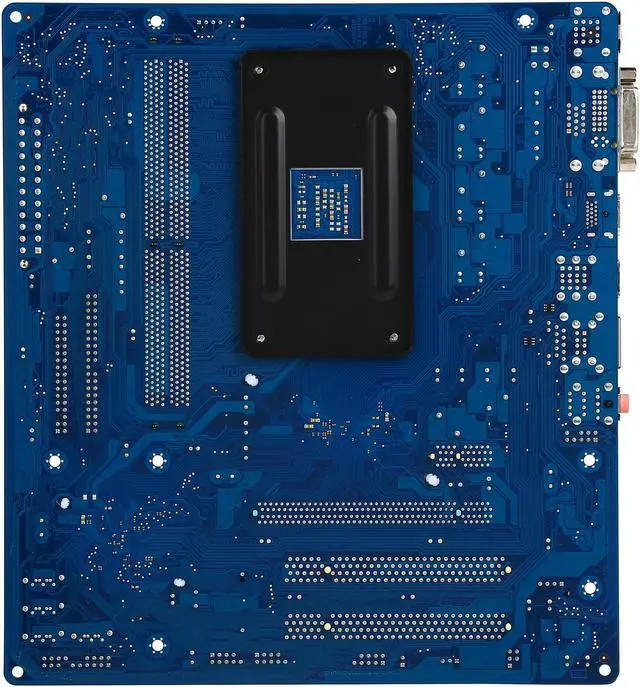

GIGABYTE GA-MA78LM-S2H AM3/AM2+/AM2 AMD 760G HDMI Micro ATX AMD Motherboard
REFURBISHED Product Type
- AMD 760G
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron
- DDR2 1200(O.C.) /1066/800
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Powered by AMD 760G + SB710 chipset, the GIGABYTE GA-MA78LM-S2H motherboard offers a great foundation for you to build an AM3/AM2+/AM2 CPU based system. It supports DDR2 memory modules up to DDR2 1200+, HyperTransport 3.0 technology links and PCI Express 2.0 graphics interface to get the most of your high end components. The Integrated ATI Radeon HD3000 graphics delivers decent DirectX 10 graphics performance that's great for HD video playback and web animation acceleration.
This motherboard adopts solid capacitors for CPU VRM for enhanced life span and stability. It also features 3+1 phase VRM for robust power to CPU, exclusive DualBIOS design for protection against BIOS crash or failure, home theater-quality sound with 6/8-channel audio, and Gigabit LAN port for seamless high speed network connection. Plus, this model is equipped with VGA, DVI and HDMI output for easy connection with various monitors and flat panel TVs.
3+1 Power Phase DesignThis motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
EC AOD-ACC SupportEC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive utility further than it was previously possible. (Please apply sufficient cooling to CPU VRM zone when ACC function is enabled. Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.)
Solid Capacitor for CPU VRMStable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
DualBIOSDualBIOS is a GIGABYTE exclusive technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
EasyTune6GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
Smart & SafeThe Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features! Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!
3+1 Power Phase DesignThis motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
EC AOD-ACC SupportEC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive utility further than it was previously possible. (Please apply sufficient cooling to CPU VRM zone when ACC function is enabled. Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.)
Solid Capacitor for CPU VRMStable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
DualBIOSDualBIOS is a GIGABYTE exclusive technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
EasyTune6GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
Smart & SafeThe Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features! Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!Warranty & Returns
