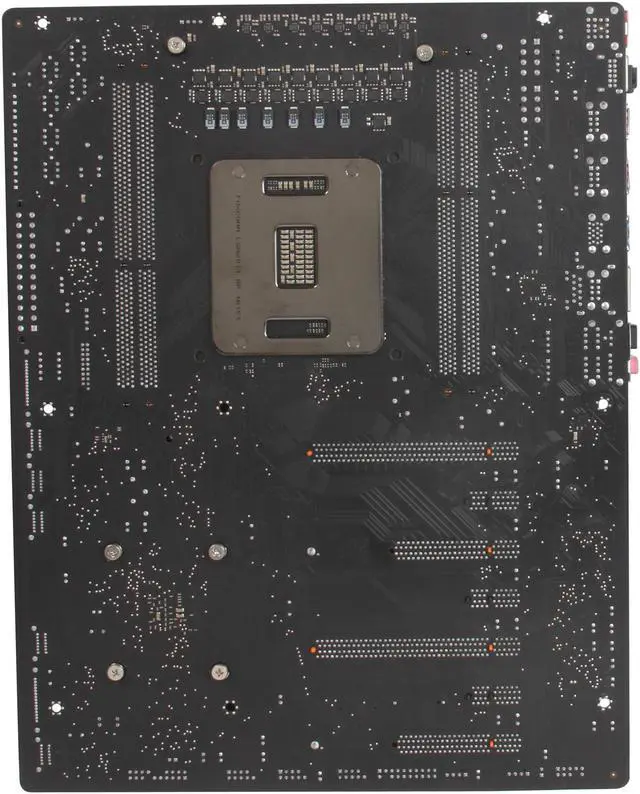

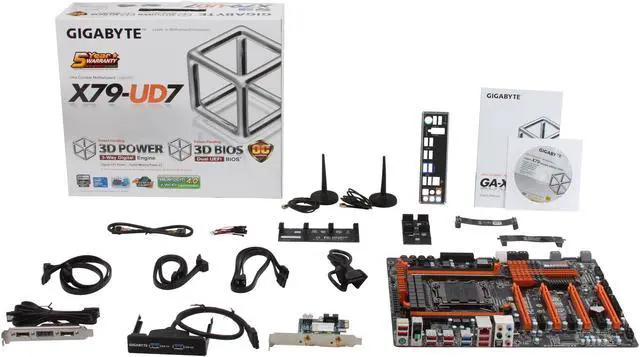

GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard
- Intel X79
- Core i7 (LGA2011) / Xeon (LGA2011)
- DDR3 2133/1866/1600/1333/1066
Specs
Reviews (11)
Learn more about the GIGABYTE GA-X79-UD7
| Brand | GIGABYTE |
|---|---|
| Model | GA-X79-UD7 |
| CPU Socket Type | LGA 2011 |
|---|---|
| CPU Type | Core i7 (LGA2011) / Xeon (LGA2011) |
| Chipset | Intel X79 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2133/1866/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 4 (x16, x8, x16, x8) |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | X79 chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) and 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) support RAID 0, RAID 1, RAID 5, and RAID 10 * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected. 2 x Marvell 88SE9172 chips: 4 x SATA 6Gb/s connectors (GSATA3 6/7/8/9) support SATA RAID 0 and RAID 1 |
| Audio Chipset | Realtek ALC898 |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.0 + 6 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x PCIe power connectors 1 x CPU fan header 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x onboard voltage measurement module 1 x Gear button 1 x CPU BCLK Down button 1 x CPU BCLK Up button 1 x CPU Ratio Down button 1 x CPU Ratio Up button 1 x Trusted Platform Module (TPM) header |
| Form Factor | XL ATX |
|---|---|
| Dimensions (W x L) | 12.76" x 9.96" |
| Power Pin | 24 Pin |
| First Listed on Newegg | November 21, 2011 |
|---|
