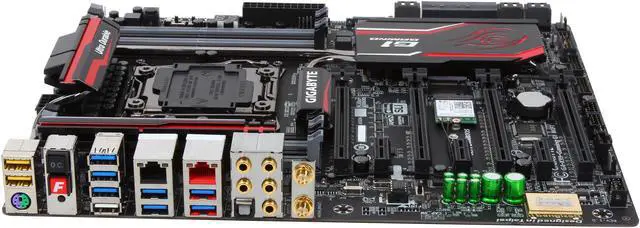

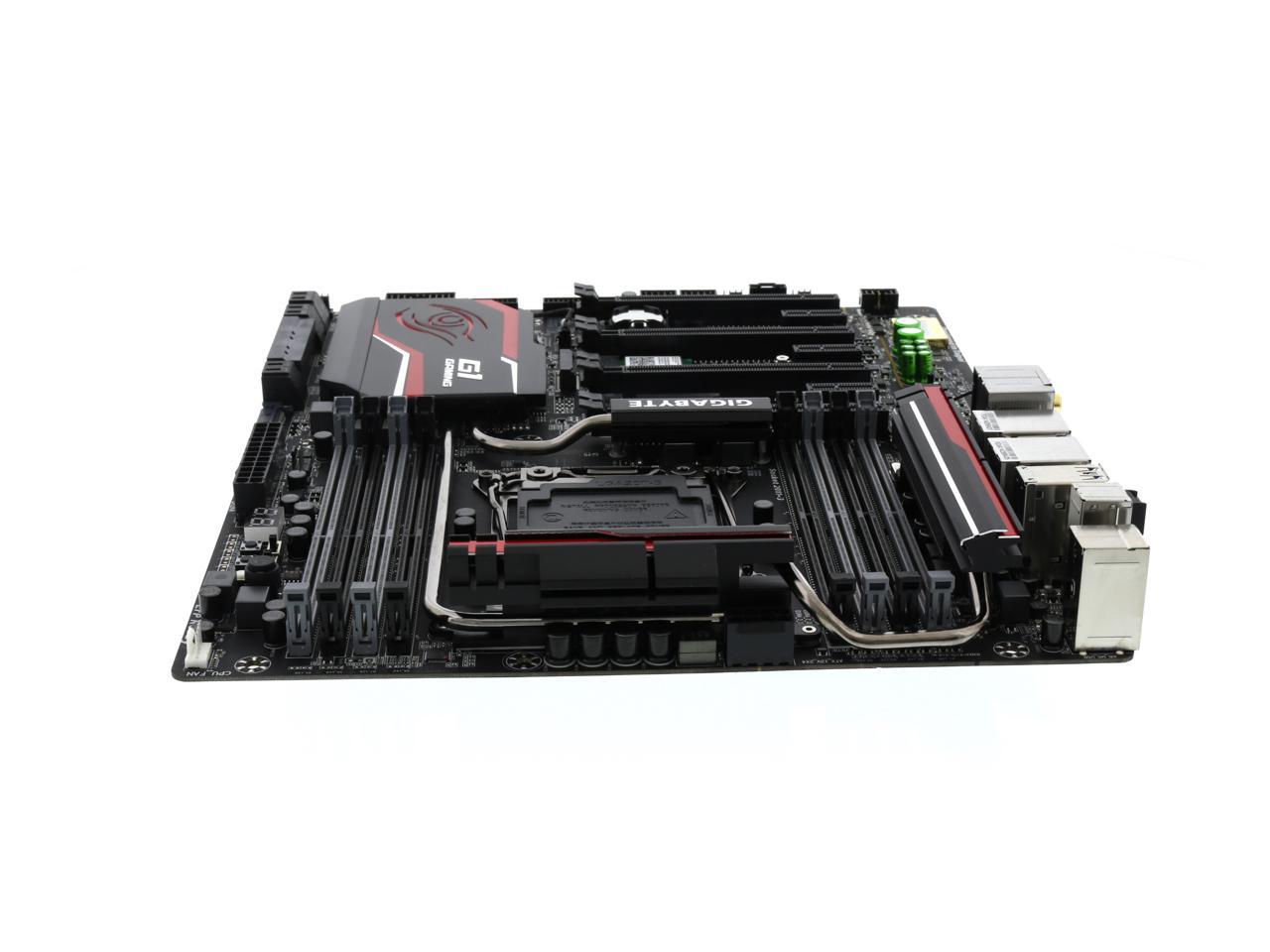

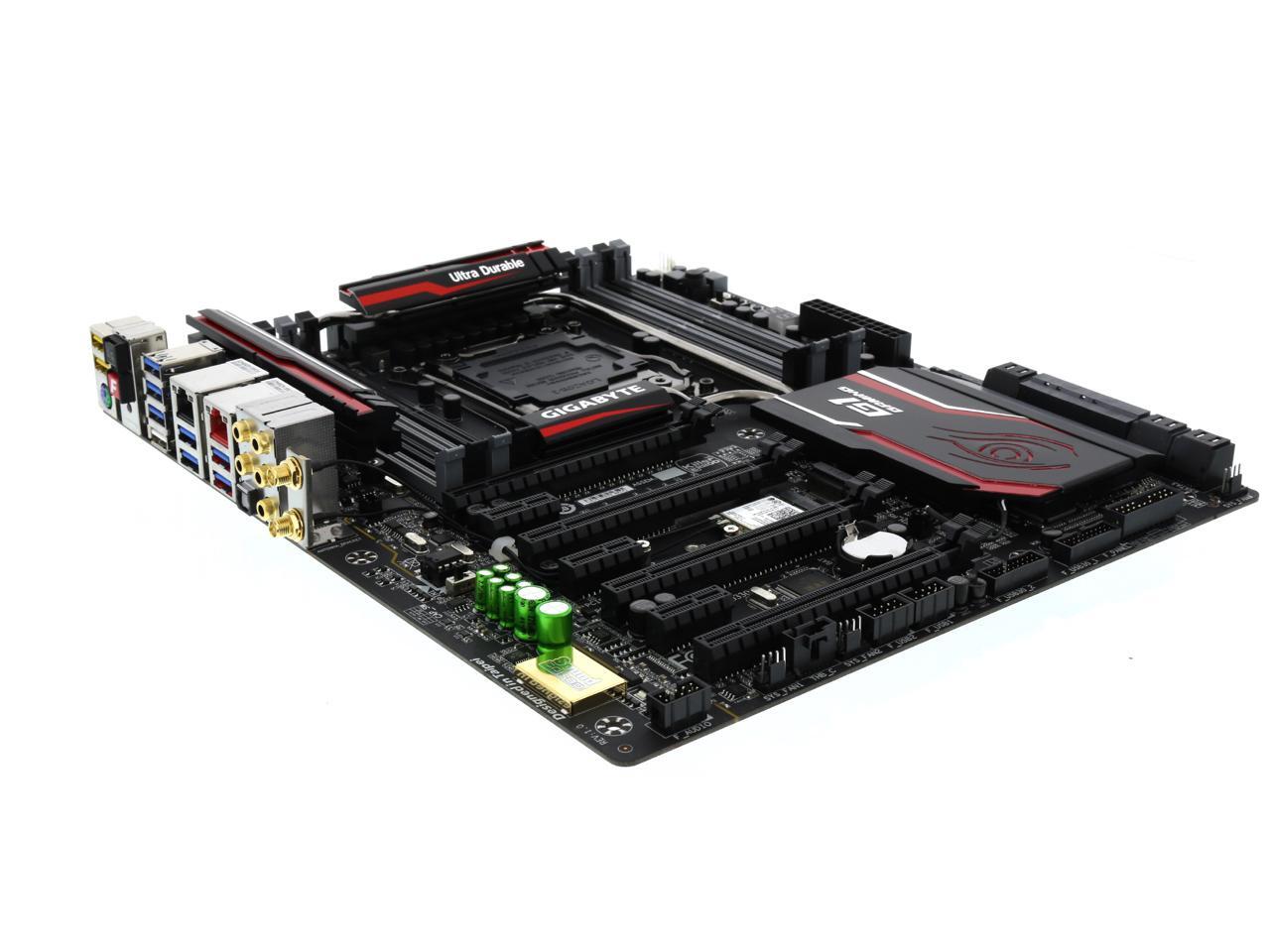

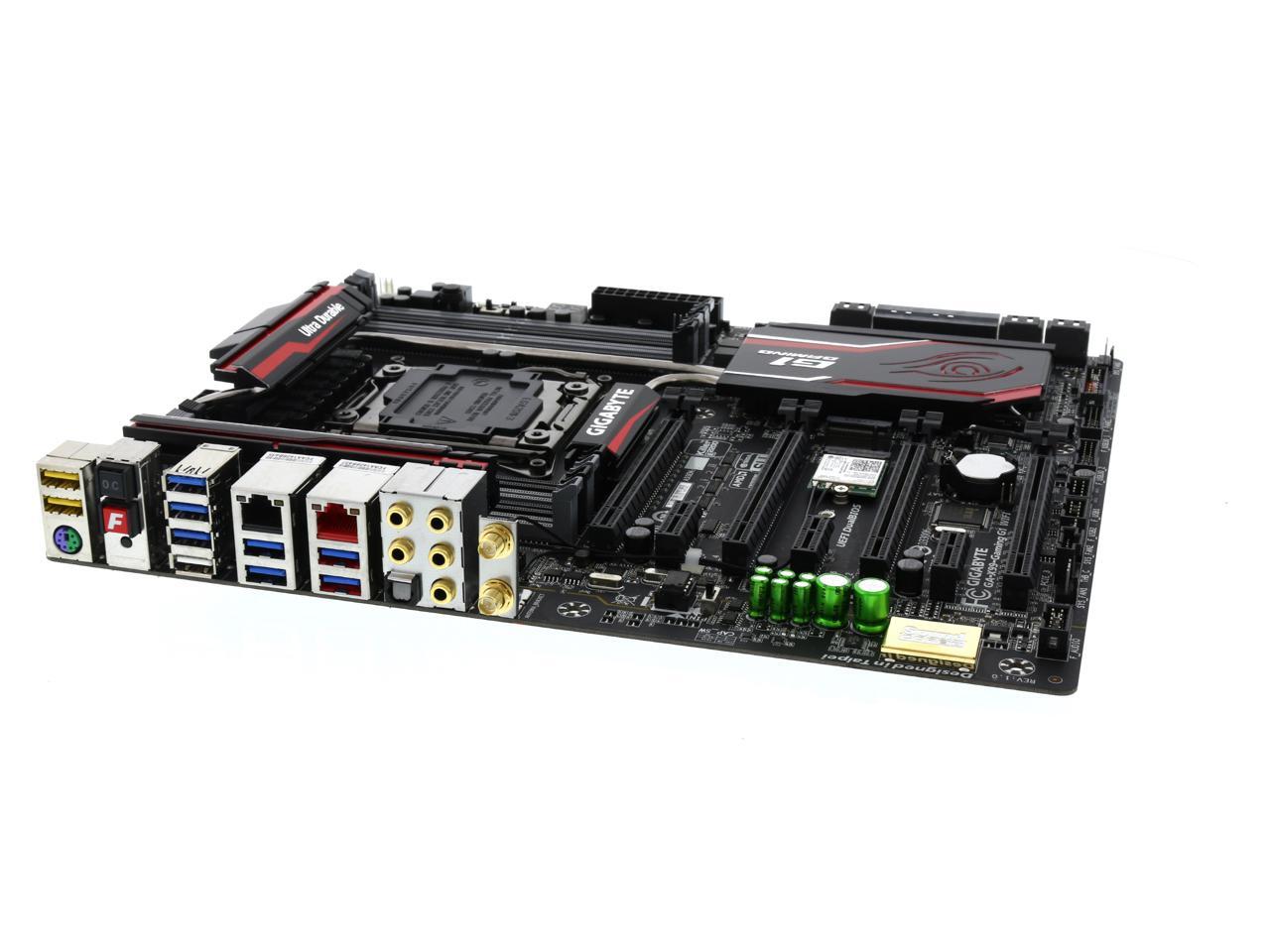

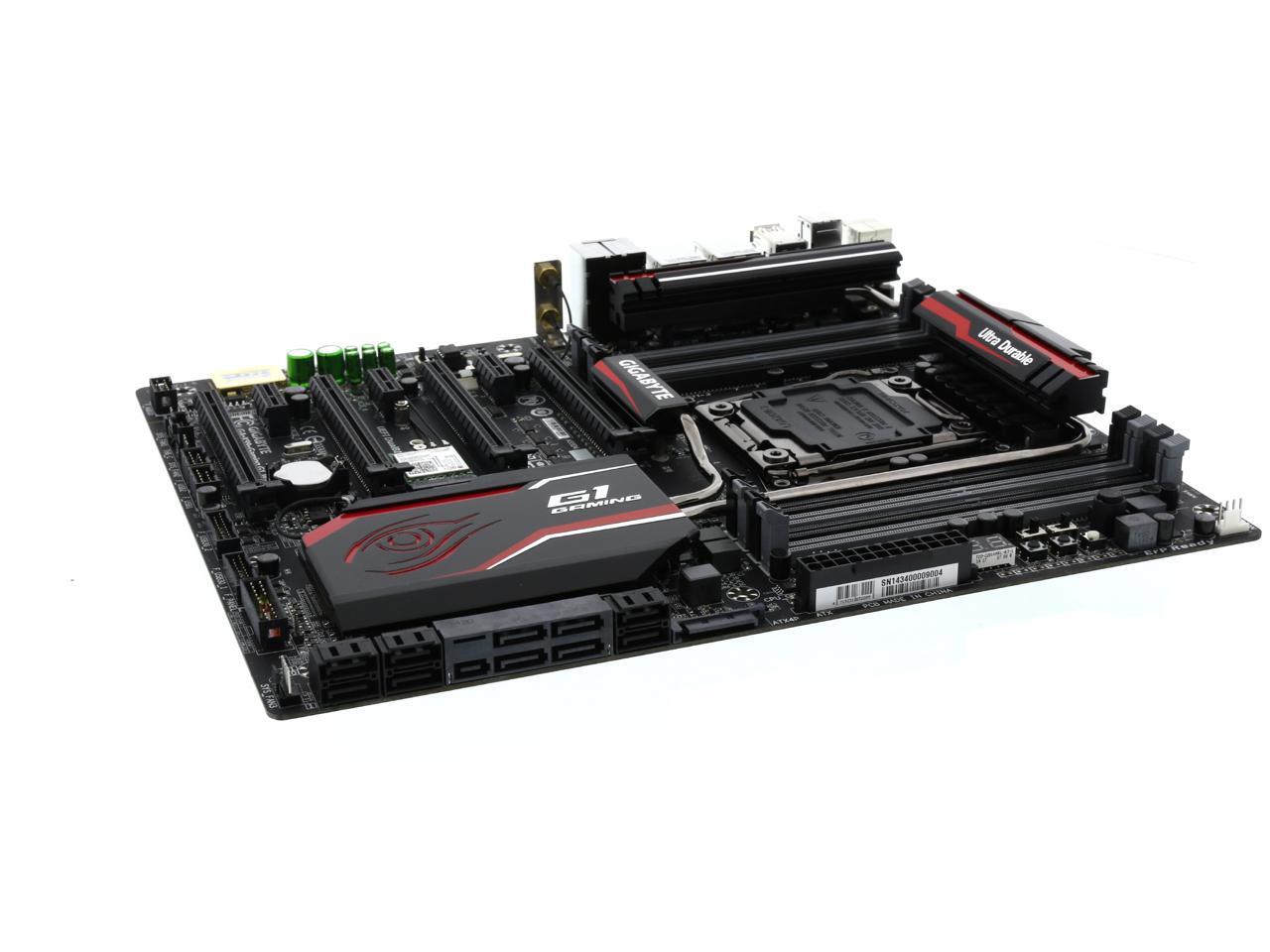

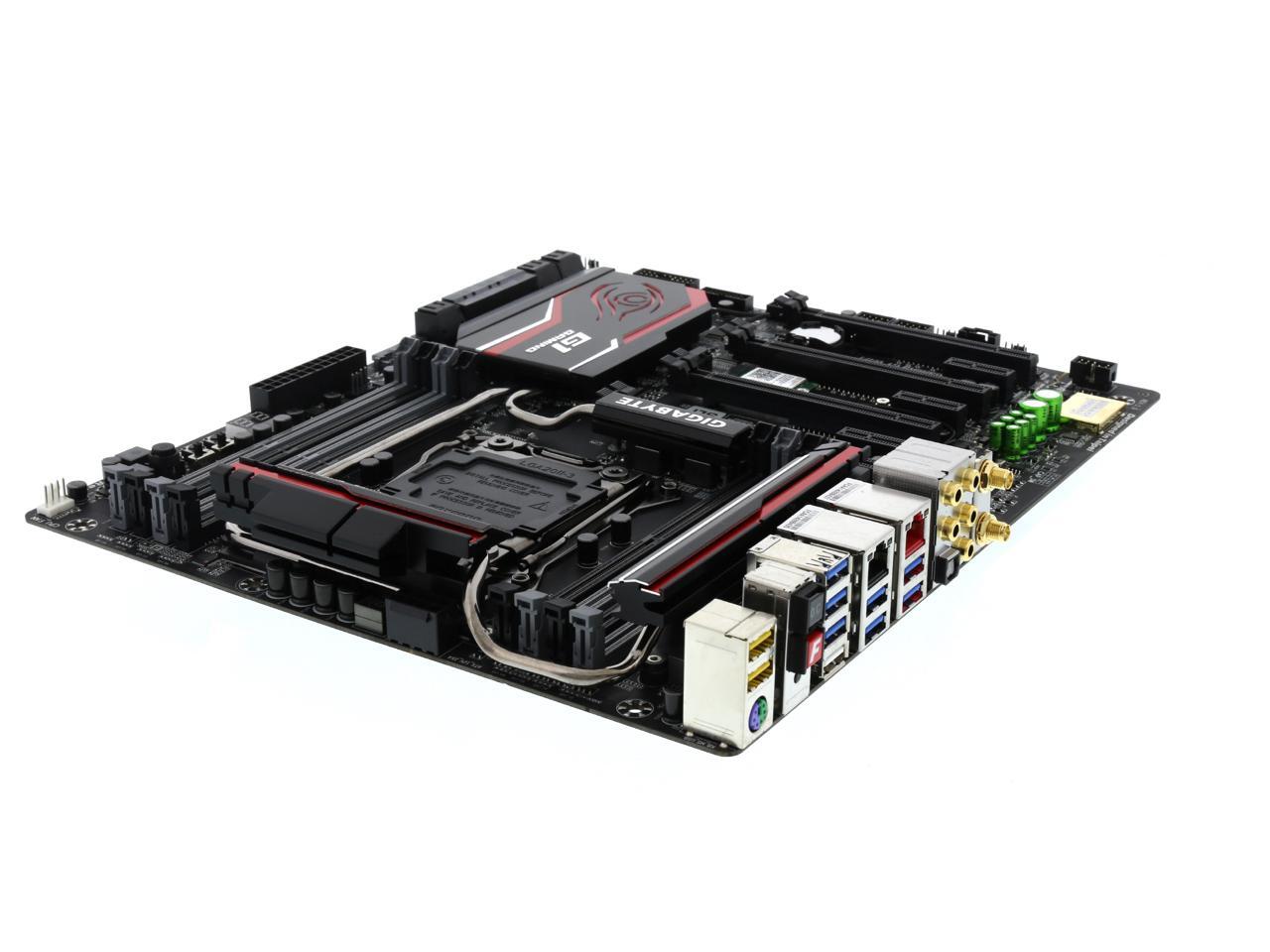

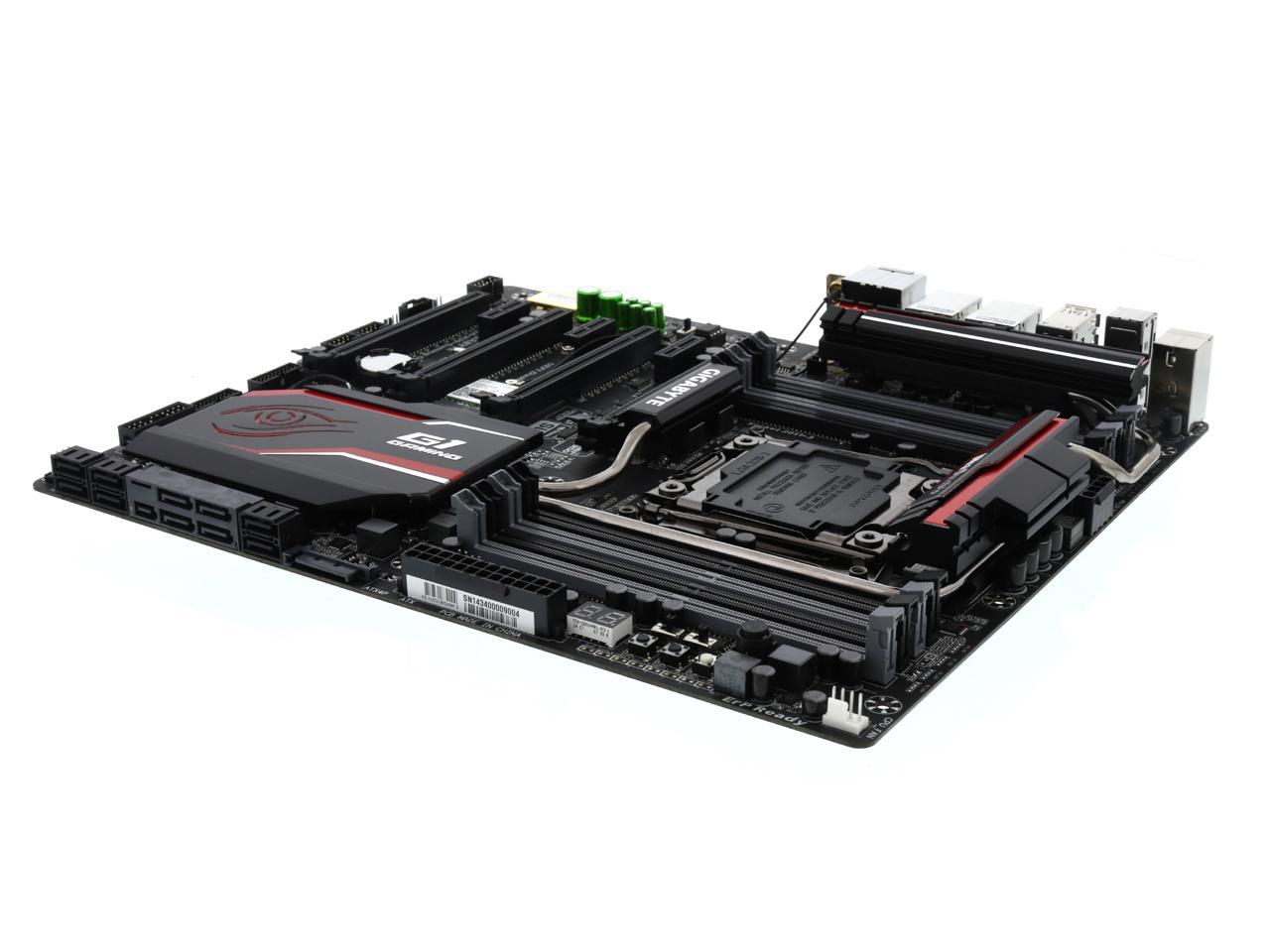

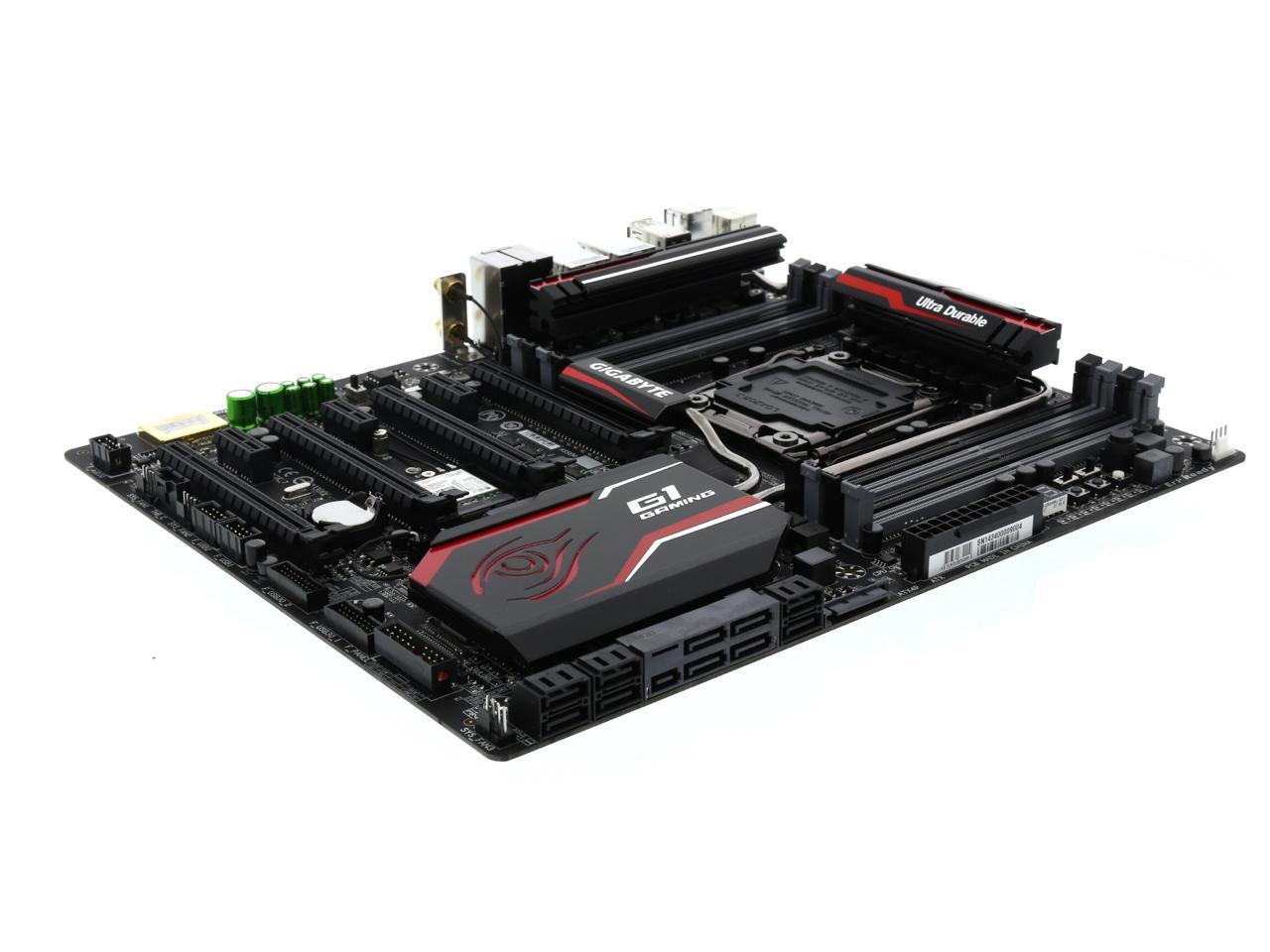

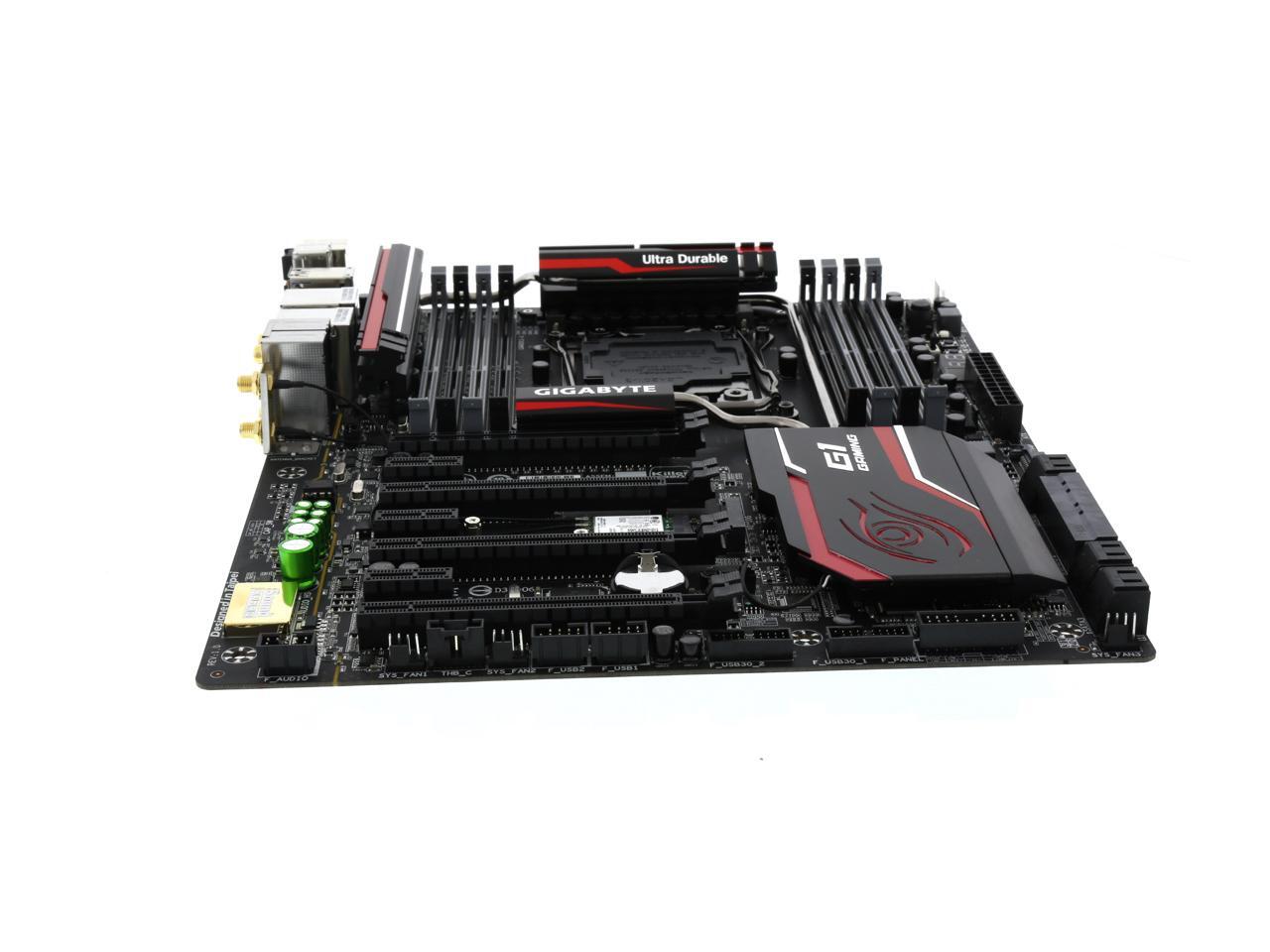

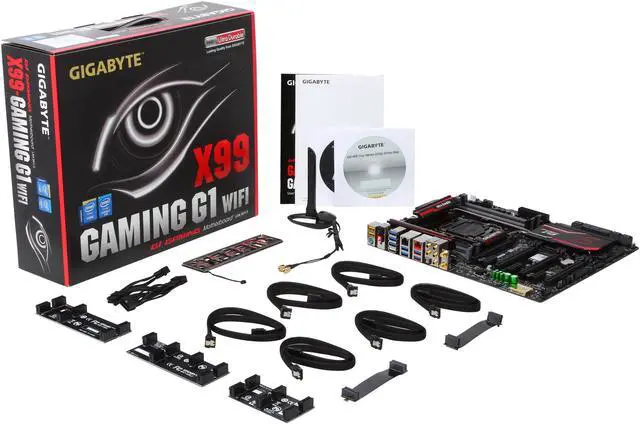

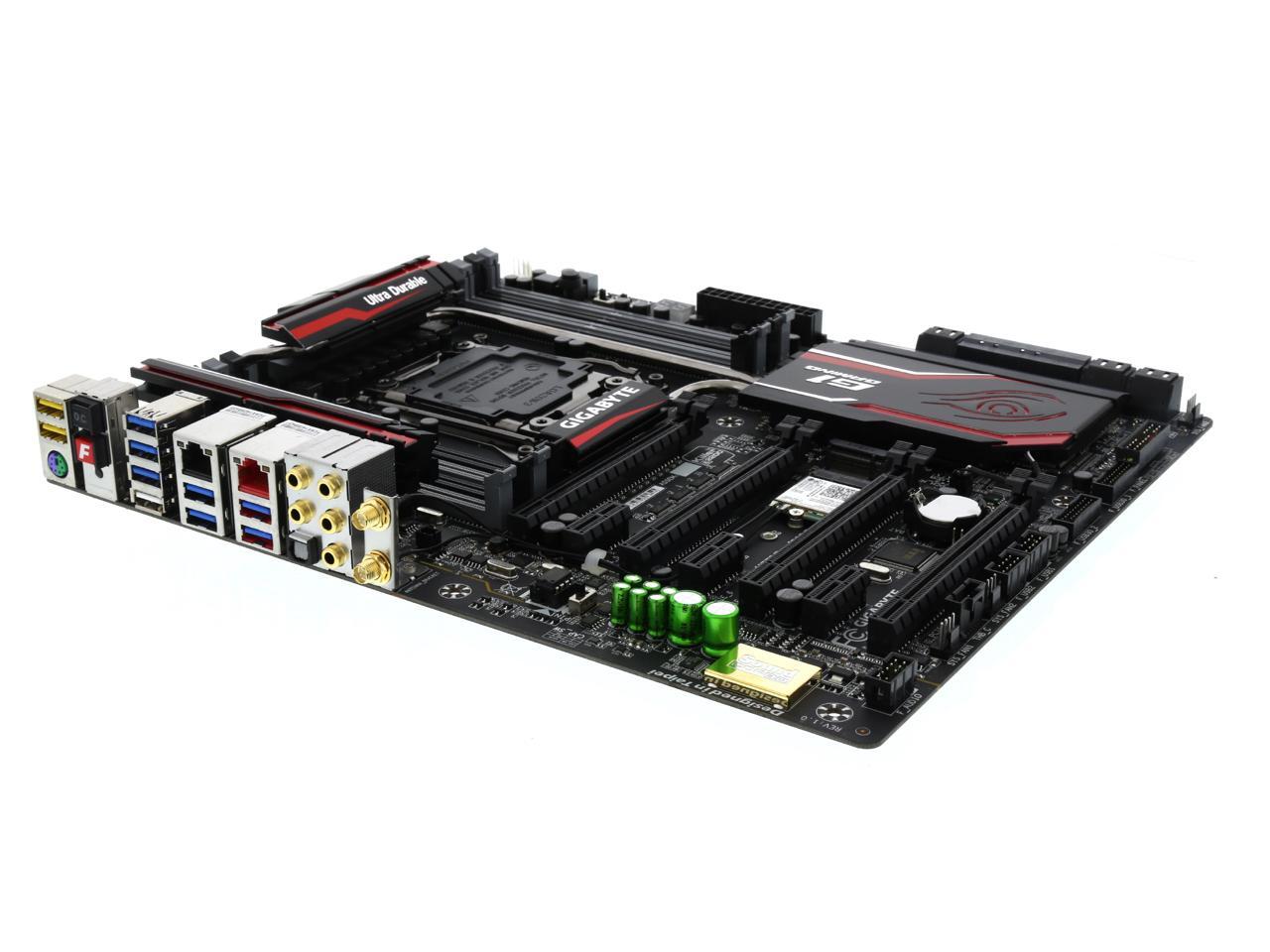

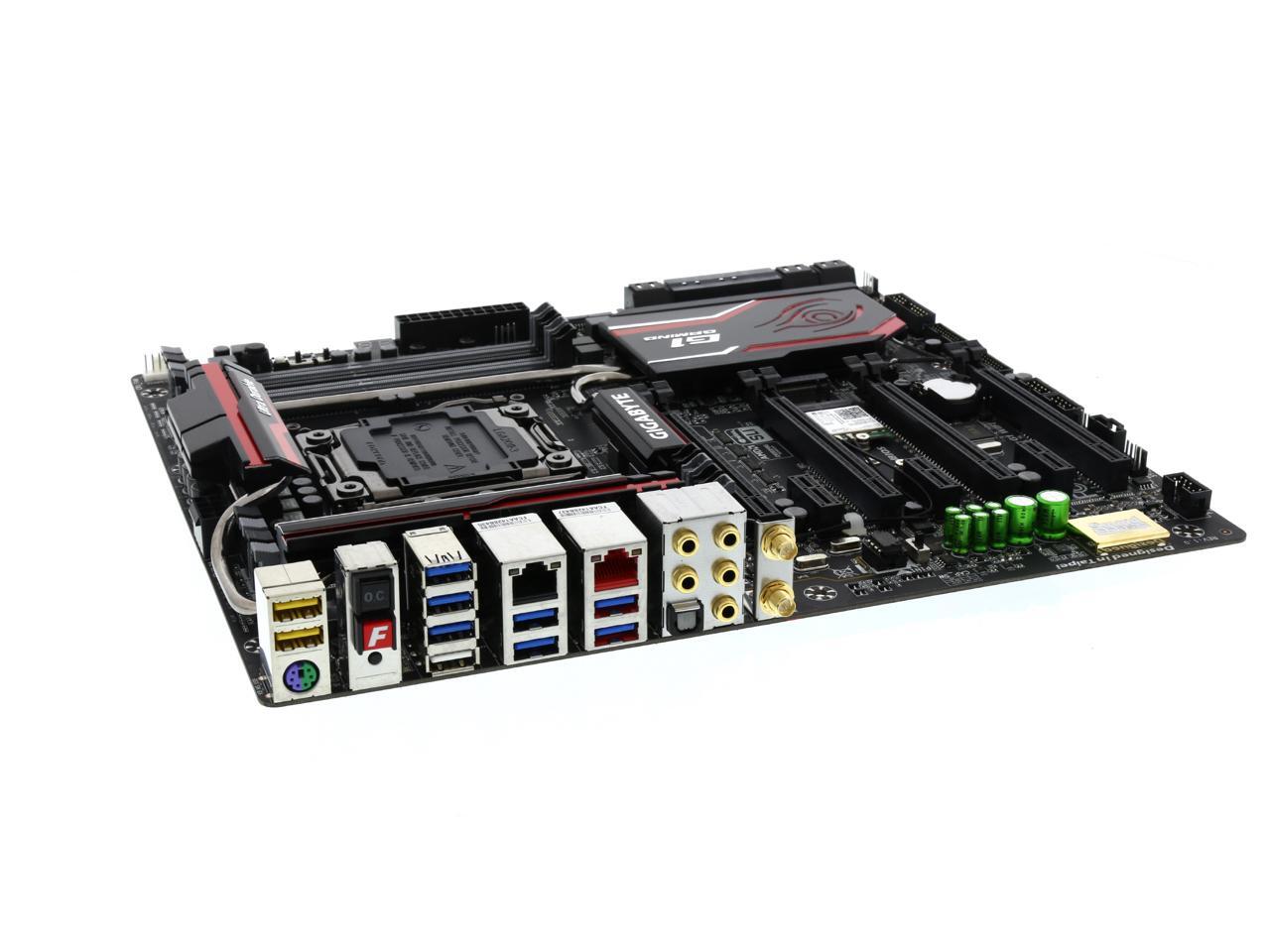

GIGABYTE GA-X99-GAMING G1 WIFI LGA 2011-v3 Intel X99 USB 3.0 Extended ATX Intel Motherboard

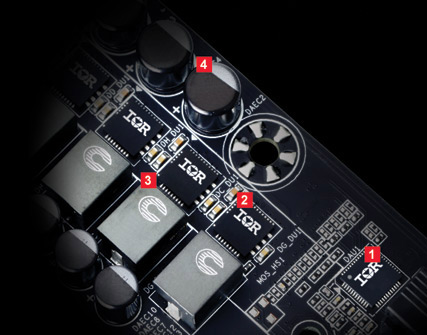

Genuine All Digital Power Design

GIGABYTE X99 Series Motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

IR Digital PWM & IR PowIRstage® ICs

This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.

Server Level Chokes by Cooper Bussmann

GIGABYTE X99 Series Motherboards feature Server Level Cooper Bussmann Chokes.

• Server level reliability
• High current capacity
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.

Long Lifespan Durable Black™ Solid Caps

GIGABYTE X99 Series Motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability, with ultra-low ESR no matter how high the CPU loading.

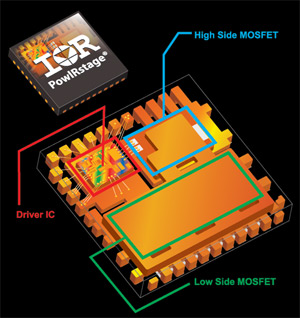

Single Package Design

IR® has leveraged it's world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages.

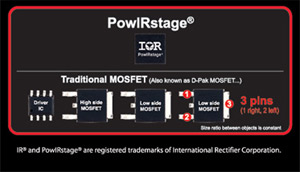

Single Package Design* Vs. Multi-Chip Design

Other MOSFET layout implementations use a multi-chip, side-by-side arrangement of the high and low side MOSFETs and driver ICs, taking up significant board real estate and creating more electrical leakage.

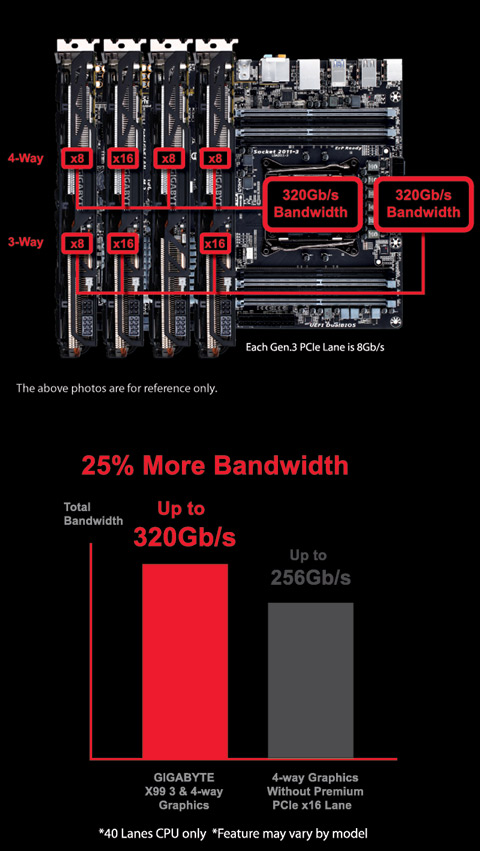

Three-Way / Four-Way Graphics with Premium PCIe x16 Lane Up to *320Gbps Bandwidth

GIGABYTE X99 motherboards feature a unique PCI Express design that utilizes 100% of all 40 lanes from the CPU when in a Four-Way or Three-Way graphics configuration. Standard designs limit all 4 main PCIe lanes to x8 (64Gbps) bandwidth, but thanks to the onboard external clock generator combined with the direct connection of one of the x16 lanes to the CPU (switchless design), GIGABYTE X99 motherboards can unlock the full bandwidth available and provide the best graphics bandwidth possible to the user.

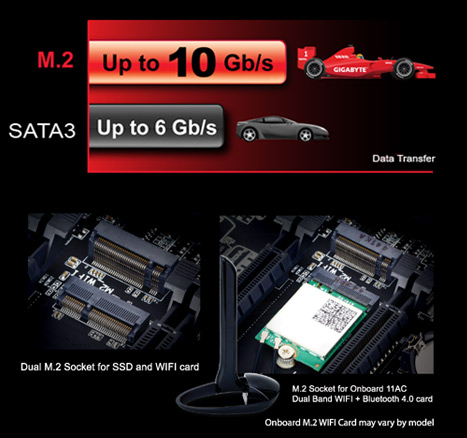

Dual M.2 Technology with Onboard Wi-Fi and Bluetooth 4.0

Fast Data Transfer and Advanced Wi-Fi Networking

GIGABYTE X99 Motherboards featuring Dual M.2 technology provides users PCI-Express connectivity for SSD devices and onboard 11AC Wi-Fi + Bluetooth 4.0. Delivering up to 10Gbps data transfer speeds, M.2 offers considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gbps) storage devices. GIGABYTE's stacked design optimizes the PCB real-estate usage, allowing more components to be efficiently added without compromising any space.

Next Generation SATA Express Connector

GIGABYTE X99 Series Motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gbps, considerably higher than SATA Revision 3 (6Gbps), which won't bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

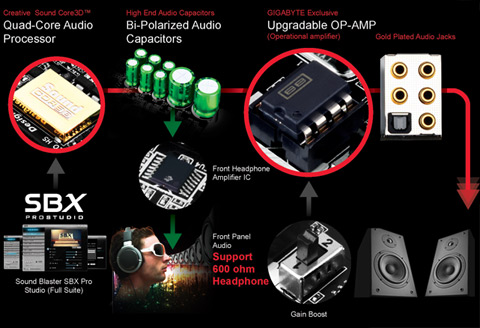

GIGABYTE AMP-UP Audio™ Technology

GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry's highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.

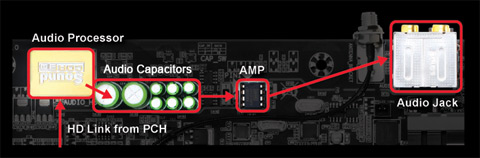

GIGABYTE Direct Audio Route Design

• Shortest route, no wasted trace.
• Less crosstalk & less EMI.
• AMP very close to audio jack for lowest noise.
• Better signal quality and better audio quality.

The shortest route is always the best for audio signals.

The GIGABYTE X99 G1™ Gaming motherboards feature the shortest audio communication paths between each critical component, from chipset to audio jack. This reduces the crosstalk along the way, and the very close proximity of the AMP to the audio jack directly results in lower noise disturbance.

With this high quality audio design, GIGABYTE G1™ Gaming motherboards are able to bring users better signal quality for the absolute best audio experience.

Independent Right and Left Audio Channel PCB Layers

Locating the right and left audio channels on separate PCB layers, GIGABYTE X99 Series Motherboards are able to eliminate channel crosstalk and maintain the best audio quality.

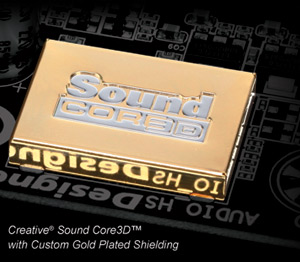

Creative® Sound Core3D™ Quad-Core Audio Processor

• Combining world's first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
• + Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
• + Total solution from Creative (Hardware +Software)
• + Richer overall audio experience

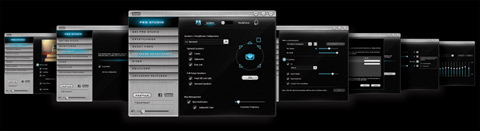

Creative SBX Pro Studio Audio Suite

SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.

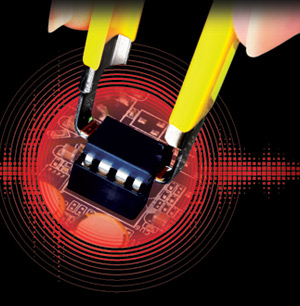

GIGABYTE Exclusive: Upgradable OP-AMP

Customizable

• + Users can choose audio quality based on individual listening preferences.
• + Wide availability of additional OP-AMPs.

Low Cost Way to Dramatically Improve Audio Quality

• + Improve audio dynamics and overall sound-quality with little cost.
• + No need for expensive speakers or high-end audio equipment.

Exclusive Onboard "Gain Boost" Selector Switches

• + Select either standard 2.5X or high-amplification 6X mode.
• + 6x mode is ideal for high impedance speakers and headphones

*IC Extractor not included.

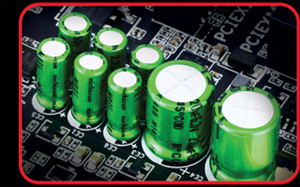

High End Audio Capacitors

GIGABYTE X99 Gaming motherboard uses the highest quality Nichicon high end audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

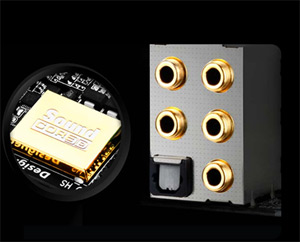

Gold Plated Audio Hardware

GIGABYTE G1™ Gaming motherboards pack top quality gold plated audio connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Creative Sound Core3D™ processor is also shielded by a gold plated cover which eliminates electrostatic interference.

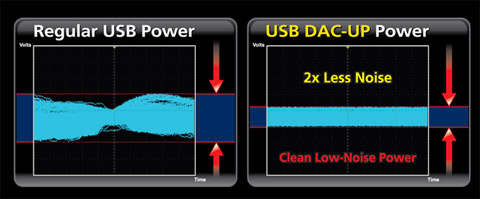

Dual DAC-UP USB Ports

Featuring dual USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

Killer Networking

No Lag, Just Frag!

Select GIGABYTE X99 Series Motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions. The Killer™ E2200 features Advanced Stream Detect technology, which identifies and prioritizes all network traffic to ensure important applications that require high-speed connectivity are prioritized over less important traffic.

Intel® Gigabit LAN

Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

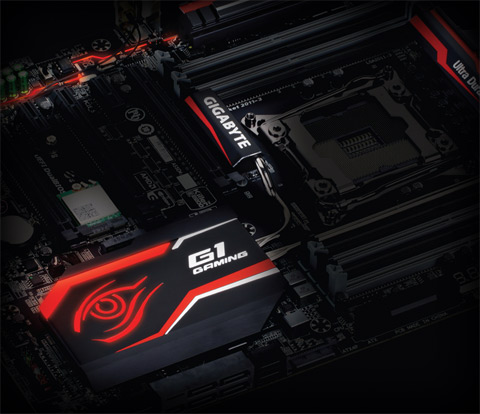

All New Heat Sink with LED Design

GIGABYTE X99 Series Motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE X99 Series Motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.

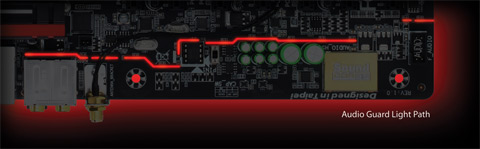

Ambient LED

GIGABYTE X99 Motherboards feature LED lighting for the audio guard light path and the back panel LED, providing a cool, custom look to your rig. These lights are now programmable, so you can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

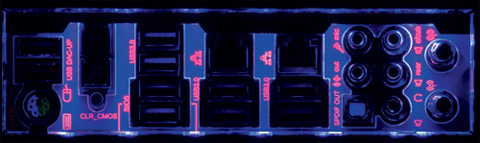

Rear Panel LED

Ambient LED Modes:

• Still Mode – LEDs stay continuously lit.
• Beat Mode – LEDs will blink to the beat of the music played through the audio jack.
• Pulse Mode – LEDs will blink slowly.
• Off – LEDs will be tuned off.

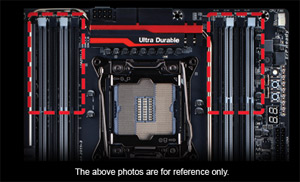

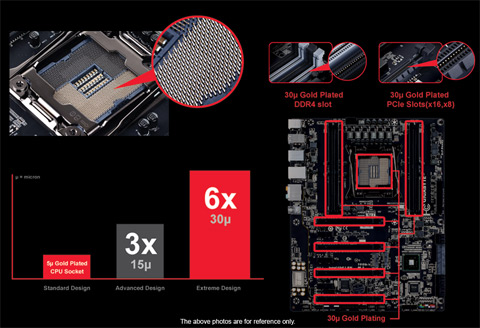

Six Times (30µ) More Gold Plating

GIGABYTE X99 Motherboards come equipped with a 30 micron thick gold plating for the CPU socket, four PCIe slots and over the eight DIMM slots, which means that enthusiasts can enjoy better connectivity, absolute reliability and longevity for the diverse connectors overtime, without having any concerns about corroded pins and bad contacts.

Safer Design Around Screw Mounting Holes

Don't worry anymore about accidental damage while mounting your motherboard to you chassis. GIGABYTE X99 Motherboards all feature a wider copper ground pad and onboard components free area around the PCB screw mounting holes. This exclusive design reduces the chances of damaging any surrounding onboard components during the PC assembly process. Bigger copper ground pads also provide the added benefit of lower EMI disturbance for reduced noise interference across your system.

*The above photos are for reference only.

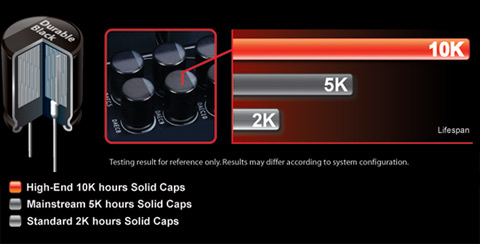

Long Lifespan Durable Black™ Solid Caps

GIGABYTE X99 Series Motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE X99 Series Motherboards.

*The above photos are for reference only.

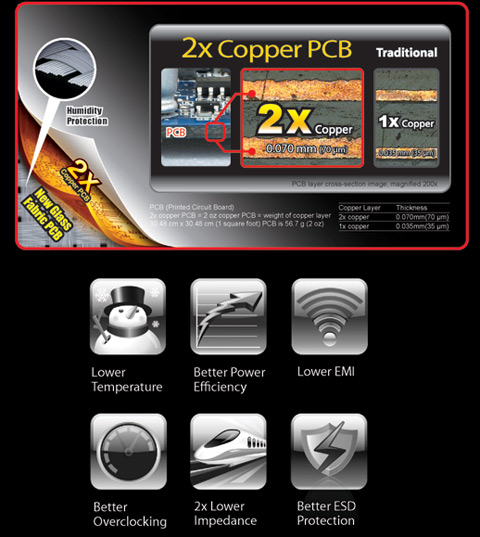

Double the Copper PCB Design (Two-Ounce Copper PCB)

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

GIGABYTE Patented DualBIOS™ With LED Indicators

GIGABYTE DualBIOS™ means that you motherboard has both a "Main BIOS" and a "Backup BIO," making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

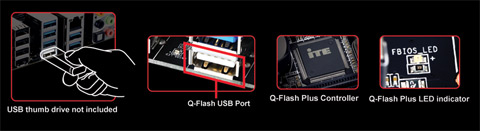

Q-Flash Plus

GIGABYTE Q-Flash Plus Allows Users to Update to the Latest Bios Using a Thumb Drive Without the CPU or Memory Needing to be Installed
Do you have the latest CPU supported by your GIGABYTE motherboard but do not have the latest BIOS installed yet? This is no longer a problem with the new Q-Flash Plus feature. By simply downloading the latest BIOS and renaming it on a USB thumb drive, and plugging it into the dedicated port, you can now flash the BIOS automatically without the need to press any buttons or even the need of onboard memory or CPU. Utilizing the ITE EC 8951E controller, GIGABYTE X99 motherboard BIOS can be updated even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

GIGABYTE Patented DualBIOS™ With LED Indicators

GIGABYTE X99 brings the expandability needed to make your system the ultimate one with an onboard pin header to accommodate the addition of a GIGABYTE Thunderbolt™ add-in card. The Thunderbolt™ controller can provide bandwidth of up to 20 Gbp/s, compared to a max of 10 Gbp/s on previous generation designs. This allows for incredible data transfer speeds when using high performance storage devices, while also supporting daisy-chaining of up to 12 devices and triple digital display support.

* Thunderbolt™ card and cables not included.
** For a list of supported Thunderbolt™ add-in cards, please visit the GIGABYTE website.

Intel® Core™ i7 Extreme Edition CPUs (Haswell-E)

Intel® Core™ i7 Extreme Edition Processors are Intel's first 8 core desktop CPUs and is the first to support DDR4 memory. These next generation 22nm CPUs delivers greater performance and energy efficiency as well as the industry's highest level of discrete graphics performance by sporting 40 PCIe Gen.3 lanes, which GIGABYTE X99 motherboards are able to take full advantage of, delivering bandwidth totaling 320Gbps for the most demanding gamers or graphics intensive creation tasks such as video editing.

On top of that, Intel® Core™ i7 Extreme Edition CPUs deliver 8 core (16 threaded) multitask processing, higher frequencies, as well as larger cache size. Additionally, GIGABYTE X99 users can draw even more performance out of their Extreme Edition CPUs, as they are fully unlocked for overclocking. With enhanced overclocking oriented options available on all GIGABYTE X99 Series Motherboards, users will be able to take full advantage of all the performance potential of Intel Extreme Edition CPUs.

* CPU core count and PCIe bandwidth varies by CPU model.

Four-Channel DDR4

The next generation of DRAM is here with DDR4. Featuring stock frequencies starting at 2133 MHz, DDR4 delivers up to 20% less energy consumption and twice as much density as the previous generation DDR3. DDR4 can help GIGABYTE X99 users to load their programs faster, increase responsiveness of their system and help them to handle heavy data tasks in a flash. GIGABYTE X99 motherboards provide 4 Channel DDR4 memory support across the entire range, bringing exceptionally fast memory access.

GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities

GIGABYTE App Center

The GIGABYTE App Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

Customized the APP Center's look and behavior according to your taste in the Preferences Menu.

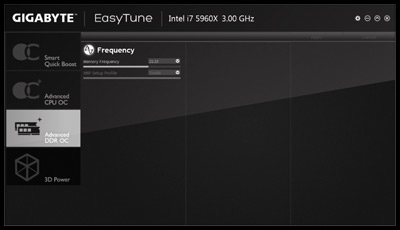

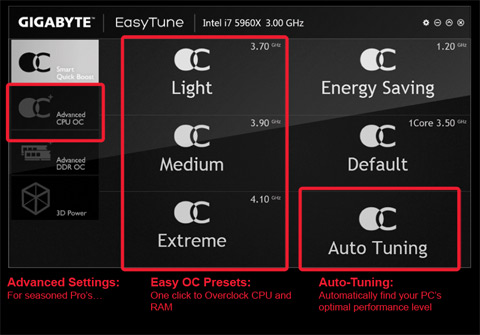

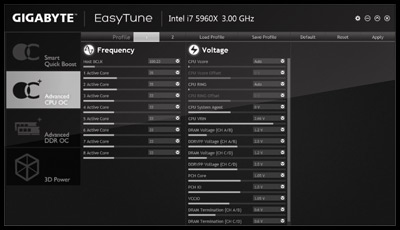

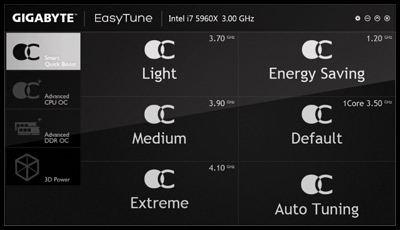

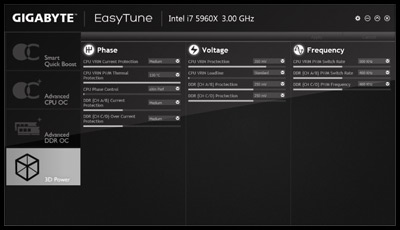

EasyTune™

GIGABYTE EasyTune™ is a simple and easy-to-use Windows-based software application that allows users to fine-tune their system settings.

• Adjust system and memory clocks and voltages in a Windows environment.
• System-related information display without the need to install additional software.

Overclocking Boost Your Frame Rates
Get the most from your PC with easy to use GIGABYTE overclocking features.
