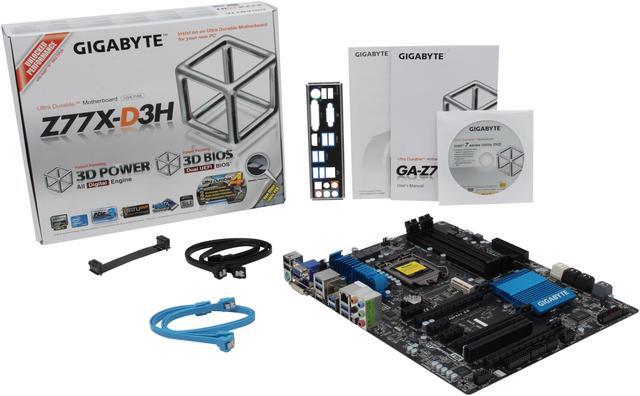

Main image of GIGABYTE GA-Z77X-D3H LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

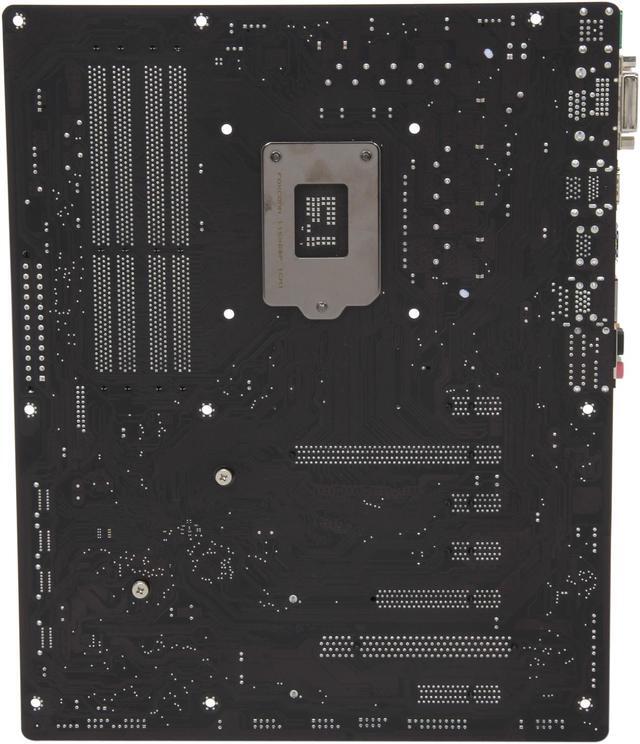

Alt view image 2 of 5 - GIGABYTE GA-Z77X-D3H LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 3 of 5 - GIGABYTE GA-Z77X-D3H LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 4 of 5 - GIGABYTE GA-Z77X-D3H LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Alt view image 5 of 5 - GIGABYTE GA-Z77X-D3H LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Shop All GIGABYTE Products | Visit Smith's Computer Market Store

GIGABYTE GA-Z77X-D3H LGA 1155 Intel Z77 HDMI USB 3.0 ATX Intel Motherboard

Used - Very Good

Intel Z77
Core i7 / i5 / i3 (LGA1155)
DDR3 2400(OC)/1600

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by Smith's Computer Market Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)

Number of Memory Slots	4x240pin
Memory Standard	DDR3 2400(OC)/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	2 (x8, x4)
PCI Express x1	3 x PCI Express x1
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	2 x SATA 6Gb/s (SATA3 0/SATA3 1), 4 x SATA 3Gb/s (SATA2 2~SATA2 5) and 1 x mSATA (The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.) Support for RAID 0, RAID 1, RAID 5, and RAID 10

Audio Chipset	VIA VT2021
Audio Channels	8 Channels

Back I/O Ports	1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 6 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	6 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x mSATA connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header

Model
Brand	GIGABYTE
Model	GA-Z77X-D3H

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Item#: 9SIAWFGKFG5773
