GIGABYTE GeForce RTX 2060 WINDFORCE 6G Graphics Card, 2 x WINDFORCE Fans, 6GB 192-Bit GDDR6, GV-N2060WF2-6GD Video Card

OUT OF STOCK.
  • Powered by GeForce RTX 2060
  • NVIDIA Turing Architecture & Real Time Ray Tracing
  • WINDFORCE 2X Cooling System with Alternate Spinning Fans
  • Intuitive Controls with AORUS Engine
  • Core Clock 1680 MHz
  • 6GB 192-Bit GDDR6
  • 1 x HDMI, 3 x DisplayPort
  • PCI Express 3.0 x16
Overview
Specs
Reviews
GeForce RTX™ 2060 WINDFORCE 6G GV-N2060WF2-6GD

The GIGABYTE RTX 2060 graphics card prepares you for the future of gaming. Powered by the revolutionary NVIDIA Turing architecture and next-gen GDDR6 memory, visuals will have unprecedented realism and graphics settings can be set to the highest. WINDFORCE 2X Cooling System ensures low temperature when the GPU runs at full load. A black metal back plate offers solid protection for the PCB. With AORUS Engine utility, performance tweaking only takes a few clicks.

GIGABYTE GeForce RTX 2060 Coming Through an Orange Triangle Down to the Right

WINDFORCE 2X COOLING SYSTEM

The GIGABYTE GeForce RTX 2060 graphics card's WINDFORCE 2X cooling system features two 100mm unique blade fans, an alternate spinning fan, two composite copper heat-pipes, direct-touch GPU and 3D active fan—which all together deliver extremely effective heat dissipation.

All the Pieces of the GIGABYTE GeForce RTX 2060 Floating Behind One Another, Angled to the Right
GIGABYTE GeForce RTX 2060 Angled Up to the right with Blue Arrows Indicating Fan Airflow

ALTERNATE SPINNING

The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction becomes opposite between the fans, which will cause turbulent airflow and reduce heat-dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing turbulence and enhancing airflow pressure.

The GIGABYTE RTX 2060's Unique Blade Fan with Blue Arrow Graphics Indicating Airflow through the divets

UNIQUE BLADE FAN

Airflow is spilt by the triangular fan edge and guided smoothly through the 3D-stripe curve on the fan surface, effectively enhancing airflow.

The GIGABYTE RTX 2060 3D Active Fan Facing Forward

3D ACTIVE FAN

The 3D active Fan provides semi-passive cooling and the fans will remain off when the GPU is in a low-load or low-power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

Temperature slide with more cold than hot

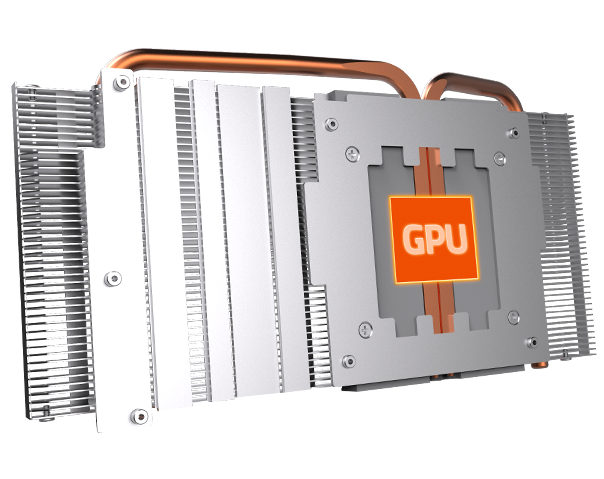

GPU area surrounded by heatpipes and direct-touch heatsink hardware

HEAT-PIPES DIRECT-TOUCH GPU

The shape of the pure-copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal-plate contact to ensure proper cooling.

Graphic Diagram of the Copper Heat Pipe showing its liquid, hollow pipe, axial grooves and sintered powder

COMPOSITE HEAT PIPES

The composite heat pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces, thus increasing cooling capacity.

BUILT STRONG

Ultra Durable VGA 2oz Copper PCB, Solid Capacitor, Metal Choke, Lower RDS (on) MOSFET and Tier 1 Memory

Extreme durability and overclocking

These graphics cards use the 4+2 power phase design to allow the MOSFET to operate at a lower temperature. At the same time, the over-temperature protection design and load balancing for each MOSFET along with the Ultra Durable certified chokes and capacitors all provide excellent performance and longer system life.

Back of the GIGABYTE RTX 2060 Graphics Card

PROTECTION BACKPLATE

The GIGABYTE RTX 2060's backplate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

AORUS Engine Software Windows

IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.

AORUS Engine

This cutting-edge, intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Badges for NVIDIA GeForce RTX, NVIDIA G-SYNC HDR, NVIDIA G-SYNC, Microsoft Direct X 12 and HDMI
