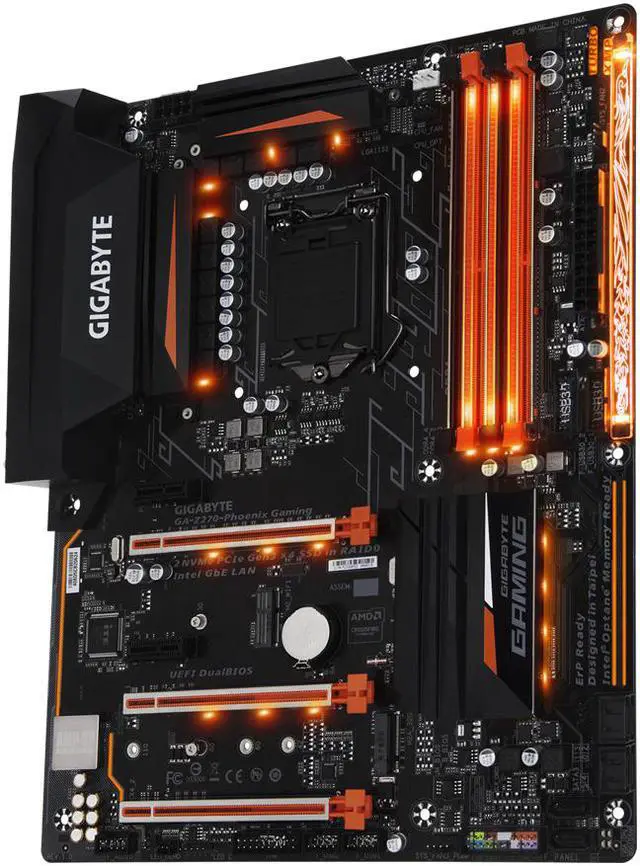

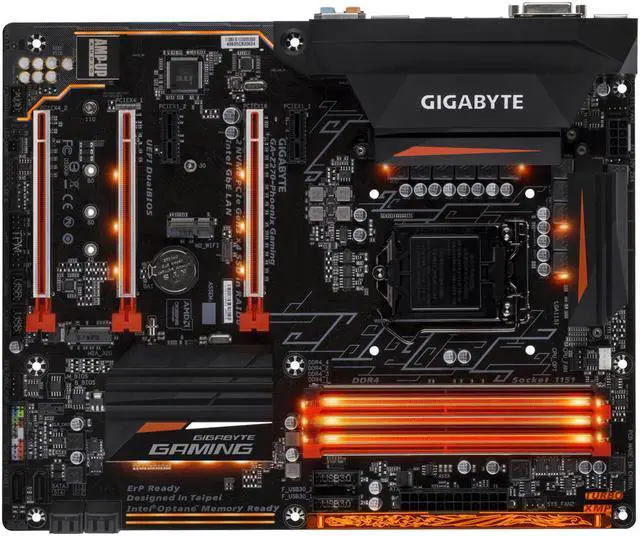

GIGABYTE GA-Z270-Phoenix Gaming Motherboard, Supports Intel 7th/ 6th Generation

Support for 7th and 6th generation Intel® Core i7 processors/ Intel® Core i5 processors/Intel® Core i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information. )
Chipset
Intel® Z270 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3666(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200(O. C. ) / 3000(O. C. ) / 2800(O. C. ) / 2666(O. C. ) / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information. )
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Audio
Realtek® ALC1220 codec
High Definition Audio
2/4/ 5.1 / 7.1 -channel
Support for S/PDIF Out
LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
* The PCIEX4_1 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4_1 slot operates at up to x1 mode when the PCIEX1_1 or PCIEX1_2 slot is populated.
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard. )
1 x M. 2 Socket 1 connector for the wireless communication module (optional) (M2_WIFI)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies
Storage Interface
Chipset:
1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors.
USB
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:

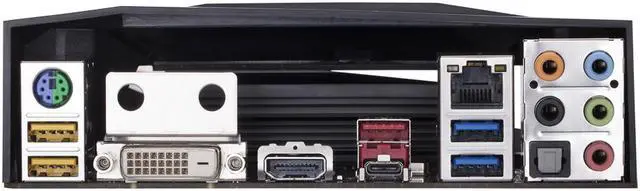

1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0 / 1.1 ports (available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M. 2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front p
