GIGABYTE R282-Z93 AMD EPYC™ 7003 DP Server System - 2U 12-Bay GPU sku

Be the first to review this product...
  • Supports up to 3 x double slot GPU cards
  • NVIDIA-Certified system for scalability, functionality, security, and performance
  • Dual AMD EPYC™ 7003 series processor family
  • Compatible with AMD EPYC 7002 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 12 x 3.5" SATA hot-swappable HDD/SSD bays
  • Ultra-Fast M.2 with PCIe Gen4 x4 interface
  • 5 x PCIe Gen4 x16 expansion slots
  • 1 x OCP 3.0 Gen4 x16 mezzanine slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • Aspeed® AST2500 remote management controller
  • 2000W (240V) 80 PLUS Platinum redundant power supply
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE R282-Z93

Best Seller Ranking #68 in Server Barebones
General
Brand GIGABYTE
Model R282-Z93
Form Factor 2U Rackmount
CPU Supported
CPU Type Supports AMD EPYC 7003 series processor family
Compatible with AMD EPYC 7002 series processor family
CPU Socket Socket SP3
Installed CPU No CPU Installed
Max Processors 2
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Memory Type Supported DDR4 3200
Channel Supported 8 Channel
Storage Supported
Installed HDD No Storage Installed
Serial ATA 9CBP20C4NR-00: 12 x SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
M.2 1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Graphics
GPU/VPU Aspeed AST2500
Expansion Slots
PCI Express Riser Card CRS2014:
- 1 x PCIe x16 slot (Gen4 x16), FHFL

Riser Card CRS2026:
- 2 x PCIe x16 slot (Gen4 x16), FHFL

Riser Card CRS2026:
- 2 x PCIe x16 slot (Gen4 x16), FHFL

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2)
Supported NCSI function
Communications
First LAN Intel I350-AM2
Max. LAN Speed 1 Gigabit
Expansion Bays

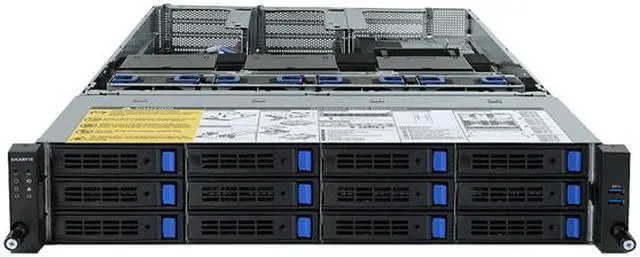

Hot-Swap Bays 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays from onboard SATA ports
2.5" HDD/SSD supported

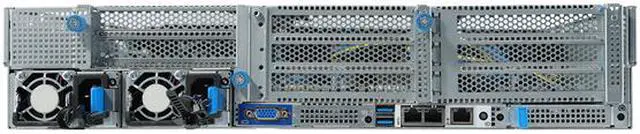

Panel Ports
Front USB 2 x USB 3.0
VGA 1
Rear USB 2 x USB 3.0
RJ45 2 x RJ45
1 x MLAN
Other Ports Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Power Supply
Max. Power 2 x 2000W redundant PSU
80 PLUS Platinum
System
System Compatibility Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later
Environment
Temperature Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight

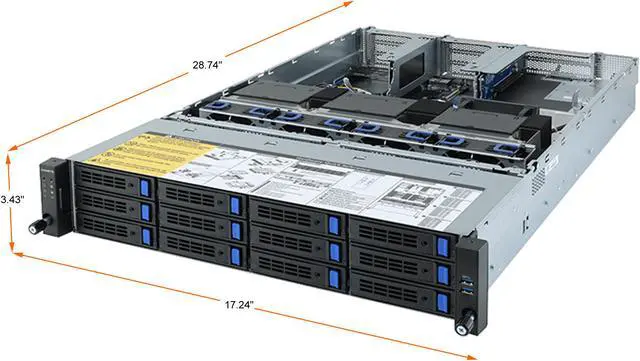

Dimensions 3.43" x 17.24" x 28.74"
Weight 40.79 lbs.
Packaging
Package Contents 1 x R282-Z93 system
2 x CPU heatsinks
1 x Rail kit
