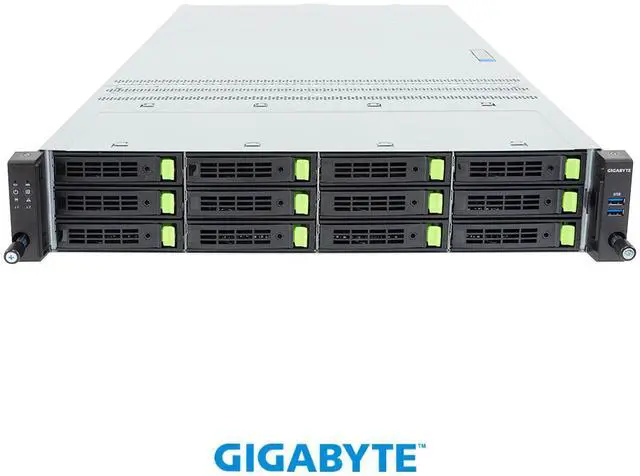

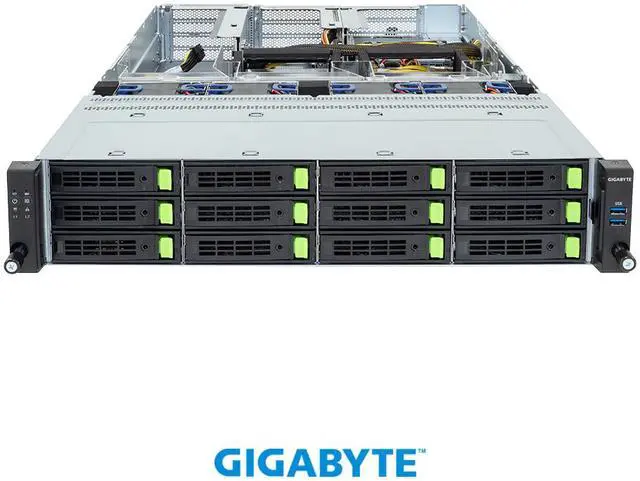

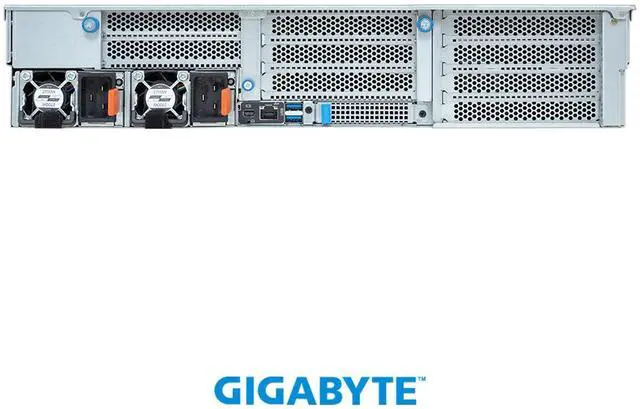

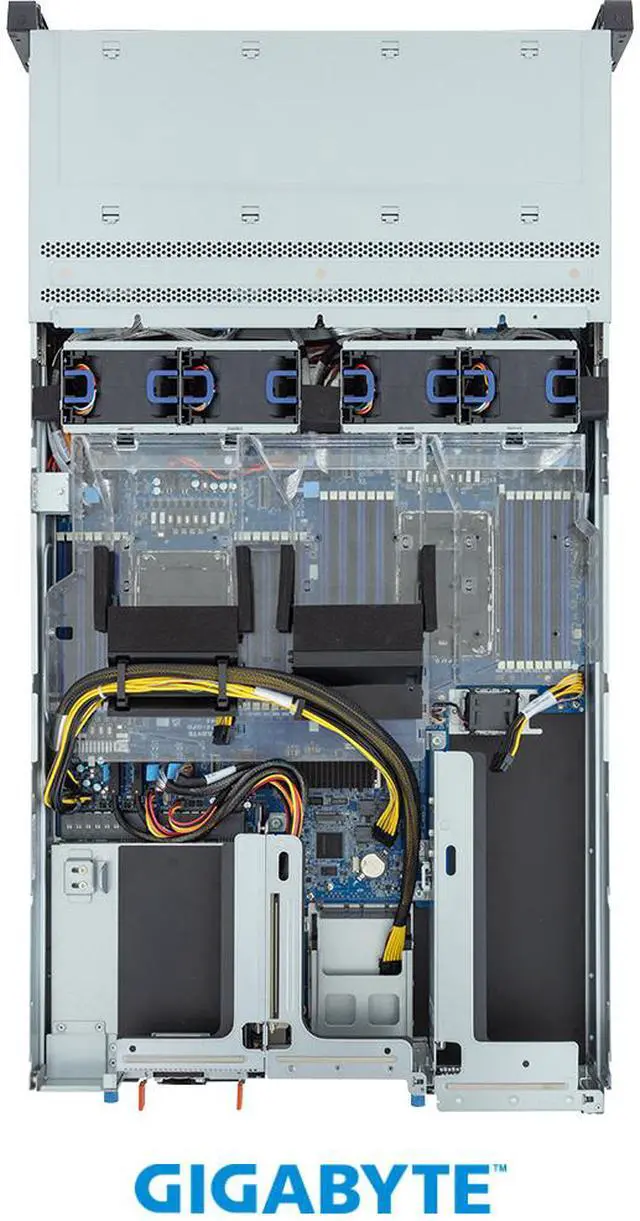

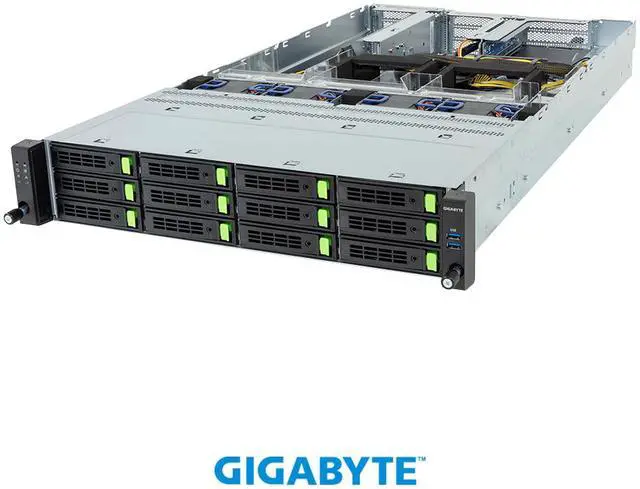

GIGABYTE R284-SF0-AAL1 Rack Server - Intel® Xeon® 6 Processors - 2U DP 4 x PCIe Gen5 GPUs

Be the first to review this product...
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen5 x4 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply
View User Manual Details
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE R284-SF0-AAL1

General
Brand GIGABYTE
Model R284-SF0-AAL1
Form Factor 2U Rackmount
Workload General Purpose Server
CPU Supported
CPU Type Intel Xeon 6 Processors
- Intel Xeon 6700-Series Processors
- Intel Xeon 6500-Series Processors
CPU Socket LGA 4710
Installed CPU No CPU Installed
Max Processors 2
CPU Features Dual processor, TDP up to 350W
Memory Supported
Memory Slots 32 x 288Pin
Installed Memory Size No Memory Installed
Memory Type Supported RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
Channel Supported 8 Channel
Registered Yes
Storage Supported
Installed HDD No Storage Installed
M.2 Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0
Graphics
GPU/VPU Aspeed AST2600
Expansion Slots
PCI Express 4 x FHFL PCIe Gen5 x16 slots for GPUs
1 x FHHL PCIe Gen5 x16 slot
1 x OCP NIC 3.0 PCIe Gen5 x16 slot
Expansion Bays
Hot-Swap Bays Front hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
Panel Ports
Buttons 1 x NMI button
1 x Reset button
LEDs 1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED
Front USB 2 x USB 3.2 Gen1 ports (Type-A)
Audio
DisplayPort 1 x Mini DisplayPort
Panel Ports
Rear USB 2 x USB 3.2 Gen1 ports (Type-A)
Other Ports 1 x MLAN
Power Supply
Max. Power Dual 2700W 80 PLUS Titanium redundant power supply
Cooling
Fans 1 x 40x40x28mm (34,000rpm)
4 x 80x80x56mm (15,500rpm)
Environment
Temperature Operating temperature: 10°C to 30°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight
Dimensions 3.44" x 17.24" x 32.09"
Packaging
Package Contents 1 x R284-SF0-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 100mm)
1 x GPU power cable (12VHPWR, 280mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
4 x Carriers
1 x 2-Section Rail kit
