Brand | GIGABYTE |
---|---|
Model | GV-RX560GAMING OC-4GD |
Chipset Manufacturer | AMD |
---|---|
GPU Series | AMD Radeon RX 500 Series |
GPU | Radeon RX 560 |
Core Clock | OC mode: 1300 MHz Gaming mode: 1287 MHz |
Stream Processors | 1024 Stream Processors |
Effective Memory Clock | 7000 MHz |
---|---|
Memory Size | 4GB |
Memory Interface | 128-Bit |
Memory Type | GDDR5 |
OpenGL | OpenGL 4.5 |
---|
Multi-Monitor Support | 3 |
---|---|

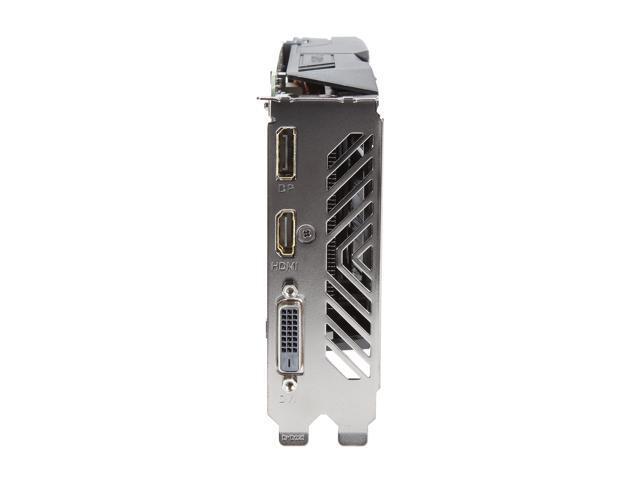

HDMI | 1 x HDMI 2.0b |
DisplayPort | 1 x DisplayPort 1.4 |
DVI | 1 x Dual-link DVI-D |
Max Resolution | 7680 x 4320 |
---|---|
Eyefinity Support | Yes |
CrossFireX Support | Yes |
Cooler | Double Fans |
Thermal Design Power | 90W |
System Requirements | Recommended PSU: 400W |
Recommended PSU Wattage | 400W |
Power Connector | 6-Pin |
Dual-Link DVI Supported | Yes |
Features | Powered by Radeon RX 560 (16CU) Integrated with 4GB GDDR5 128-bit memory WINDFORCE 2X with Blade Fan Design One-click Super Overclocking Supports HDMI 4K@60Hz and DP 8K@60Hz Hardware-accelerated H.265 encode/decode |
---|
Form Factor | ATX |
---|---|
Max GPU Length | 190 mm |
Card Dimensions (L x H) | 7.48" x 4.37" |
Slot Width | Dual Slot |
Date First Available | May 25, 2021 |
---|
Pros: 1024 Stream Processors!! best on the market of RX560 Cards from my research. Good Price considering the Video Card Cost spikes due to crypto mining craze. Dual Fans to keep it cool, not over sized and not too large for a normal mid tower case. Will turn any computer into a gaming machine for an affordable price. All around Great Graphics Card Gigabyte!
Cons: Should have included a 6 PIN power cable, just in case... The card did not come with the needed 6 PIN power cable, luckily i had a 6+2 PCIExpress connector on my power supply.
Overall Review: Play Ark Survival on almost all EPIC settings at 1920x1080 smooth, and beautiful. Plays all my STEAM library Flawlessly. Call of Duty, Left 4 Dead, PUBG, and more... Didn't Cost $400 + dollars or higher.. for nearly same results in gameplay. I would purchase another one for sure!
