GIGABYTE Radeon RX 580 DirectX 12 GV-RX580GAMING-4GD 4GB 256-Bit GDDR5 PCI Express 3.0 x16 CrossFireX Support ATX Video Card

OUT OF STOCK.
  • 4GB 256-Bit GDDR5
  • Boost Clock 1355 MHz (OC Mode) / 1340 MHz (Gaming Mode)
  • 1 x Dual-Link DVI-D 1 x HDMI 2.0 3 x DisplayPort 1.4
  • 2304 Stream Processors
  • PCI Express 3.0 x16
Overview
Specs
Reviews
Radeon RX 580 Gaming 4G
Radeon RX 580 Gaming 4G Radeon RX 580 Gaming 4G Radeon RX 580 Gaming 4G
Radeon RX 580 Gaming 4G
Ready for Battle

Powered by Radeon RX 580, the GIGABYTE Radeon RX 580 Gaming 4G offers extreme gaming horsepower, a host of groundbreaking gaming technologies, and premium VR experiences. Just dominate with a gigantic clock speed of 1355MHz in OC mode and 1340 MHz in gaming mode, and catch the vibe with the cool 16.8M customizable color lighting. WINDFORCE 2X with 90mm Blade Fan Design delivers efficient, quiet cooling while Ultra Durable VGA components ensure premium quality and reliability. Intuitive AORUS Graphics Engine makes overclocking only a click away.

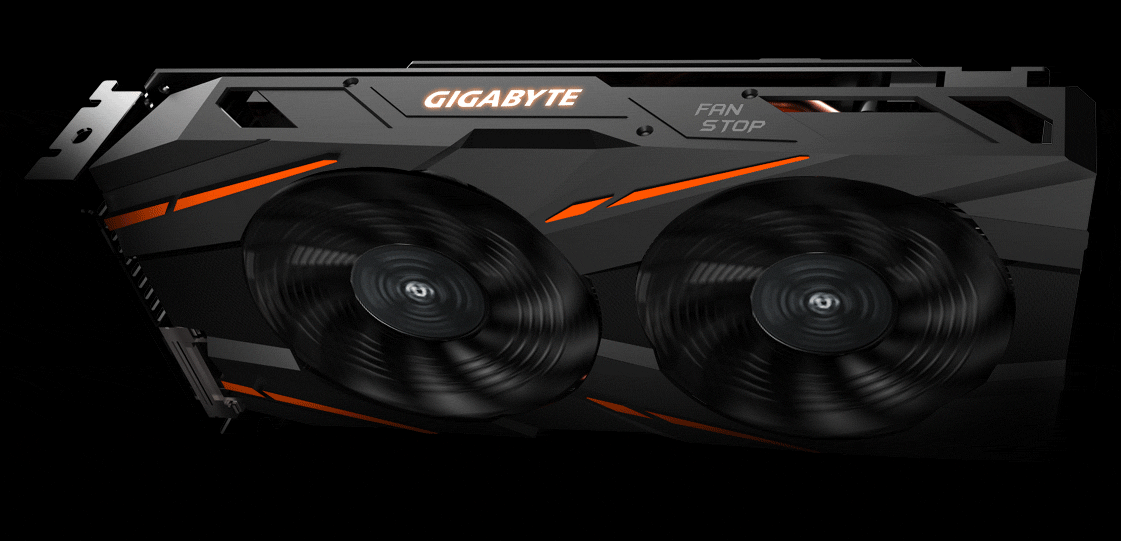

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X COOLING SYSTEM

The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, and stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

Radeon RX 580 Gaming 4G
  • 1. Back side cooling module
  • 2. 90mm blade fans
  • 3. Front side cooling module
Radeon RX 580 Gaming 4G
90MM UNIQUE BLADE FAN DESIGN

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.

Radeon RX 580 Gaming 4G
3D ACTIVE FAN WITH LED INDICATORS

The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

Radeon RX 580 Gaming 4G
COMPOSITE HEAT-PIPES

The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Radeon RX 580 Gaming 4G
3 HEAT-PIPES DIRECT TOUCH

The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

Radeon RX 580 Gaming 4G
GAME IN STYLE
RGB Fusion 16.7M Customizable Color Lighting

With 16.7M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics Engine.

Radeon RX 580 Gaming 4G
Radeon RX 580 Gaming 4G
CYCLING

Smoothly cycles through all colors

Radeon RX 580 Gaming 4G
CONSISTENT

Choose a color for static light

Radeon RX 580 Gaming 4G
FLASH

Choose a color for flash effect

Radeon RX 580 Gaming 4G
DUAL FLASH

Choose a color for double flash effect

Radeon RX 580 Gaming 4G
BREATHING

Choose a color to fade in and out

BUILT STRONG
Radeon RX 580 Gaming 4G
STYLISH METAL BACK PLATE

The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Radeon RX 580 Gaming 4G
BUILT FOR OVERCLOCKING WITH 6+2 POWER PHASES

Compared to reference design(6+1), the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.

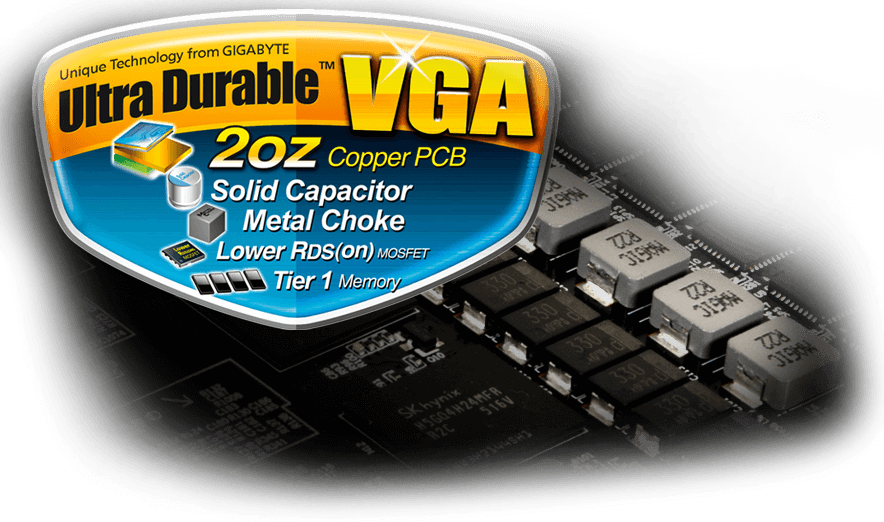

ULTRA DURABLE MATERIALS

Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Radeon RX 580 Gaming 4G
SMART POWER LED INDICATORS

Be alert when PCI-E voltage is unstable with the smart power LED indicator.

  • LED ON: power cable disconnected
  • LED OFF : stable power supply
  • Blinking LED: abnormal power supple
IN TOTAL COMMAND
Hyper 212 LED Turbo

(* The interface and functionality of the software is subject to each model.)

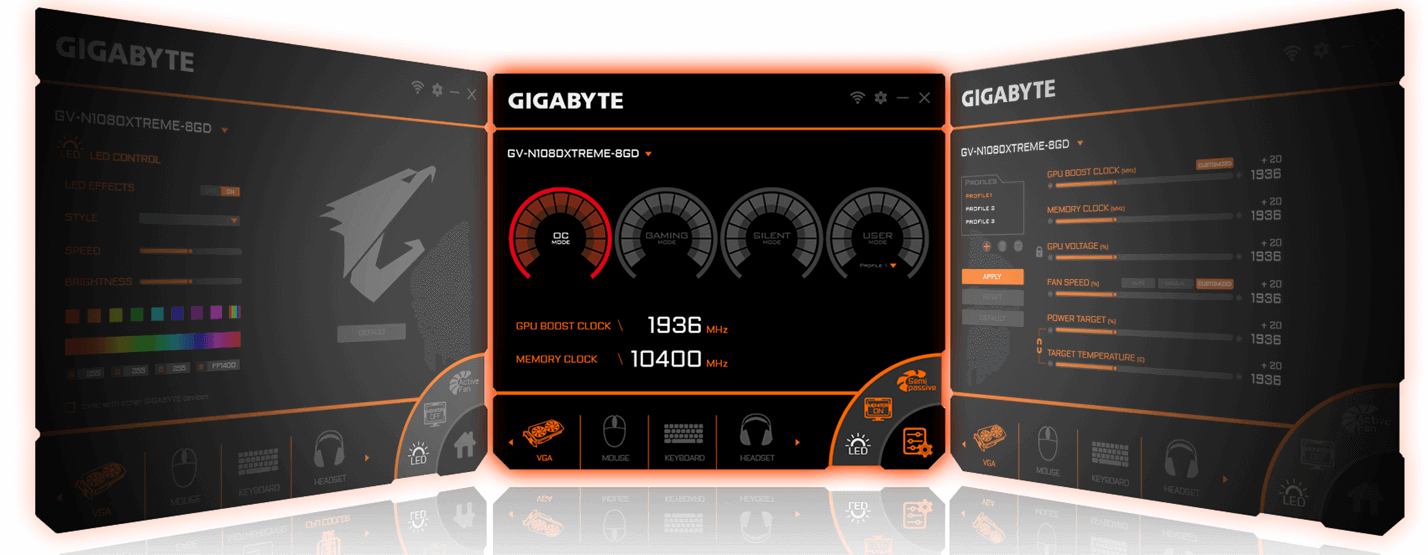

AORUS Graphics Engine

The cutting edge intuitive interface allows you to tune the clock speeds, voltage, fan performance, and power target in real-time according to your own gaming requirement.

Radeon RX 580 Gaming 4G

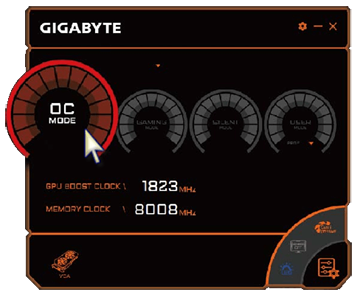

One-click Overclocking

With a simple click on AORUS Graphics engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Radeon RX 580 Gaming 4G

No stuttering. No tearing. Just gaming. Radeon FreeSync technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.

Radeon RX 580 Gaming 4G

Radeon FreeSync 2 technology, next generation Radeon Display technology, is the first of its kind that combines HDR support with dynamic refresh rate technology, and does it in a seamless, plug-and-play manner that improves gaming quality automatically when the right content is present.

Radeon RX 580 Gaming 4G

Capture, stream and share your greatest gaming moments and gaming wins with Radeon ReLive. Great new features include chat integration, transparent backgrounds, windowed mode capture and separate audio track capabilities. Reliving the excitement of your gaming moments just got simpler, seamless, and more engaging.

Radeon RX 580 Gaming 4G

Take your gameplay to the next level by fine-tuning your GPU voltage, engine clocks, memory clocks, fan speed and temperature through Radeon WattMan. It is Radeon Graphics’ sophisticated power management utility. Save, load and share custom Radeon WattMan profiles to quickly and easily optimize performance or create a personalized gaming experience

Radeon RX 580 Gaming 4G

Radeon Chill utility dynamically regulates framerate based on your in-game movements, now supporting countless games. Designed to save power, lower temperature, and increase battery life, Radeon Chill enables high performance graphics when you battle and saves power when you explore.

Radeon RX 580 Gaming 4G Radeon RX 580 Gaming 4G Radeon RX 580 Gaming 4G Radeon RX 580 Gaming 4G Radeon RX 580 Gaming 4G
Note:

Product specifications and product appearance may differ from country to country.
