    GIGABYTE X570 AORUS PRO WIFI AM4 AMD X570 ATX AMD Motherboard

    REFURBISHED Product Type
    (2) Write a Review
    • AMD X570
    • Supports AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / 3rd Gen Ryzen / 2nd Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / Ryzen with Radeon Vega Graphics Processors
    • 3rd Generation AMD Ryzen processors:
    • Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    • 2nd Generation AMD Ryzen processors / AMD Ryzen with Radeon Vega Graphics processors:
    • Support for DDR4 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (2)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE X570 AORUS PRO WIFI

    Model
    Brand GIGABYTE
    Model X570 AORUS PRO WIFI
    Supported CPU
    CPU Socket Type AM4
    CPU Type Supports AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / 3rd Gen Ryzen / 2nd Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics / Ryzen with Radeon Vega Graphics Processors
    Chipsets
    Chipset AMD X570
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard 3rd Generation AMD Ryzen processors:
    Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    2nd Generation AMD Ryzen processors / AMD Ryzen with Radeon Vega Graphics processors:
    Support for DDR4 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    ECC Supported ECC memory (ECC mode) support varies by CPU
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 4.0 x16 3 x PCI Express 4.0 x16*

    * Actual support may vary by CPU.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors and PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
    * For 3rd Generation AMD Ryzen processors only.
    Storage Devices
    Serial ATA (SATA) 6 x SATA 6Gb/s
    M.2 Integrated in the CPU (M2A_SOCKET):
    - AMD Ryzen 5000 Series/ 3rd Gen Ryzen Processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    - AMD Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

    Integrated in the Chipset (M2B_SOCKET):
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support)
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Onboard Audio
    Audio Chipset Realtek ALC1220-VB
    * The back panel line out jack supports DSD audio.
    Audio Channels 2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Onboard LAN
    LAN Chipset Intel GbE LAN chip
    Max LAN Speed 1Gbps
    Wireless LAN Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
    Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    Bluetooth BLUETOOTH 5.0

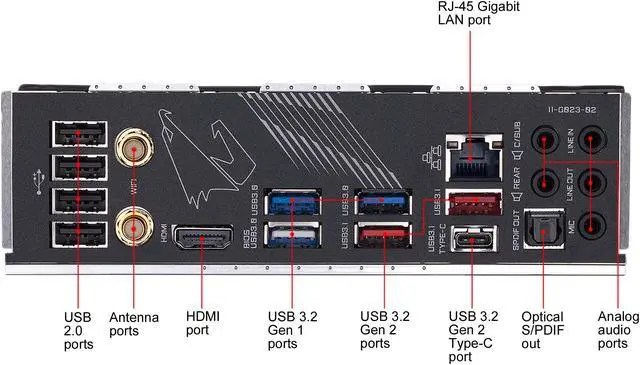

    Rear Panel Ports
    Back I/O Ports 2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    1 x USB Type-C port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
    * For 3rd Generation AMD Ryzen processors only.
    1 x USB 3.2 Gen 2 Type-A port (red)
    3 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    5 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 1 headers
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x CPU cooler LED strip/RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    Software Feature
    Windows 11 Supported
    Features
    Features Multi-Graphics Technology:
    Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
    Note: For 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors only.

    I/O Controller:
    iTE I/O Controller Chip

    H/W Monitoring:
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    BIOS:
    2 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    Support for DualBIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install

    Bundled Software:
    Norton Internet Security (OEM version)
    cFosSpeed
    XSplit Gamecaster + Broadcaster (12 months license)

    Operating System:
    Support for Windows 10 64-bit
    Additional Information
    Date First Available May 21, 2025
