Best Seller Ranking | #57 in AMD Motherboards |
---|
Brand | GIGABYTE |
---|---|

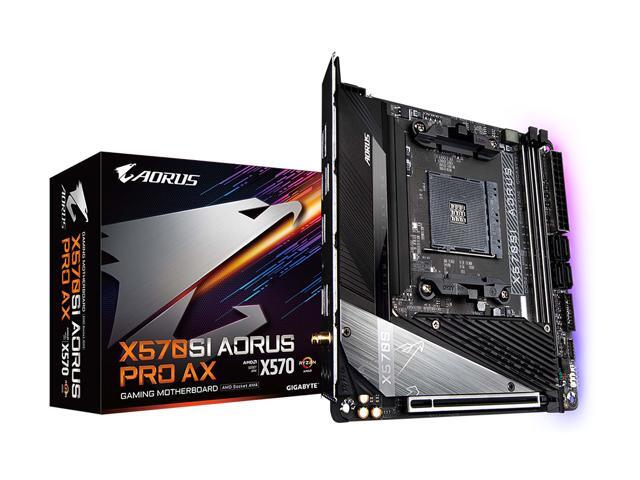

Model | X570SI AORUS PRO AX (rev. 1.1) |
CPU Socket Type | AM4 |
---|---|
CPU Type | Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors |
Chipset | AMD X570 |
---|
Number of Memory Slots | 2x288pin (DDR4) |
---|---|
Memory Standard | DDR4 5300(OC) / 5200(OC) / 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(O.C) / 3400(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
ECC Supported | ECC memory (ECC mode) support varies by CPU. |
Buffer Supported | Un-buffered |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
---|---|
Other Slots | 1 x M.2 Socket 1 connector, integrated in the CPU, for the wireless communication module (M2_WIFI) |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | 1 x M.2 connector (M2A_SOCKET), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000 Series/3000 Series Processors: support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors: support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SOCKET), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs (Note) For AMD Ryzen 5000 Series/3000 Series Processors only. |
SATA RAID | 0/1/10 |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
---|
Audio Chipset | Realtek ALC1220-VB |
---|---|
Audio Channels | 7.1 Channels * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN Chipset | Intel 2.5GbE LAN chip |
---|---|
Max LAN Speed | 10/100/1000/2500Mbps |
Wireless LAN | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1) WIFI a,b,g,n,ac,ax |
Bluetooth | Bluetooth 5.2 |
Back I/O Ports | 1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
---|
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
---|---|
Other Connectors | 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
Form Factor | Mini ITX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 6.7" x 6.7" |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
Date First Available | February 08, 2022 |
---|
Pros: - Efficient VRM design with large heatsinks connected by a thick heatpipe - no chipset fan - USB Type-C internal header, unlike Gigabyte's other X570 and B550 ITX motherboards - Intel 2.5 GbE LAN - rev. 1.1 has WiFi 6E (AMD RZ608 (MT7921K))
Cons: - Has too many video ports (2 HDMI 2.1, 1 DisplayPort 1.4) and not enough USB ports - 2 of the 3 fan headers are tiny and require short adapters that need to pass under the graphics card to be used - I would prefer the WiFi 6E to be an Intel device (AX211) - no optical out for audio - The front M.2 slot has a thick solid block of metal as a heat spreader. This is connected along its sides and covered, but with a small airgap, to the second half of the VRM/Chipset heatsink I may replace the metal block heat spreader with a finned heatsink and compare the M.2 temperatures
Overall Review: Mini-ITX is almost always a compromise, but this motherboard has most of the main features people people are looking for. I am surprised that there are so few articles and reviews about this model. It has been difficult to find until recently, which is too bad since this is nearly the end of the AM4 socket era. This motherboard is be a perfect foundation to upgrade my son's 5 (6?) year-old gaming computer. I'm still assembling parts, but so far it's successfully run Memtest86 twice through 4 passes (several hours to complete) on my G.Skill 2x16GB Samsung B-die at 3800 MTs with FCLK 1900 MHz.
