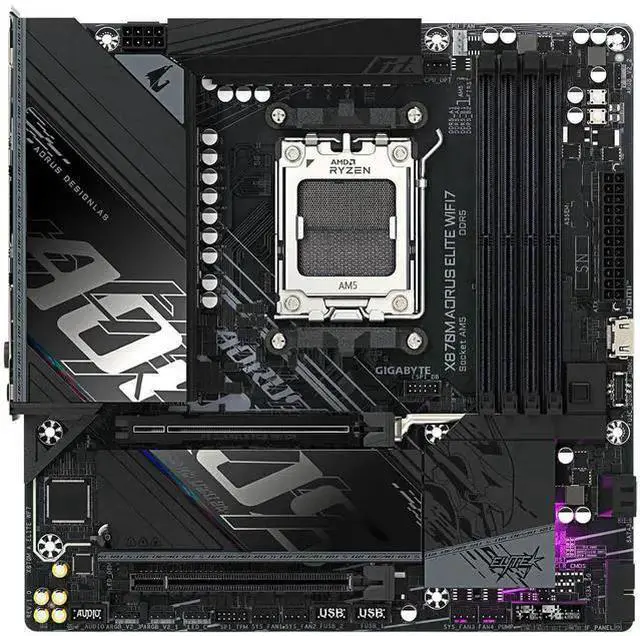

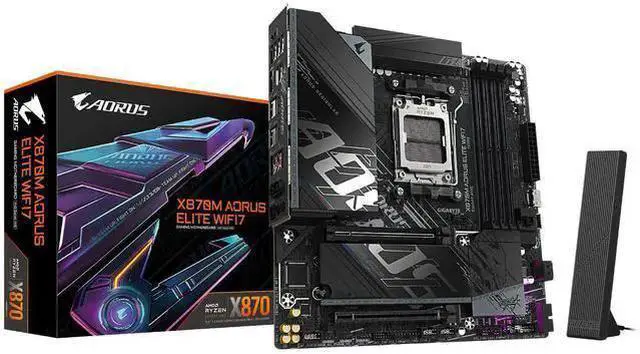

Gigabyte AMD X870M AORUS ELITE WiFi7 motherboard AM5 DDR5 Micro ATX M.2 PCIe
REFURBISHED Product Type
- ONLY OPEN BOX
- X3D Turbo Mode:Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5:Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPOMemory Module Support
- WIFI EZ-Plug:Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI:Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage:2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking:2.5GbE LAN & Wi-Fi 7

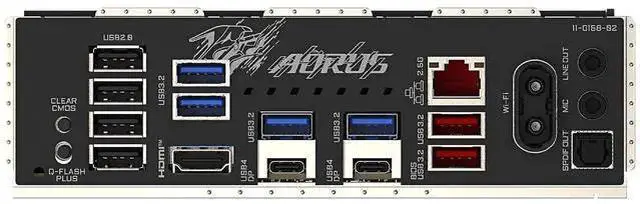

- Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI mode will help you find out quickly.
Try me now
- CPU
- AMD Socket AM5, support for:
- AMD Ryzen 9000 Series Processors/
- AMD Ryzen 8000 Series Processors/
- AMD Ryzen 7000 Series Processors
- (Go to GIGABYTE's website for the latest CPU support list.)
- Chipset
- AMD X870
- Memory
- Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
- Onboard Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller:
- - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
- * Support for DisplayPort 1.4 version and HDR.
- Integrated Graphics Processor with AMD Radeon Graphics support:
- - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
- ** Support for native HDMI 2.1 TMDS compatible ports.
- - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
- * Support for HDMI 1.4 version.
- (Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® ALC1220 CODEC
- * The back panel line out jack supports DSD audio.
- High Definition Audio
- 2/4/5.1/7.1-channel
- * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication module
- Realtek® Wi-Fi 7 RTL8922AE
- - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- - BLUETOOTH 5.4
- - Support for 11be 160MHz wireless standard
- (Actual data rate may vary depending on environment and equipment.)
- * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
- ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
- *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
- Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors
