The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

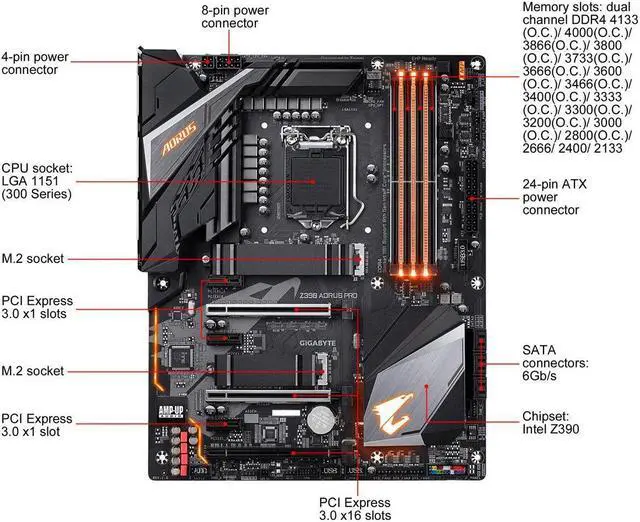

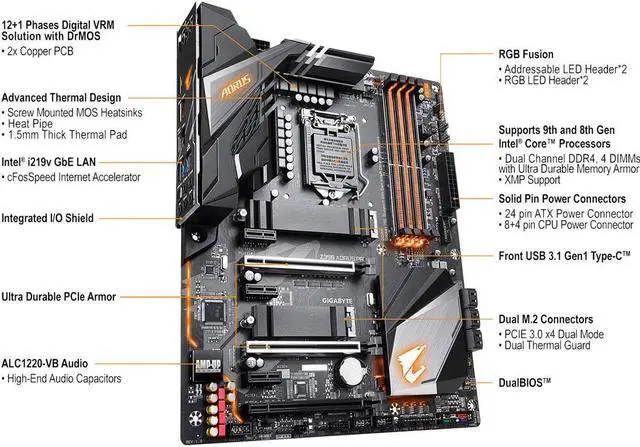

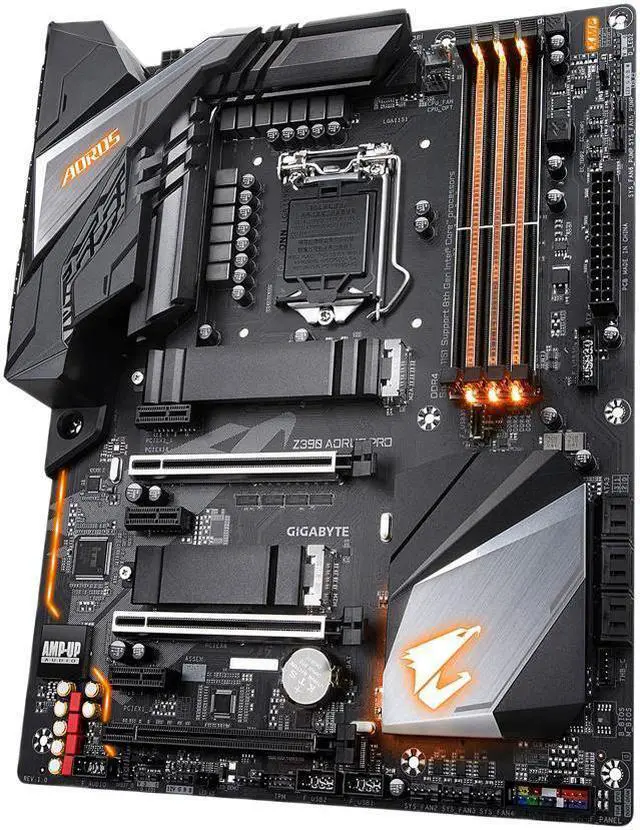

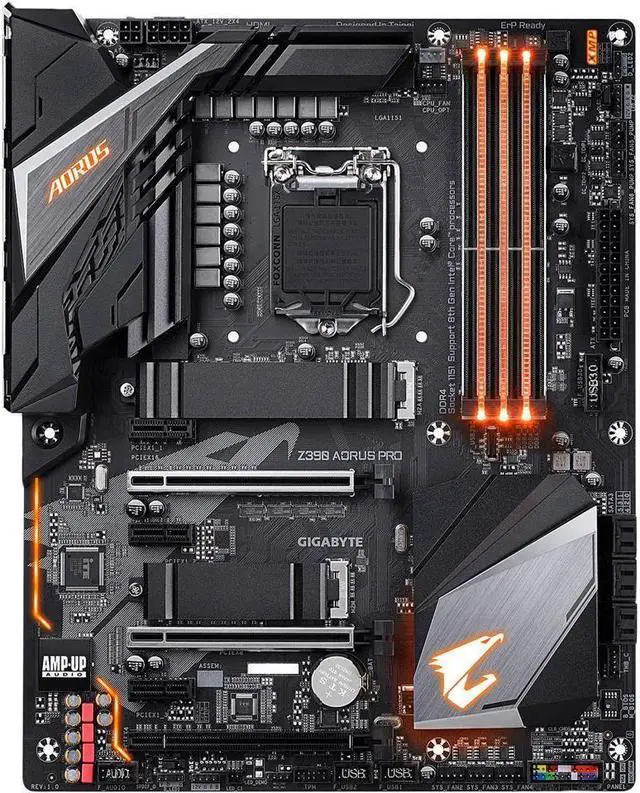

Learn more about the GIGABYTE Z390 AORUS PRO
Model
Brand
GIGABYTE
Model
Z390 AORUS PRO
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset
Intel Z390
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor - Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.2.
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1
3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio.
Audio Channels
2/4/5.1/7.1-channel Support for S/PDIF Out
Onboard LAN
LAN Chipset
Intel GbE LAN chip
Max LAN Speed
1Gbps

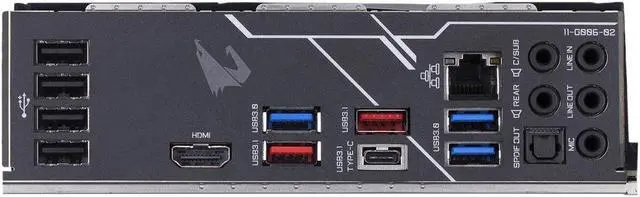

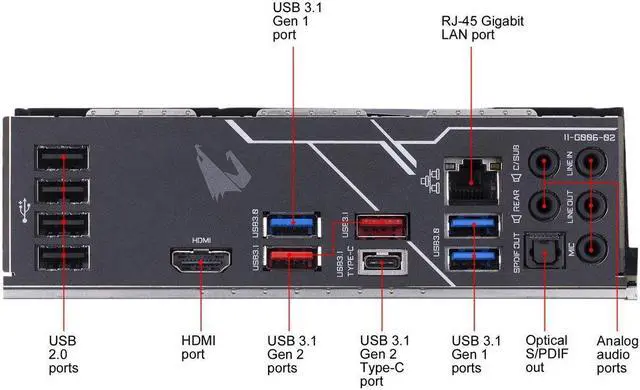

Rear Panel Ports
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
2 x USB 3.1 Gen 2 Type-A ports (red) 3 x USB 3.1 Gen 1 ports
USB 1.1/2.0
4 x USB 2.0
USB Type-C
1 x USB Type-C port, with USB 3.1 Gen 2 support
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
1 x USB Type-C port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers
Software Feature
Windows 11
Supported
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector
Features
Features
Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
I/O Controller: iTE I/O Controller Chip
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer Smart Survey USB Blocker Support for Q-Flash Support for Xpress Install
Bundle Software: Norton Internet Security (OEM version) cFosSpeed
Operating System: Support for Windows 10 64-bit
