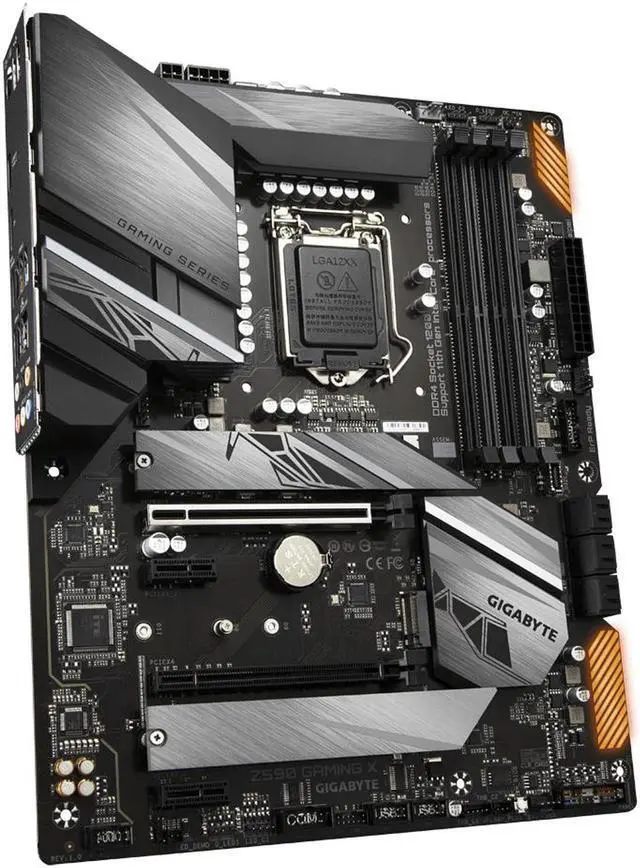

Main image of GIGABYTE Z590 GAMING X LGA 1200 Intel Z590 SATA 6Gb/s ATX Motherboard

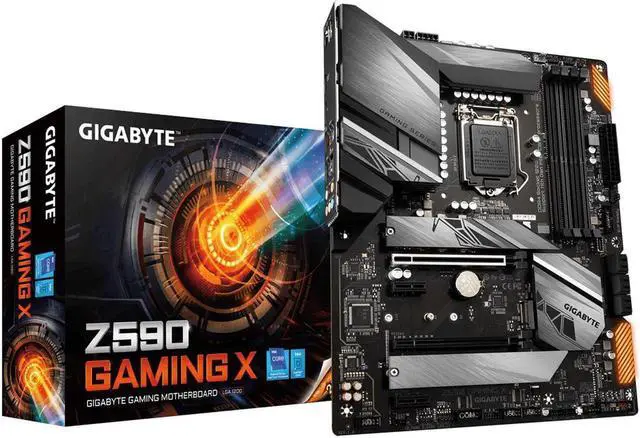

Alt view image 2 of 4 - GIGABYTE Z590 GAMING X LGA 1200 Intel Z590 SATA 6Gb/s ATX Motherboard

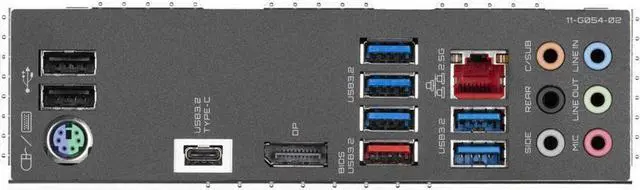

Alt view image 3 of 4 - GIGABYTE Z590 GAMING X LGA 1200 Intel Z590 SATA 6Gb/s ATX Motherboard

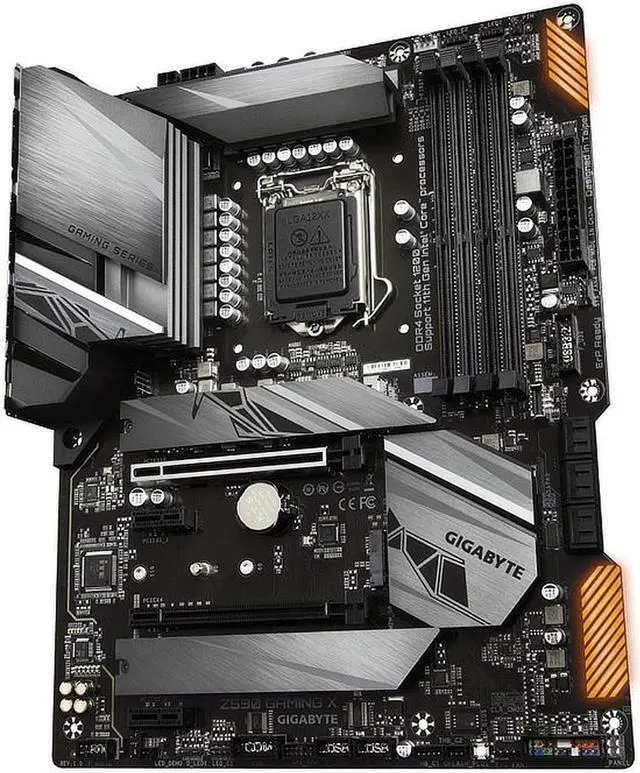

Alt view image 4 of 4 - GIGABYTE Z590 GAMING X LGA 1200 Intel Z590 SATA 6Gb/s ATX Motherboard

Shop All GIGABYTE Products | Visit KeyComponents Store

GIGABYTE Z590 GAMING X LGA 1200 Intel Z590 SATA 6Gb/s ATX Motherboard

REFURBISHED

Supports 11th and 10th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Fast 2.5GbE LAN with Bandwidth Management
Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports 11th and 10th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Fast 2.5G bE LAN with Bandwidth Management
Triple Ultra-Fast NVMe PCIe 4.0 */ 3.0 x4 M. 2 with Thermal Guards
Rear USB 3.2 Gen2 Type-C and Front USB 3.2 Gen1 Type-C for Connecting Devices
Pre-installed IO Shield for Easy and Quick Installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by KeyComponents Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1200
CPU Type	Supports 11th Generation Intel Core i9 / Intel Core i7 / Intel Core i5 processors Supports 10th Generation Intel Core i9 / Intel Core i7 / Intel Core i5 / Intel Core i3 / Intel Pentium / Intel Celeron processors* * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.)/ 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

PCI Express x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1	2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB)
SATA RAID	0/1/5/10

Audio Chipset	Realtek Audio codec High Definition Audio
Audio Channels	7.1 Channels

Meet Your Seller

GIGABYTE Z590 GAMING X LGA 1200 Intel Z590 SATA 6Gb/s ATX Motherboard

Refurbished

Learn more about the GIGABYTE Z590 GAMING X

Customer Reviews of the GIGABYTE Z590 GAMING X

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector
