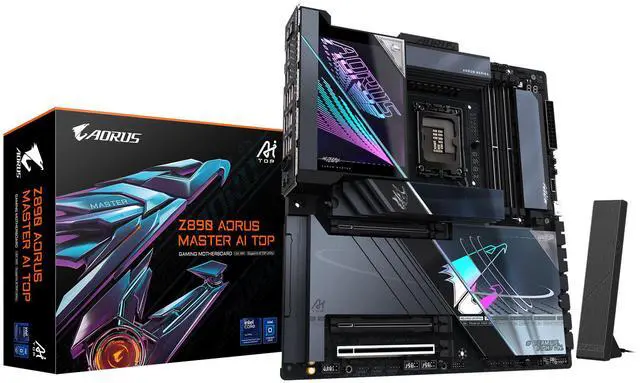

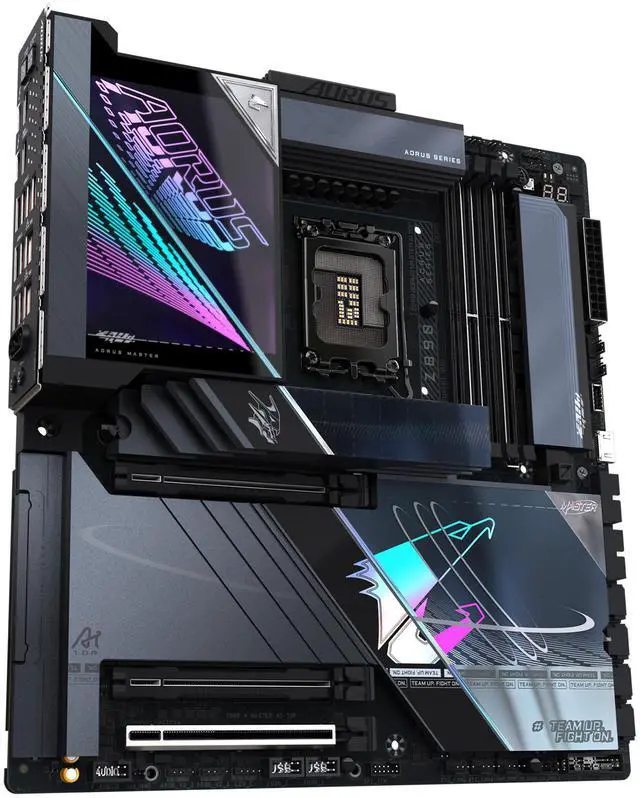

GIGABYTE Z890 AORUS MASTER AI TOP Intel Core Ultra (Series 2) LGA 1851 Motherboard, E-ATX, DDR5, 4x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 10GbE LAN, EZ-Latch
OPEN BOX Product Type
- Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 4*DIMMs with XMP Memory Module Support
- Power Design: 20+1+2, 110A Smart Power Stage
- Thermals: VRM Thermal Armor Advanced, M.2 Thermal Guard
- Connectivity: PCIe 5.0, 4x M.2 Slots, Dual Thunderbolt 4, Front USB-C
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug, EZ-Debug Zone
- Networking: WIFI7, 10GbE LAN
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE Z890 AORUS MASTER AI TOP
| Brand | GIGABYTE |
|---|---|
| Model | Z890 AORUS MASTER AI TOP |
| CPU Socket Type | LGA 1851 |
|---|---|
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 Express |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200 / DDR5 9333 / DDR5 9466 / DDR5 9500 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| PCI Express 5.0 x16 | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) |
|---|---|
| PCI Express 4.0 x16 | Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio Chipset | ESS ES9280 chip (rear panel audio) - Support for DTS:X Ultra - High Definition Audio - 2-channel ESS ES9118 DAC chip (front panel audio) |
|---|
| LAN Chipset | 2 x Marvell AQtion AQC113C 10GbE LAN chips |
|---|---|
| Max LAN Speed | 2 x 10Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |

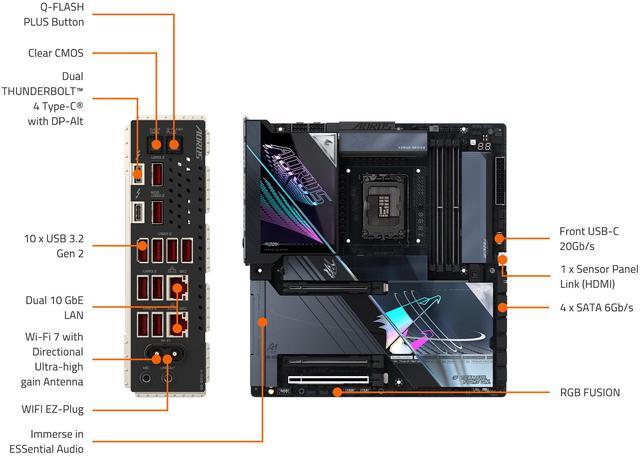

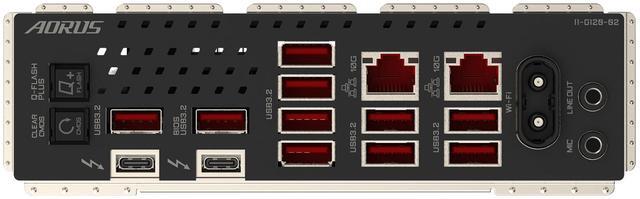

| Back I/O Ports | 1 x Q-Flash Plus button 1 x OC Ignition button 2 x Intel Thunderbolt 5 connectors (USB Type-C ports) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU. |
| BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|---|
| Windows 11 | Windows 11 64-bit |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 11.2" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|---|
| Date First Available | June 13, 2025 |
|---|
