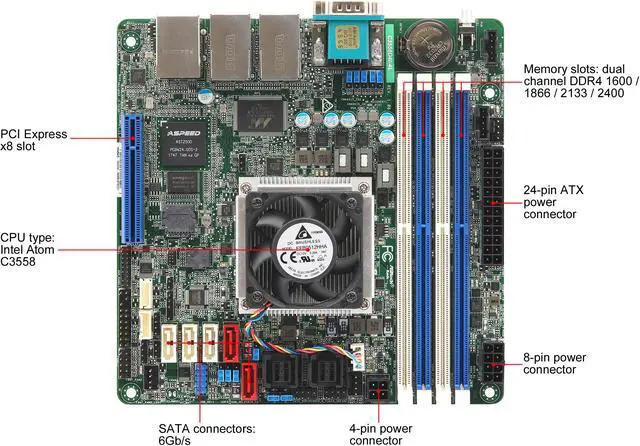

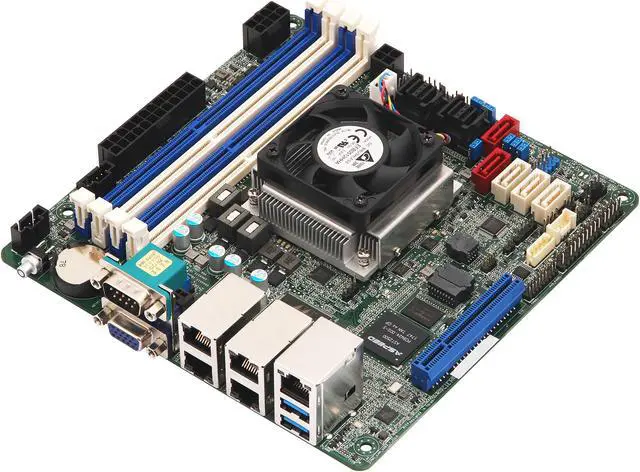

ASRock Rack C3558D4I-4L Mini ITX Server Motherboard 4 core SOC
- Mini ITX 6.7" x 6.7"
- Support Intel Atom Processor C3558: 4core, 16W
- Support 4 x DIMM Slots, DDR4 1866/2133/2400 Dual-channel Max. 128 GB UDIMM, Non-ECC, ECC DIMM, RDIMM
- Support 5 x SATA3 6.0 Gb/s: 5 x SATA3 ports (SATA_0, SATA_1, SATA_2, SATA_3 and SATA_12)
- or Supports up to 8 SATA ports from 2 mini SAS HD connectors (SATA_4_7 and SATA_8_11) by BIOS setting (4 x SATA ports from each mini SAS HD connector)
- Support 1 x PCIe 3.0 x4 slot (MAX x8 by BIOS setup)
- Support 4 x GLAN + 1 xDedicated IPMI LAN port
- SOHO/Enterprise NAS
+
+
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack C3558D4I-4L
| Brand | AsRock Rack |
|---|---|
| Model | C3558D4I-4L |
| CPU Socket Type | SOC |
|---|---|
| CPU Type | Intel Atom C3558 Series Processor: 4 Core, 16W |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | Non-ECC UDIMM: 1600 / 1866 / 2133 / 2400 MHz ECC UDIMM: 1600 / 1866 / 2133 / 2400 MHz RDIMM: 1600 / 1866 / 2133 / 2400 MHz |
| Maximum Memory Supported | Support up to 128GB DDR4 RDIMM (32GB w/ 8GB DRAM) Support up to 64GB DDR4 UDIMM (16GB w/ 8GB DRAM) |
| Channel Supported | Dual Channel |
| PCI Express x8 | 1 x PCIe MEx8/ EE x8 (MAX x8 by BIOS setup) |
|---|
| SATA | 5 x SATA3 6.0 Gb/s: 5 x SATA3 ports (SATA_0, SATA_1, SATA_2, SATA_3 and SATA_12) Supports up to 8 SATA ports from 2 mini SAS HD connectors (SATA_4_7 and SATA_8_11) by BIOS setting (4 x SATA ports from each mini SAS HD connector) |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| Number of LAN | Gigabit LAN 10/100/1000 Mb/s |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Video Ports | D-Sub |
|---|---|
| RJ45 | 4 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT / LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 |
| Features | Intel Atom Processor C3558: 4 Core, 16W DDR4 1866 / 2133 / 2400 Dual-channel Max. 128GB UDIMM, Non-ECC, ECC DIMM, RDIMM 4 x SATA3 6.0 Gbps + 1 x SATA DOM by Intel Atom C3558 1 x PCI-E x4 slot |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | July 02, 2025 |
|---|
