Question 1

i was wondering if anyone has a manual for this motherboard as mine doesnt work and i cant find anything online to help me figure it out ?? :)

Accepted Answer

I had problems getting this one to post, you can't populate certain dimms and I don't think it will post without 2 Identical cpus in it.  You must also make sure that you have 2S intel cpus' the Xeon 16xx series' of cpus v1, or v2 will not post in this board, as they are only 1S approved and have no support for dual sockets. I could only get to POST with Black Dimms populated.  USB 3.0 support is sketchy with this board just unplug it and don't use anything 3.0 on this board, it's a crappy VIA chipset from like ten years ago.  if you do end up getting it to boot, if you are trying to boot from usb(which I highly suggest) turn on CSM and all UEFI  settings turned to on, for windows install.  if you are Installing linux turn off  UEFI and  use CSM with Legacy settings(or just turn it off completely) if you are Dual booting, Install Windows second, and install Linux on it's own drive, then install windows on it's own drive, then run this in your windows CMDLine(bcdedit /set {bootmgr} path \EFI\ubuntu\grubx64.efi)-without brackets, as Admin, and you should be good, you can add windows to Grub from Terminal in Linux, with this command(sudo update-grub)

Question 2

Will these support a Intel Xeon E5-2640?

Accepted Answer

Yes, the Jingsha X79 Dual CPU Motherboard supports Intel Xeon CPUs with the LGA 2011 socket, which includes the Intel Xeon E5-2640.

Brand	Jingsha
Model	X79-Dual

CPU Socket Type	Dual LGA 2011
CPU Type	Dual Intel Xeon

Number of DDR3 Slots	8 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	256GB
Channel Supported	Quad Channel
ECC Supported	Yes

Audio Chipset	Realtek ALC662
Audio Channels	5.1 Channels

Number of LAN	2
LAN Chipset	Realtek RTL8111H
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Realtek RTL8111H
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	1Gbps

Meet Your Seller

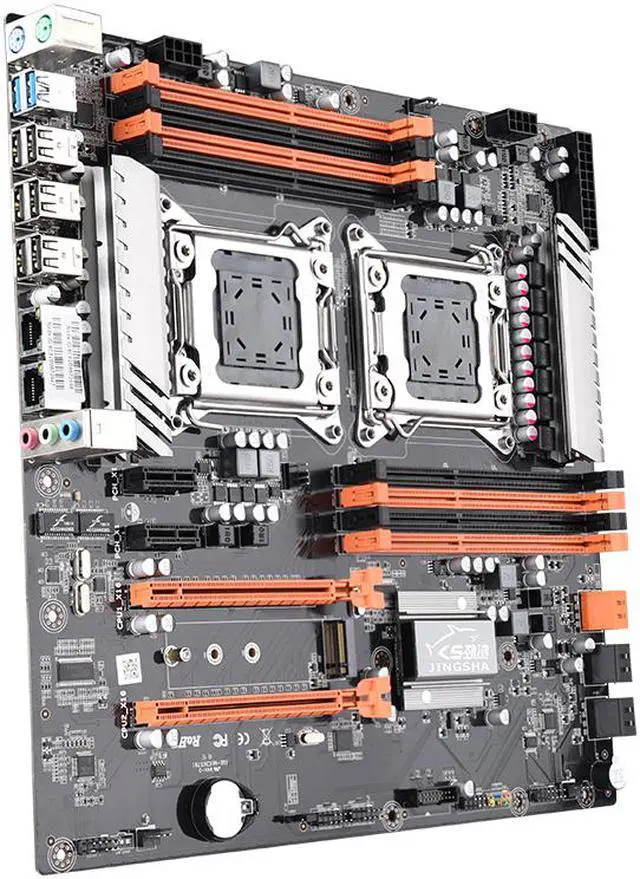

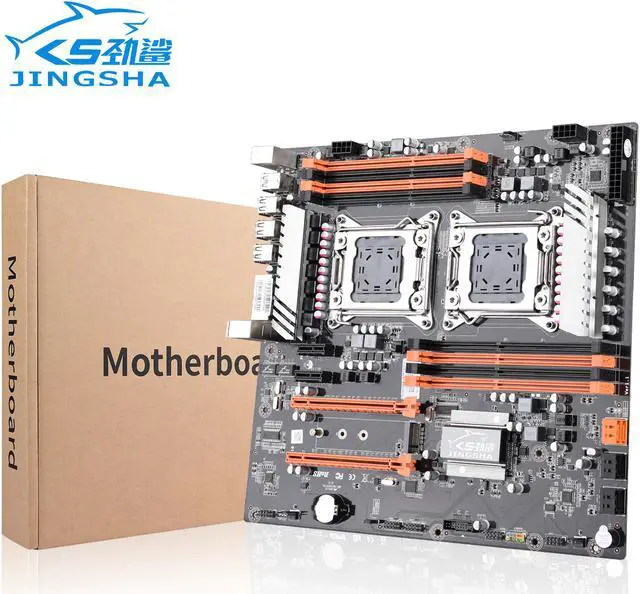

Jingsha X79 Dual CPU Motherboard Intel Xeon LGA 2011 E5 V2 WS Workstation Motherboard

Learn more about the Ecomhoper X79-Dual

Customer Reviews of the Ecomhoper X79-Dual

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

PS/2	2
COM	1
Video Ports	No Video Ports
RJ45	2 x RJ45
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0
USB 3.1	0
Thunderbolt 3	0
Audio Ports	3 Ports

Expansion Slots
PCI Express 3.0 x16	2
PCI Express x1	2 x PCI Express x1

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	300mm x 293mm
