Do you have a version with the female IDE connector for data and power so that I could plug in an IDE hard drive directly?

This is designed to be used with the StarTech HDD Docks. If you have the appropriate dock, you can plug directly into one of the drive "bays". This adapter is for the slot in the dock that provides only SATA drive operation, and converts that slow to allow using an IDE drive, so you can basically have two IDE drives plugged in at once. This adapter by itself will NOT allow you to use an IDE drive in a SATA slot or vice versa, its only for use with the StarTech docks.

135^.44Dh

VAT-Inclusive Price

117.49Dh Shipping

Limit 99999 per customer.

Ships from United States.

Most customers receive within 9-17 days.

Add to wish list

Sold by Hot Deals 4 Less

Top Rated

4 (3,668 seller ratings)

Shipped by Hot Deals 4 Less

Meet Your Seller

Hot Deals 4 Less

See Seller Store

More Resources

STARTECH;SAT2IDEADP;sat2ideadp - Newegg.com

STARTECH;SAT2IDEADP;SAT2IDEADP - s3.amazonaws.com

STARTECH;SATADOCK22UE;SAT2IDEADP The SAT2IDEADP SATA to IDE hard drive adapte

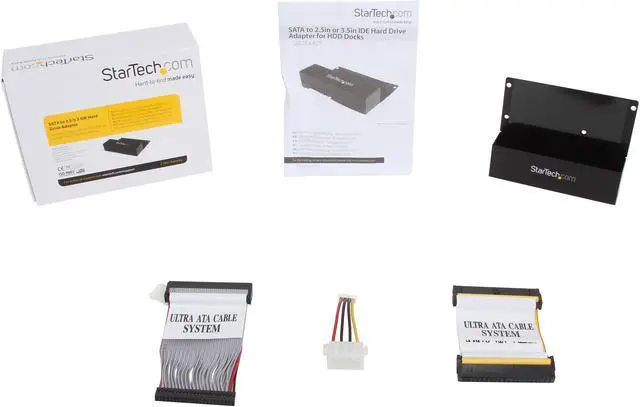

Main image of StarTech.com SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

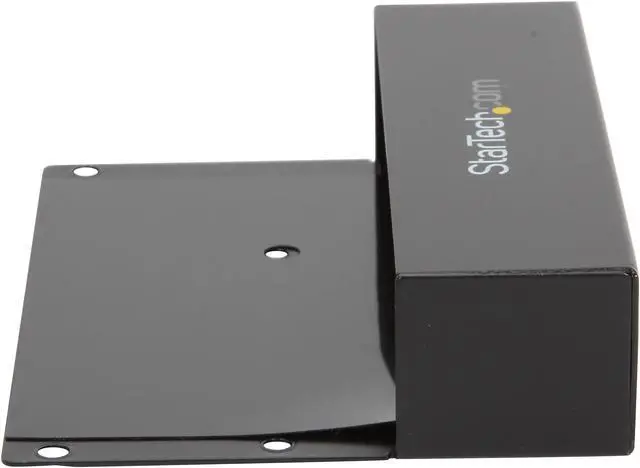

Alt view image 2 of 5 - StarTech.com SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

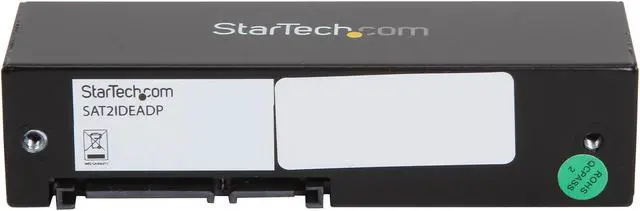

Alt view image 3 of 5 - StarTech.com SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

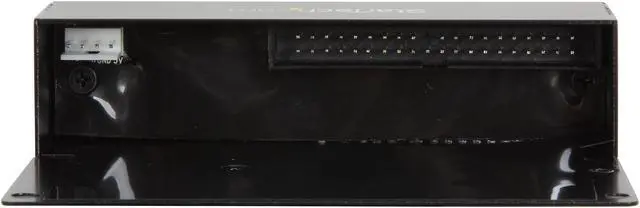

Alt view image 4 of 5 - StarTech.com SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

Alt view image 5 of 5 - StarTech.com SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

Shop All STARTECH Products | Visit Hot Deals 4 Less Store

StarTech.com SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

(8) Write a Review

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station
SATA to IDE Aadapter
SATA to PATA Adapter
SATA to IDE Converter
SATA to IDE Hard Drive Adapter
Storage Controller

Overview

Specs

Reviews (8)

SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

Model
Brand	StarTech.com
Model	SAT2IDEADP

Details
Color	Black
Cable Length	No
Specifications	Connector Types: 1 - IDE 40 pin Male Connector Types: 1 - SATA Data 7 pin Plug Connector Types: 1 - SATA Power Plug Connector Types: 1 - SP4 Male Enclosure Type: Steel LBA support: 48-bit Product Height: 1.02 in [26 mm] Product Length: 3.98 in [101 mm] Product Weight: 3.67 oz [104 g] Product Width: 3.07 in [78 mm] Humidity: 8% ~ 90% RH Operating Temperature: 5°C to 80°C (41°F to 176°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Chipset ID: JMicron JM20330 OS Compatibility: OS independent; No software or drivers required

Features
Features	Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators. Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives. Mounting holes for both 2.5in and 3.5in form factor IDE hard drives. Large capacity hard drive support, with 48-bit LBA. Durable, metal construction. Compliant with SATA revision 1.0. Compatible with PATA (IDE) 66/100/133 MBps hard drives. Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay.

Dimensions & Weight
Weight	0.47

Additional Information
First Listed on Newegg	November 20, 2018
