SUPERMICRO SYS-5038A-I Mid-Tower Server Barebone LGA 2011 Intel C612 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs

(1) Write a Review
  • LGA 2011
  • Intel Xeon processor E5-2600/1600 v3 family or Intel 4th gen. Core i7 series (up to 160W TDP )
  • 8 x 288Pin Memory Slots
  • 900W AC multi output power supply
+
+
Overview
Specs
Reviews (1)

Specifications

  • Mfr Part Number: SYS-5038A-I
  • Motherboard: Super X10SRA
  • Processor: LGA2011
    • Supports Intel Xeon E5-2600/1600 v3 Series Processors
    • Supports 4th Generation Core i7 Processors
    • Support up to 18 Cores
    • Cache up to 45MB
    • Supports up to 160W TDP
  • Chipset: Intel C612 Express
  • Memory: 8x 288pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory or up to 64GB ECC/non-ECC Unbuffered Memory (available with Core i7 only)
  • Slots: 4x PCI-Express 3.0 x16 Slots (runs at 16/16/NA/8 or 16/8/8/8), 2x PCI-Express 2.0 x4 Slots (runs at x1)
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
  • Audio: RealTek ALC1150 7.1 Channel High Definition Audio CODEC
  • LAN: Intel i210-AT Dual Port Gigabit Ethernet Controllers
  • Drive Bays: 4x 3.5" Fixed Drive Bays; 2x 5.25" Peripheral Drive Bays; 1x Card Reader Module

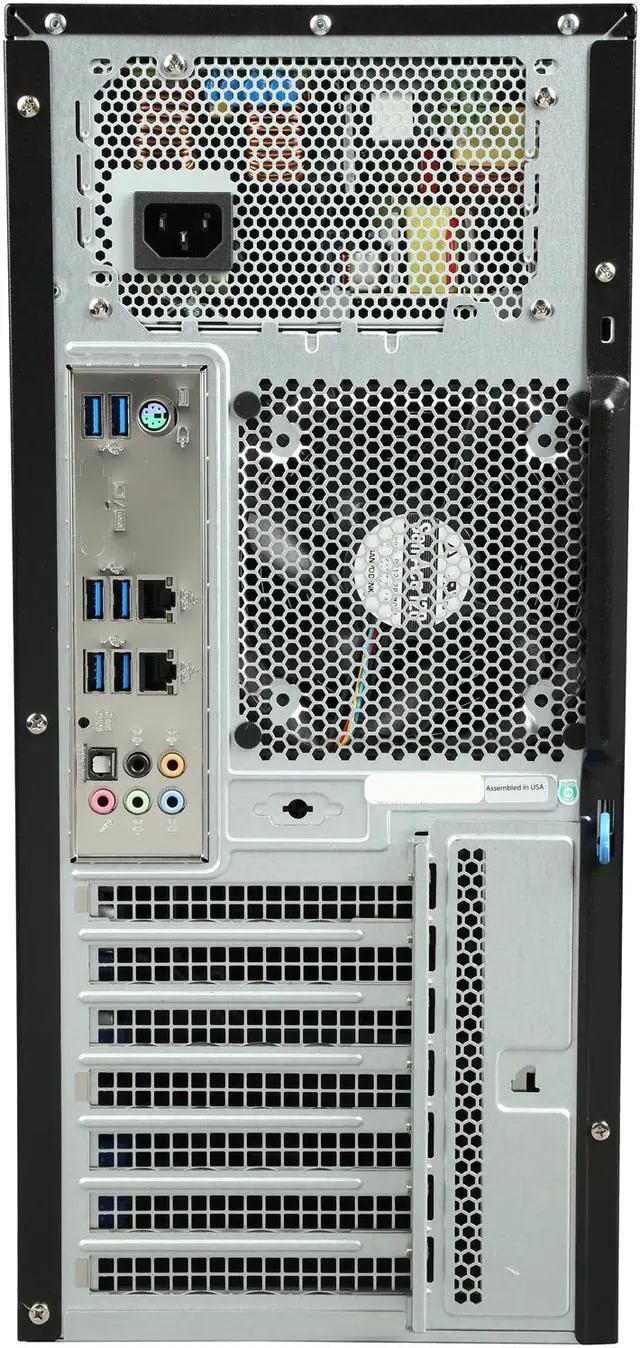

  • Ports: 8x USB 3.0 Ports (6 rear, 2 via header), 1x PS/2 Keyboard/Mouse Port, 2x RJ45 LAN Ports
  • Form Factor: Mid-Tower
  • Power Supply: 900W 80 PLUS Gold Certified AC Multi Output Power Supply
  • System Cooling: 1x 12cm Front Cooling Fan
  • Front Panel:
    • Buttons: Power On/Off
    • LEDs: Power, Hard Drive Activity, Network Activity, System Overheat
    • Port: 2x Front USB 3.0 Ports, 2x Front HD/AC97 Audio Ports
  • Color: Black
  • Dimensions (WxDxH): 7.60 x 20.68 x 16.7 inch / 193.0 x 525.3 x 424.0 mm
  • Weight: 29.5 lbs / 13.4 kg
  • RoHS Compliant
SYS-5038A-I

SUPERMICRO SYS-5038A-I Mid-Tower Server Barebone

Features

SYS-5038A-I
  • High Performance, Versatile Features & I/O Access
  • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7
  • Intel® C612 chipset
  • Up to 512GB ECC DDR4 2133MHz LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only); 8x DIMM slots
  • 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8), 2x PCI-E 2.0 x1 (in x4) slots
  • I/O Ports: 2 GbE, ALC 1150 HD Audio, 6 USB 3.0 + 2 USB 3.0 (front), 1 COM, 1 TPM, 1 PS/2 Keyboard/Mouse port
  • 4x 3.5" internal drive bays
  • 900W Multi-Output Power Supply

Specifications

Product SKUs
SuperWorkstation SYS-5038A-I (Black)
Motherboard
Motherboard Super X10SRA
Processor
CPU
  • Intel® Xeon® processor E5-2600/1600 v3 family or Intel® 4th gen. Core™ i7 series (up to 160W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache Up to 18 Cores / Up to 45MB Cache
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support
System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
Memory Type 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C612 chipset
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Intel® i210-AT Dual Port Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC1150 High Definition Audio
Input / Output
SATA 10x SATA3 (6Gbps) ports via PCH
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB 8x USB 3.0 ports (2 front + 6 rear)
Audio 7.1 HD Jacks
Keyboard/Mouse 1x PS/2 Keyboard/Mouse port
Serial Port / Header 1x header
TPM 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
  • 2x PCI-E 2.0 x1 (in x4) slots
  • PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when an Intel Core i7-5820K is installed
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5
  • SuperDoctor® III
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery

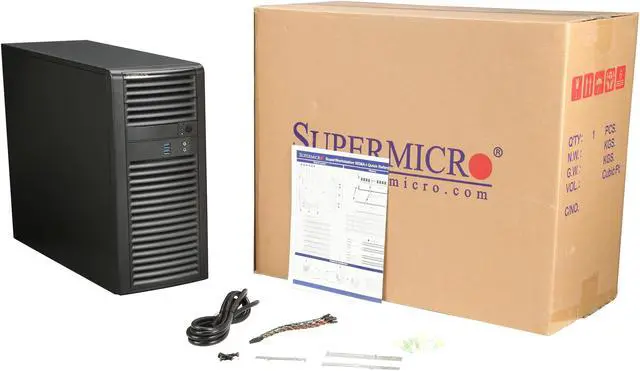

Whats in the Box

SYS-5038A-I
