STURDY METAL CASE Fanless Quiet Design, Desktop or wall mounting design. Operating temperature 0 °C to 40 °C (32 °F to 104 °F); Storage Temperature: 40°C~70°C ( 40°F~158°F)
RELIABLE IEEE 802.3x flow control provides reliable data transfer
TRAFFIC OPTIMIZATION 802.1p and DSCP QoS enable smooth latency sensitive traffic such as voice and video
UP to 80 percentage Power Saving Automatically adjusts power consumption according to the link status and cable length
AUTO NEGOTIATION Supports Auto MDI/MDIX, eliminating the need for crossover cables
+
+
Overview
Specs
Reviews
Learn more about the TP-Link TL-SG108
Model
Brand
TP-Link
Model
TL-SG108
Format & Standards
Format
Desktop
Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Ports & Interface
Uplink Ports
None
Primary Ports
8 x RJ45
Primary Port Speed
10/100/1000Mbps
Data Transmission
Switching Method
Store and Forward
Jumbo Frames
Yes
Details
Protocols
CSMA/CD
PoE
No
QoS
Yes
Layer
Layer 2 Only
LEDs
System Power Link, Speed and activity indicators per port built into each RJ-45 port
Power
100~240VAC, 50/60Hz
Features
Features
Advanced Features: Green Technology,saving power up to 72% 802.3X Flow Control Supports QoS (IEEE802.1P)
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux.
Innovative energy-efficient technology saves power up to 72%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

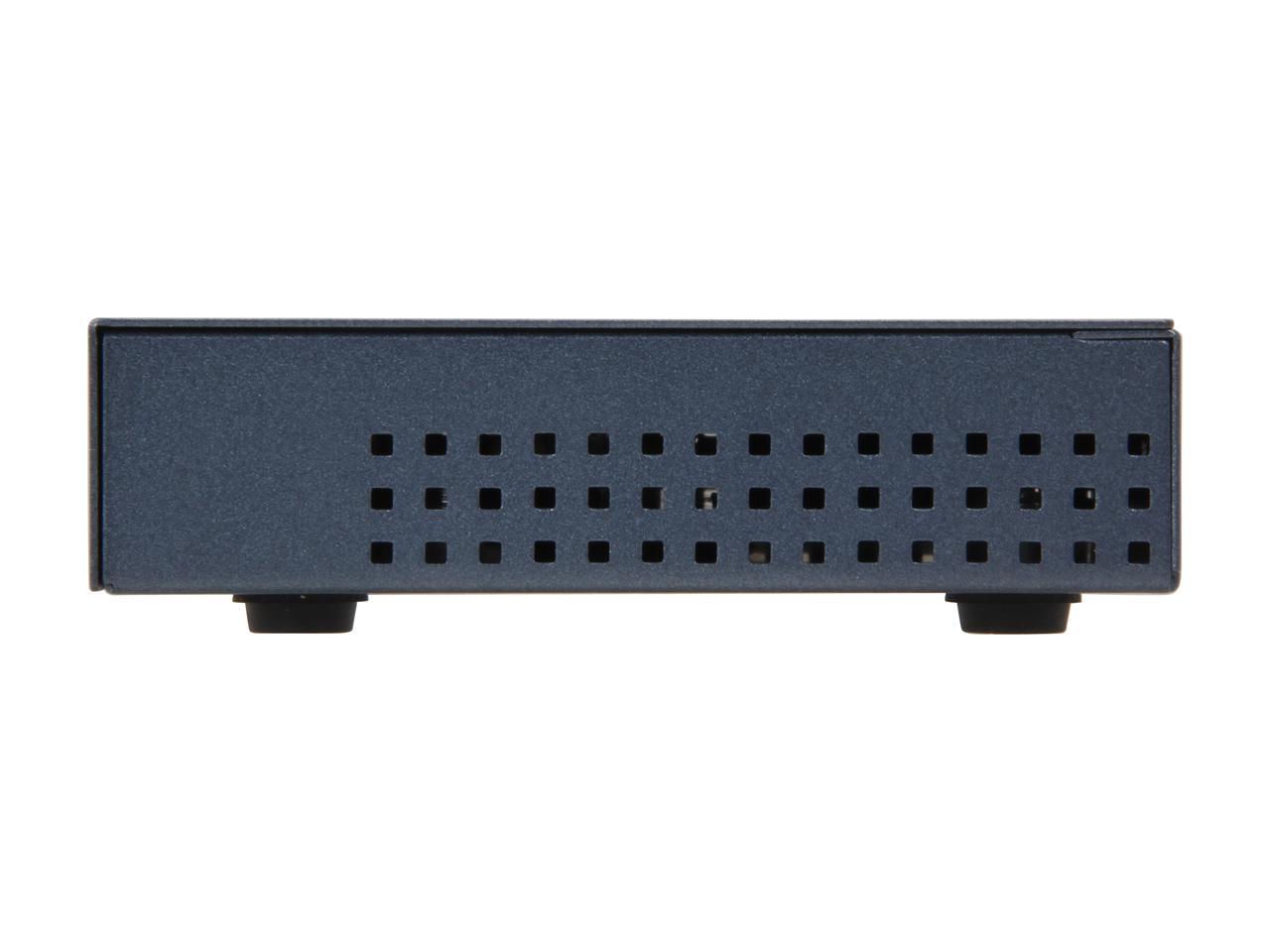

Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) function
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
9K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation.
Dimensions & Weight
Dimensions
1.00" x 6.20" x 4.00" (H x W x D)
Weight
1.10 lbs.
Environmental
Temperature
0ºC to 40ºC (32ºF to 104ºF)
Humidity
10% - 90%, Non-condensing
Packaging

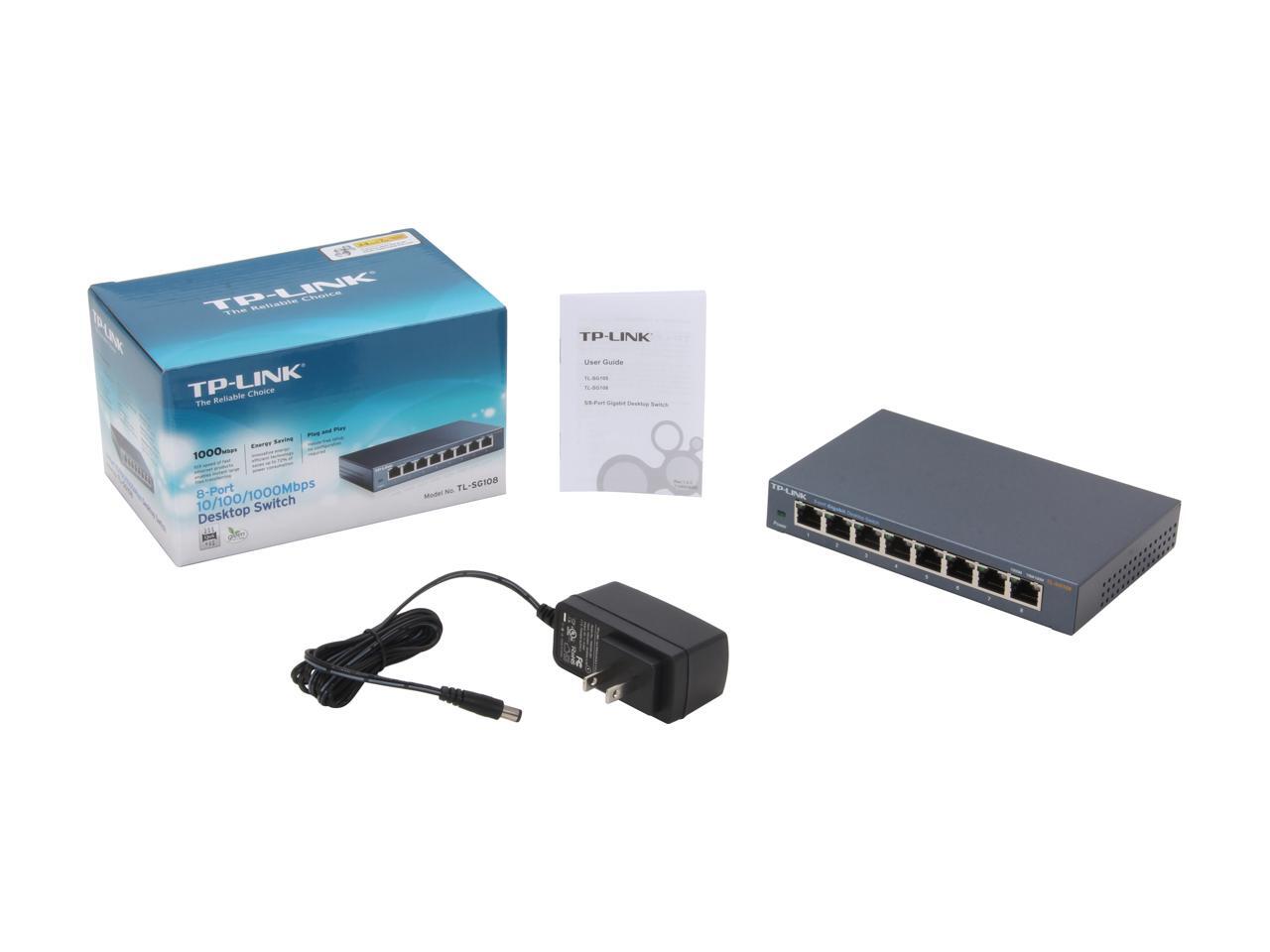

Package Contents
8-Port 10/100/1000Mbps Desktop Switch Power Adapter User Guide
