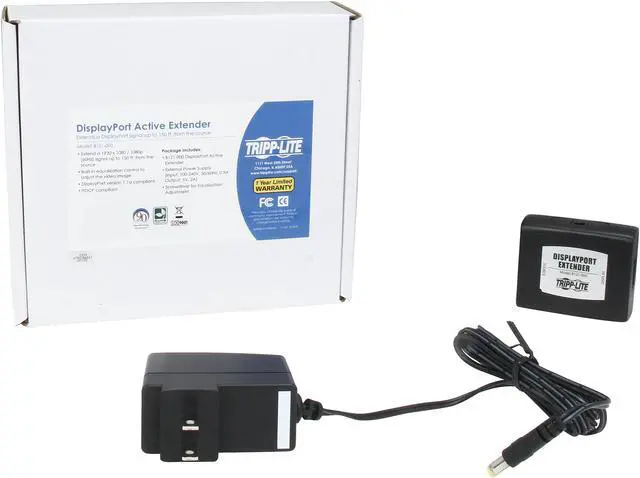

MAIN OVERVIEW FEATURES: Maximum Video Resolution: 1920 x 1200DisplayPort: YesNumber of DisplayPort Inputs: 1Number of DisplayPort Outputs: 1Maximum Operating Distance: 150 ftPackage Contents: Displayport Active Extender Signal Booster ( Displayport F/F )External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)Screwdriver for Equalization AdjustmentOwner's ManualEnvironmentally Friendly: YesEnvironmental Certification: RoHSTAA Compliant: YesLimited Warranty: 3 Year
Learn more about the Tripp Lite B121-000
Model
Brand
Tripp Lite
Model
B121-000
Details
Changer Type
Displayport Extender
Color
Black
Specifications

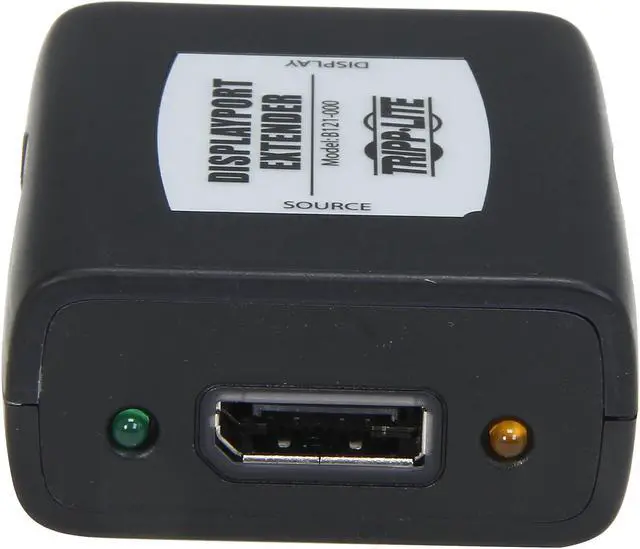

LED Indicators The Green LED illuminates to indicate that the power supply is connected and the unit is receiving power from a power source. The Orange LED illuminates when the S/L Equalization switch is in the L position. The Orange LED does not illuminate when the S/L Equalization switch is in the S position.
Connectors
Connector A
DISPLAYPORT (FEMALE)
Connector B
DISPLAYPORT (FEMALE)
Features
Features
Extend a Displayport signal up to 150 ft. from the source
Supports a maximum video resolution of 1920 x 1080 @ 60Hz
Use P580-Series Displayport Cables
When extending a 1920x1080 @ 60Hz video signal more than 100 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)

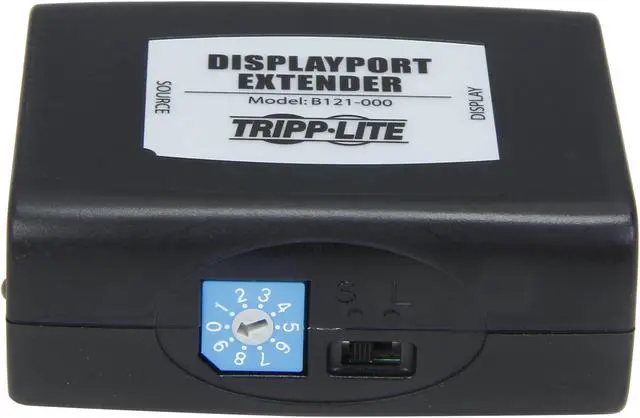

Built-in Equalization control to adjust the video image
HDCP compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
