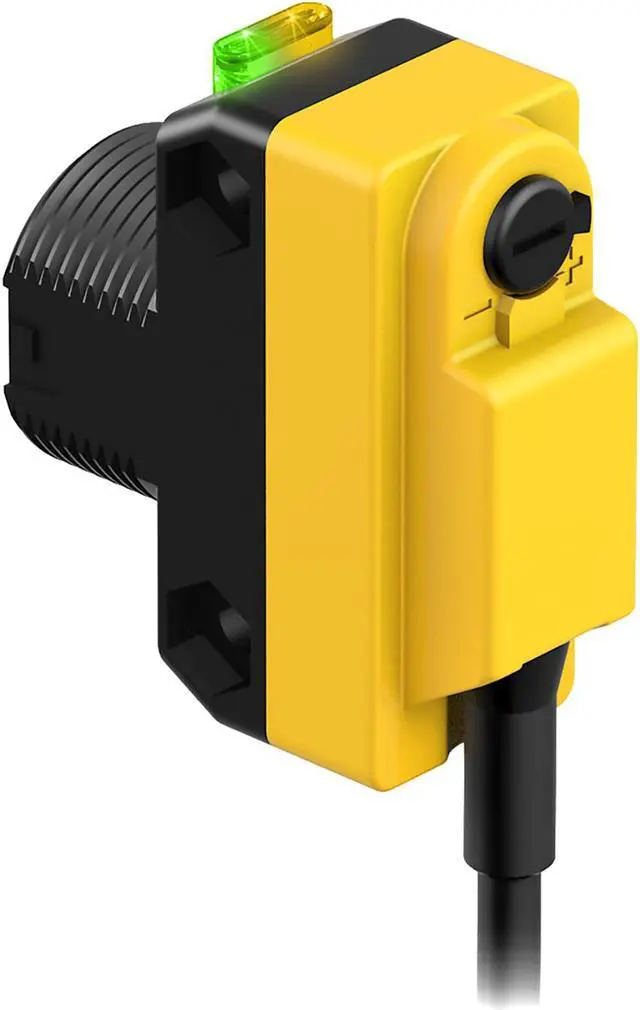

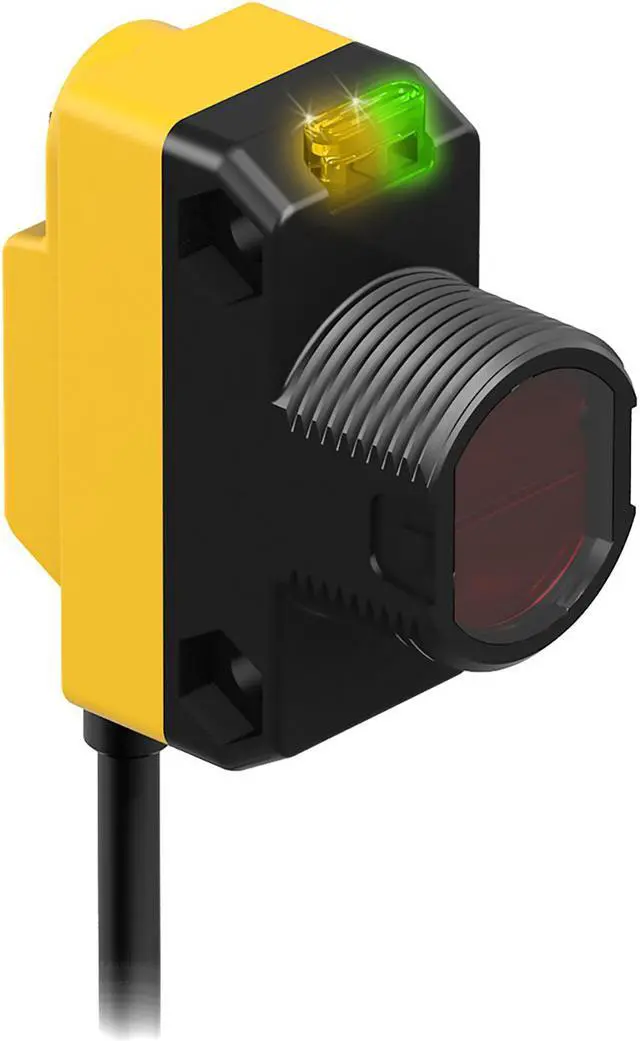

BANNER QS30LD High-Performance Long-Range Sensor New
- BANNER QS30LD High-Performance Long-Range Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS30 Series: Laser Diffuse (Class 1)
Range: 400mm; Input: 10-30V dc
Output: Bipolar: 1 NPN; 1 PNP
2m (6.5 ft) Cable
Part Number: 70230
Sensing Beam Visible Red Laser
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 400
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 1000
Repeatability (µs) 70
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 400mm; Input: 10-30V dc
Output: Bipolar: 1 NPN; 1 PNP
2m (6.5 ft) Cable
Part Number: 70230
Sensing Beam Visible Red Laser
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 400
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.5
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 1000
Repeatability (µs) 70
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
