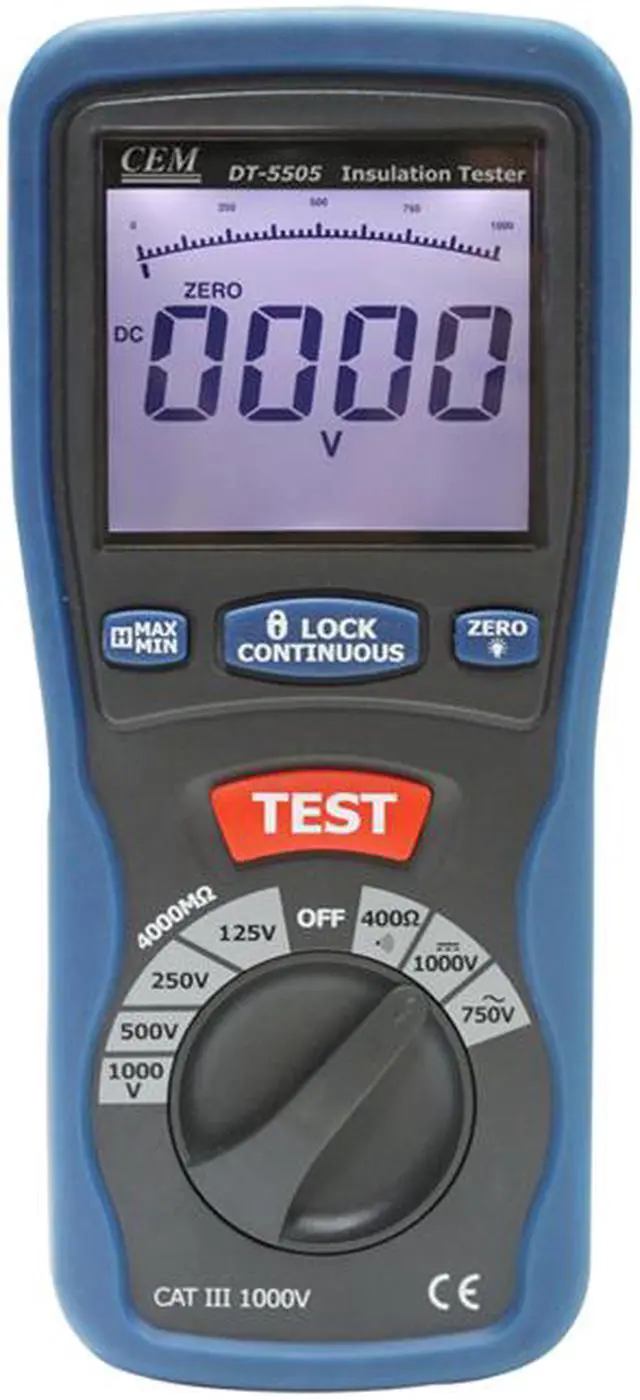

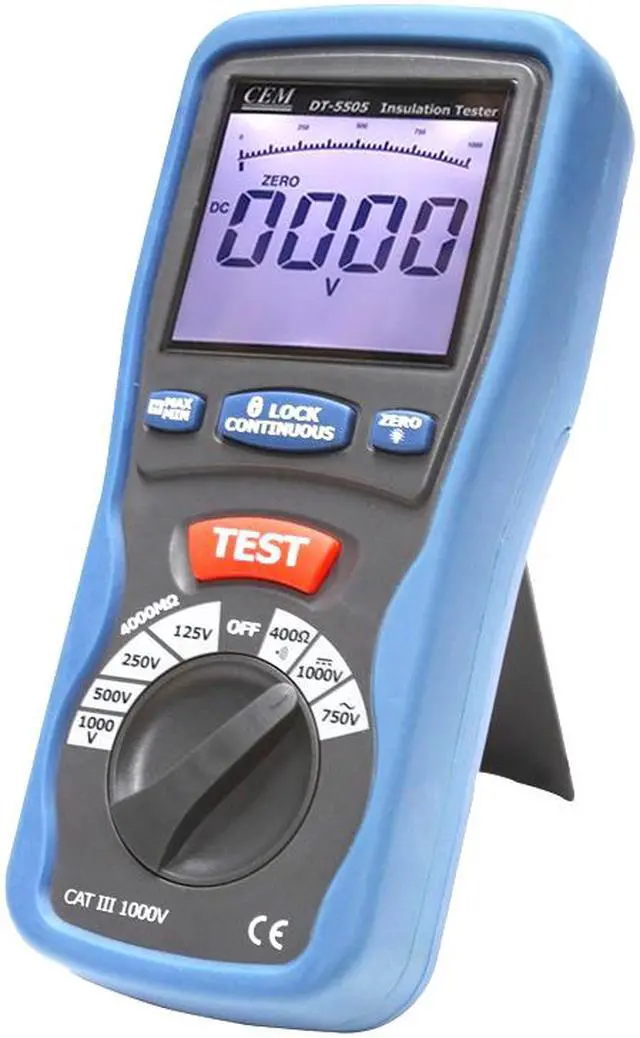

CEM DT-5505 Insulation Testers Large Dual Display with Backlight
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
DT-5505 Insulation Testers
When doing power installation, 5505 can provide some special help. When doing insulation test, it can provide 125V,250V, 500V and 1000V source for the test and under each range it can supply more 1mA current to feet the capacitance load. With the auto-range function, it can measure up to 4000 MegaOhm with the resolution of 1Kohm. These characteristics are also specified in the safety regulations in CE document.
Auto-discharge of capacitive voltage for added user protection
Live circuit detection prevents insulation test if voltage >30V is detected for added user protection
Min/Max recording & Data Hold
1mA test current for MegOhm range at rated voltage
200mA short current for continuity range
Additional test voltages 125V,250V,500V,1000V
Features
Meets IEC10101, CATIII 1000V

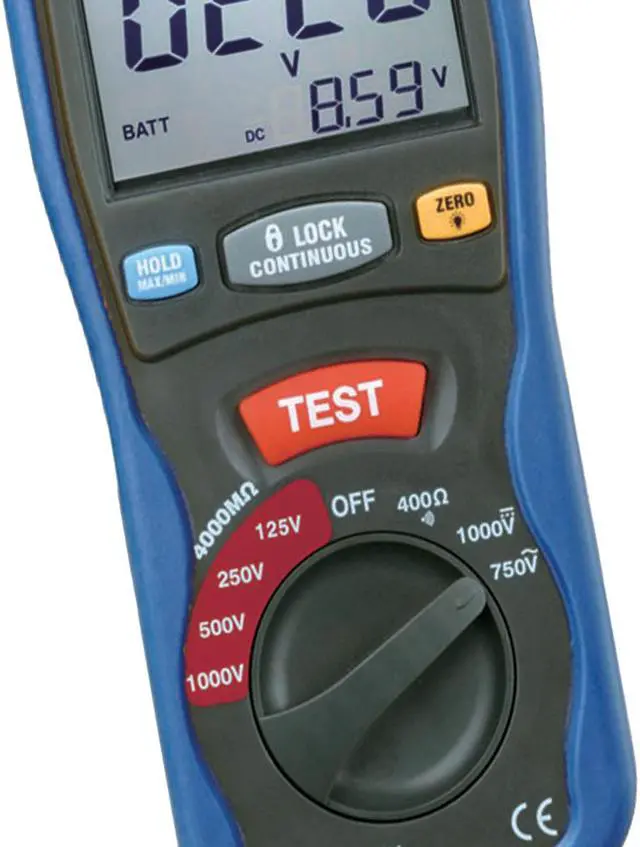

Large dual display with analog bargraph & backlight
Test hold & lock function for easy operation
Easy to carry testing package
Over range Indication
Low Battery Indication
Includes 6 AA batteries, test leads and plastic carrying case
Size ( H x W x D): 200mm x 92mm x 50mm
Weight: 582g
Specifications DT-5505
Function Range Max Resolution Basic accuracy
Voltage AC 750V 1V ±1.2%rdg ±10dgts
Voltage DC 1000V 1V ±0.8%rdg ±3dgts
Resistance 40?, 400? 0.01?, 0.1? ±1.5%rdg ±6dgts
Insulation Resistance 4M,40M,400M,4000M? 1k?~1M? ±2.0%rdg ±6dgts
Test Voltage & Current 125V/250V/500V/1000V & 1mA nominal
Continuity Test Active Sound Level: =40?, Test current =200mA
Operating Temp 0ºC~40ºC (<80%R.H.)
Storage Temp -10ºC~60ºC (<70%R.H.)
Power Source 1.5V “AA” size Battery x 6
