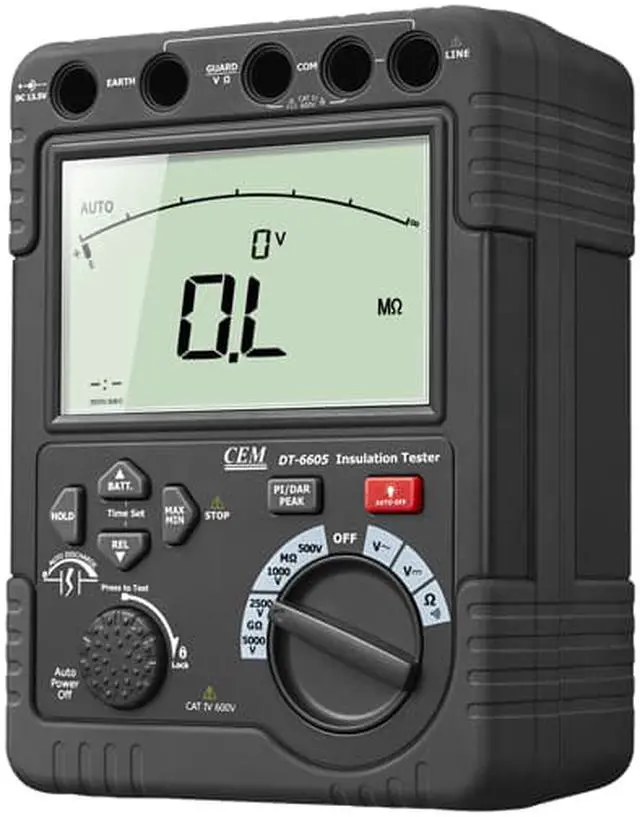

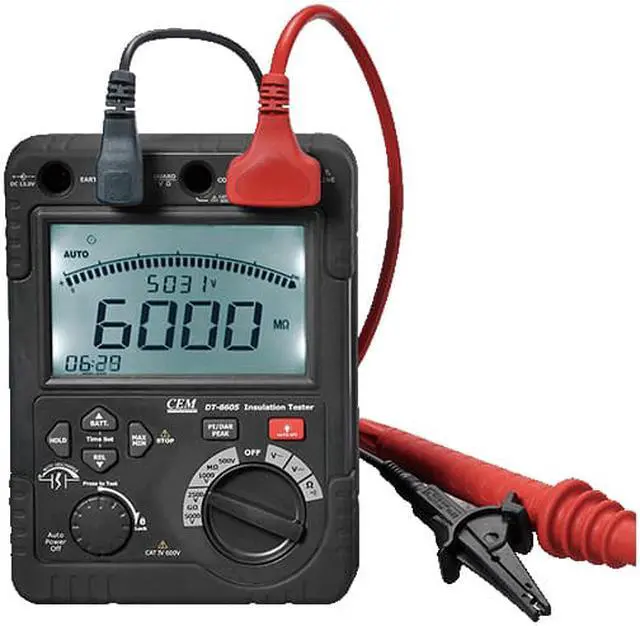

CEM DT-6605 High Voltage Insulation Tester Large 6000 Counts Digital Display
- CEM DT-6605 High Voltage Insulation Tester Large 6000 Counts Digital Display
+
+
Overview
Specs
Reviews
CEM DT-6605 High Voltage Insulation Tester Large 6000 Counts Digital Display
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GO.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GO.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
Specifications
Function Insulation resistance Voltage Resistance
Range 500V 1000V 2500V 5000V AC/DCV
Measuringrange (Auto ranging) 0~6.000MO
6~60.00MO
60~600.0MO
600~6000MO 0~6.000MO
6~60.00MO
60~600.0MO
600~6000MO 0~60.00MO
60~600.0MO
0.6~6.000GO
6~60.00GO 60~60.00MO
60~600.0MO
0.6~6.000GO
6~60.00GO 0~600.0V
(50~1kHz) 0~600.0O
600~6000O
Accuracy ±5%rdg ±3dgt ; ±20% (>6GO or more) ±1.5%rdg ±5dgt ±1.5%rdg ±10dgt
Short Circuit Current 1.3mA approx -
Rated test Current
(at load Resistance) 1mA-1.2mA
0.5MO 1mA-1.2mA
1MO 1mA-1.2mA
2.5MO 1mA-1.2mA
5MO -
Open circuit voltage 500VDC/+20%-0% 1000VDC/+20%-0% 2500VDC/+20%-0% 5000VDC/+20%-0% -
Continuity check Buzzer sounds at 50O
Display 6000 Counts
Current consumption About 1000mA (During measurement) 25mA approx.
Withstand Voltage 5320V AC for 5 seconds
Safety standard IEC 61010-1 CAT IV 600V Pollution Degree 2
Power supply DC12V : R14 x 8
Dimensions 198 ( L) x 148 (W) x 86 ( D) mm
Weight 1438g approx.
Accessories Test leads, Instruction Manual and 120V/250V AC adaptor
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GO.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
High Voltage Insulation Tester
Wide range measurements from 500V to 5000V and up to 60GO.
Large 6000 counts digital display with bargraph and backlight.
Polarization index measurement(PI).
Auto ranging & Timer measurement function.
Indication of output voltage and discharge voltage.
Auto-discharge function and voltage output warning function.
Auto power off and battery check.
MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
Safety standard IEC61010-1 CAT IV 600V
Specifications
Function Insulation resistance Voltage Resistance
Range 500V 1000V 2500V 5000V AC/DCV
Measuringrange (Auto ranging) 0~6.000MO
6~60.00MO
60~600.0MO
600~6000MO 0~6.000MO
6~60.00MO
60~600.0MO
600~6000MO 0~60.00MO
60~600.0MO
0.6~6.000GO
6~60.00GO 60~60.00MO
60~600.0MO
0.6~6.000GO
6~60.00GO 0~600.0V
(50~1kHz) 0~600.0O
600~6000O
Accuracy ±5%rdg ±3dgt ; ±20% (>6GO or more) ±1.5%rdg ±5dgt ±1.5%rdg ±10dgt
Short Circuit Current 1.3mA approx -
Rated test Current
(at load Resistance) 1mA-1.2mA
0.5MO 1mA-1.2mA
1MO 1mA-1.2mA
2.5MO 1mA-1.2mA
5MO -
Open circuit voltage 500VDC/+20%-0% 1000VDC/+20%-0% 2500VDC/+20%-0% 5000VDC/+20%-0% -
Continuity check Buzzer sounds at 50O
Display 6000 Counts
Current consumption About 1000mA (During measurement) 25mA approx.
Withstand Voltage 5320V AC for 5 seconds
Safety standard IEC 61010-1 CAT IV 600V Pollution Degree 2
Power supply DC12V : R14 x 8
Dimensions 198 ( L) x 148 (W) x 86 ( D) mm
Weight 1438g approx.
Accessories Test leads, Instruction Manual and 120V/250V AC adaptor
