685VA/390W Compact UPS w/AVR 6 Ft Cord, 8 NEMA 5-15R, USB, Serial, 3Yr Wty
Learn more about the CyberPower CP685AVR
Model
Brand
CyberPower
Series
AVR
Model
CP685AVR
Input
Input Voltage Range
120 V
Input Frequency
57 - 63 Hz
Input Connection
NEMA 5-15P
Output
VA Rating
685 VA
Watts
390 Watts
Output Voltage
120Vac +/- 5%
Output Frequency
60 Hz +/- 1%
Outlets
8
Outlet Type
NEMA 5-15R
Battery
Battery Type
Sealed Lead Acid
Battery Run Time
Runtime at Half Load: 10 min
Runtime at Full Load: 2 min
Battery Recharge Time
8 Hour(s)
Battery Replaceable
RB1280
Details
Interface Port
USB, Serial
Management Software
PowerPanel Power Management
Approvals
UL 1778, cUL, FCC DOC Class B
Surge Protection
Data Line Protection
1 x RJ11 / 45 Combo (One-in / One-out)
1 x RG-6 Coax/Cable
Surge Energy Rating
890 Joules
Features
Features
A compact UPS with line interactive topology, the CyberPower CP685AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP685AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Dimensions & Weight
Dimensions
11.00" x 6.63" x 3.50"
Weight
14.00 lbs.

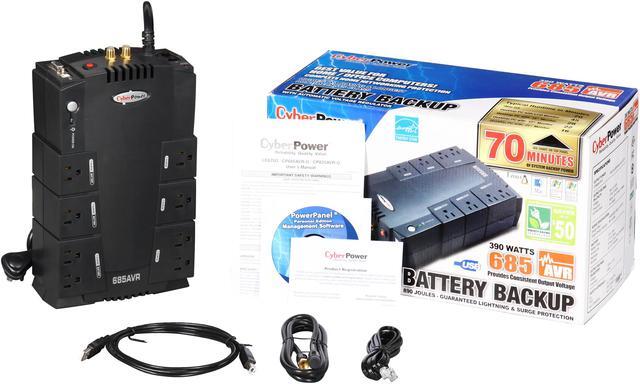

Package Contents
Package Contents
61009J
Manufacturer Warranty
Parts
Manufacturers Limited Warranty: 3 Year / Parts Only
