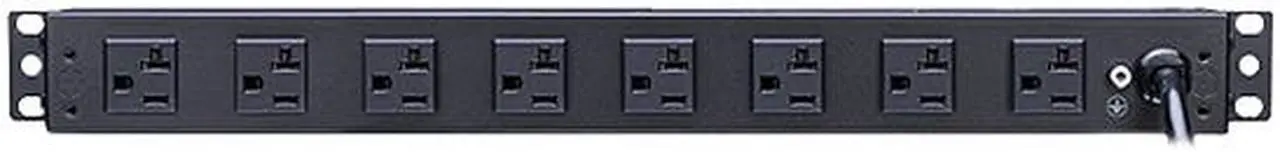

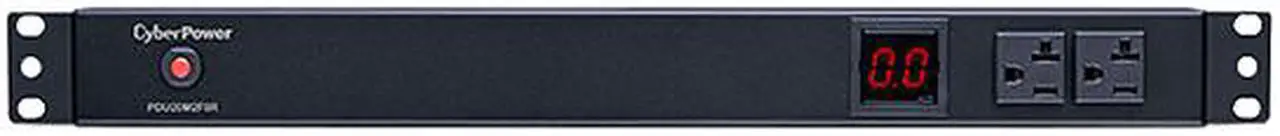

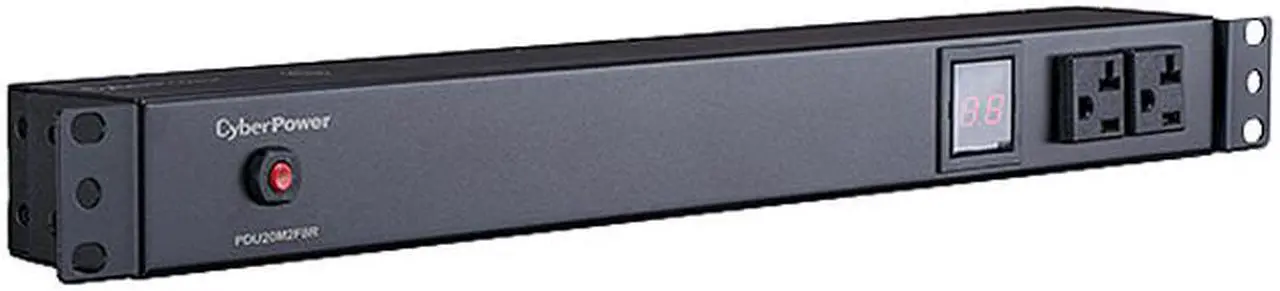

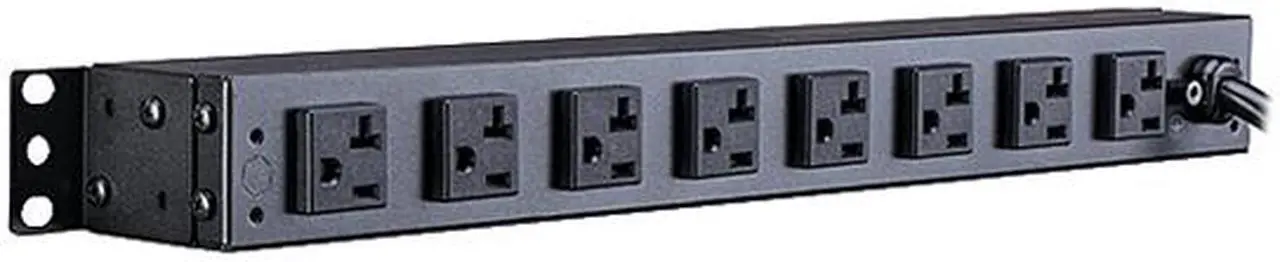

The CyberPower PDU20M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, the PDU20M2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU20M2F8R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionWhats In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
The CyberPower Basic PDU20M2F8R power distribution unit (PDU) features 10 outlets (2 Front/8 Rear) to distribute power to 10 NEMA 5-20R receptacles with unfiltered electrical pass-through from a single NEMA 5-20P input. With 120V 20A output, this unit can handle the electrically demanding applications like server rooms, datacenters and more. It offers unbeatable placement flexibility with support for horizontal rackmount, vertical rackmount and under-counter installation. A 15-foot AC power cord with cord retention allows easy application. Plus, the rugged, industrial-grade metal housing is extremely strong and durable, as well as thermally conductive to dissipate heat more efficiently. ETL/RoHS certified.
