Features

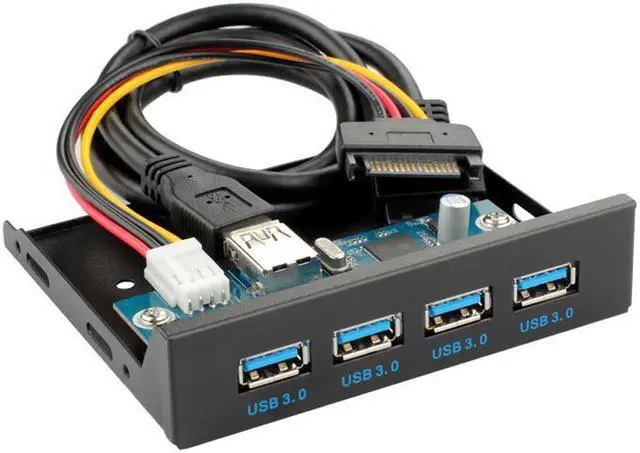

- 3.5 -inch Front Bay to 4-Port USB 3.0 Panel Hub turns any available 3.5 -inch computer case front bay into a 4-Port USB 3.0 hub.
- Using only a single USB connection, this front panel hub adds four easily accessible USB ports to the front of your computer case through a 3.5 -inch bay, or through a 5.25 -inch bay using the optional Front Bay Bracket Adapter accessory.
- Each of the added ports is compliant with the USB 3.0 standard which supports up to 5Gbps of bandwidth and up to 900mA of power.
- Installation is quick and easy, and the unit is plug and play.

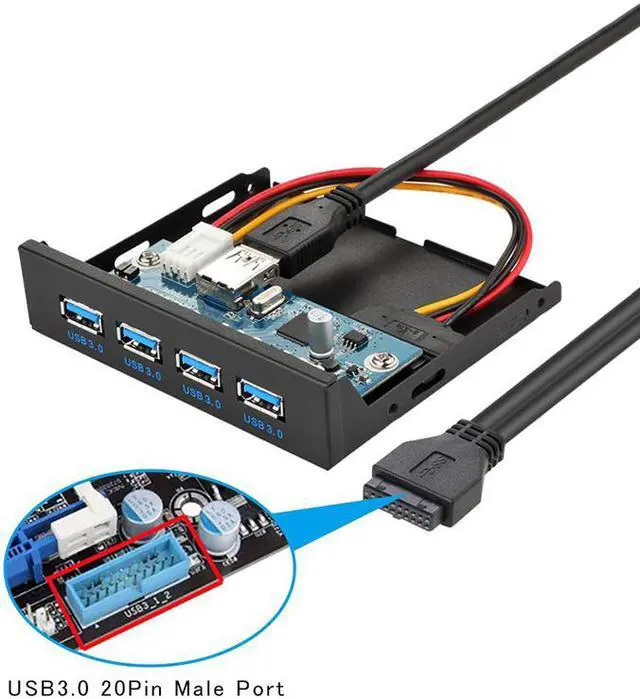

- Simply fit the bay into the space with the screws provided, plug the bay into the USB 3.0 19/20 pin connector on the motherboard, and you're all set.
- 3.5" Floppy front panel
- Does not support 5.25 CD-ROM bay mounting
- Built in USB 3.0 Hub chipset
- 4 Ports USB 3.0 output
- Up to 5Gbps data transfer speed ,backwards USB 2.0,USB 1.1
- USB 20pin motherboard header is needed
Specifications
- Ports: 4 x USB 3.0 Supper Speed
- Data Transfer Rate: Up to 5GMb/s USB 3.0 SuperSpeed
- Fits: 3.5" Open Bay Space
- Cable Length: 2 Feet
- Compatible with Windows XP/Vista/7/8/ 8.1
- Plug and Play
- Hot Swappable
- Molex 4-pin power connector to power USB devices from your PC power supply, by SATA interface.
- Backwards compatible with USB 1.1, USB 2.0

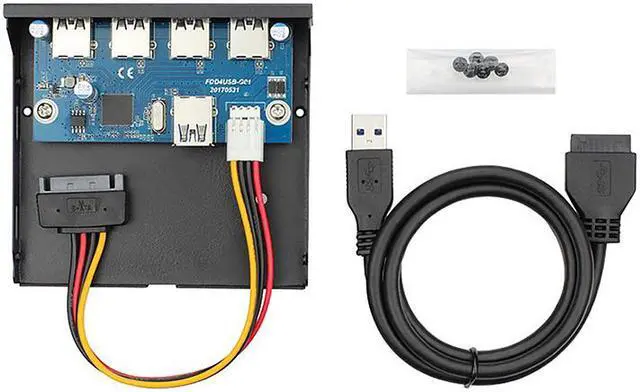

Package Contents
- 1x 4 Port USB 3.0 Front Panel Bay
- USB 20pin to USB-A Male Cable,2FT
- SATA to SP4 Power Cable
- 1x Pack of Screws
