Features

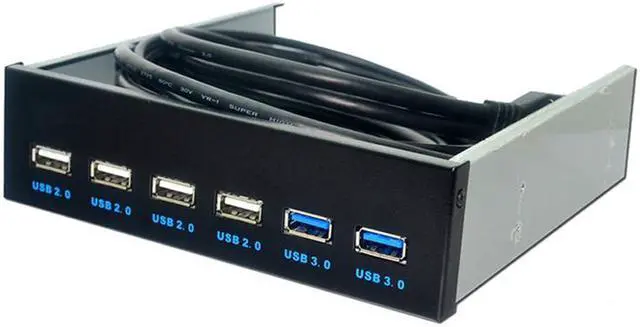

- 5.25 -inch Front Bay to 2-Ports USB 3.0 & 4-Ports USB 2.0 Panel Hub turns any available 5.25 -inch computer case front bay into a 6-Port USB hub.
- This front panel hub adds six easily accessible USB ports to the front of your computer case through a 5.25 -inch bay by using USB motherboard headers of 20pin and 10pin
- 6-Ports desktop front panel expansion 5.25 inch CD-ROM bay allows 4 USB 2.0 and 2 USB 3.0 devices connection
- Enjoy super speed data transmit speed up to 5Gb/s and also universal design with both USB 2.0 / 3.0 port.
- Installation is quick and easy, and the unit is plug and play.
- 1 x USB 3.0 20pin & 1 x USB 2.0 10 pin headers on motherboard is needed
- Extra Molex 4pin power header is equipped for any high-power USB devices connection
- Simply fit the bay into the space with the screws provided
- Fit into any standard 5.25" CD-ROM bay of PC case
- Does not install into 3.5" floppy bay
- 6 Ports USB front panel
- 2x USB 3.0 ports, extend by USB 20pin Motherboard header
- 4x USB 2.0 Ports, expand by EF1.1S USB 2.0 chipset, require to connect to USB 10pin motherboard header
- Extra Molex 4pin power header is equipped for any high-power USB devices connection
Specification
| Type | 5.25" 6x USB Front panel |
|---|---|
| Input-A | 1x USB 20pin Motherboard Header |
| Input-B | 1x USB 10pin Motherboard Header |
| Output-A | 2x USB 3.0 Type-A Female |
| Output-B | 4x USB 2.0 Type-A Female |
| Powered | Molex 4Pin Header |
| USB 3.0 Data Transfer Speed | 5Gbps |
| USB 2.0 Data Transfer Speed | 480Mbps |
| OS Requirement | Compatible with Windows XP/Vista/7/8/ 8.1,IOS |
| Installation | 5.25" Open Bay Space |

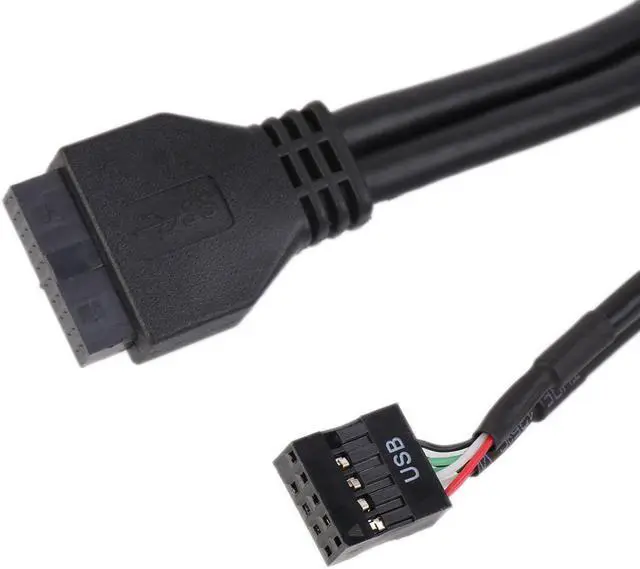

| USB3.0 Cable | 2.6 Feet USB 20pin to 2x USB-A Splitter Cable |
| USB2.0 Cable | 2.6 Feet USB 10pin Female to Female Cable |
| Package Contents | USB Front Panel Bay & Screws |
