This product is an ideal choice for any Mini PCI-Express expansible embedded or micro system needing larger volume and higher speed data transfer connectivity with USB devices. Real world applications such as: Connect to external hard disk drive, fast Solid State Drive (SSD), optical driver, high definition video camera etc. Features Main chip: NEC UPD720202 chipset Have unused mini PCIe slot for PC expansion slot a 19-pin USB 3.0 theoretical transfer rate up to 5Gbps, much higher than the USB 2.0 480Mb / s, up to 10 times; Backward compatible with USB 2.0, USB 1.1, USB 1.0 Transfer rate: 5Gbps/ 480Mbps/ 12Mbps / 1.5M bps Small Molex 4 pin to take power by the board, or you can into a SATA power. (To change, please contact customer service) Built-in 19-pin can turn out two USB 3.0 ports Compliance with PCI-Express Specification Revision 2.0 Compliance with xHCI specification version 1.0 Compliance with USB 3.0 SuperSpeed specification version 1.0 USB support hot swap function Support Windows XP / 2003 / Vista / win7 / win8 / 2003 / linux, can provide LINUX drivers. Notes: Mini PCI-E because without a 5V power supply, not directly to the USB-powered, so it can be inserted using the SATA power cable to work properly! This expansion card can only be plugged into the MINI PCI-E interface, can not be used MSATA interface. Please make sure when buying interface, or can not work. Because the first half of NEC 2010 merged with Renesas Electronics, Renesas Electronics accounted for a large share, so now have to drive and LOGO RENESAS. Please know! On the chip and printed CHINA JAPAN, this is just the chip package in China or Japan, which is still JAPAN wafer production, performance exactly the same, no difference. USB 3.0 is double total 20PIN, which has one foot already needle injection foolproof, so called 19PIN. Please buyers in the purchase be sure to see the notes and instructions below to purchase!! Because SATA Docking Station are plastic, not iron, so the line is relatively tight, when the harness must withstand plug the cable back transposons, forced plug wire when the transposon will tilt. Remember Remember! Package contents: 1 Piece Mini PCI-e to USB Expantion Card 1 Piece CD Driver
Features
This product is an ideal choice for any Mini PCI-Express expansible embedded or micro system needing larger volume and higher speed data transfer connectivity with USB devices.
Convert motherboard Mini PCIe Slot to USB 20pin motherboard header for 2 ports USB 3.0 expansion
USB data transfer speed up to 5Gbps, backwards compatible with USB 2.0, USB 1.1, USB 1.0
The card is powered by small molex 4pin(SP4 connector) from PSU
Compliance with PCI-Express Specification Revision 2.0
Compliance with xHCI specification version 1.0
USB support hot swap function
Support Windows XP / 2003 / Vista / win7 / win8 / 2003 / linux, can provide LINUX drivers.
Note:
Because Mini PCI-E without a 5V power supply, not directly to the USB-powered, it can be inserted using the small molex 4pin power from your PSU
This expansion card can only be plugged into the MINI PCI-E interface, can not be used MSATA interface. Please make sure when buying interface, or can not work.
In same case, the USB motherboard header is called as USB 19Pin too, so USB 3.0 20pin or USB 3.0 19Pin is the same header

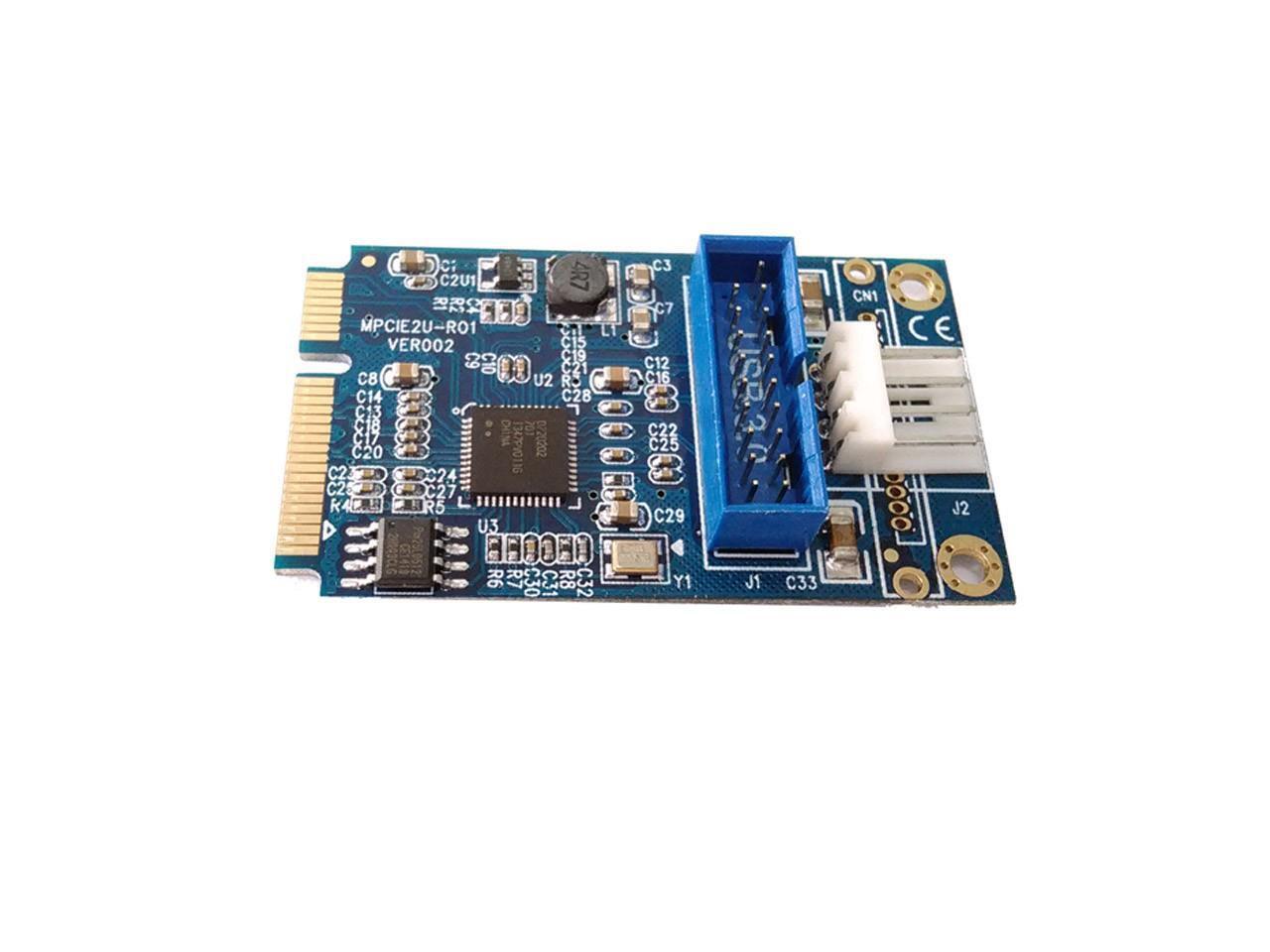

Mini PCIe to USB 3.0 Adapter
Input: MIni PCIe Slot
Output: USB 3.0 internal motherboard 20pin header
Power by small molex 4pin(SP4) from PSU

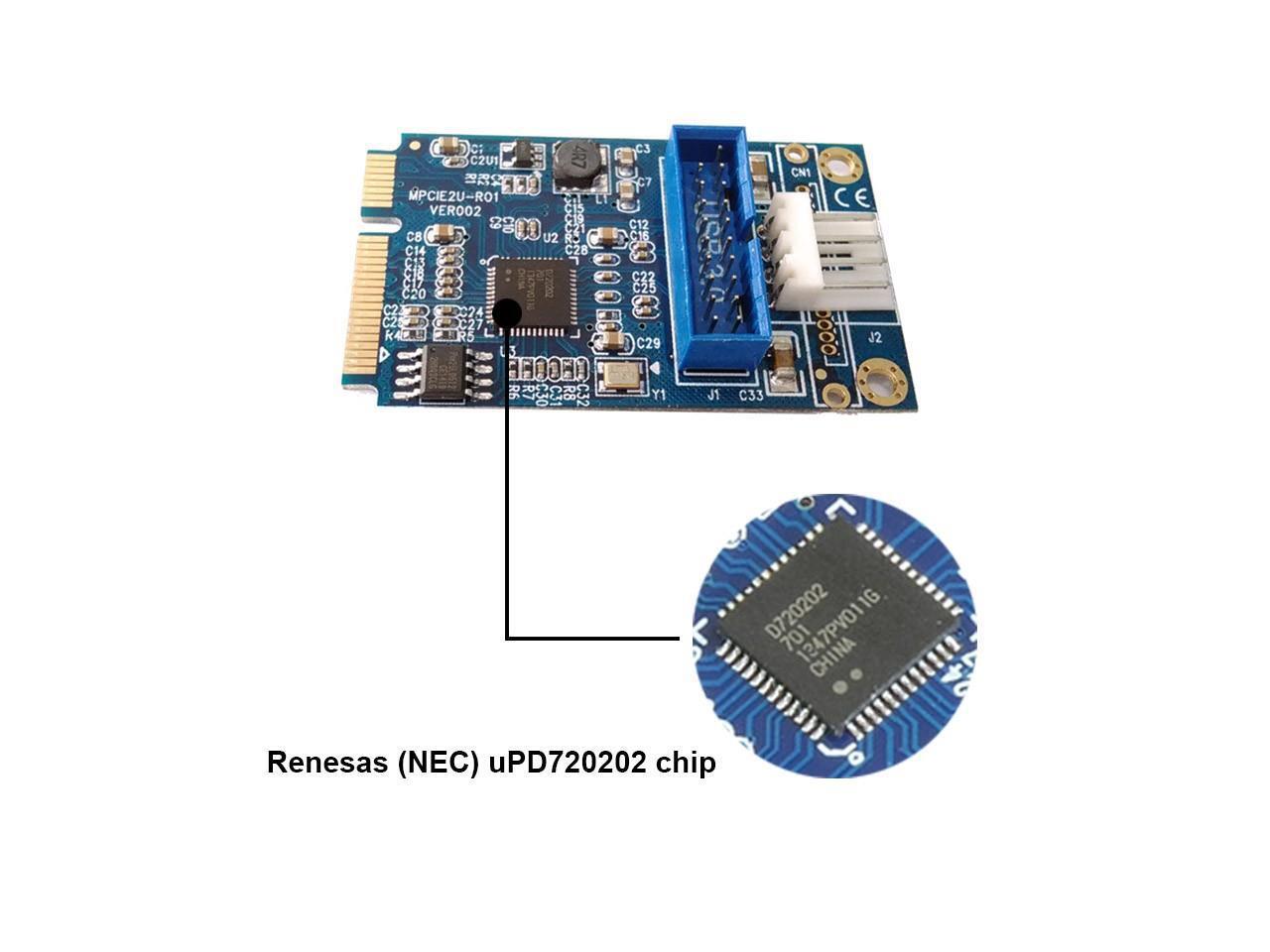

NEC UPD720202 chipset
Compliance with USB 3.0 spec
USB data transfer speed up to 5Gbps
This is Mini PCIe Adapter
NOT mSATA,NVMe,M2 slot card
Please check your motherboard carefully before purchasing
Specification
Type
Mini PCIe to USB 3.0 20Pin Adapter
Input
Mini PCIe Slot
Output
USB 3.0 20pin Motherboard Header
Power
Small Molex 4pin (SP4)
Data Transfer Speed
5Gbps
Chipset
NEC UPD720202
OS Request
Compatible with 64-bit and 32-bit Windows 10 / 8.1 / 8/7 / XP
Installation

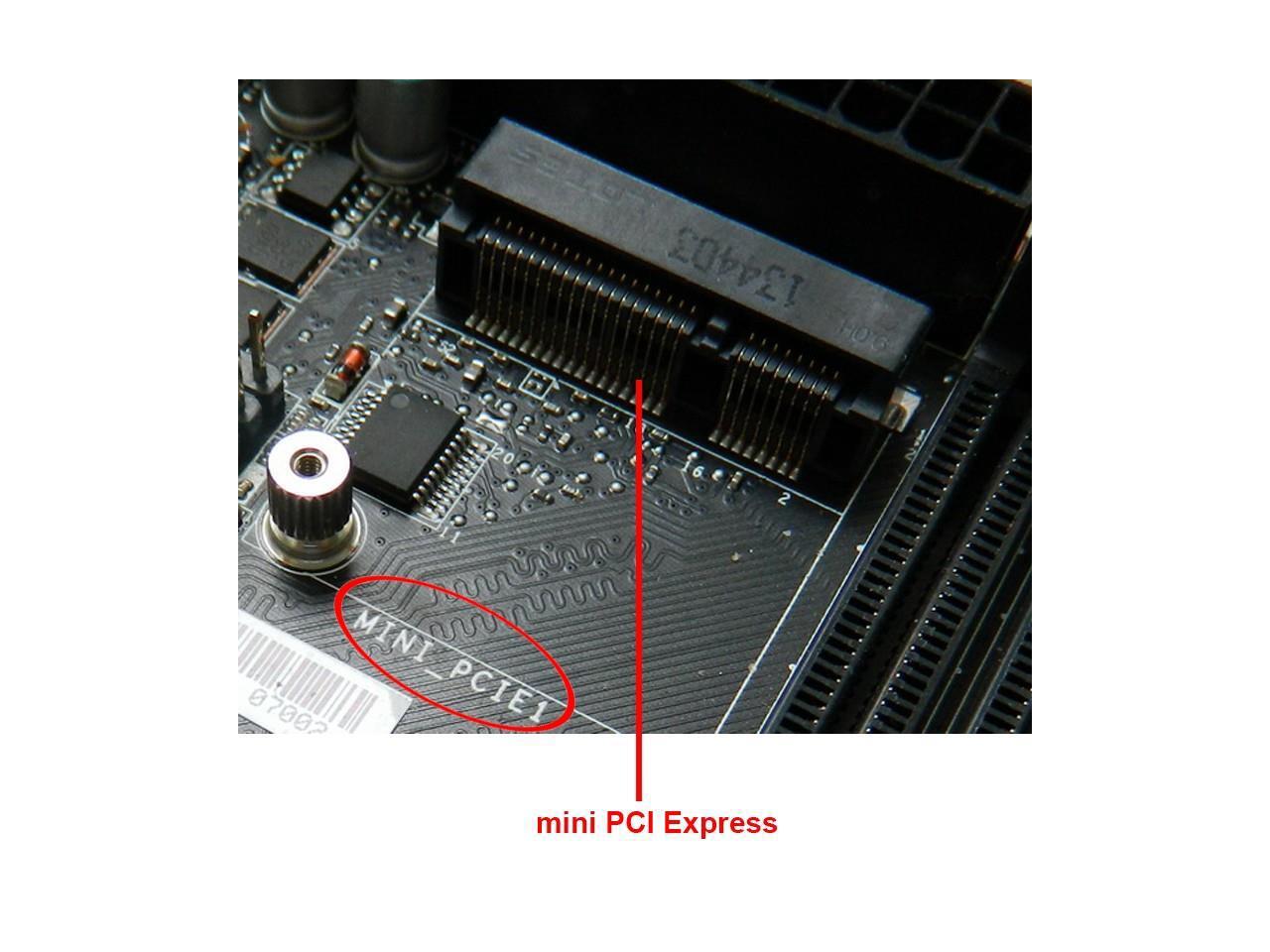

Motherboard Mini PCIe Slot
Package Contents
Mini PCIe to USB 3.0 Card, CD-Driver
Learn more about the EN-Labs 11-001-242
Model
Brand
En-Labs
Model
11-001-242
Details
Type
Controller Card
Specifications
Main chip: NEC UPD720202 chipset Have unused mini PCIe slot for PC expansion slot a 19-pin USB3.0 theoretical transfer rate up to 5Gbps, much higher than the USB2.0 480Mb / s, up to 10 times; Backward compatible with USB2.0, USB1.1, USB1.0 Transfer rate: 5Gbps/ 480Mbps/ 12Mbps / 1.5Mbps Small Molex 4 pin to take power by the board, or you can into a SATA power. (To change, please contact customer service) Built-in 19-pin can turn out two USB3.0 ports Compliance with PCI-Express Specification Revision 2.0 Compliance with xHCI specification version 1.0 Compliance with USB3.0 SuperSpeed specification version 1.0 USB support hot swap function Support Windows XP / 2003 / Vista / win7 / win8 / 2003 / linux, can provide LINUX drivers. Note: Mini PCI-E because without a 5V power supply, not directly to the USB-powered, so it can be inserted using the SATA power cable to work properly! This expansion card can only be plugged into the MINI PCI-E interface, can not be used MSATA interface. Please make sure when buying interface, or can not work. Because the first half of NEC 2010 merged with Renesas Electronics, Renesas Electronics accounted for a large share, so now have to drive and LOGO RENESAS. Please know! On the chip and printed CHINA JAPAN, this is just the chip package in China or Japan, which is still JAPAN wafer production, performance exactly the same, no difference. USB3.0 is double total 20PIN, which has one foot already needle injection foolproof, so called 19PIN. Please buyers in the purchase be sure to see the notes and instructions below to purchase! ! Because SATA Docking Station are plastic, not iron, so the line is relatively tight, when the harness must withstand plug the cable back transposons, forced plug wire when the transposon will tilt. Remember Remember!
Features
Features
This product is an ideal choice for any Mini PCI-Express expansible embedded or micro system needing larger volume and higher speed data transfer connectivity with USB devices. Real world applications such as: Connect to external hard disk drive, fast Solid State Drive(SSD), optical driver, high definition video camera etc.
Packaging
Package Contents
1 Piece Mini PCI-e to USB Expantion Card 1 Piece CD Driver
