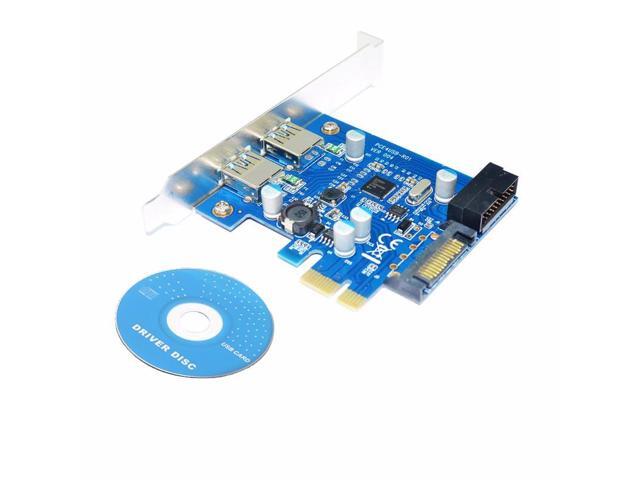

4 Port PCIE PCI-e to USB 3.0 (2 x Type A+ 20 Pin Internal) Expansion Card Hub Controller PCI Express Card Adapter w/ SATA Power

In stock.
Ships from China.
Most customers receive within 3-16 days.
  • 2P Low Profile
  • 2x Type A – Ext
  • PCIe to 4 ports USB 3.0 add on card
  • 2 x USB 3.0 Type-A external ports
  • 1 x USB 3.0 20pin internal interface

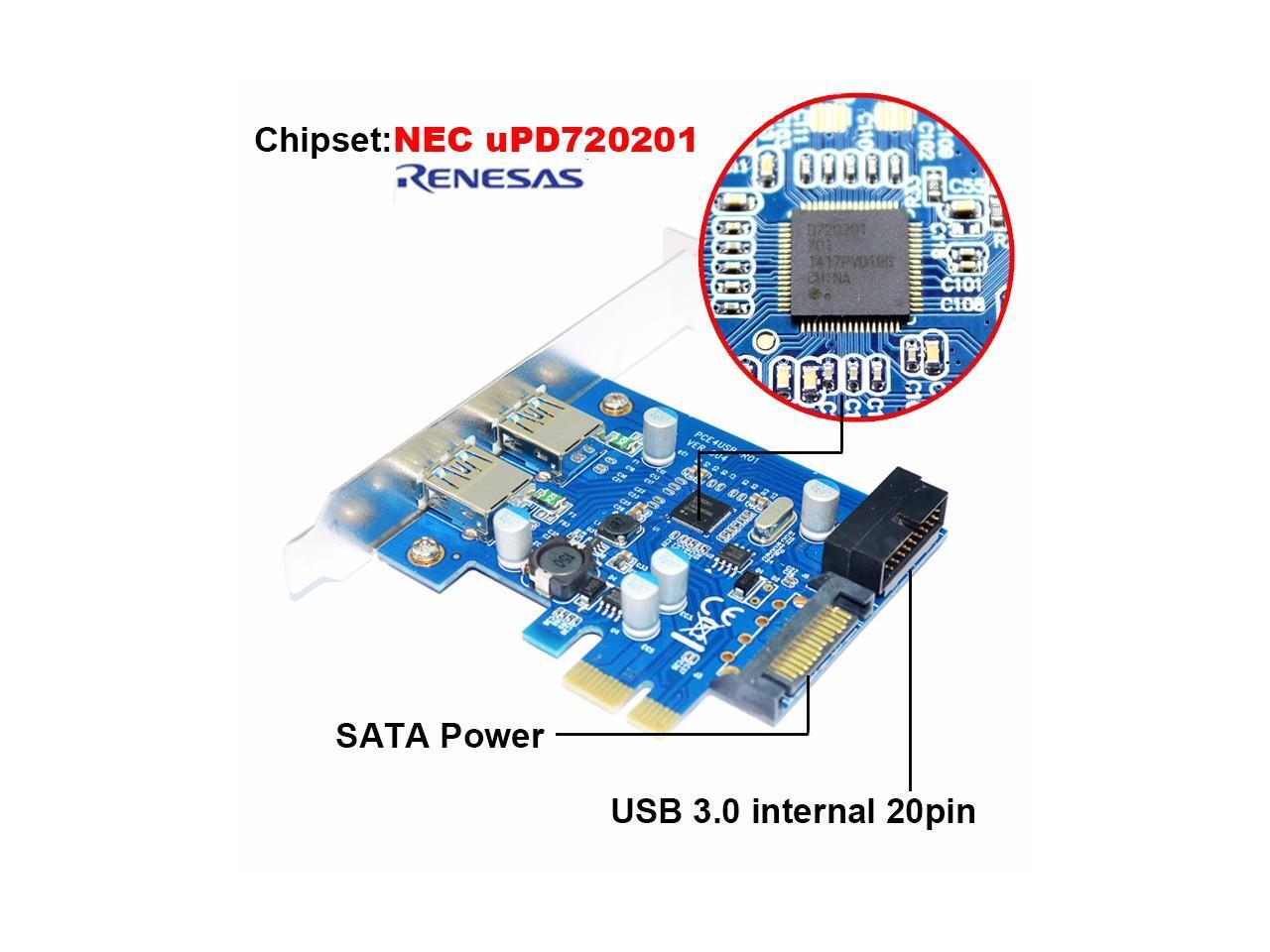

  • Chipset: NEC UPD720201
  • Suitable for all motherboard with PCI-E bus
  • Supports motherboard PCIe 1x, 4x, 8x, 16x Slot
  • Data transfer speed up to 5 Gbps
  • Power by SATA 15pin
  • With full profile PCI slot cover
En-Labs Four-Port USB 3.0 PCIe Add-on Card
  • Instantly add four USB 3.0 ports (two external ports, and two via 20-pin header) to your desktop via an available PCIe slot. And thus you can enjoy the blazing fast speed of USB peripherals at transfer rate of up to 5 Gbps.
  • The card's PCIe 2.0 x1 host interface offers up to 5 Gbps bus bandwidth to match USB 3.0 standard.
  • In addition to drawing power from PCIe slot, this card also has a built-in 15-pin SATA power connector for enhanced power supply to handle power-hungry devices.
  • PCIe to USB 3.0 Expansion Card
  • Supports PCIe 1x, 4x, 8x, 16x Slot
  • 2 Ports USB 3.0 external
  • 2 Ports USB 3.0 internal via USB 20 pin
  • Equipped full-profile PCI slot bracket
  • Driver is including
  • NEC UPD720201 Chipset
  • Supports data transfer speed up to 5Gbps each port
  • One internal USB 20 Pin header for 2 Ports USB 3.0 front panel expanding
  • PCIe Card is powered by PCIe Slot
  • Built-in 15-pin SATA power connector for enhanced power supply to handle power-hungry devices
Type PCIe to USB 3.0 Expansion Card
Input PCIe x1 Slot, Compatible with PCIe x1,x4,x8,x16 Slot
External Output 2 x USB 3.0 Type-A Female
Internal Output USB 3.0 Internal 20Pin Header
Power PCIe Slot
Enhanced Power Interface SATA Power Interface
Data Transfer Speed 5Gbps
Chipset NEC UPD720201
PCI-Express Spec Compatible with PCI-Express 2.0 standard
XHCI Spec Compatible with XHCI specification 1.0
OS Request Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Installation Full-Profile PCI Bracket
Package Contents PCIe to USB 3.0 Card, CD Driver
