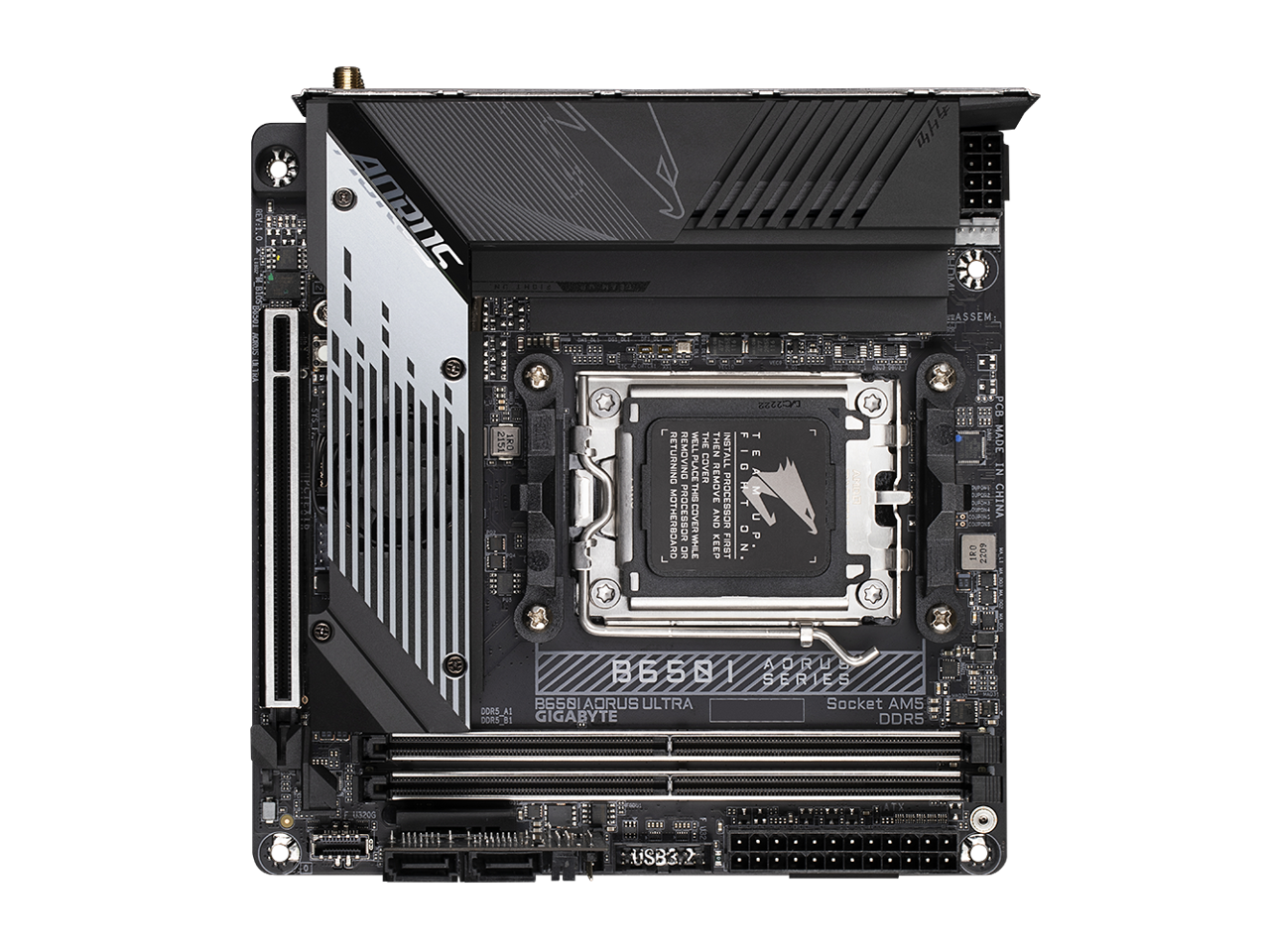

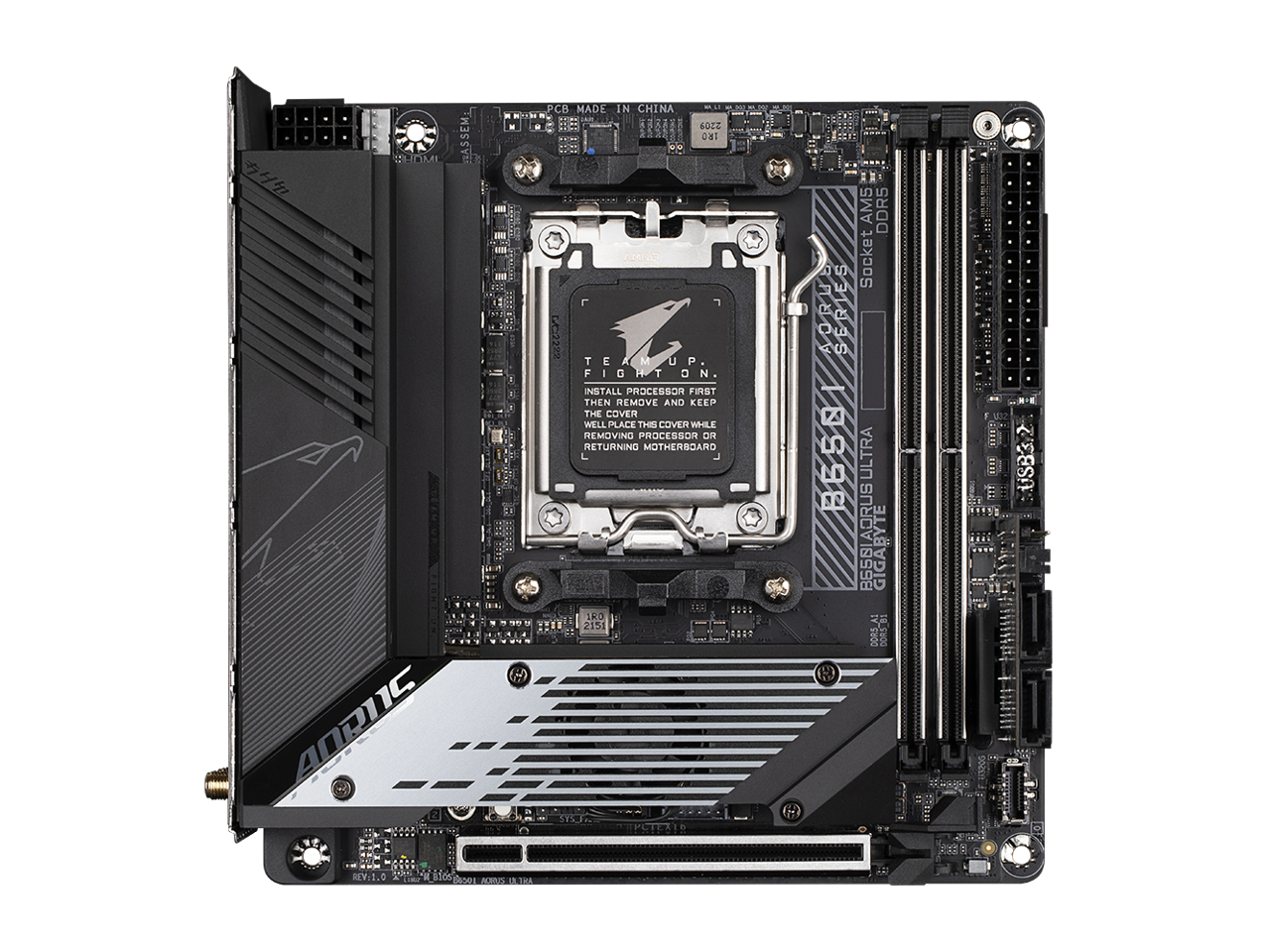

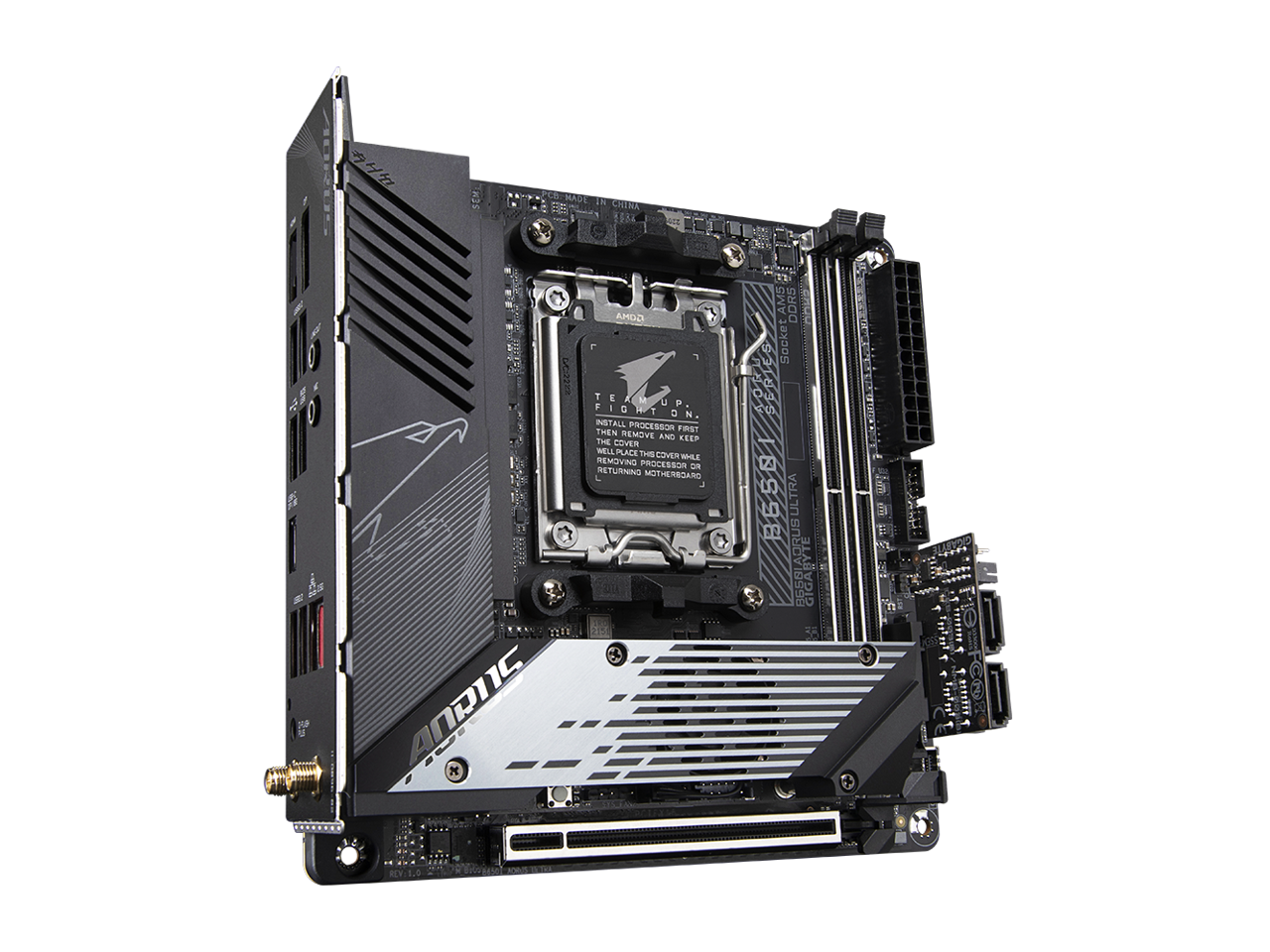

GIGABYTE B650I AORUS ULTRA AM5 AMD B650 SATA 6Gb/s Mini ITX Motherboard
See more "am5 itx"
In stock. Limit 5 per customer.
Ships from United States.
- AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
- Unparalleled Performance: Direct 8+2+1 Phases Digital VRM Solution.
- Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO & Intel® XMP Memory Module Support.
- Next Generation Storage: 1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connector.
- Fully Covered Heatpipe & M.2 Thermal Guard III with Active Cooling:To Ensure 2280 PCIe 5.0 M.2 SSD Performance.
- EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design.
- Hi-Fi Audio with DTS:X® Ultra:ALC4080 CODEC.
- Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax.
- Extended Connectivity: DP, HDMI, Rear USB-C® with DP Alt Mode, Front USB-C® 20Gb/s.
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Specs
Reviews
Learn more about the GIGABYTE B650I AORUS ULTRA
| Brand | GIGABYTE |
|---|---|
| Model | B650I AORUS ULTRA |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 5200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. 1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
| SATA RAID | 0/1/10 |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 2 Channels |
| Max LAN Speed | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.2 |

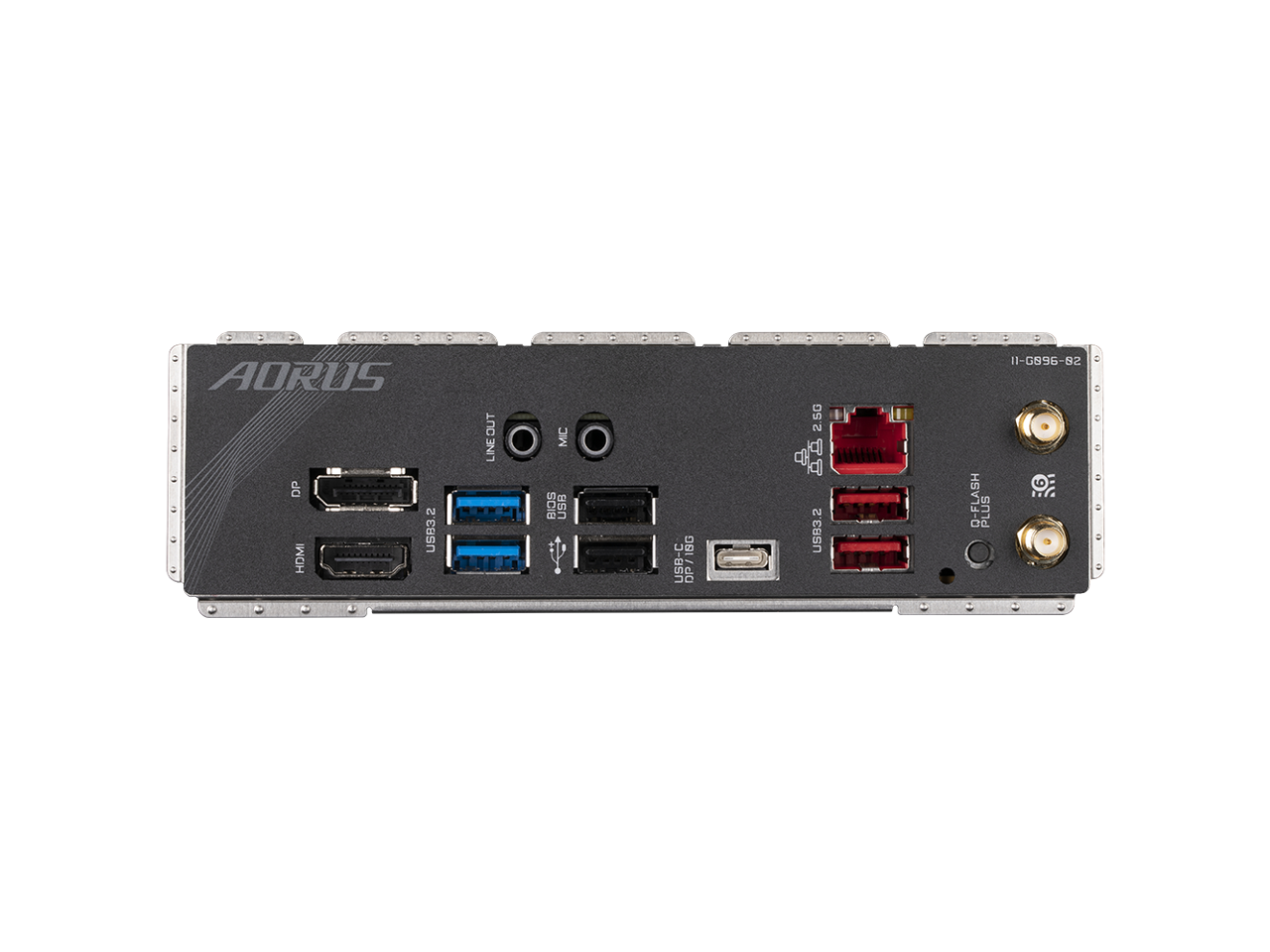

| Back I/O Ports | 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 1 x Q-Flash Plus button 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header(Note 2) |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header (SYS_FAN1(Note 1)) 1 x addressable LED strip header(Note 2) 1 x RGB LED strip header(Note 1) 3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4)) 4 x SATA 6Gb/s connectors(Note 1) 1 x front panel header(Note 1) 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x reset button(Note 2) 1 x reset jumper 1 x power switch jumper 1 x Clear CMOS jumper (Note 1) The connector is on the front of GC-B650I FRONT CARD. (Note 2) The connector is on the front of GC-B650I BTB PLUG. (Note 3) The connector is on the back of GC-B650I BTB PLUG. (Note 4) The connector is on the back of the motherboard. |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|---|
| Date First Available | December 15, 2022 |
|---|
