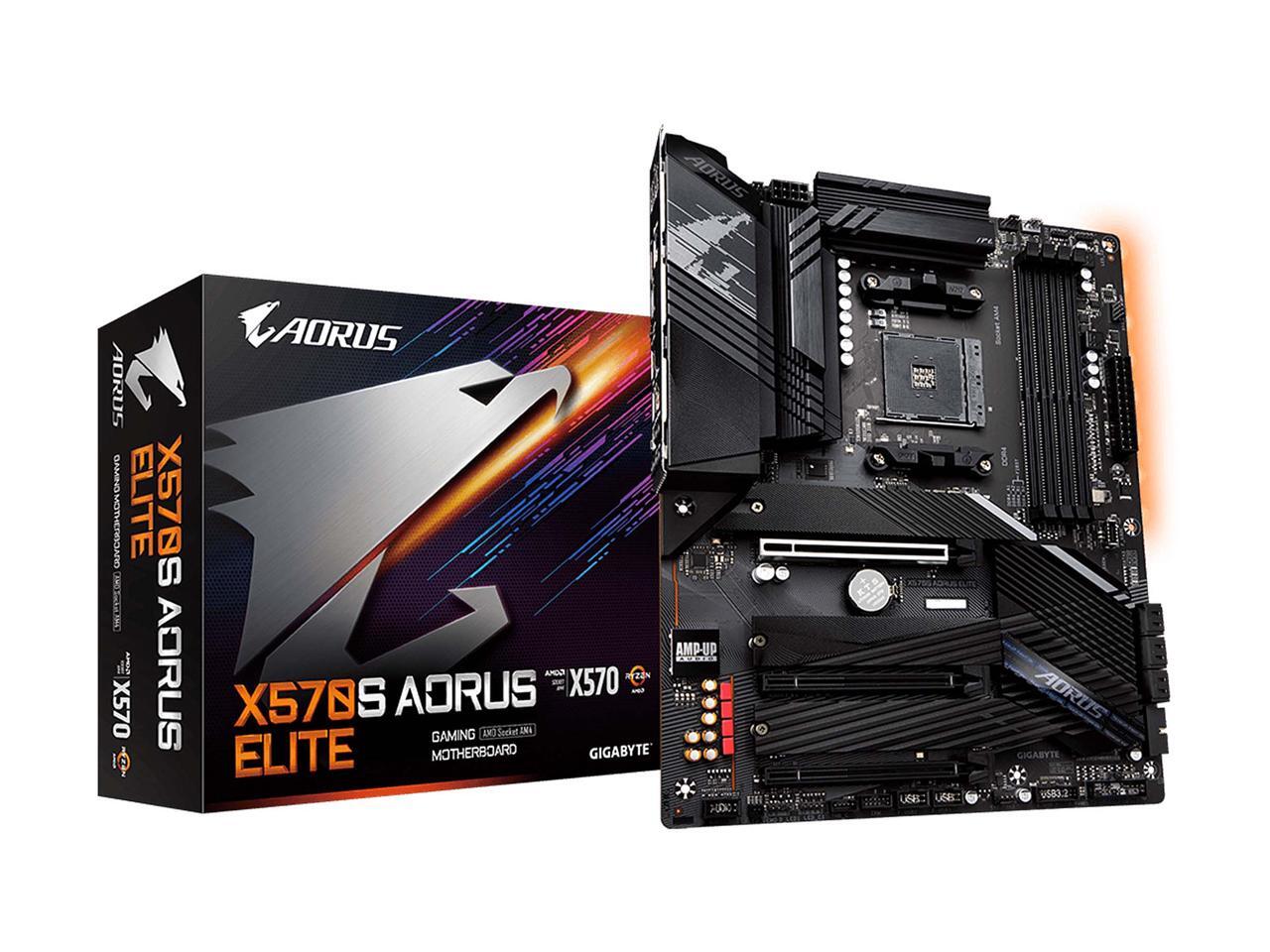

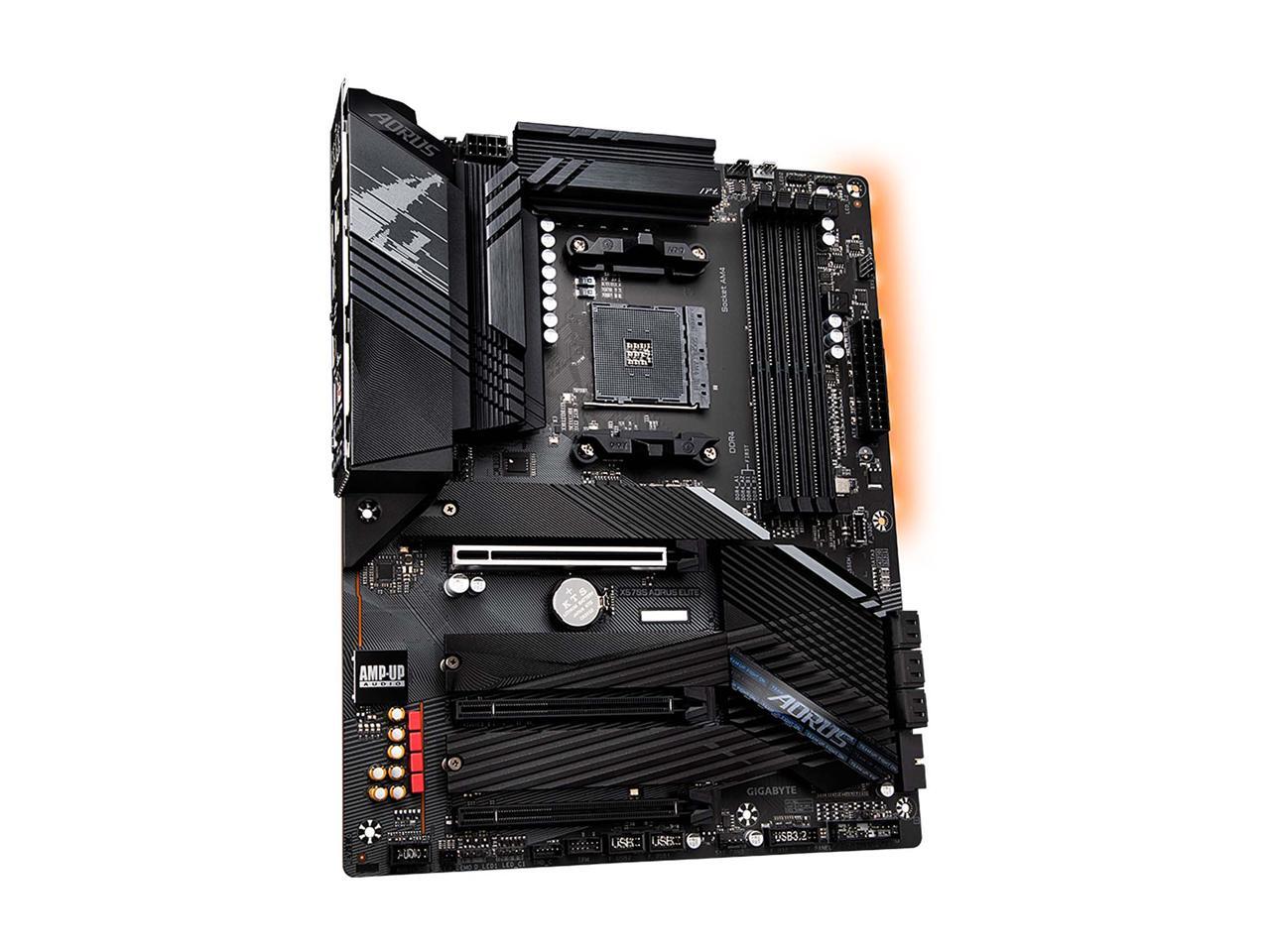

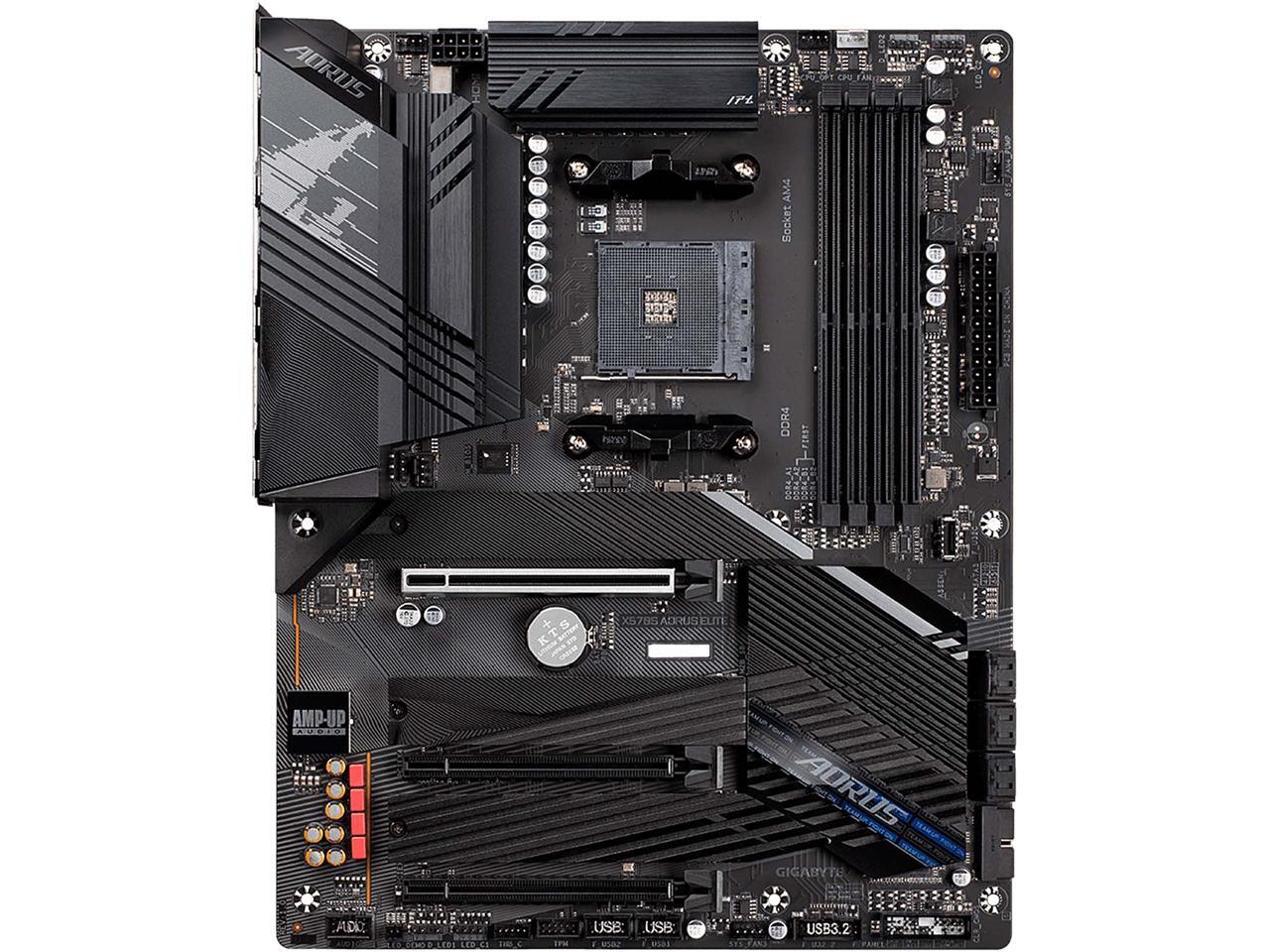

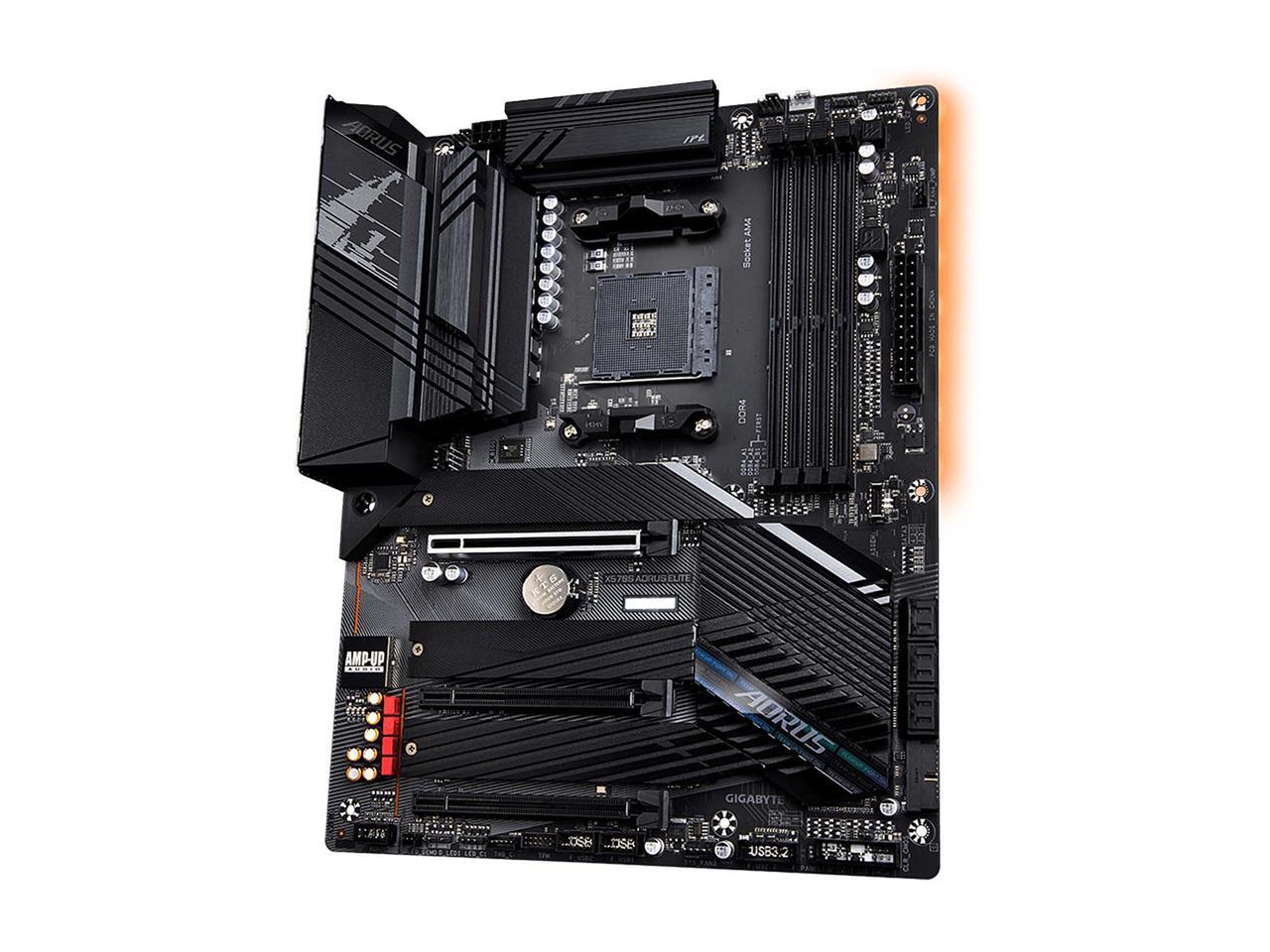

GIGABYTE X570S AORUS ELITE (rev. 1.0) AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S ATX Motherboard

(18) Write a Review
See more "gigabyte x570"
OUT OF STOCK.

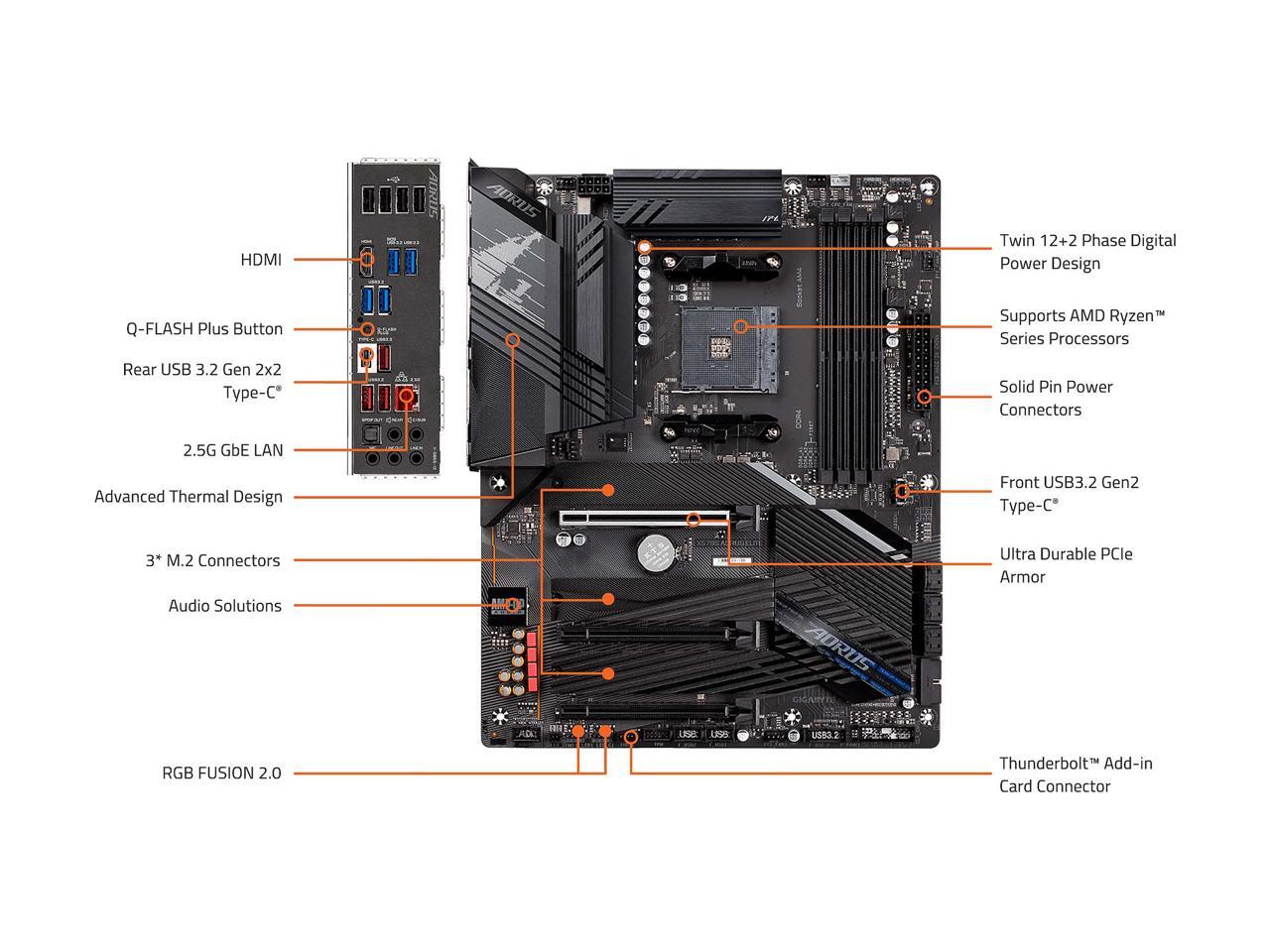

  • Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • Fast 2.5GbE LAN with Bandwidth Management
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specs
Reviews

Learn more about the GIGABYTE X570S AORUS ELITE (rev. 1.0)

Model
Brand GIGABYTE
Model X570S AORUS ELITE (rev. 1.0)
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5400(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported ECC memory (ECC mode) support varies by CPU.
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 3 x PCI Express 4.0 x16 (PCIEX16) (PCIEX4) (PCIEX2)*

* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode.
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs

(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1220-VB
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 2.5GbE LAN
Max LAN Speed 2.5Gbps

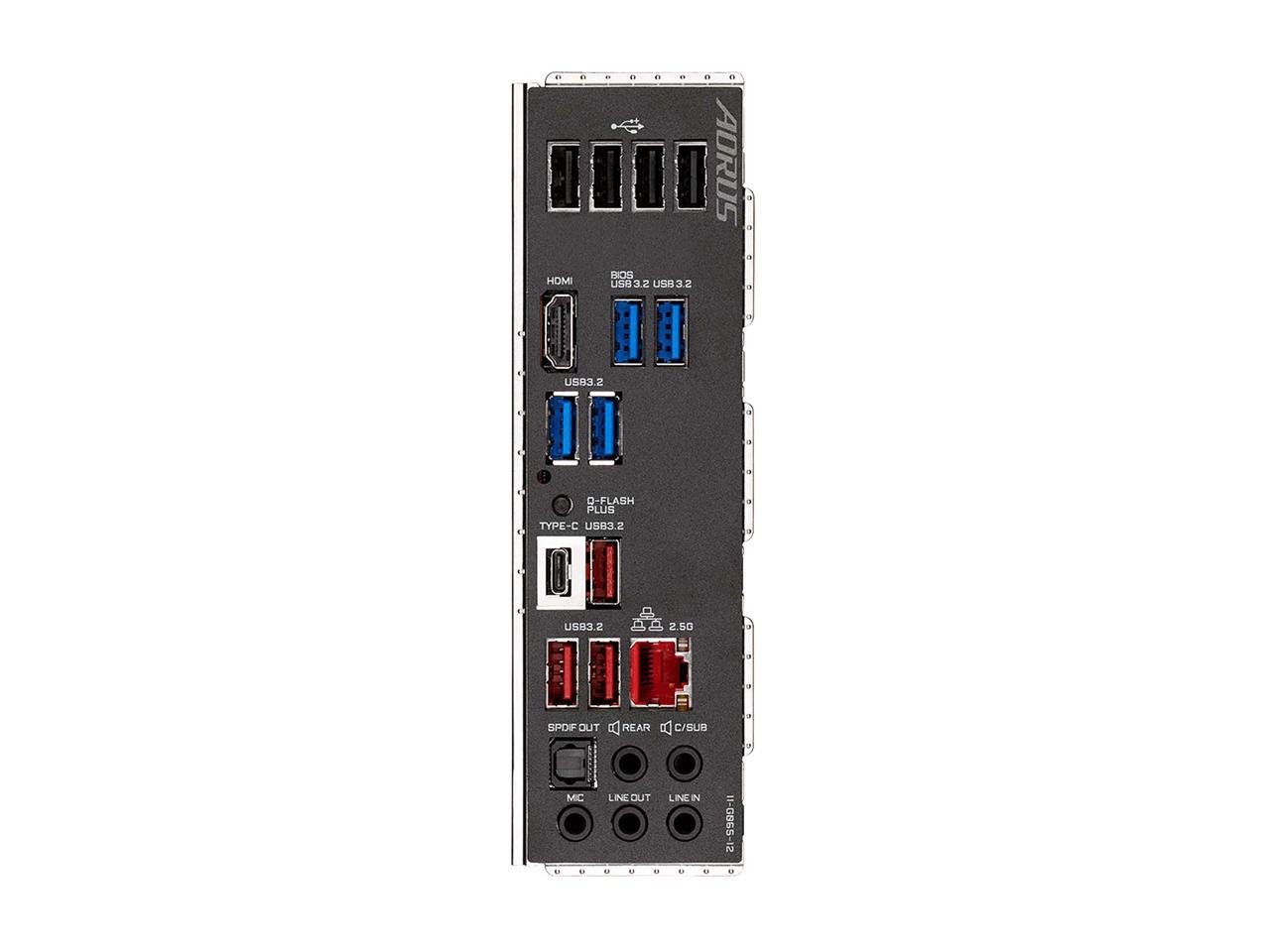

Rear Panel Ports
Back I/O Ports 4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt add-in card connector
1 x Clear CMOS jumper

* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Physical Spec
Form Factor ATX
LED Lighting RGB

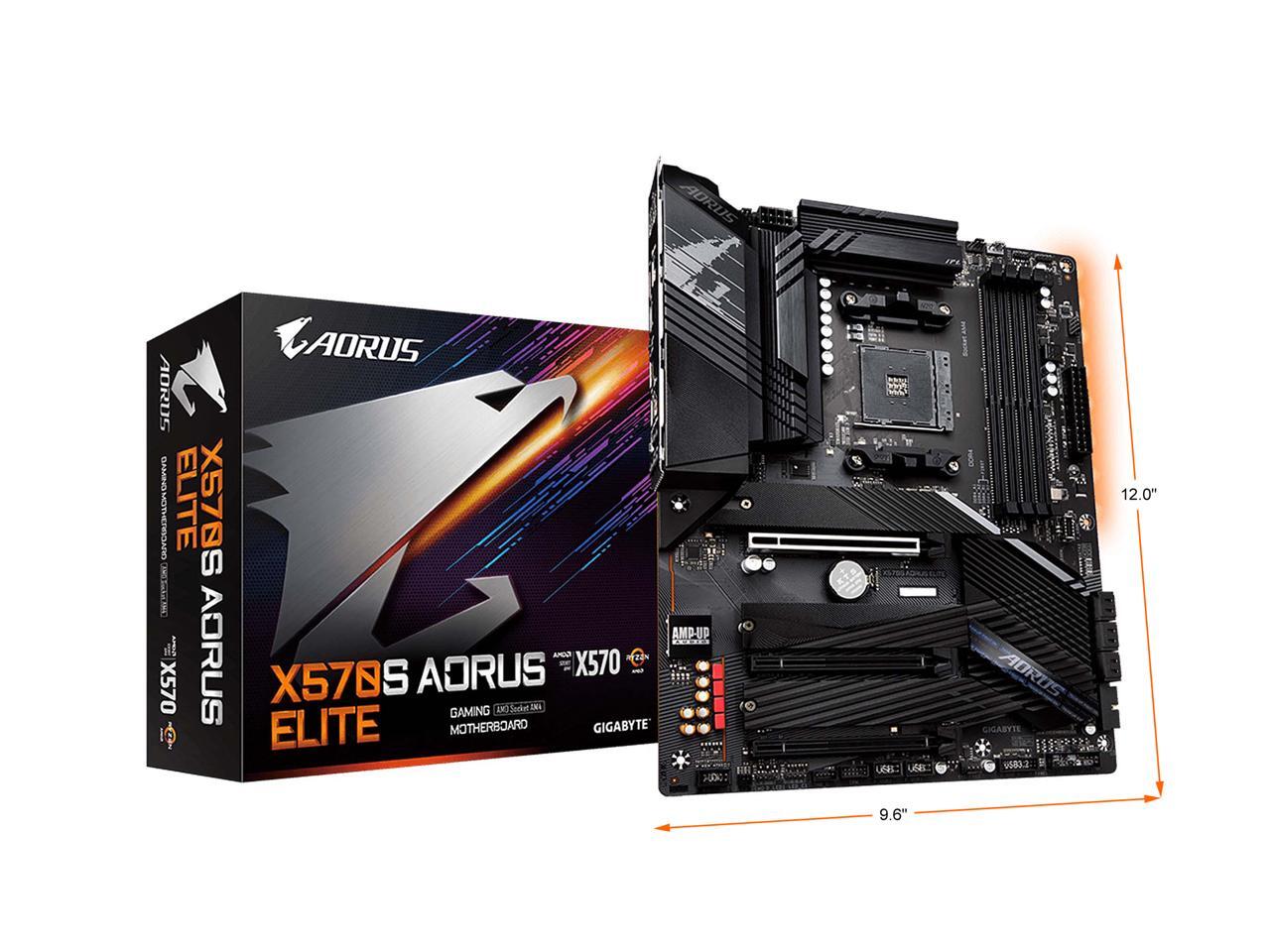

Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Additional Information
Date First Available February 07, 2022
