ICY DOCK ToughArmor MB998IP-B Rugged Full Metal 8 Bay 2.5" SAS/SATA SSD&HDD (7mm) Backplane Cage for External 5.25" Bay
- Multi 2.5" Drives to 5.25" Bay
- SATA I/II/III/SAS
- Multiple Drives

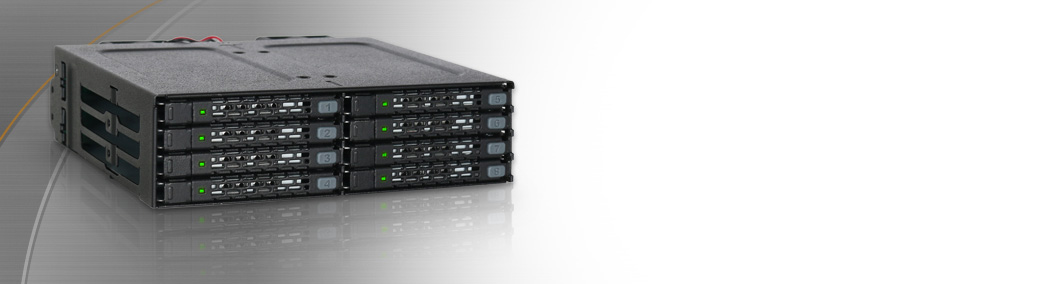

Rugged Full Metal 8 Bay 2.5" SAS/SATA SSD&HDD (7mm) Backplane Cage for External 5.25" Bay
No data storage enclosure is complete without reliable drive connections, and proper drive protection. Many enterprise applications rely on their data to run their business, and any major downtime or data loss can be crippling. The ToughArmor MB998IP-B utilizes a rugged full-metal removable drive enclosure, and the latest in drive connection technology, to bring you the best in stability, speed, and reliability. For your dense data storage needs, it holds an unprecedented 8x 2.5” SAS / SATA hot-swappable drives with 5mm-7mm height, all in a single 5.25” bay. The two Mini-SAS HD (SFF-8643) connectors at the rear of the unit makes it easy to connect to a modern RAID card and reduce cable clutter, while offering additional bandwidth and reliability over SATA connections. The dual 40mm user-controllable cooling fans and ventilated metal case keep your drives running longer, even under the toughest of loads. The fan has three modes the user can set; high, low, and off. The ToughArmor MB998IP-B features a rugged heavy duty full-metal enclosure designed to handle I/O intensive applications such as data mining, information retrieval, video processing, HPC, VDI, cloud service, database, and server.
Countless Options in a Single Bay

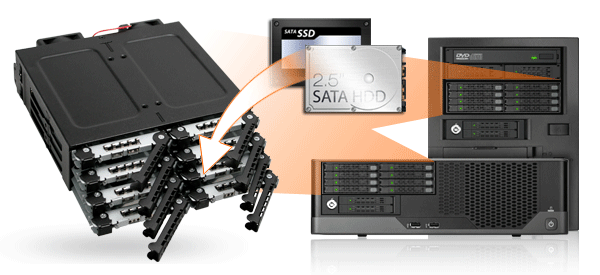

To maximize its storage density and compatibility, the ToughArmor MB998IP-B supports 8 x 5-7mm 2.5” SAS / SATA SSD or Hard disk drive, and only uses one standard external 5.25” computer bays (DVD-ROM bays).

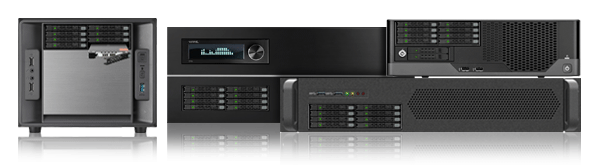

The MB998IP-B’s compact, dense design makes it perfect for workstations, compact servers, gaming rigs, home servers, and HPCs that require high IOPS, high capacity, and low latency storage access.

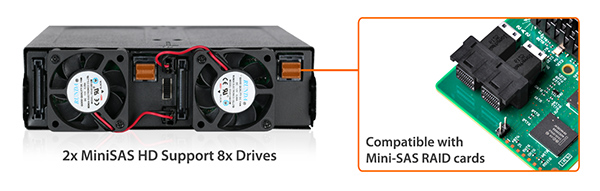

It works well in advanced RAID configurations such as RAID 6 or RAID 10 arrays, due to its use of 2x Mini-SAS HD (SFF-8643) connectors, and can be controlled by a single RAID card. The Mini-SAS HD connector is designed to improve the ease of installation and vastly reducing cable clutter, using only two cables compared to eight SATA cables. Mini-SAS HD can travel further without data loss, keeping your data transfers clean and secure in all situations. The use of Mini-SAS HD makes the MB998IP-B compatible with a wide variety of SAS expanders and RAID cards, making it easier to use in enterprise environments.

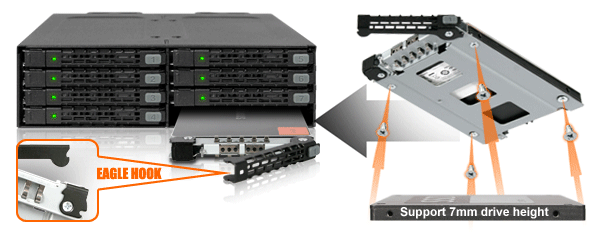

Using the EZ Slide Nano trays makes drive interchangeability and maintenance completely hassle free. For drive security, the Eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. The trays are designed to accommodate 5 to 7mm height hard drives and SSDs, creating a 2.5" hot swap bay for any standard SATA / SAS hard drives and SSDs.
Maximum Reliability and Stability

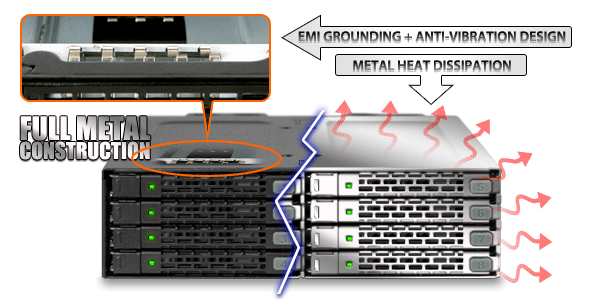

Ensuring the safety of your valuable data is the foundation to any good system build or design. The MB998IP-B is capable of holding up to the most demanding environments with its rugged, heavy duty, full-metal construction in the entirety of the body and its smaller components. The ToughArmor's rugged full metal design is also perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to be already compliant with flammability requirements. In addition, the Anti-Vibration Technology (AVT) and EMI grounding ensure a stable platform for the drives being used, vastly improving reliability and drive longevity. The full metal construction of MB998IP-B allows for maximum heat dissipation, and combined with the dual 40mm cooling fans, keeps your drives at an optimal temperature even under intense access activity.
The user-controllable dual 40mm cooling fans are placed at rear of the enclosure, providing equivalent airflow throughout the entire cage. Depending on your needs, you may need the fan to be at a higher speed, or completely off for silent operation, and so a 3-Mode Fan Speed Control has been added to flexible in various situations.
Packed with Features

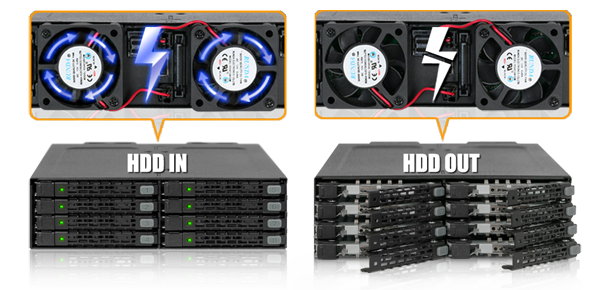

The ToughArmor MB998IP-B has LED status lights built-in to each tray, giving you current status information for each drive. Active Power Technology (APT) allows each LED to only be on when a drive is inserted, and shuts down the fan automatically when all drives are removed. When a drive is detected, the dual 40mm cooling fans start up, strategically placed in the rear of the unit to maximize airflow.

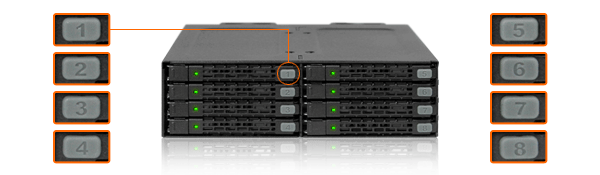

Never lose track of which drive goes where. Individual numbered drive ID labels let you maintain order of your drives in RAID arrays. The drive labels can be easily re-ordered, or removed entirely for a cleaner look.

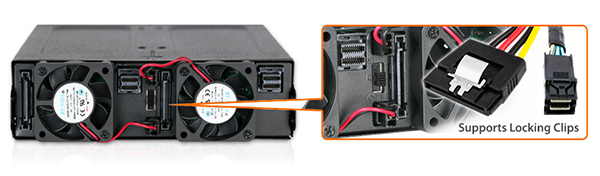

The ToughArmor MB998IP-B supports both miniSAS HD (SFF-8643) and 15pin SATA power cables with locking latches so you’ll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they’ll lock into place and stay that way.

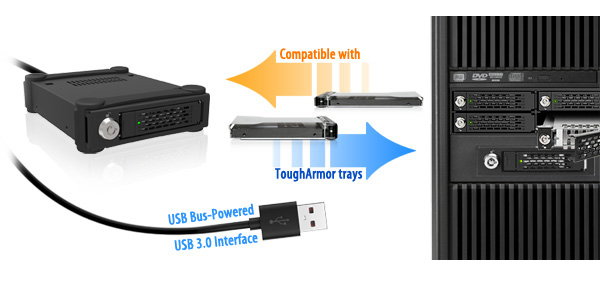

Make ToughArmor On-The-GO! With MB991U3-1SB
To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB is the way to go about. The drive tray slot of MB991U3-1SB is compatible with a variety of ToughArmor drive trays including the ToughArmor MB991, MB992, MB994, MB996 and MB998 series. This allows existing ToughArmor users to access their internal drive externally without opening up the case. It is a great tool for an individual drive diagnostic test. If you need to do a safe data erase or just simply expending system storage capacity, just remove the tray from the internal ToughArmor unit and insert it in the MB991U3-1SB to perform individual tasks externally with USB 3.0 interface. Best of all, the MB991U3-1SB uses USB bus-powered and it does not require a power adapter to operate. Simply connect the USB cable to any system and you are ready to go.
EZ-Slide Nano Tray MB998TP-B DriveTray for ToughArmor MB998 Series
Tray Compatible with External ToughArmor:
- Rugged Heavy duty full metal construction with commercially designed for medical &military systems, media servers, workstation, HPCs and IPCs, approved & used by Tier 1 companies
- Perfect for rugged applications and complies to flammability requirements
- Fits 8 x 5mm to 7mm 2.5” SATA hard drives or SSD’s in a single external 5.25” bay for high performance RAID applications
- Dual 40mm user-controllable fans, with settings for high, low, and off
- Connected by 2x Mini-SAS HD data cables for all 8 bays, for plug-and-play compatibility with most motherboards and RAID cards
- Requires only 2 x 15pin SATA power connectors to power all 8 bays (drives)
- Drive label plugs to keep track of your RAID drives
- Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
- Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay
- Eagle-hook lock system keeps drives secured within the enclosure
- Removable tray system for easy maintenance
- Supports SAS12Gbps (single channel)&SATA 6Gbps and hot-swap
- Supports MiniSAS HD and SATA power cables with locking latch design
- Industry leading 3 year warranty with exceptional customer support
