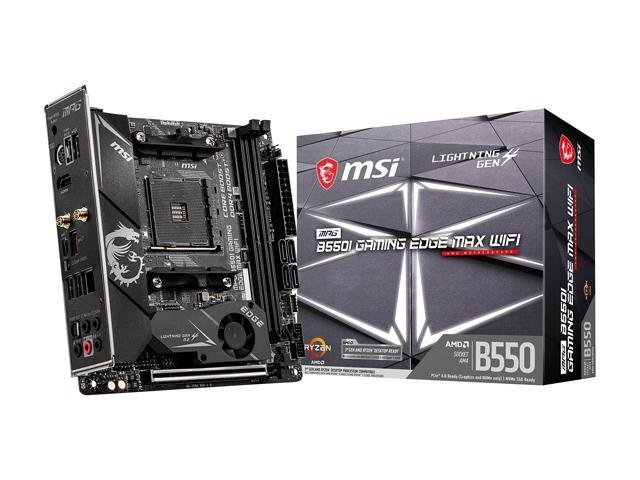

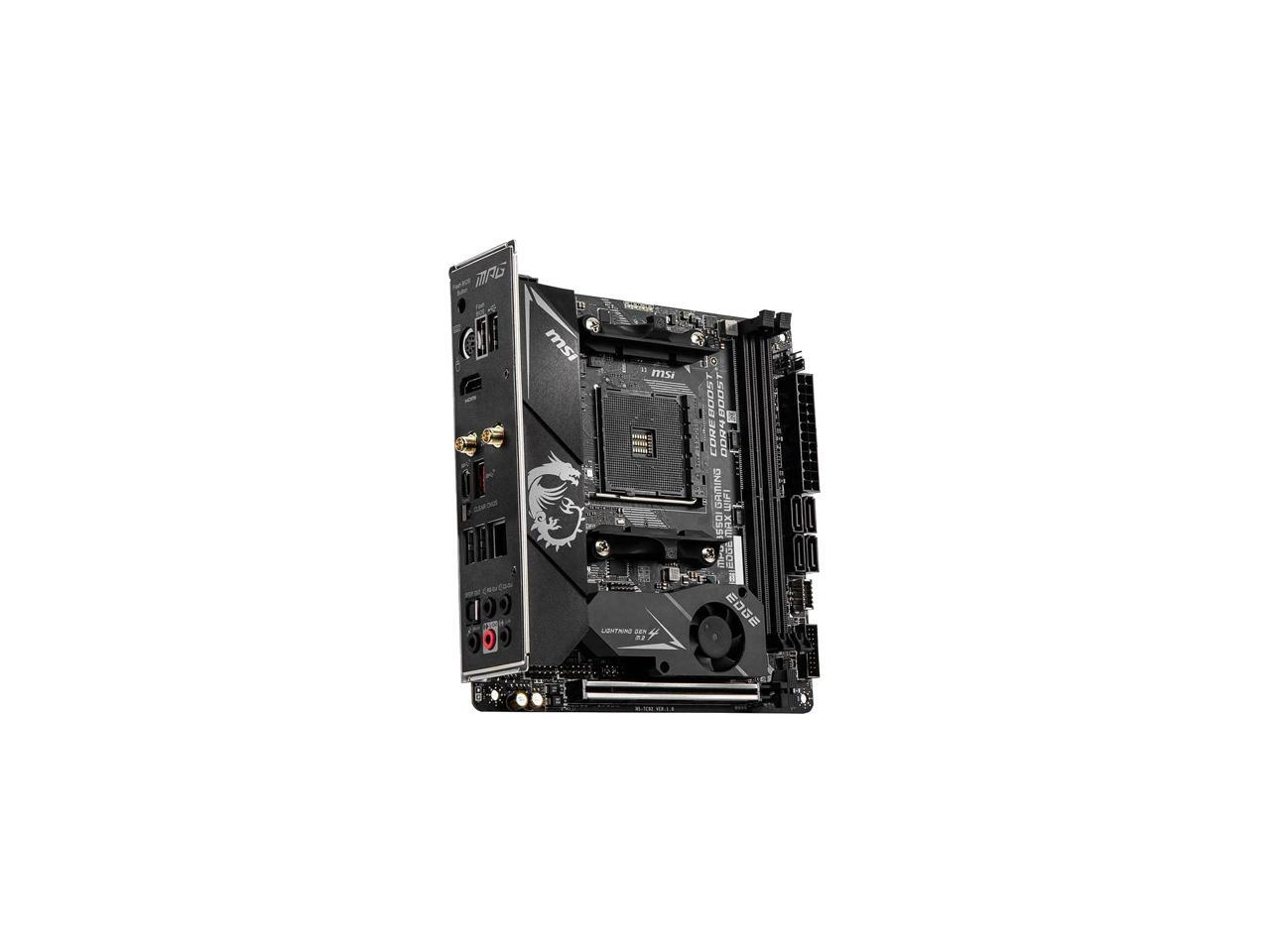

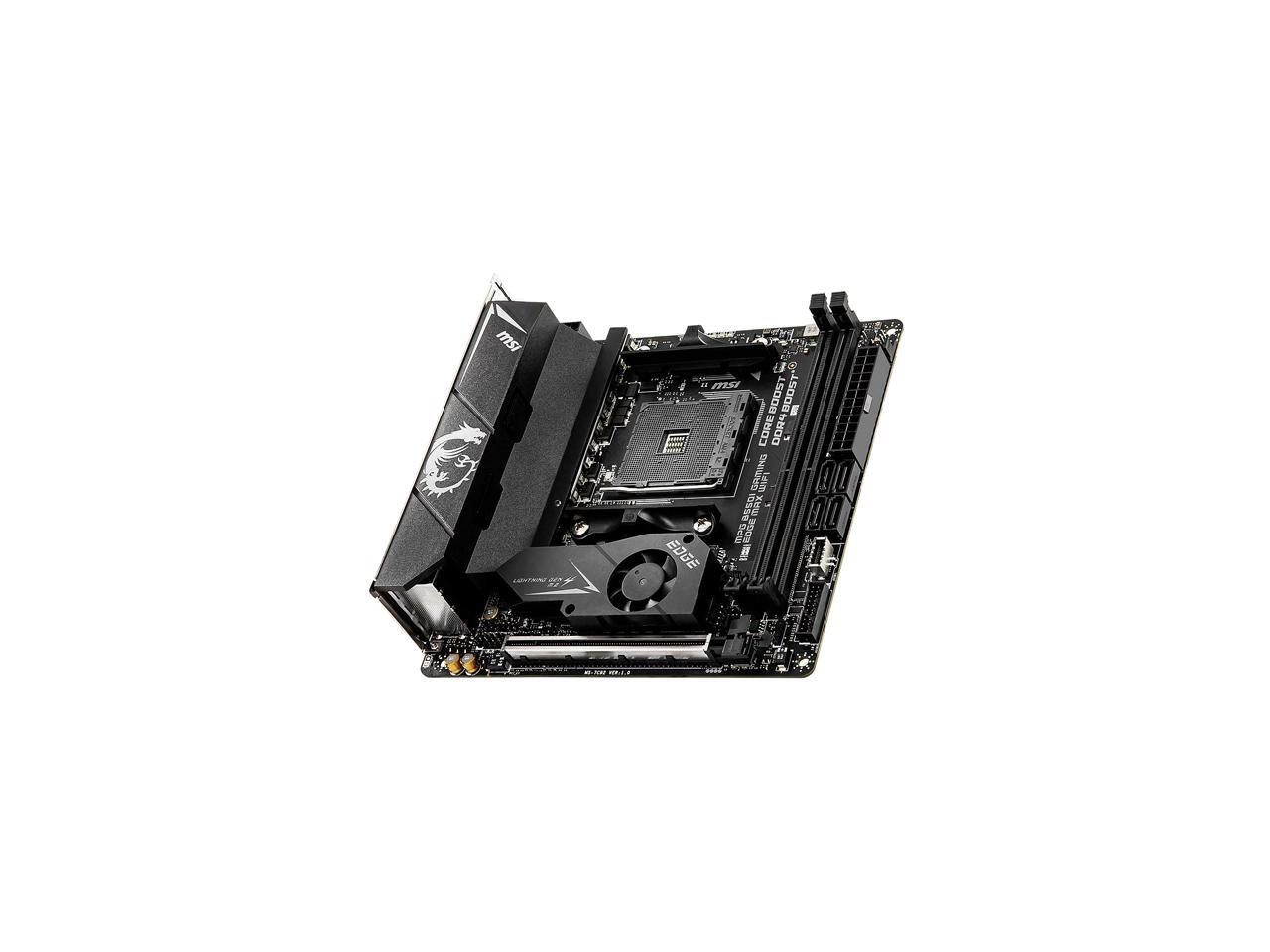

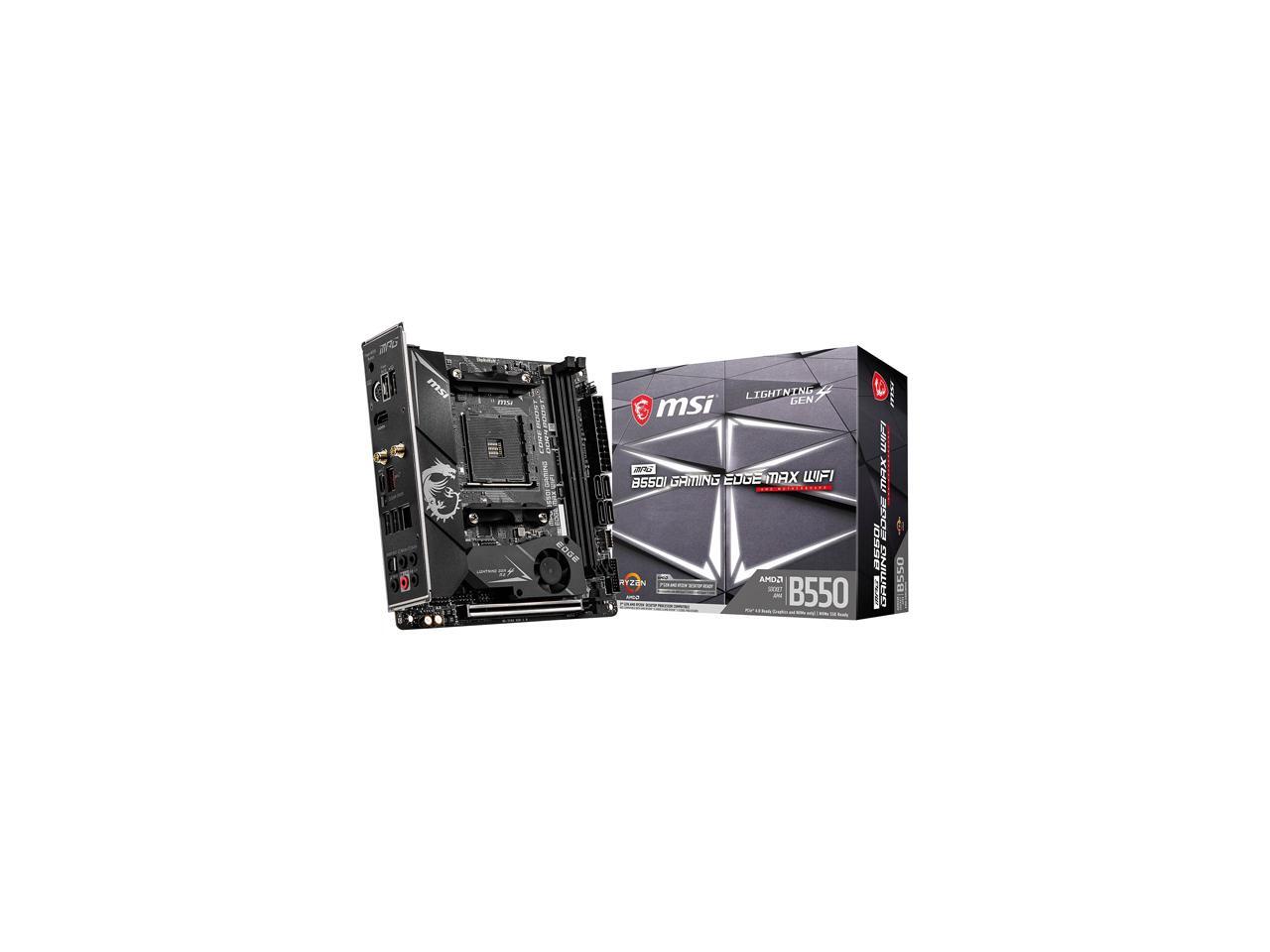

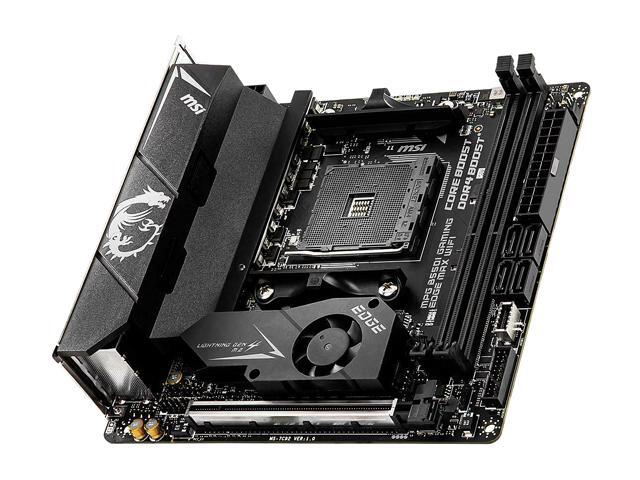

MSI MPG B550I GAMING EDGE MAX WIFI AM4 AMD B550 SATA 6Gb/s Mini ITX AMD Motherboard

Be the first to review this product...
See more "msi itx"
OUT OF STOCK.
  • AMD B550
  • Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors *
  • * Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
  • DDR4 4600+ / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
  • DDR4 2667 / 2400 / 2133 / 1866 by JEDEC
  • 1DPC 1R max speed 4600
  • 1DPC 2R max speed 4000
Specs
Reviews

Learn more about the MSI MPG B550I GAMING EDGE MAX WIFI

Model
Brand MSI
Model MPG B550I GAMING EDGE MAX WIFI
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series processors *

* Not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G.
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 4600+ / 4533 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 by A-XMP OC MODE
DDR4 2667 / 2400 / 2133 / 1866 by JEDEC

1DPC 1R max speed 4600
1DPC 2R max speed 4000
Maximum Memory Supported 64GB
Channel Supported Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 2 x M.2 slots [Key M]:

M2 1 slot [from AMD Processor]:
Supports PCIe 4.0/3.0 x4 *
Supports SATA 6Gb/s
Supports 2260/2280 storage devices

M2_2 slot [from AMD B550 chipset]:
Supports PCIe 3.0x4
Supports 2280 storage devices

* The supported specification depends on installed processor.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8125B
Max LAN Speed 2.5Gbps
Wireless LAN Intel AX200
802.11a/b/g/n/ac/ax
Bluetooth Bluetooth 5.1
Rear Panel Ports
Back I/O Ports 1 x Clear CMOS Button
1 x Flash BIOS Button
1 x HDMI
1 x LAN (RJ45)
2 x Antenna Bracket
1 x PS/2 Keyboard/Mouse Combo
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0/1.1
1 x Optical S/PDIF Out
5 x Audio Jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports]
1 x USB 2.0 connector [supports additional 2 USB 2.0 ports]
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x 3-pin RAINBOW LED connector
1 x Clear CMOS jumper
4 x EZ Debug LED
Physical Spec
Form Factor Mini ITX
LED Lighting RGB

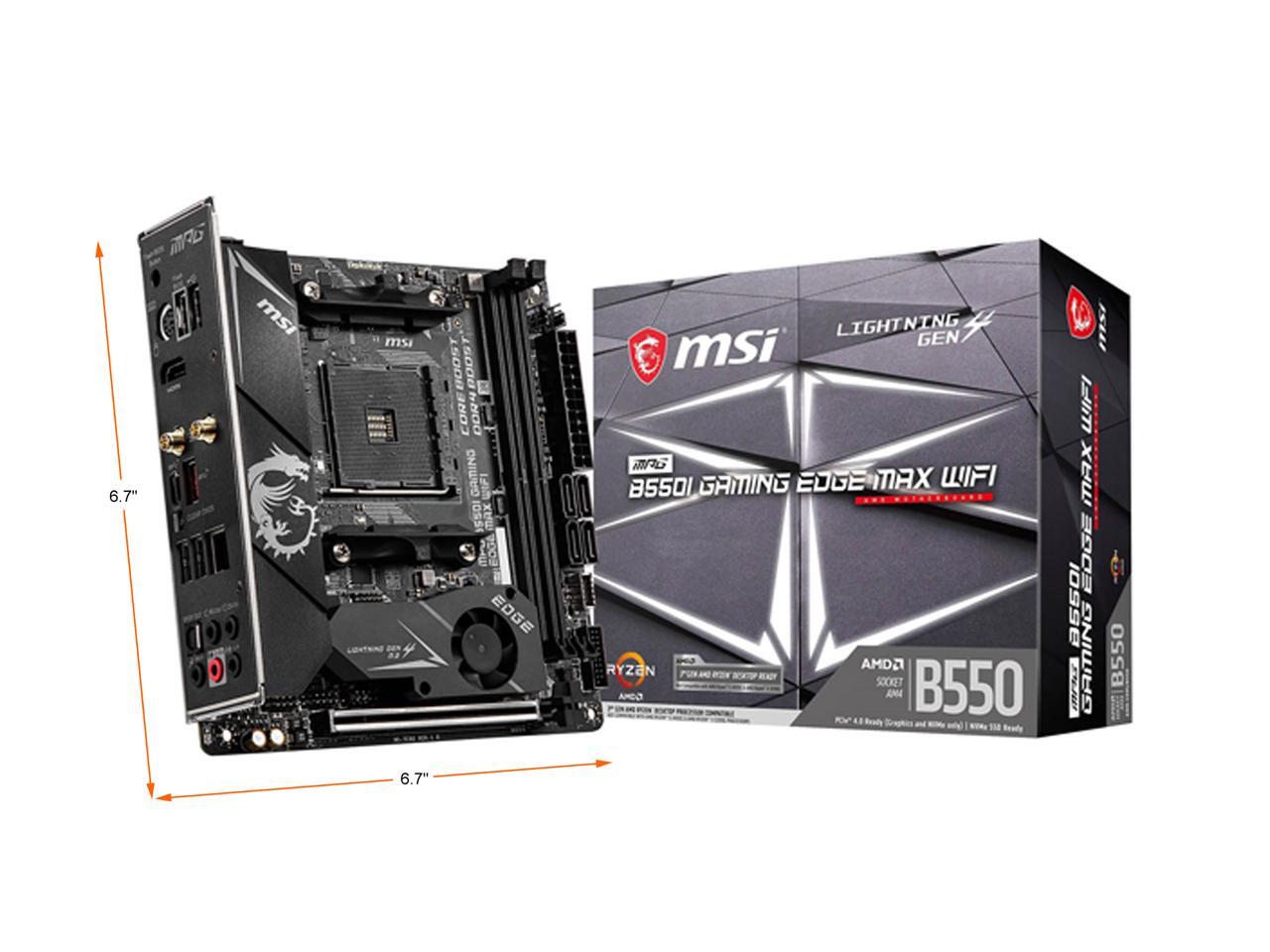

Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Supports DDR4 Memory, up to 4600(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector

Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost

Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience

2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

HDMI 2.1: Support 4K display with up to 4096x2160@60Hz

Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Audio Boost: Reward your ears with studio grade sound quality

Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions
Additional Information
Date First Available March 01, 2022
