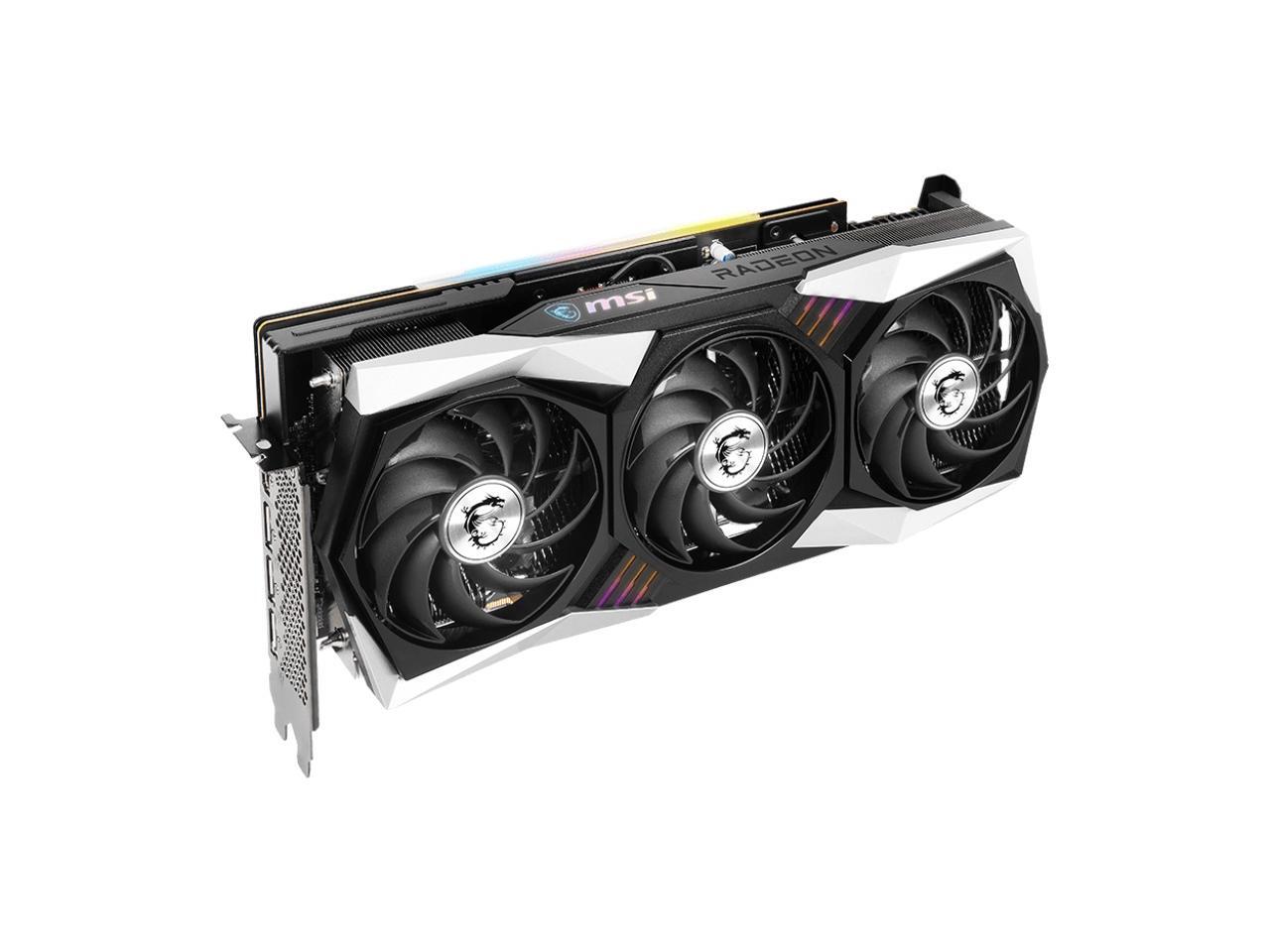

Learn more about the MSI RX 6800 Gaming Z Trio 16G
Model
Brand
MSI
Series
Gaming
Model
RX 6800 Gaming Z Trio 16G
Interface
Interface
PCI Express 4.0
Chipset
Chipset Manufacturer
AMD
GPU Series
AMD Radeon RX 6000 Series
GPU
Radeon RX 6800
Architechture
RDNA 2
Game Clock
1925 MHz
Boost Clock
2155 MHz
Stream Processors
3840 Stream Processors
Memory
Effective Memory Clock
16 Gbps
Memory Size
16GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12 Ultimate
OpenGL
OpenGL 4.6

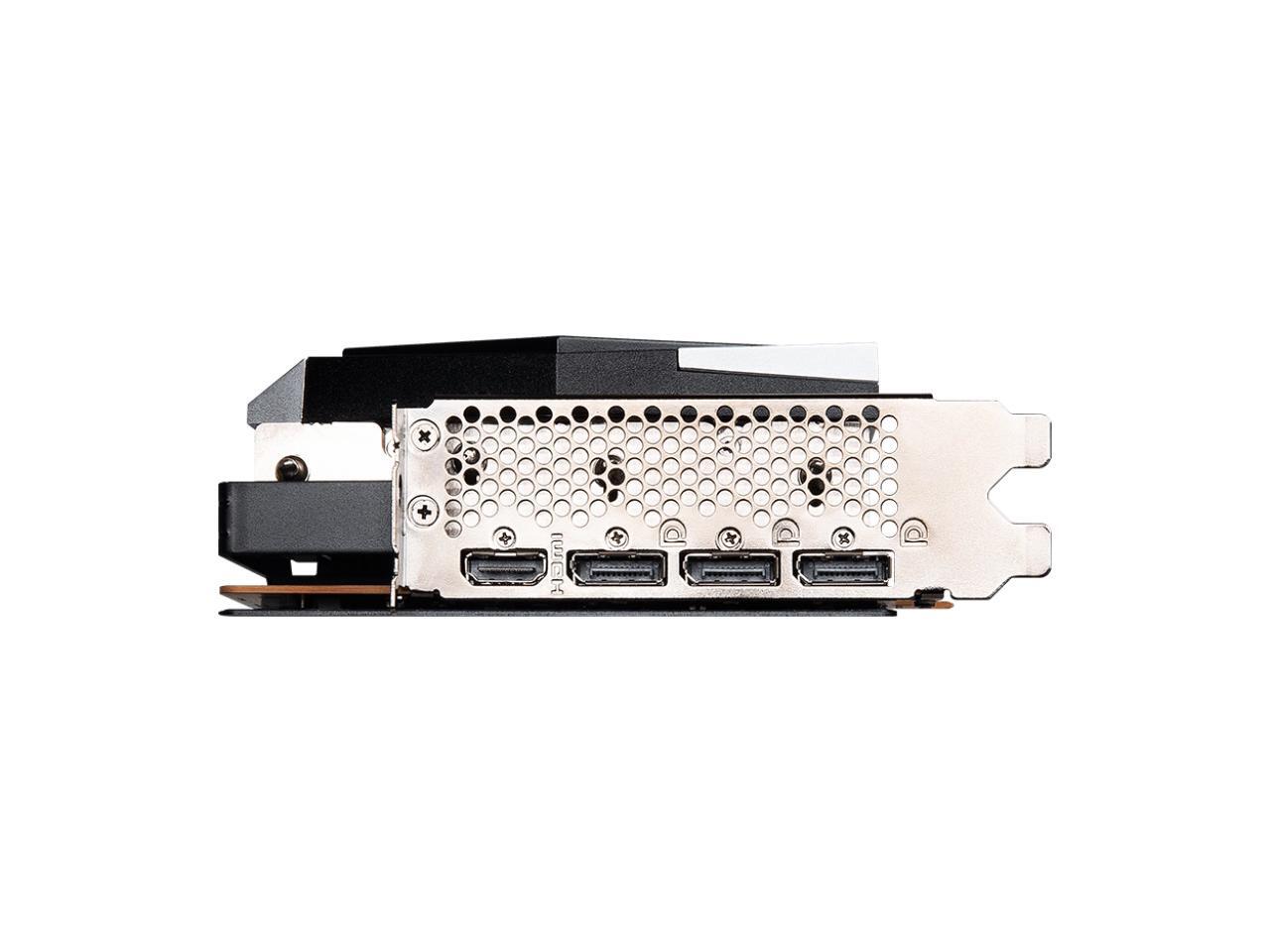

Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.1
DisplayPort
3 x DisplayPort 1.4
Details
Max Resolution
7680 x 4320
Virtual Reality Ready
Yes
Cooler
Triple Fans
Thermal Design Power
250W
Recommended PSU Wattage
650W
Power Connector
2 x 8-Pin
HDCP Ready
Yes
Features
Features
TRI FROZR 2 Thermal Design TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure. Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink. Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Form Factor & Dimensions
Max GPU Length
324 mm
Card Dimensions (L x H)
12.76" x 5.51"
Additional Information
Date First Available
August 11, 2022
