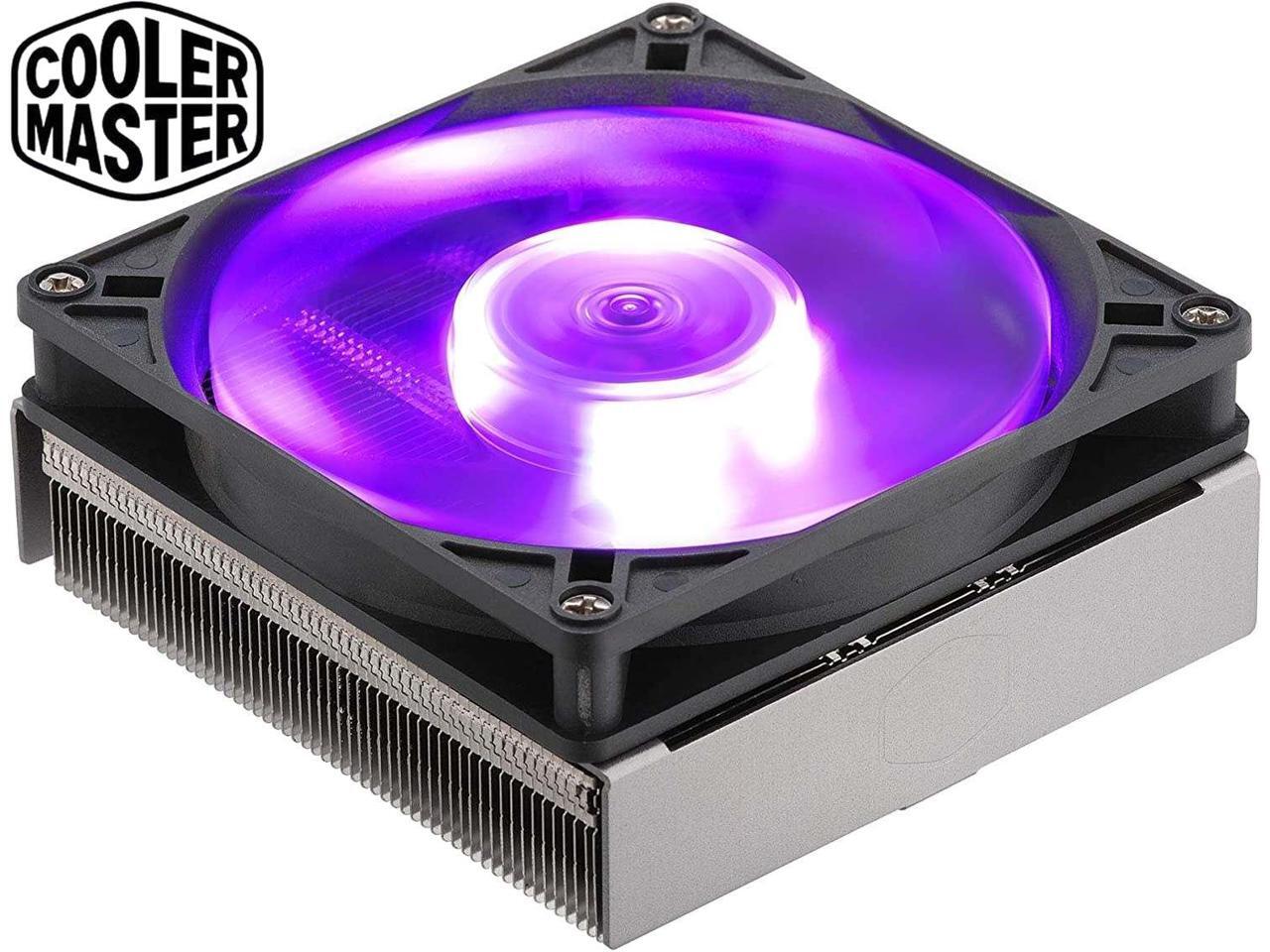

PRODUCT NUMBER :MAP-G2PN-126PC-R1
CPU SOCKET :LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

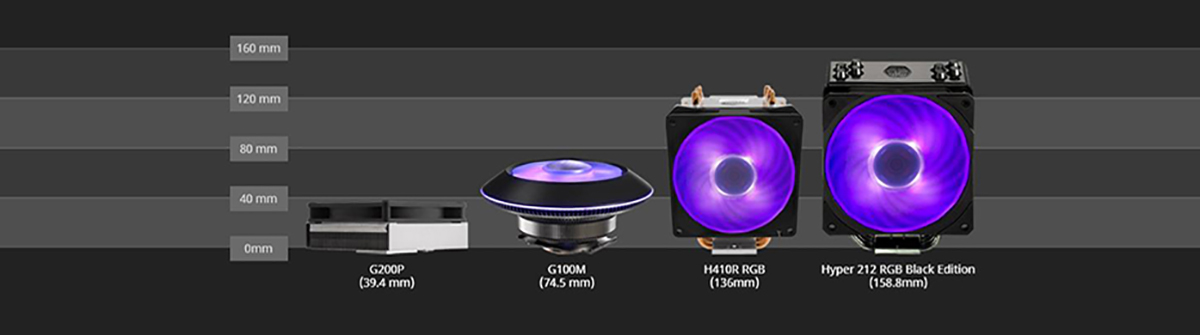

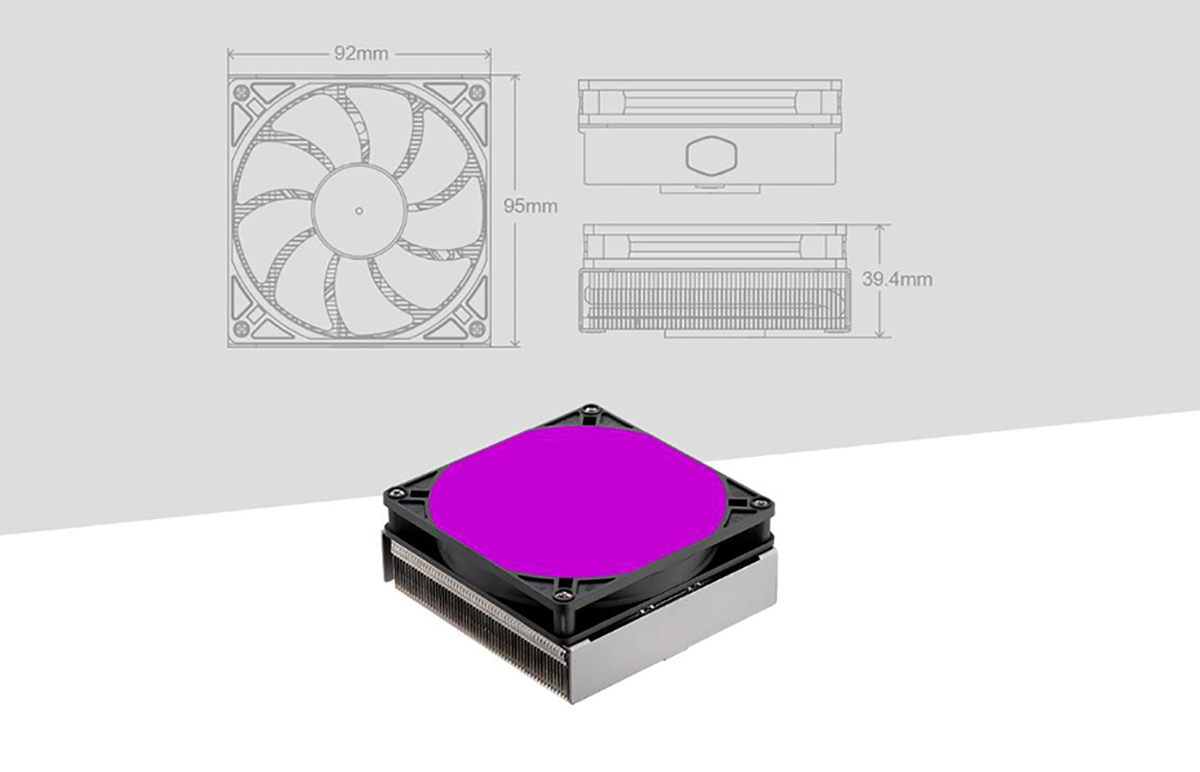

DIMENSIONS (L X W X H) :95 x 92 x 39.4 mm / 3.7 x 3.6 x 1.6 inch

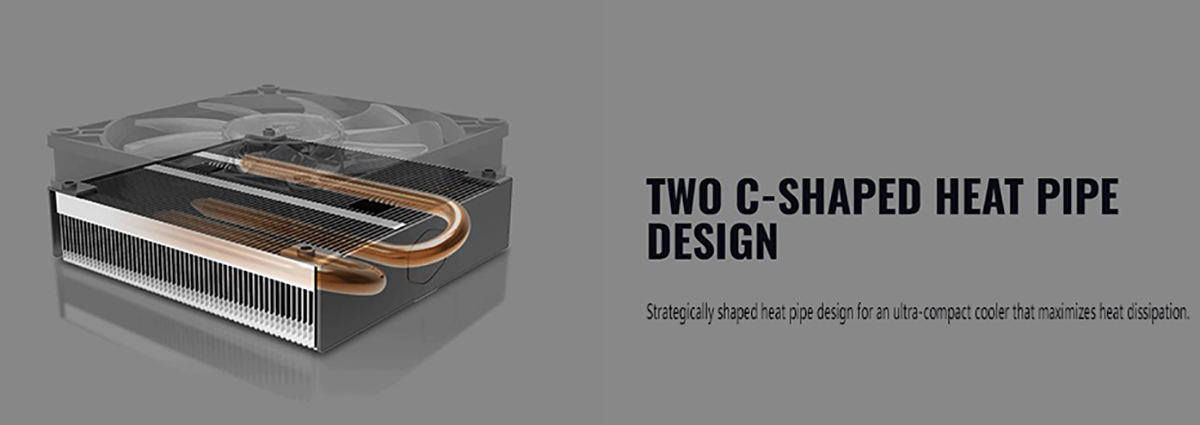

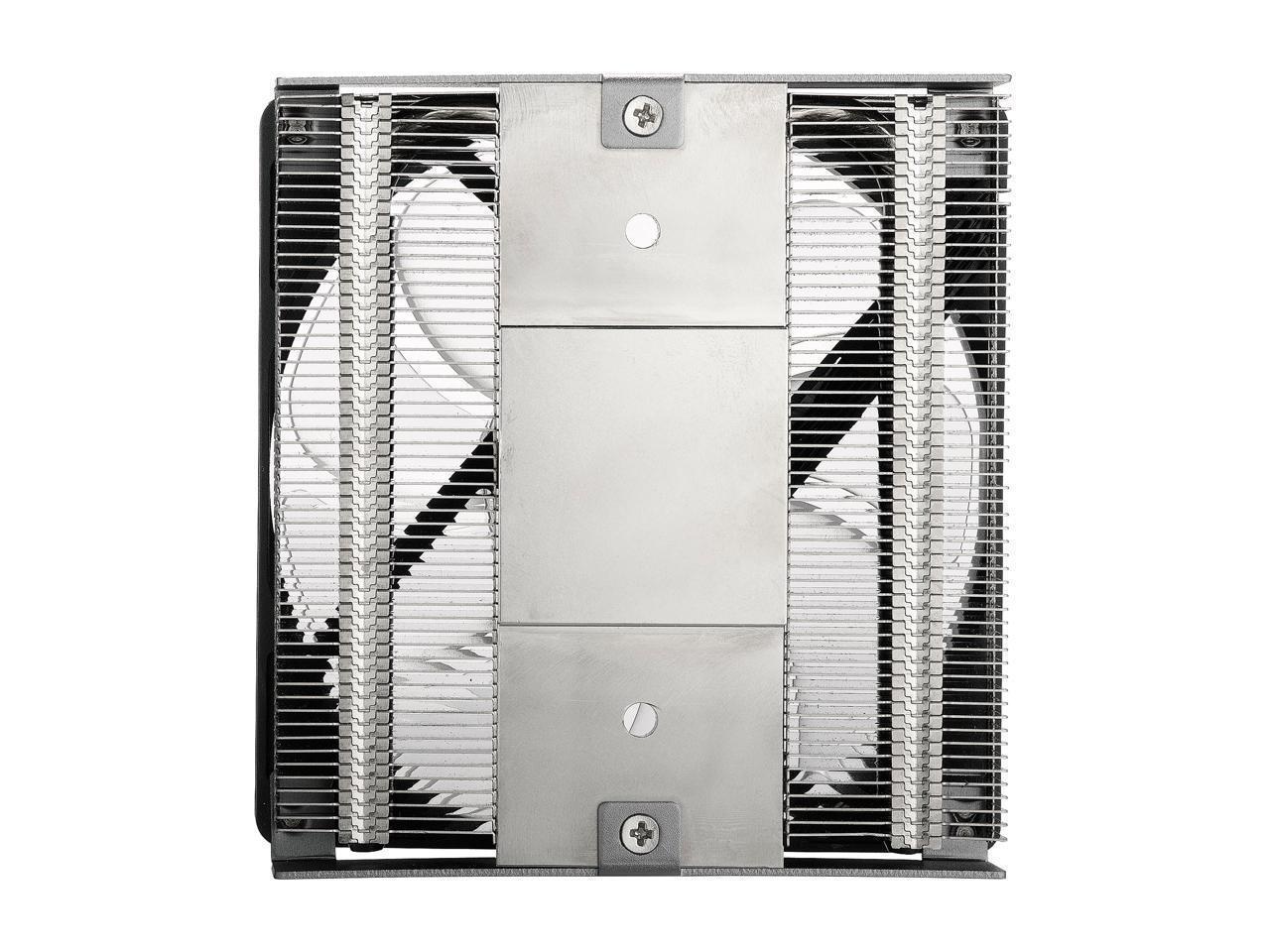

HEAT SINK MATERIAL :2 Heat Pipes, Aluminum Fins, Copper Plate
FAN DIMENSIONS (L X W X H) :92 x 92 x 15.4 mm / 3.6 x 3.6 x 0.6 inch
FAN SPEED :800-2600 RPM (PWM) ± 10%
FAN AIRFLOW :35.5 CFM (Max)
STATIC PRESSURE :2.4 mm H2O (Max)
FAN MTTF :40,000 Hours
LED COLOR :RGB
FAN NOISE LEVEL :6 - 28 dBA
FAN POWER CONNECTOR :4-Pin (PWM)
FAN RATED VOLTAGE :12VDC
FAN RATED CURRENT :0.12A
FAN SAFETY CURRENT :0.15A
FAN POWER CONSUMPTION :1.44W
WARRANTY :2 years
SERIES :MasterAir
COOLER TYPE :Air Cooler HEATPIPES :2

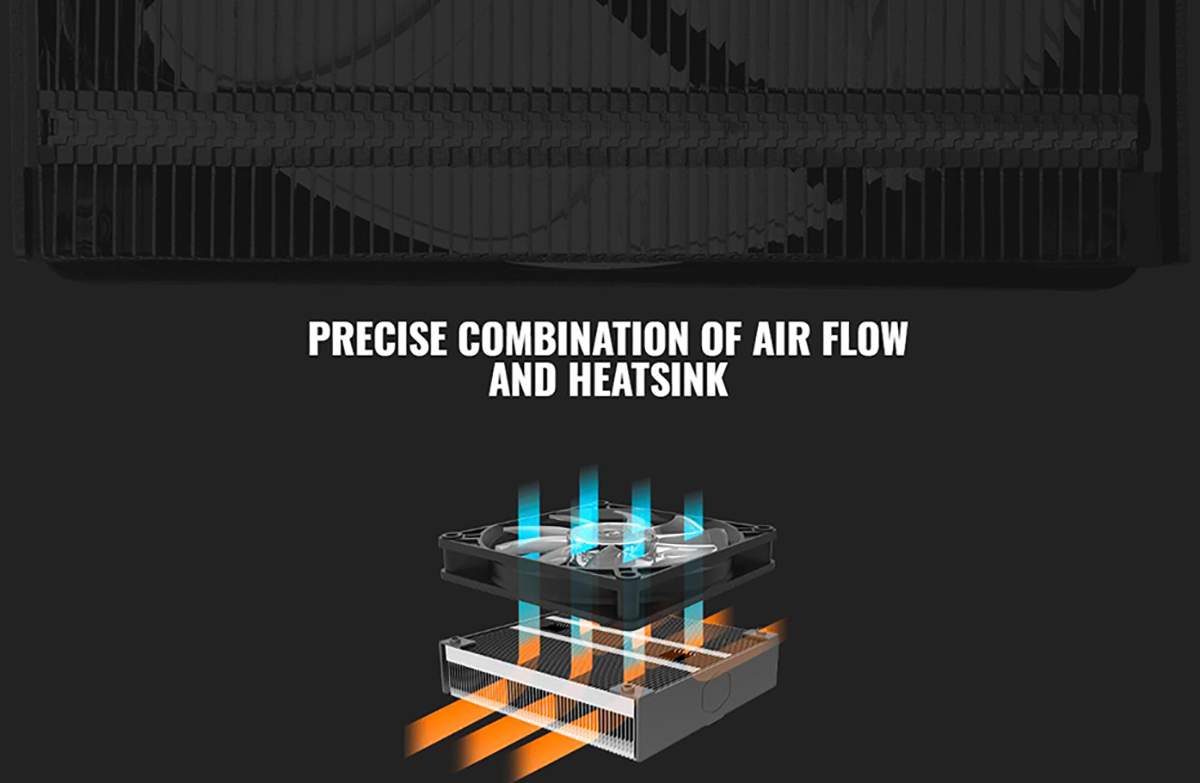

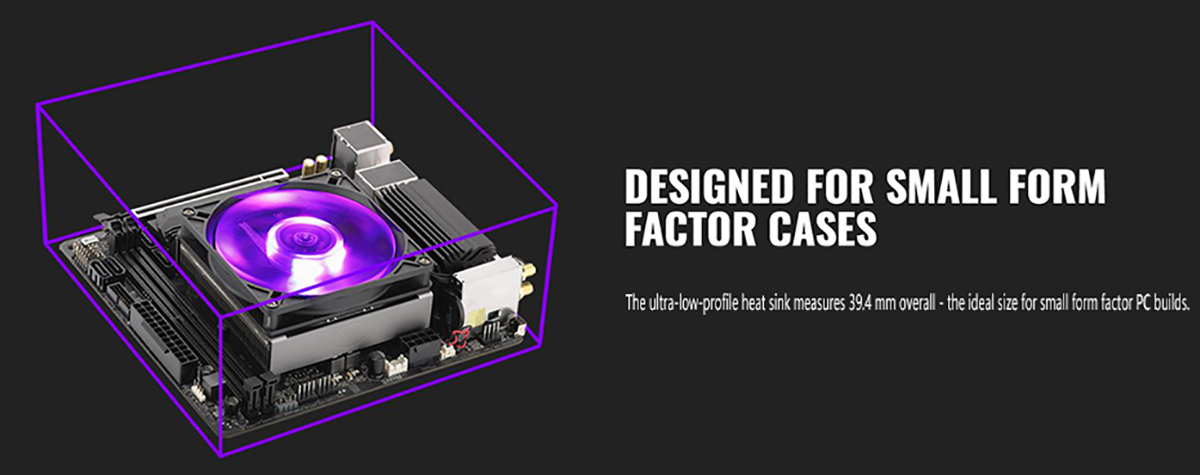

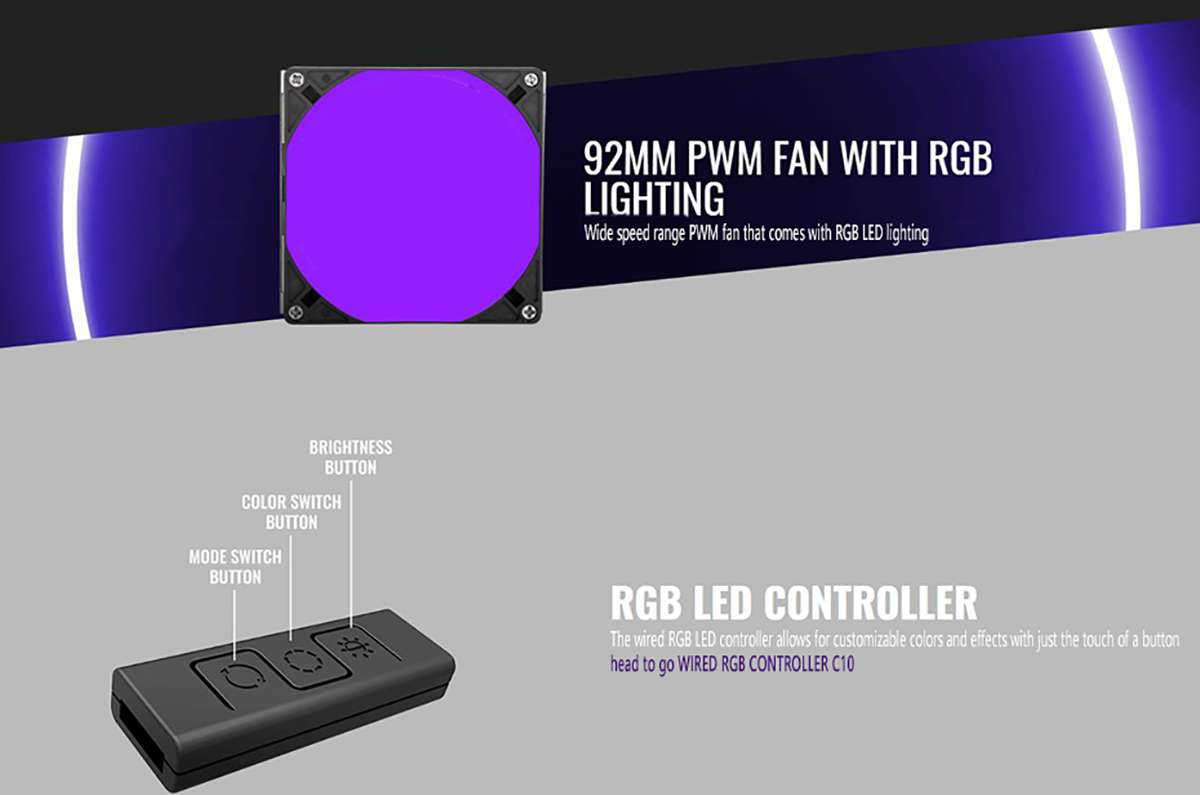

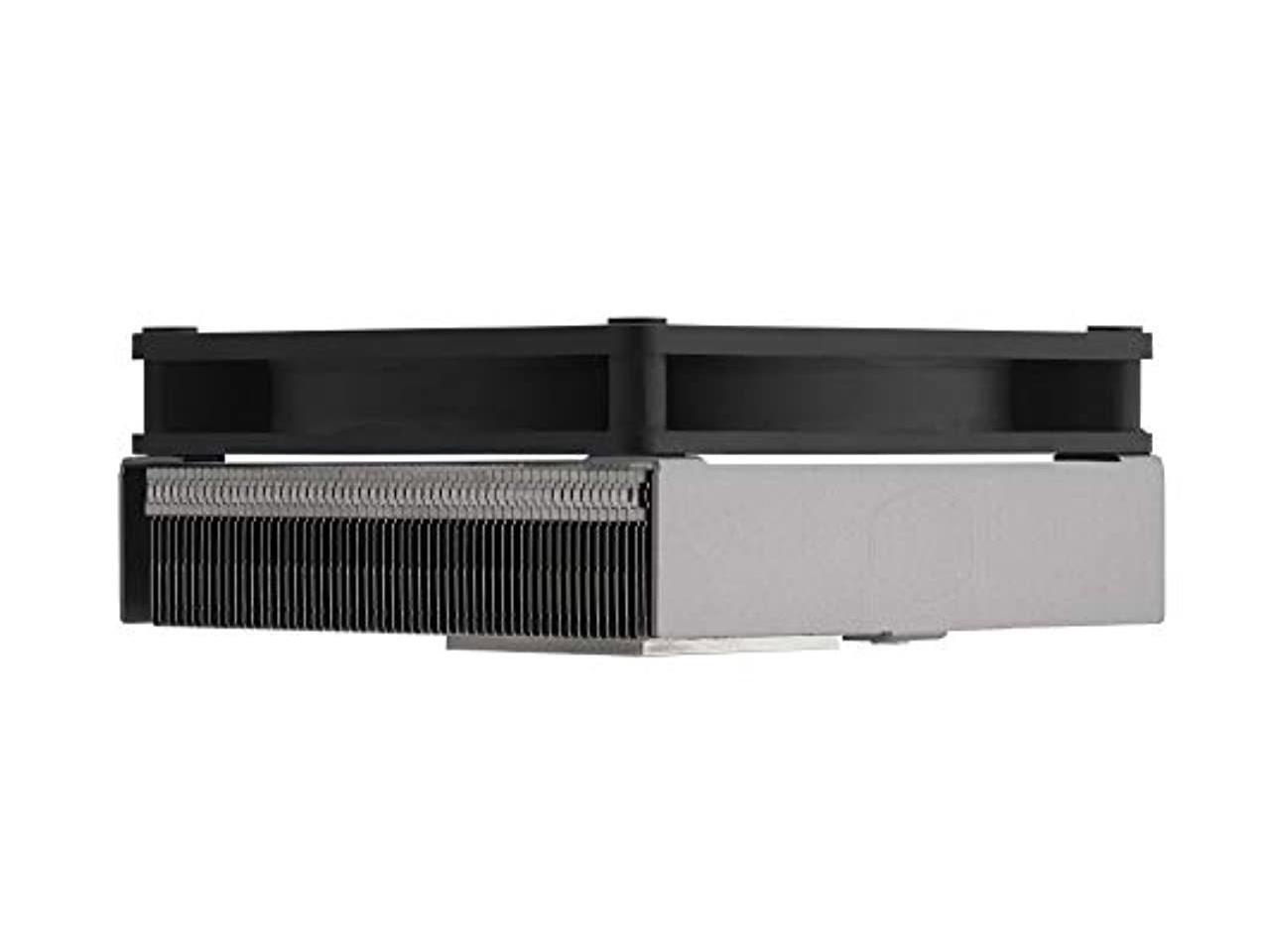

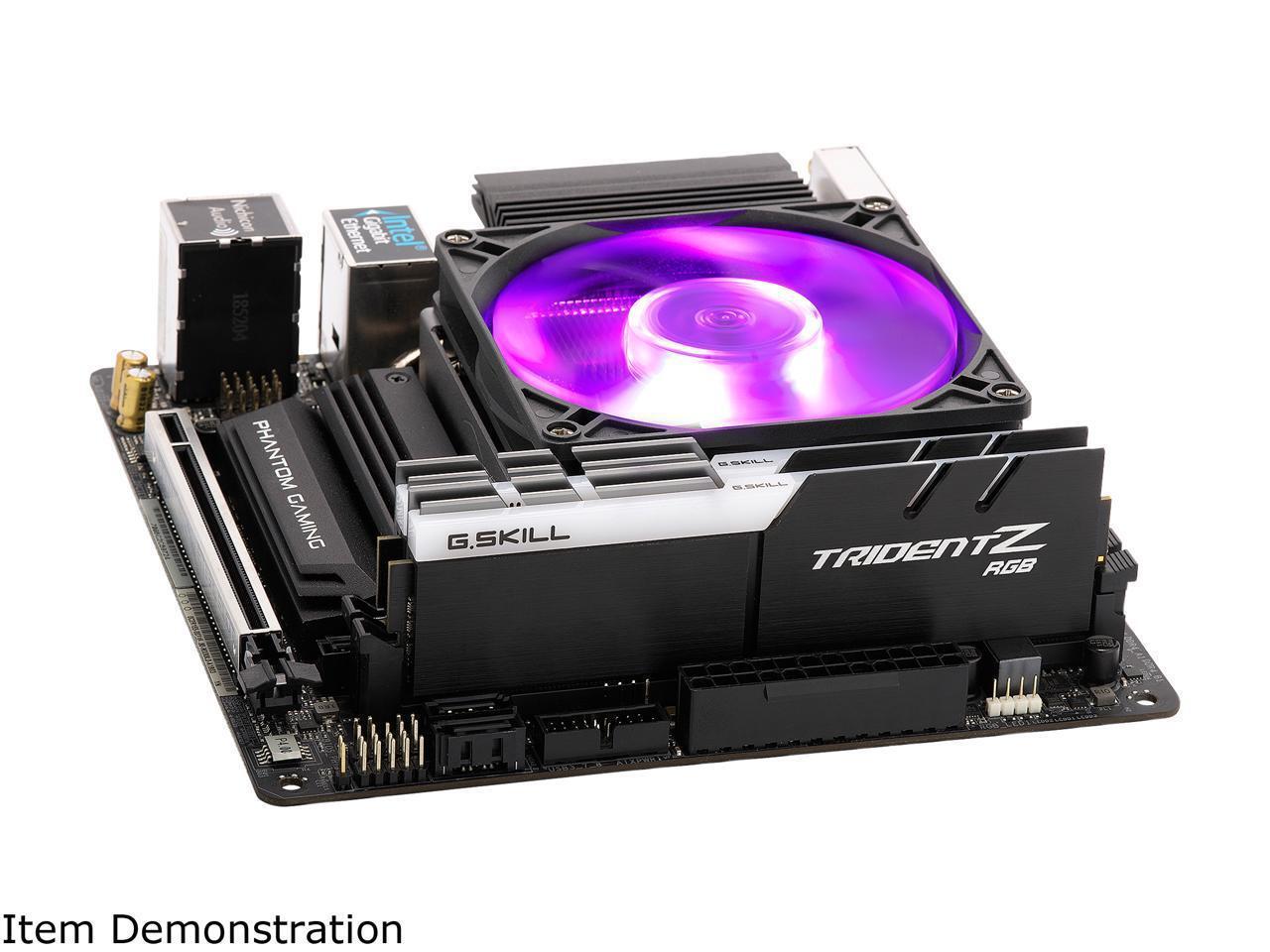

1, height 39.4mm ultra-thin cooler, can be used in most mini chassis. 2, RGB cool fan, with RGB controller, even if your motherboard does not support RGB can also light the fan. 3, 2 copper tube pure aluminum heat sink is a perfect combination, the heat dissipation effect is better. 4, shock absorption design, fan noise as low as 6-26dBA.
