Features

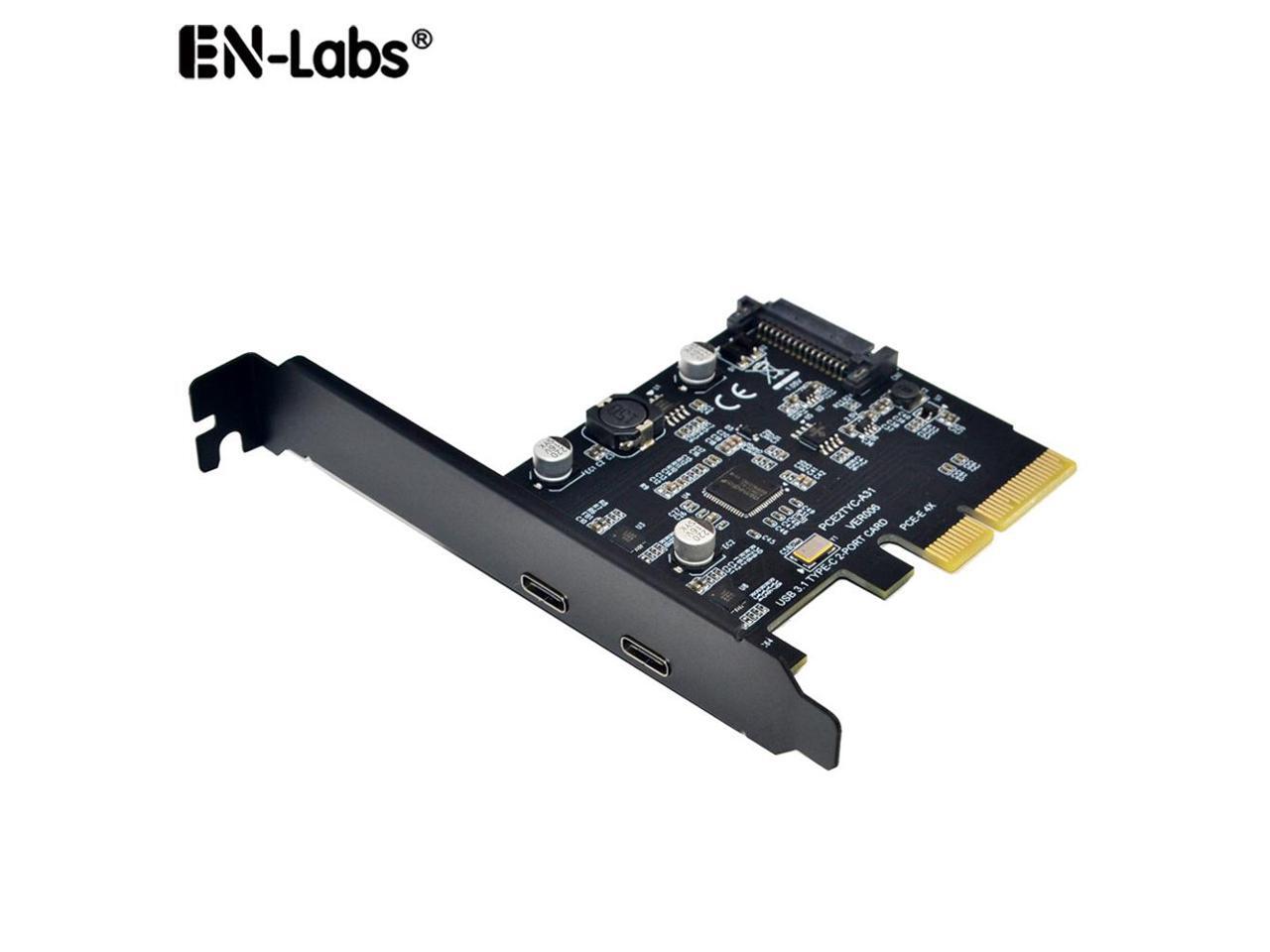

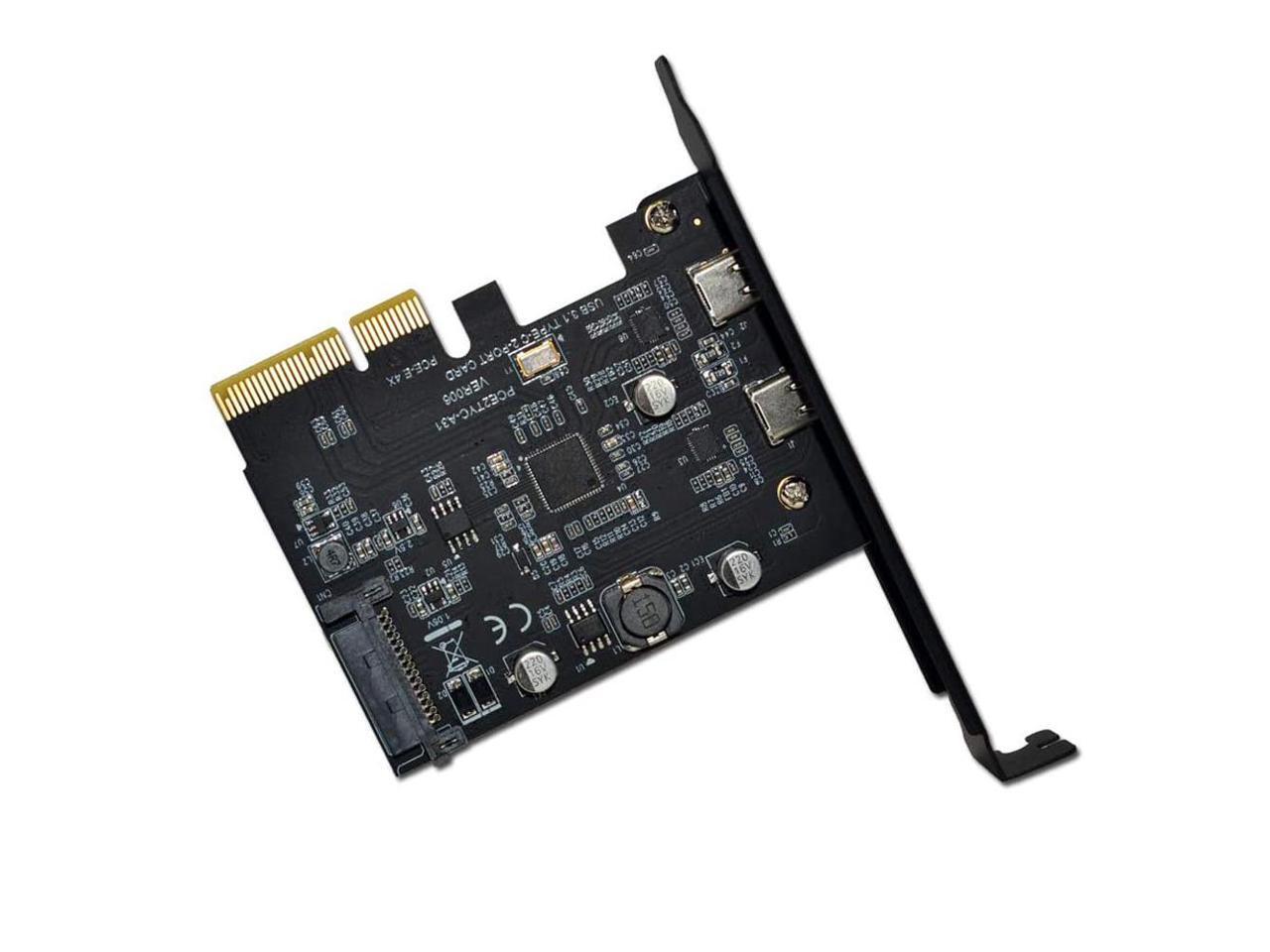

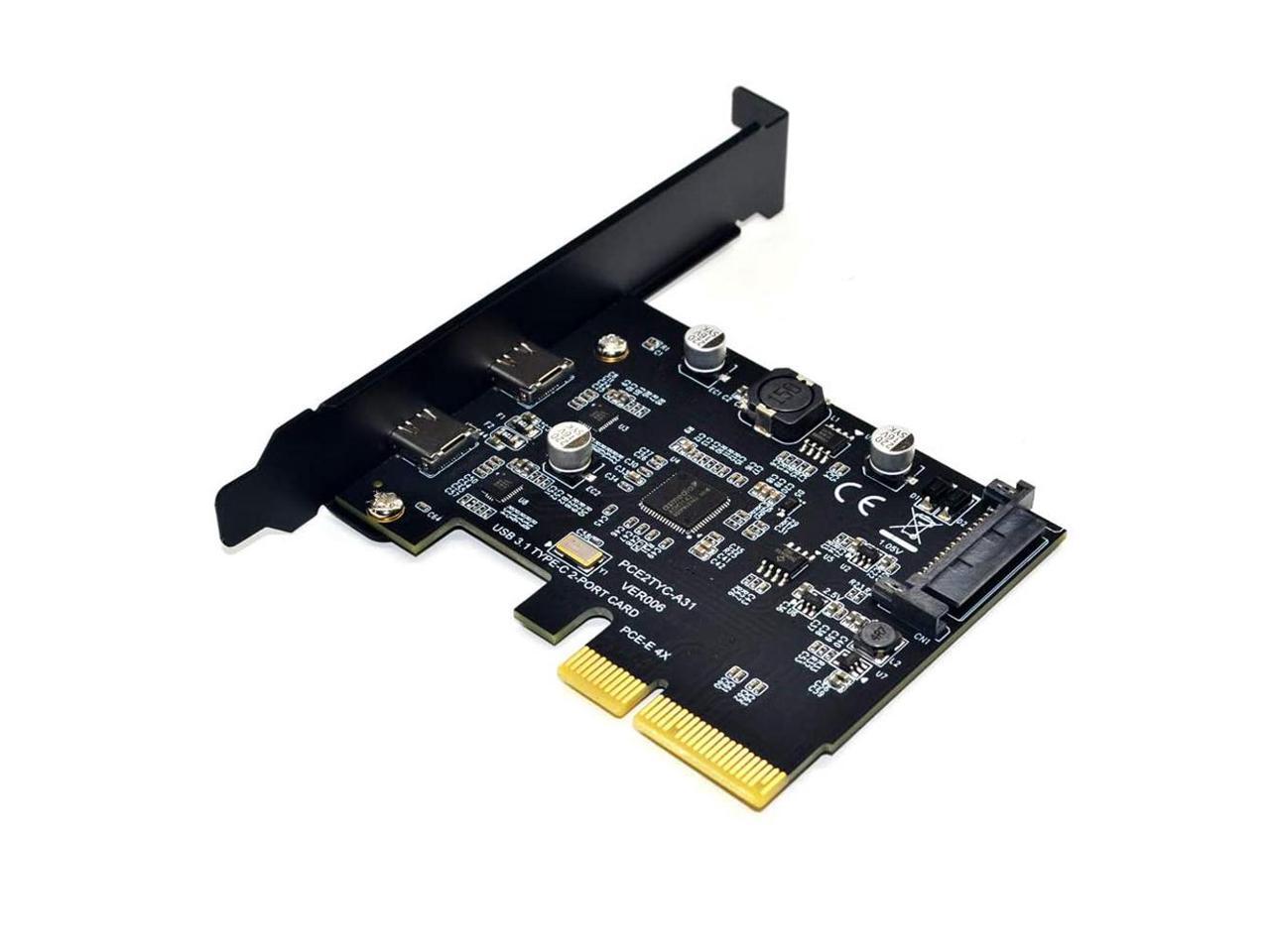

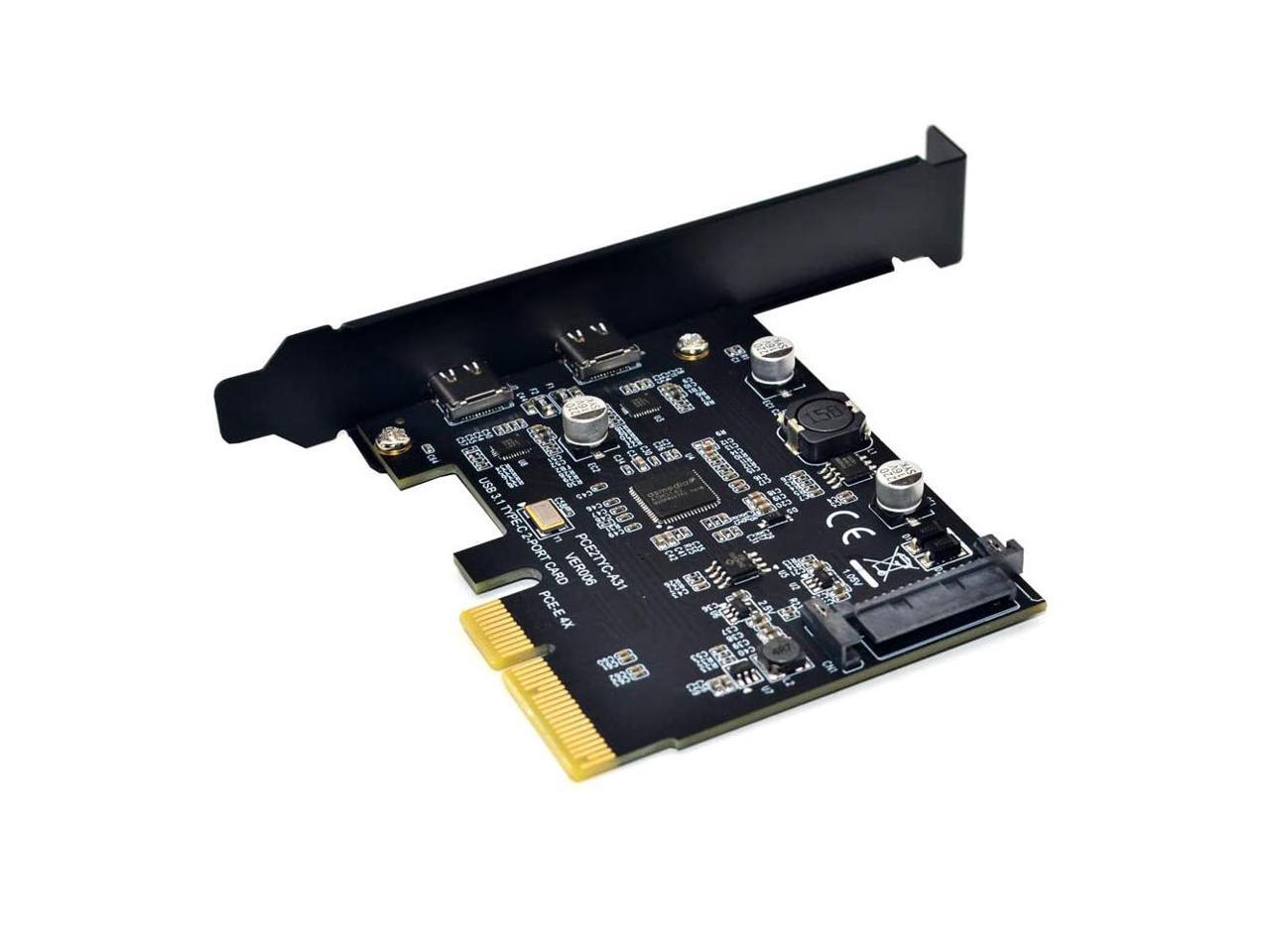

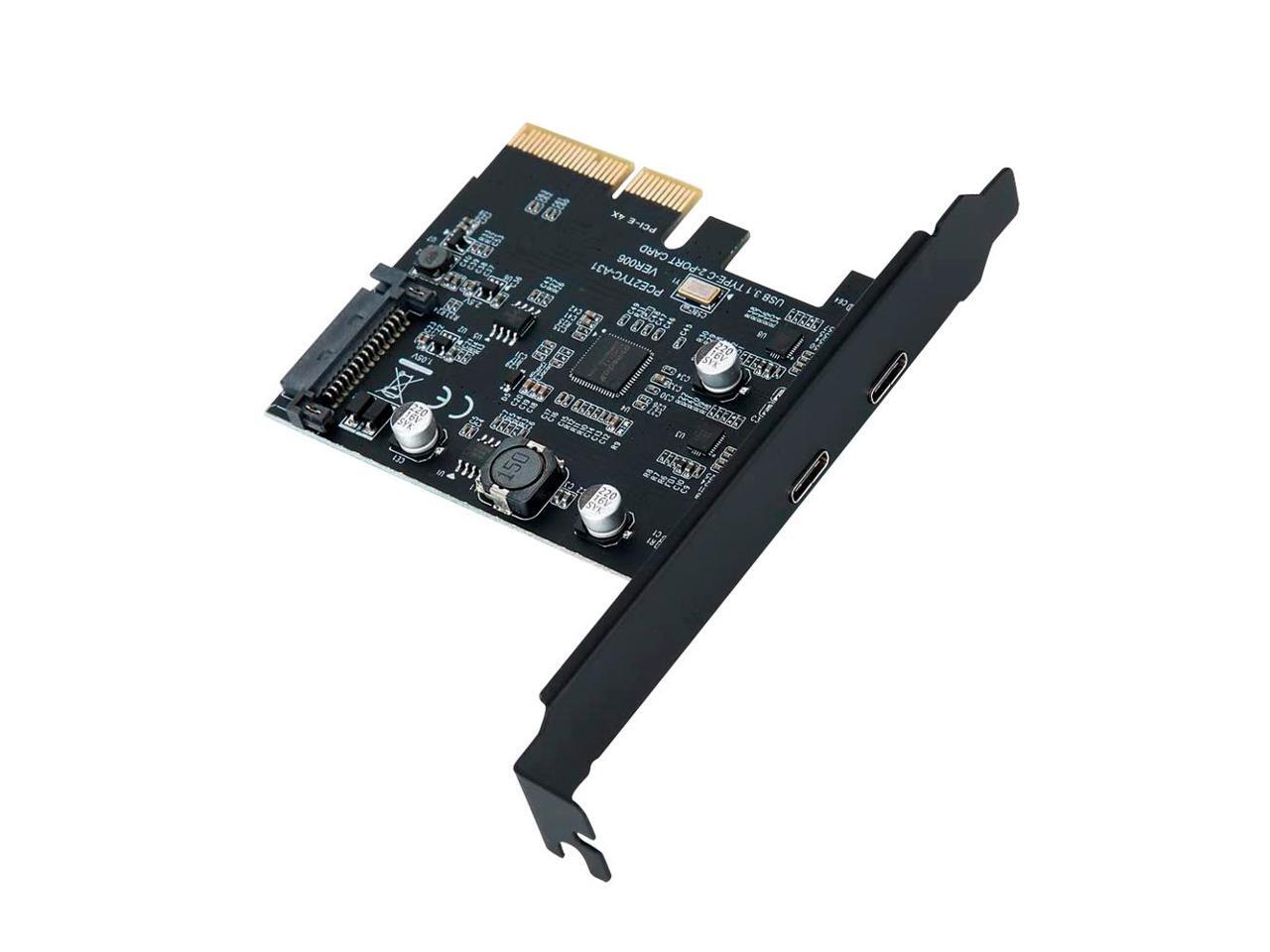

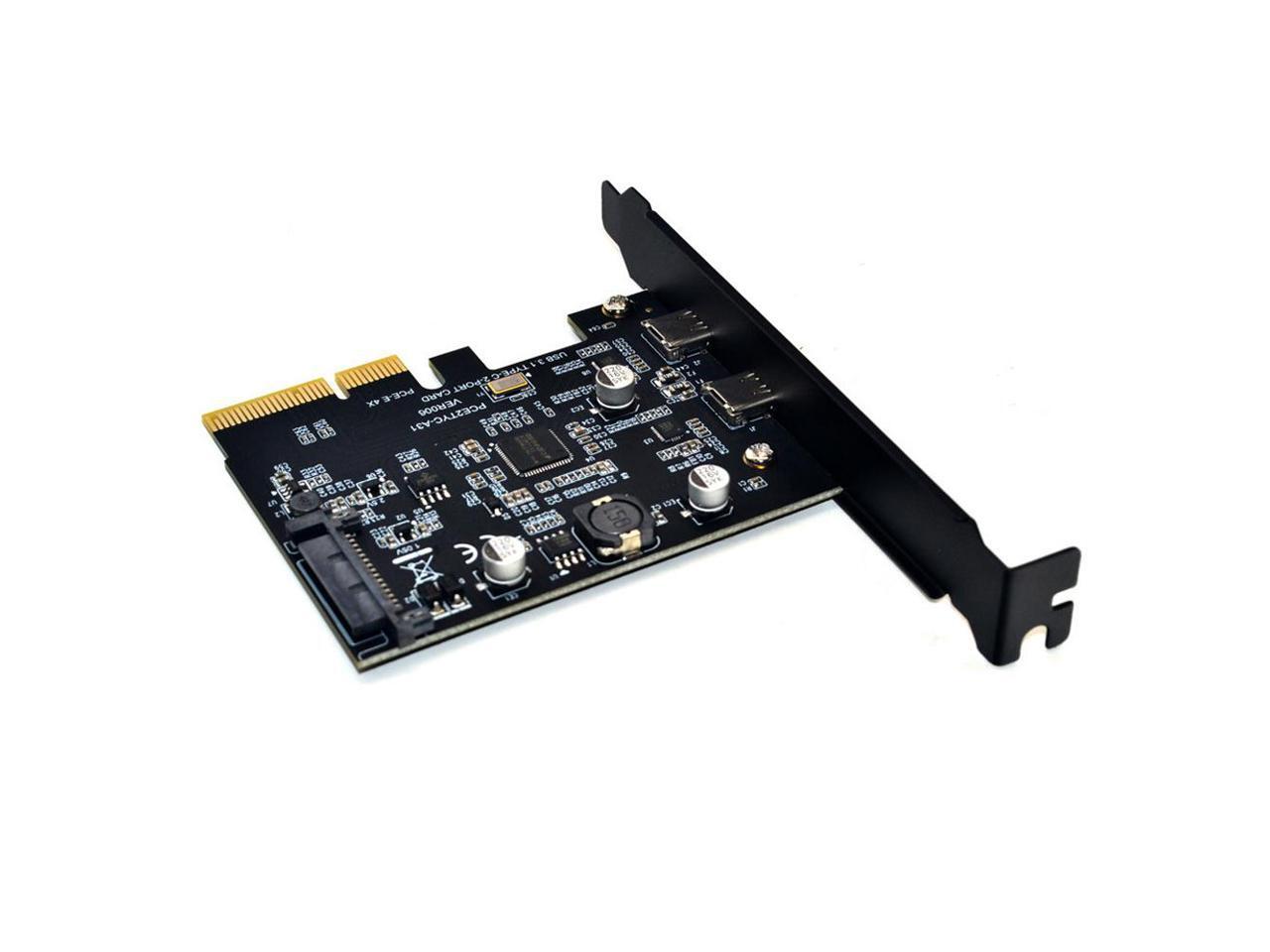

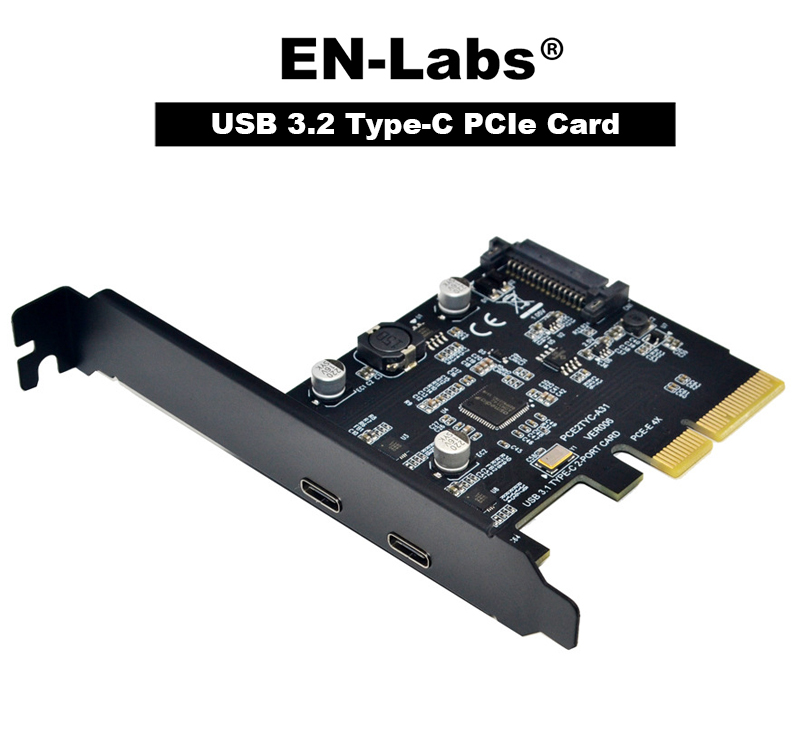

- 2 Ports USB-C PCI express I/O Card offers a simple solution by adding two USB-C ports to your computer
- Superspeed USB 3.2 supports transfer rates of up to 10Gbps - The actual transmission speed is limited by the setting of the device connected.
- Enjoy copying videos, music, photos, data files between USB devices and the computer at blazing fast speeds
- Works with your existing USB 3.0 (5Gbps) and USB 2.0 (480Mbps) devices, for cost-effective backward compatibility
- Optional SATA power connector provides up to 900mA per USB port
- PCIe 4x interface compliant with PCI Express Base Specification Revision 3.0
- Supports Windows XP/Vista/Server/7/8/10, Linux and MAC OS
- Please note that it is PCI-E 4X card and does not support PCI-E 1X slot.
- 2 Ports USB-C expansion card
- Superspeed USB 3.2 10Gbps data transfer speed
- Compatible with PCIe x4, PCIe x8, PCIe x16,But does not support PCI-E 1X slot
- ASMedia ASM3142 controllers to provide dedicated 10Gbps transfer bandwidth for each port through PCIe 3.0 x4 host interface.
- Optional SATA power connector provides up to 900mA per USB port
Specification
| Type | Dual USB-C PCIe Card |
|---|---|
| PCIe Specification | PCIe 3.0 |
| PCIe Slot | PCIe 4x,8x,16x slot |
| Data transfer Speed | USB 3.2 10Gbps |
| Power by | SATA 15Pin |
| Charging support | 5V900mA each USB-C port |
| Chipset | ASMEDIA ASM3142 |
| OS requirement | Windows 7 / 8 /10 & Linux,Mac OS |
| Mounting | Full profile PCI slot bracket |
