Feature

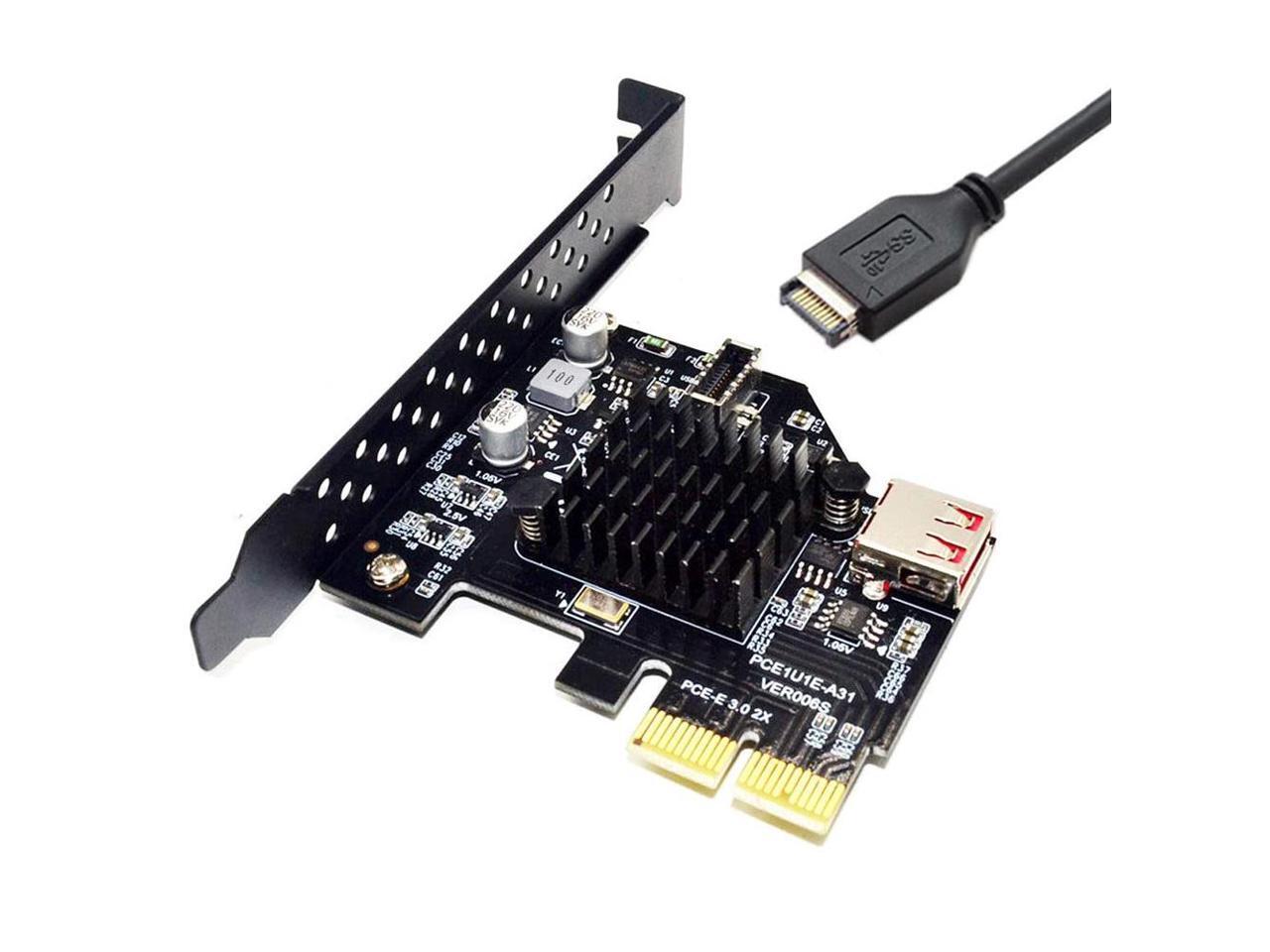

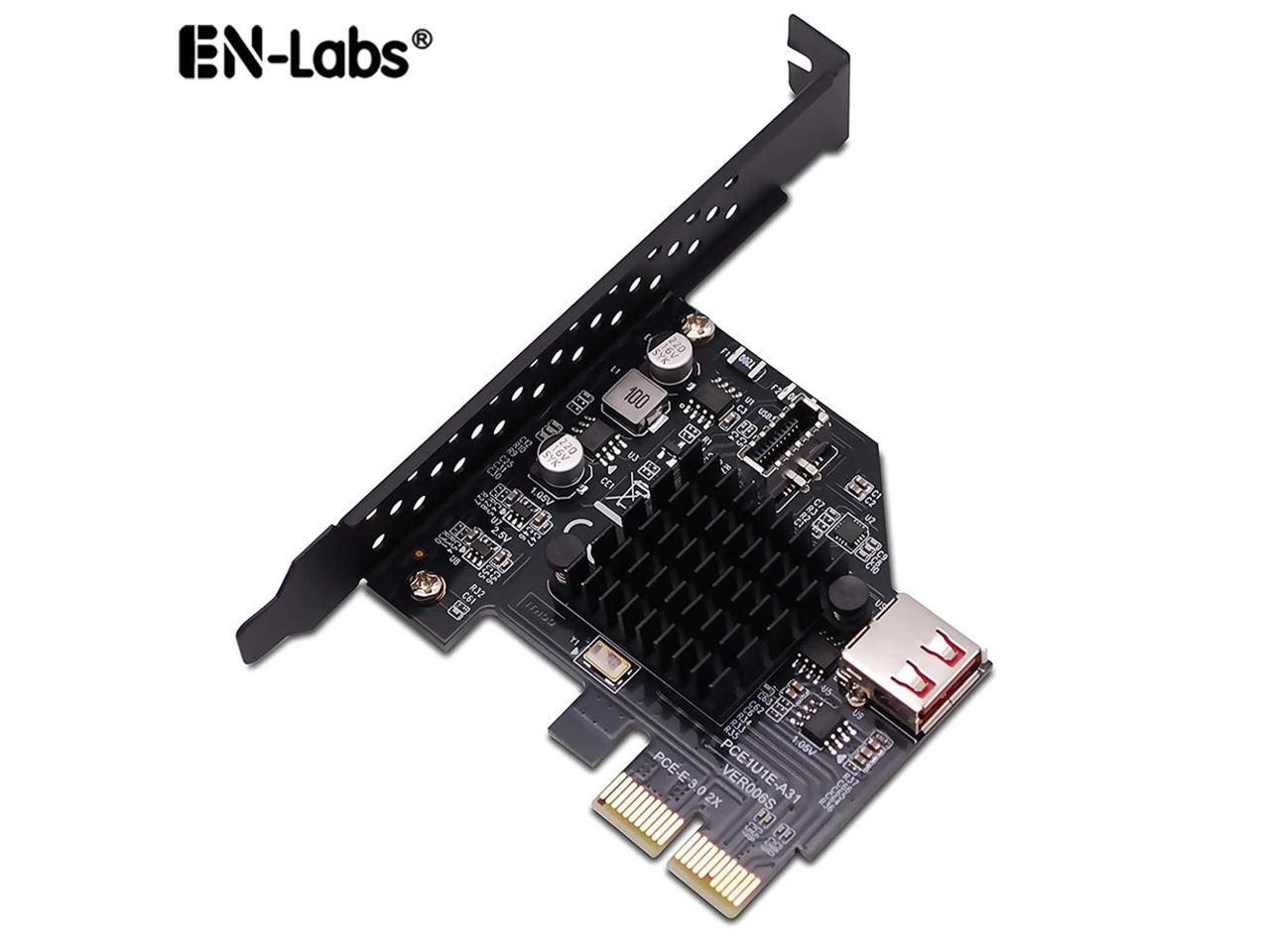

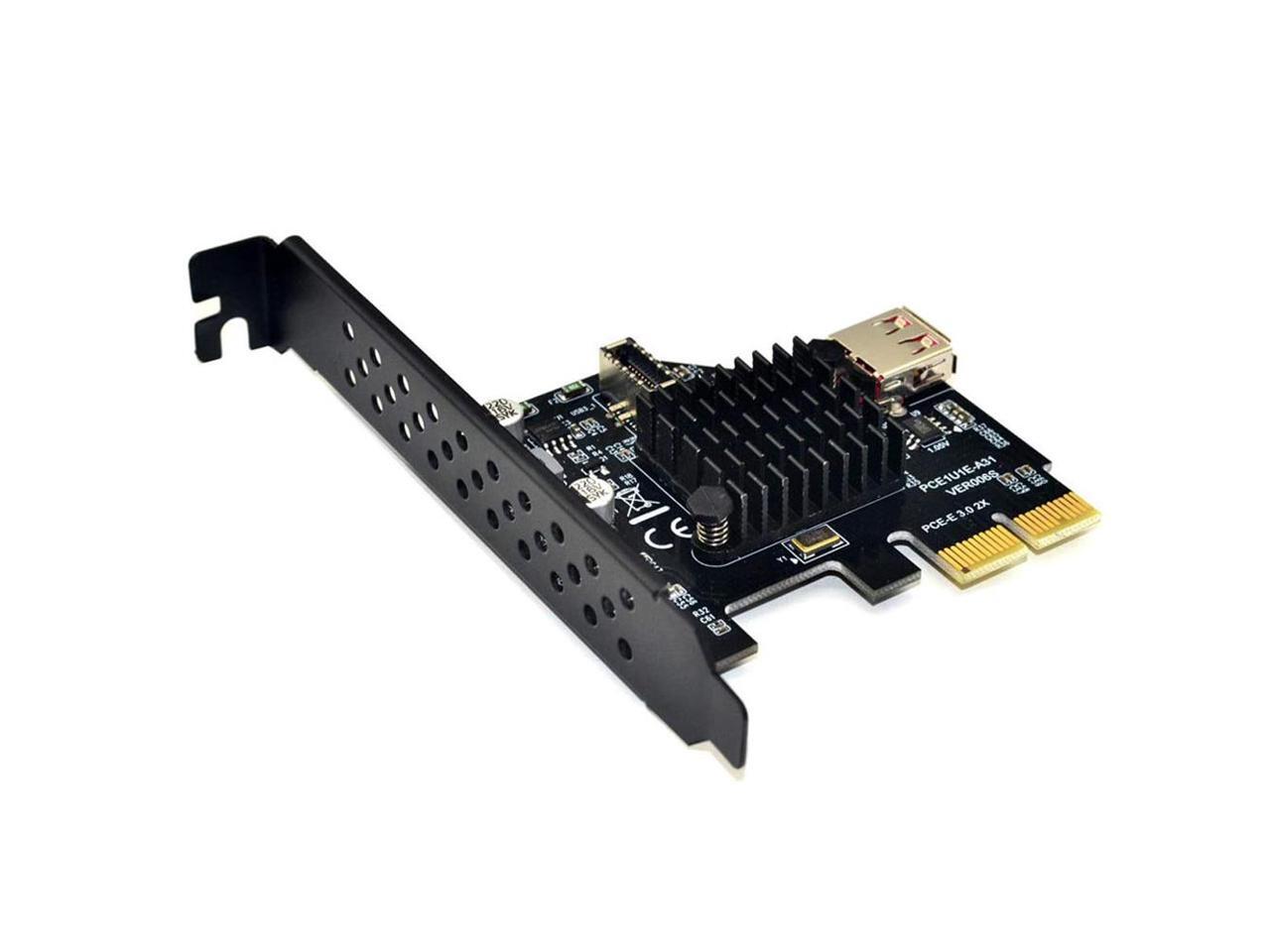

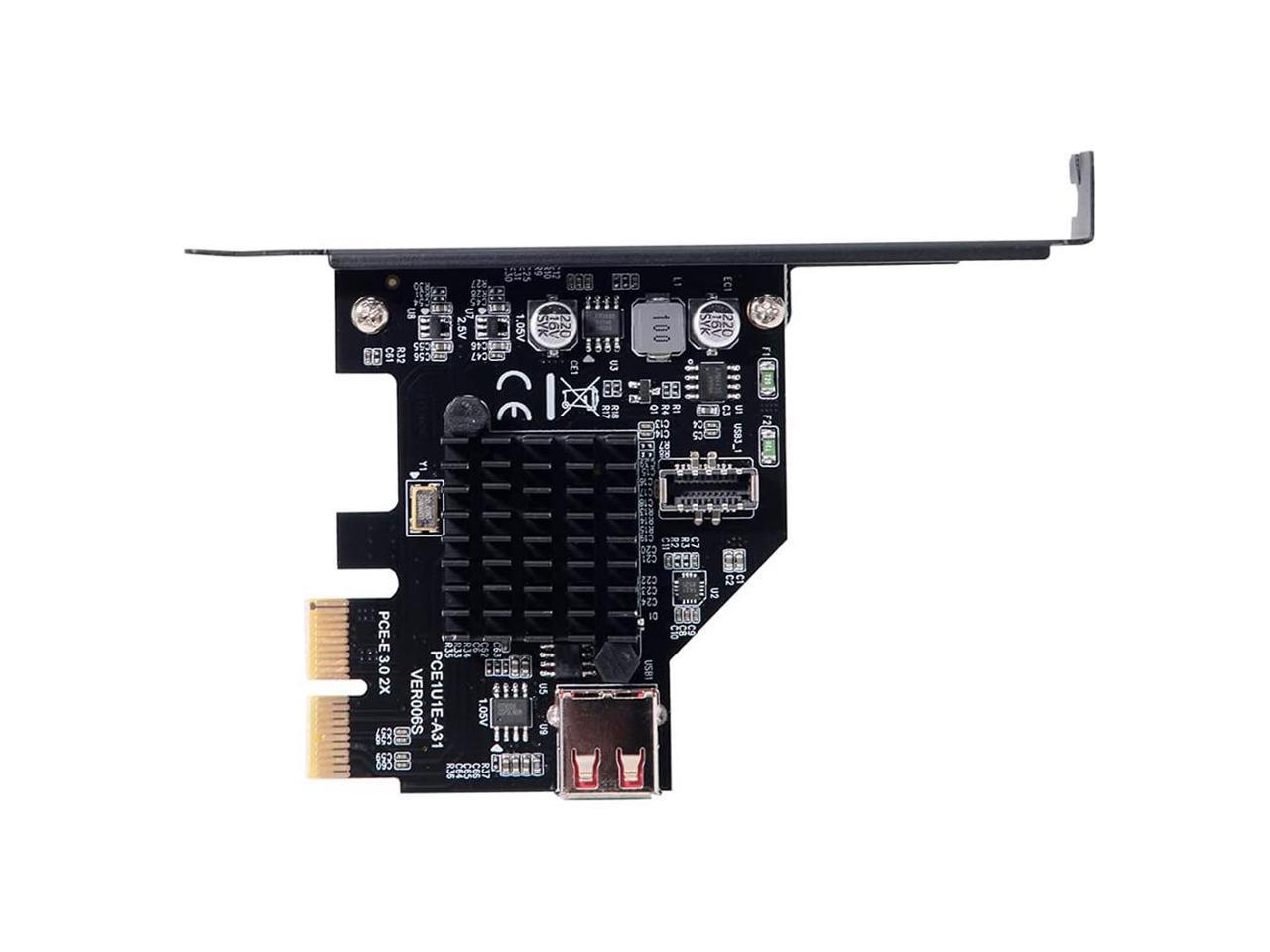

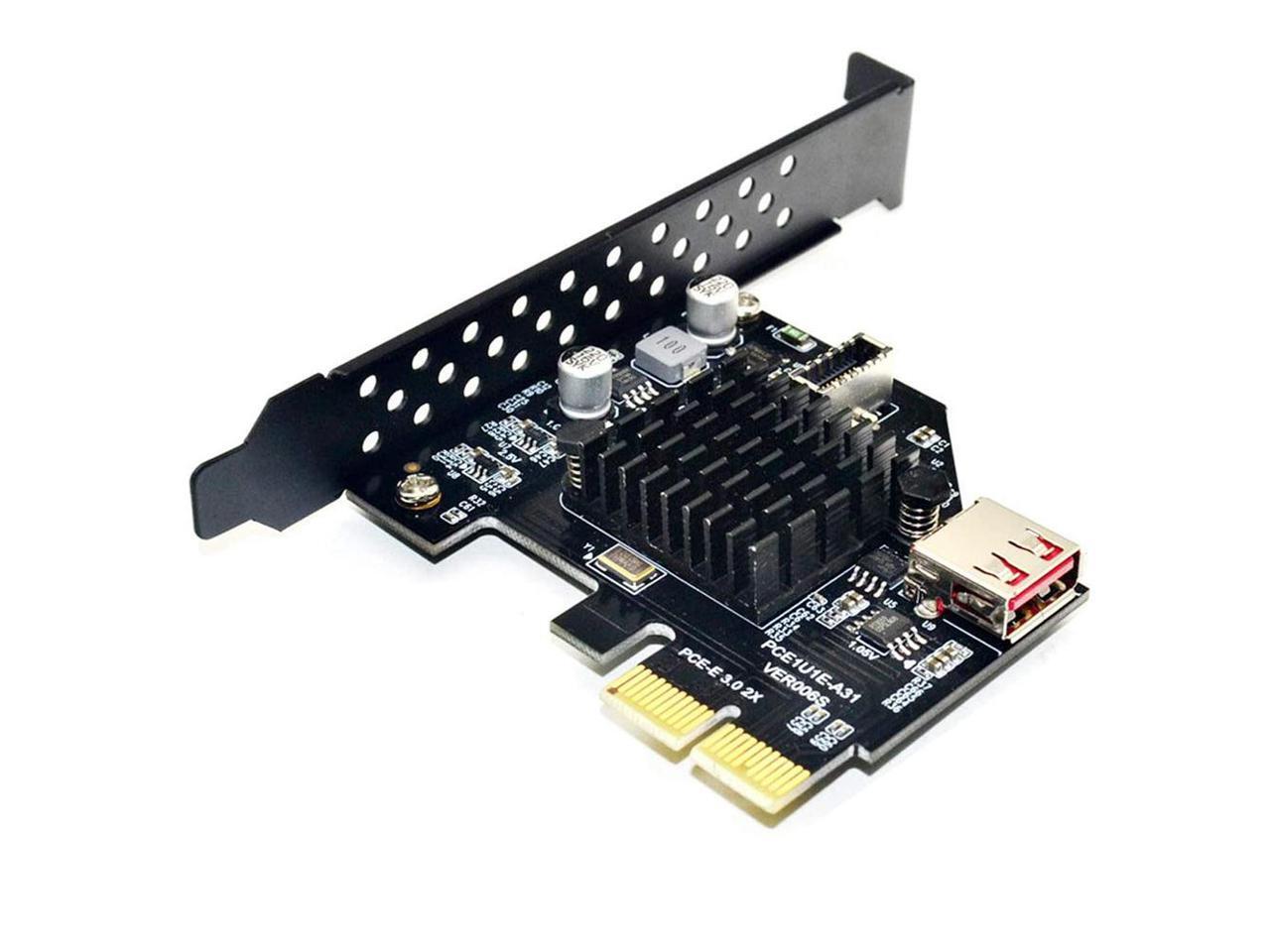

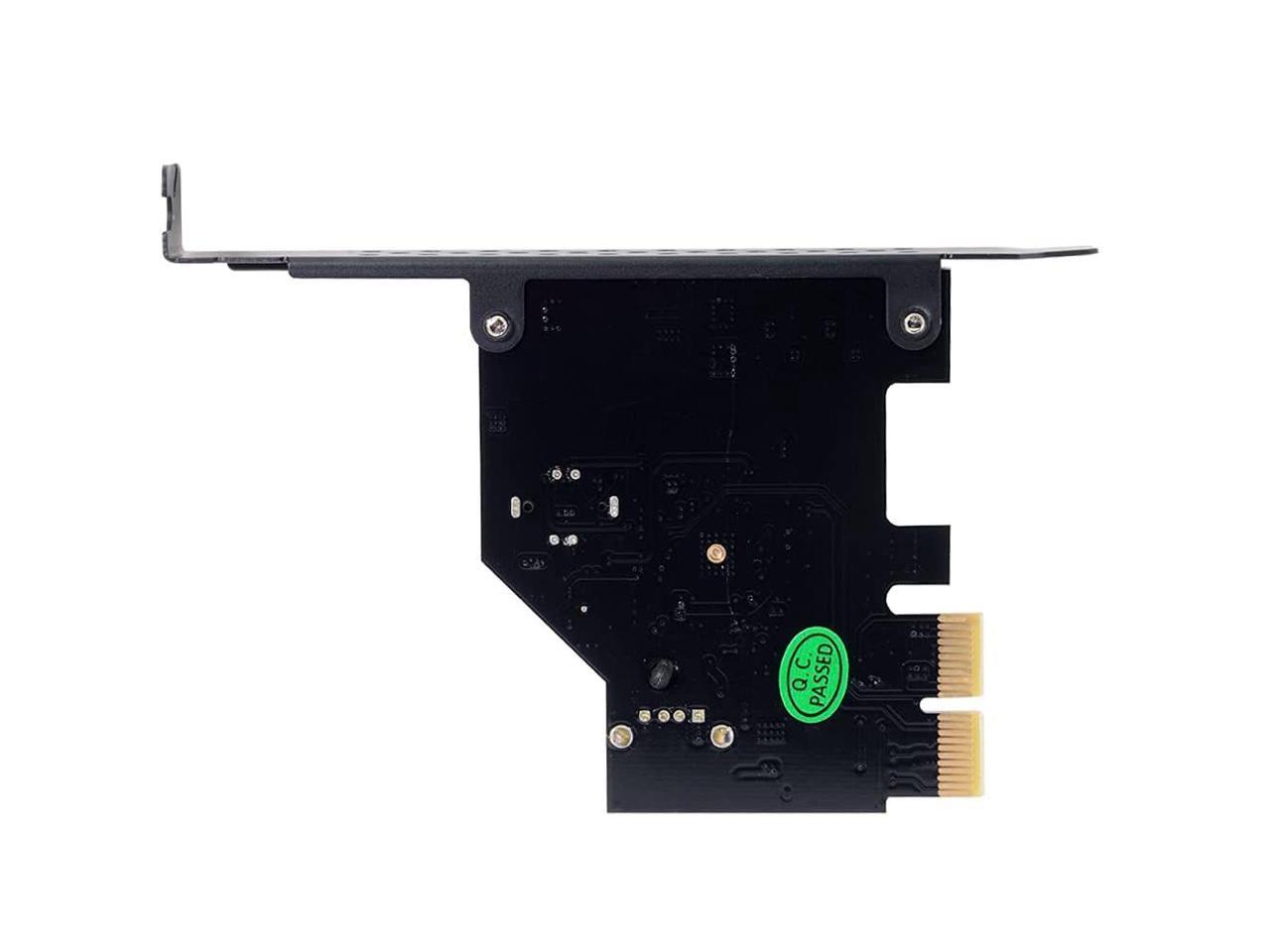

- PCIe 2x to USB 3.2 motherboard header Adpater with USB 2.0 Connector
- Expand PCIe slot to USB 3.2 20Pin internal header for front panel or rear panel
- Build in ASMedia ASM3142 master control, Compatible with USB 3.2 Gen 2 10Gbps data transfer speed
- Require the PCI-E 3.0 specification for USB 3.1 expansion, and is backward compatible with the PCI-E 2.0 specification.
- Compatible with PCI-E 2X,4X,8X,16X Slot, Does not work with PCIe 1X
- Supports WINXP WIN7 WIN8 WIN10 and LINUX OS
- USB 3.2 motherboard header
- USB 3.1 20Pin A-Key interface
- Can use it with Type-C or Type-A front panel or rear panel
- ASMedia ASM3142 controllers to provide dedicated 10Gbps transfer bandwidth for each port through PCIe 3.0 x4 host interface.
- Compatible with PCI-E 2X,4X,8X,16X Slot,
- Does not work with PCIe 1X Slot
- USB 3.1 20pin 180 degree interface
- Extra USB 2.0 Female interface for more expansion
- The card uses solid capacitors equipped with high-performance electronic components and metal panels
Notice
Must install the card and cable step by step to avoid shorting pins and motherboard damage.
1 - Basically turn off your tower, unplug it, wait 10 seconds,
2 - ,Plug the card into your motherboard PCIe Slot, requires PCIe 2x,4x,8x or 16x slot
3 - Turn on your Computer and install the PCIe card driver if necessary
4 - Basically turn off your tower, unplug it, wait 10 seconds again,

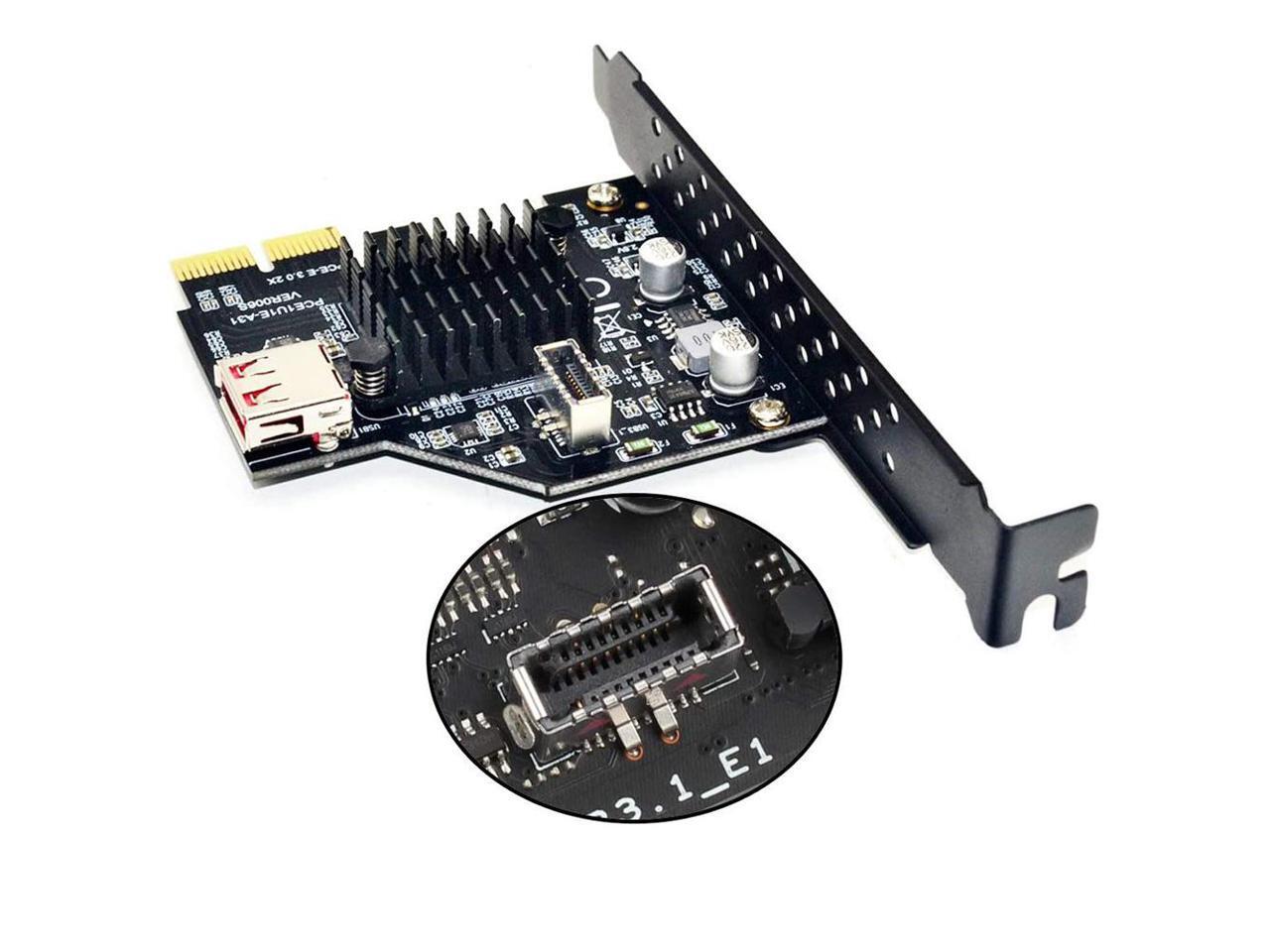

5 - Plug your USB 3.2 internal header equipped front panel or rear panel in. The USB 3.2 motherboard header that the card equipped is A-Key, Please make sure it's the correct orientation when you install the male end for USB C in
Doing this any other way may cause it either not being recognized, or USB drawing too much power warnings.
Specification
| Type | USB 3.2 TYPE-E Front Panel Expansion Card |
|---|---|
| Input | PCI-E 2X(Compatible with PCI-E 4X 8X 16X ) |
| Output 1 | USB 3.1 GEN2 motherboard header - Type-E A-Key |
| Output 2 | USB 3.0 Type-A female |
| Data transfer speed | 10Gbps for Type-E, 480Mbps for USB 2.0 connector |
| Chipset | ASMEDIA ASM3142 |
| PCI-E requirement | PCI-E 3.0 is required |
| OS requirement | Windows 7 / 8 /10 & Linux |
| Mounting | Full profile PCI slot bracket |
