BONAEVER DB15 Breakout Connector Male Adapter 15-pin Port Adapter to Terminal Connector Signal Module with case(Male Connector Screw with case)

Features:

Suitable for variety of pin connections required to use serial communications industrial control products

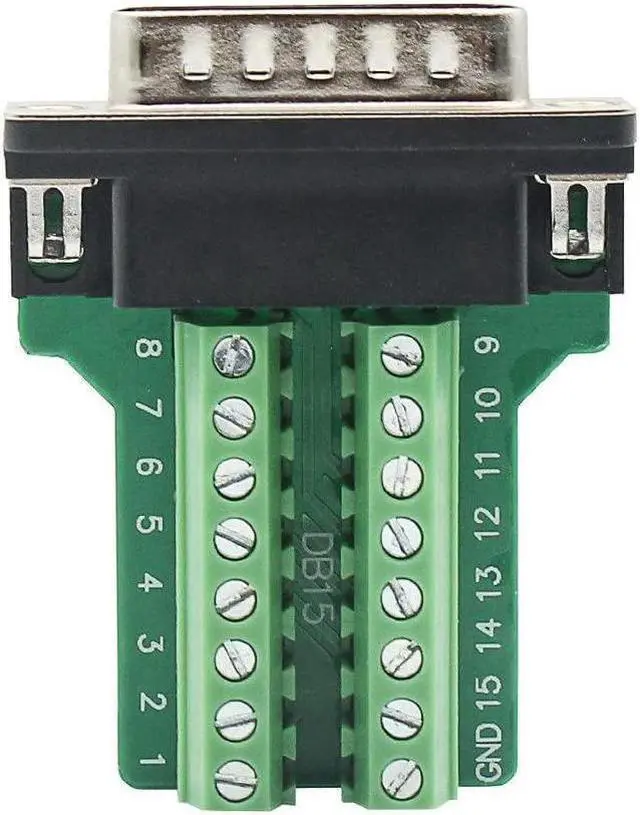

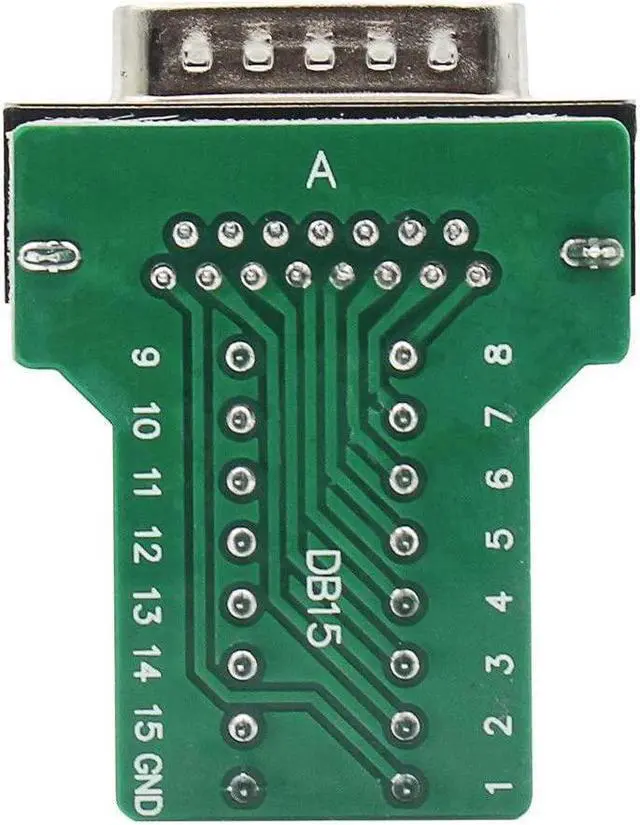

High quality PCB carrier, all signal ports named and labeled clearly

No soldering needed! This is SO convenient.

With insulation case and all-copper base, contacted better and more anti-oxidation

Cable Hole Dia. : 10mm / 0.4";Material : Metal,Electric Part

Product name : DB15 Male adapter;

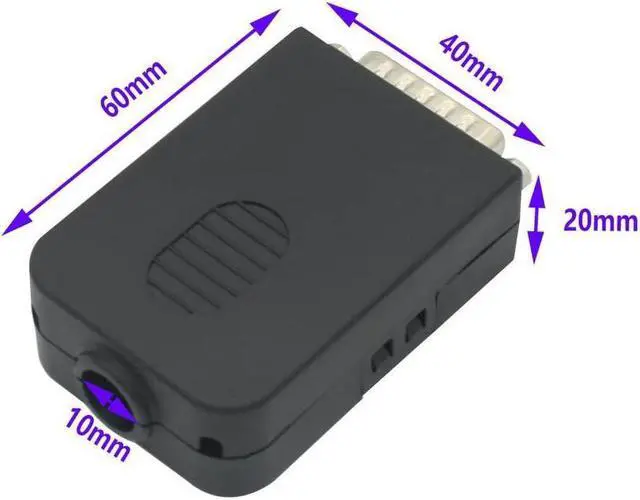

Total Size : 60 x 42 x 20mm/2.36" x 1.65" x 0. 71"(L*w*h)
Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.2''/5mm
Material : metal Nickel plated copper needle, electric part; color : black, Green
Weight : 27G
DB15 male / female connector to screw terminals. High quality RoHS compliant assembly.
Wire range: 26-16AWG
Rated current: 10A
Connect type: male with Case
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Pin header and cage: Brass
Case: ABS + PC

Package included:
1 x DB15 breakout board male adapter with case
1x cable pressing plate
2x Screws
2x Long bolts
