BONAEVER D-SUB DB15 Male 15Pin Jack Port to Terminal Breakout Board Connector 3 Row Plug DR15 VGA Male with Case
- Case can be prevent short circuits.
- All-copper base, contacted better and more antioxidative.
- All signal ports named and labeled clearly.
- High quality PCB carrier, FR-4 fiber glass PCB.
- Compliant assembly, 100% new, quality multiple checked before fulfilled.
+
+
Overview
Specs
Reviews
Features:
Case can be prevent short circuits.
All-copper base, contacted better and more antioxidative.
All signal ports named and labeled clearly.
High quality PCB carrier, FR-4 fiber glass PCB.
Compliant assembly, 100% new, quality multiple checked before fulfilled.
Net weight: 32g/1.1oz

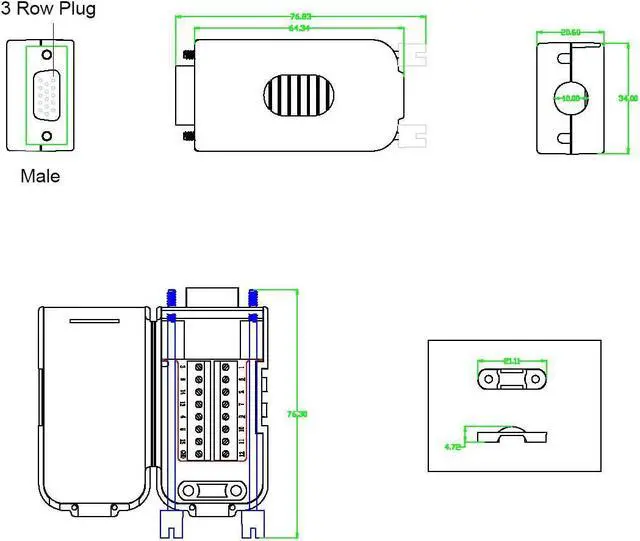

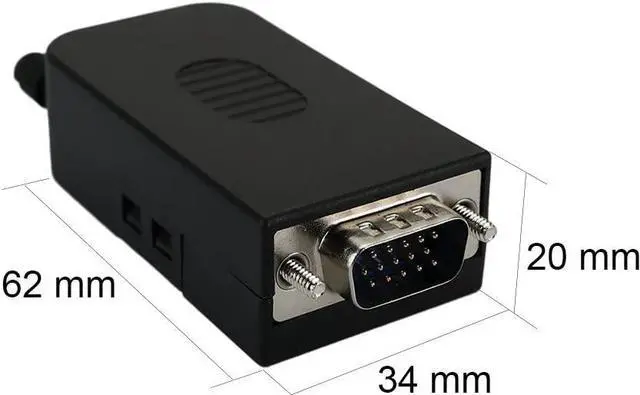

External dimension (L x W x H): 3.02 x 1.34 x 0.81"/76.83 x 34 x 20.6mm
Wire range: 20-26AWG
Rated current: 0.5A
Connect type: Female with Case
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Screws: steel, Cr3+ Zn plated
Pin header and cage: Brass
Case: ABS+PC
Package included:

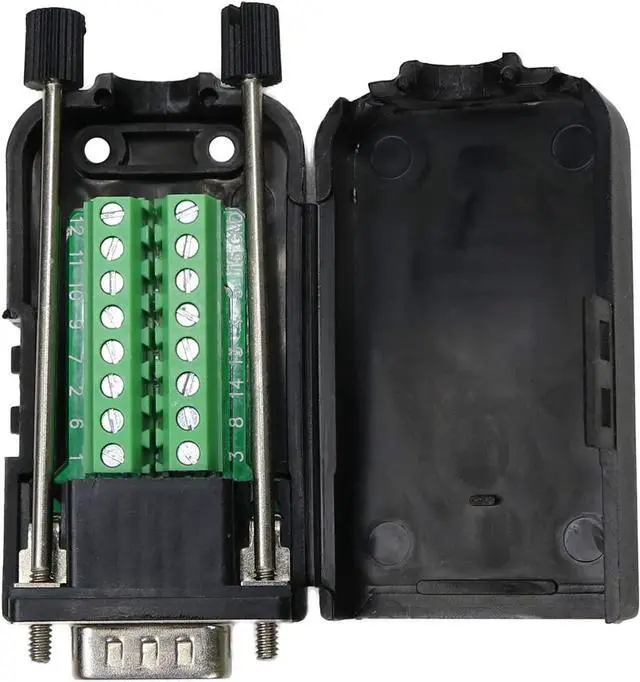

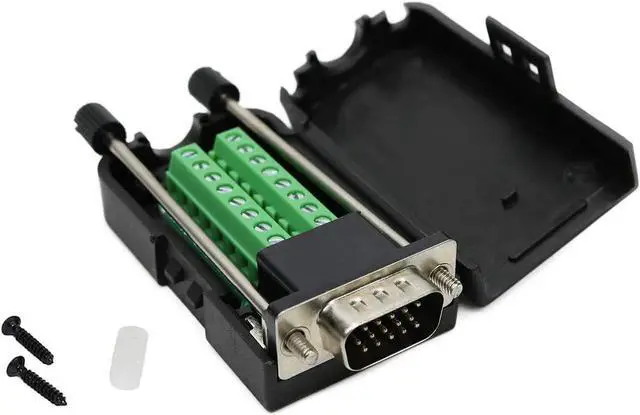

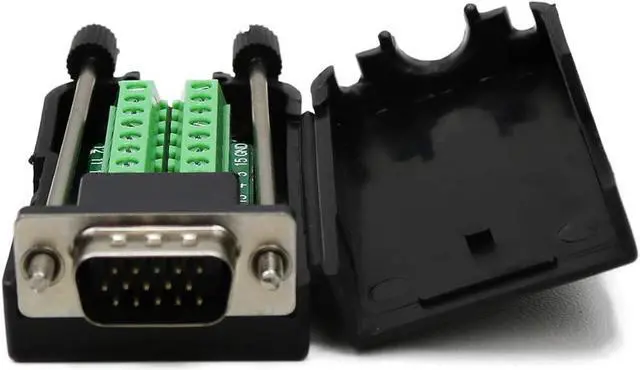

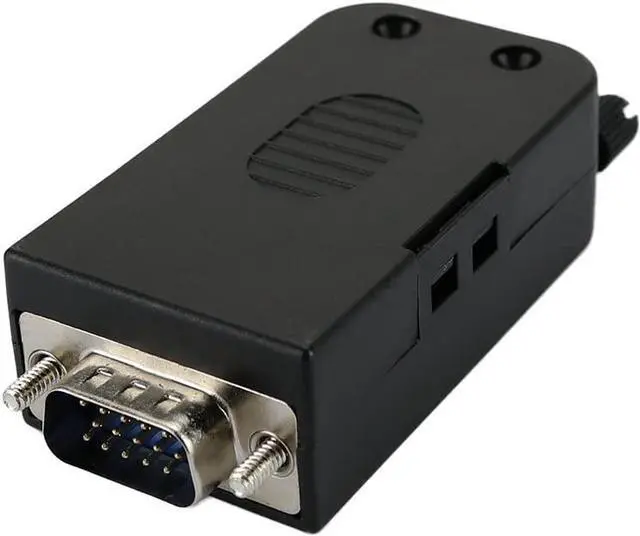

1 x DR15 breakout board male adapter with case

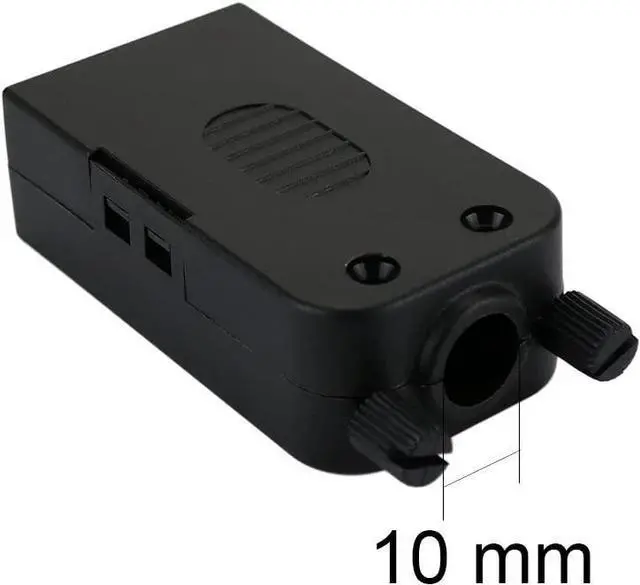

1x Nylon cable pressing plate
2x Screws
2x Long bolts
