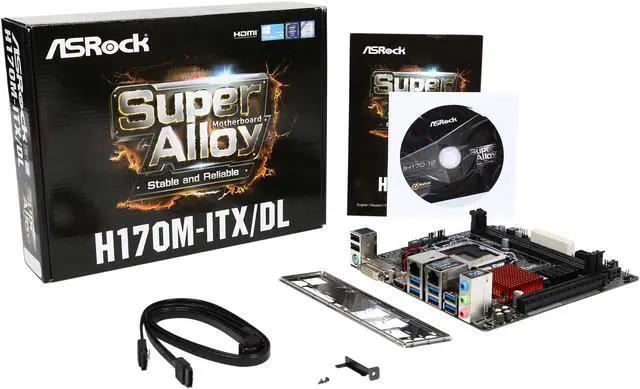

ASRock H170M-ITX/DL LGA 1151 Intel H170 HDMI SATA 6Gb/s USB 3.1 Mini ITX Intel Motherboard

OUT OF STOCK.
  • Intel H170
  • Supports 7th and 6th Generation Intel Core i7/i5/i3/ Pentium/Celeron Processors (Socket 1151)
  • DDR4 2133
Overview
Specs
Reviews
general information

The ASRock H170M-ITX/DL is built in Mini ITX form factor with the finest components and provides the industry-leading features, offering you more than enough for an exceptional experience in every aspect.

  • ASRock Super Alloy
  • Supports 6th Generation Intel Core Processors (Socket 1151)
  • Digi Power, 6 Power Phase design
  • Supports Dual Channel DDR4 2133
  • 1 PCIe 3.0 x16, 1 Vertical Half-size Mini-PCIe
  • Graphics Output Options: DVI-D, HDMI
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • Dual LAN : Intel I219V + Realtek RTL8111H
  • 4 SATA3, 1 mSATA
  • 8 USB 3.0 (2 Front, 6 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop
general information

Premium 45A Power Choke

Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dual-Stack MOSFET for CPU Power

Dual-Stack MOSFET (DSM) is another innovative MOSFET’s design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

viewing viewing

High Density Glass Fabric PCB

What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

viewing viewing

DDR4 Non-Z OC

Overclocking DDR4 memory modules is no longer limited to Z170 models. With ASRock’s DDR4, Non-Z OC users may overclock the memory of H170/Q170/B150/H110/C232 models using certain memory sticks, such as Kingston or Samsung memory DIMMs. The enhanced CAS latency brings up to 5% performance boost.

general information

6 Power Phase Design

The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.

general information

UEFI EZ Mode

EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

general information

general information

Dual Gigabit LAN

Users are able to connect two LAN cables to this motherboard's rear I /O.

general information

Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

general information

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

general information

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

general information

Supports DDR4 2133

This motherboard supports the latest DDR4 memory modules and most extreme memory performance.

general information

Win 7 USB Patcher

Due to chipset limitation, when you want to install Windows 7 on this MB, you may need to use “Win 7 USB Patcher” to create a new ISO file.

general information

A-Tuning

A-Tuning is ASRock's multi-purpose software suite with a new interface, more new features and improved utilities.

general information

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and supports software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

general information

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

general information

ASRock Cloud

ASRock Cloud technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously!

general information

USB Key

In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

general information

Restart to UEFI

Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

general information

ASRock OMG (Online Management Guard)

Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

general information

UEFI Tech Service

Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for ASRock’s technical support team.

general information

Easy Driver Installer

For users that don’t have an optical disk drive to install the drivers from ASRock’s support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!

general information

ASRock XFast RAM

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

general information

ASRock XFast LAN

When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super-efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.

general information

HDMI-ready

This motherboard supports HDMI (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
