StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30

Option: 4 Wire

4 Wire
PoE+ 3 Wire 30W
PoE+ 3 Wire 60W

INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

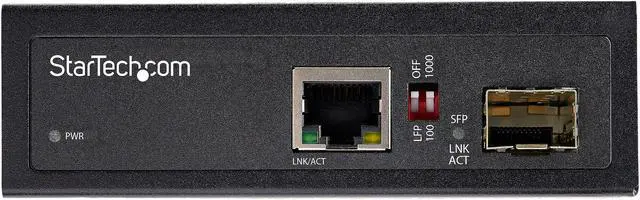

OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing

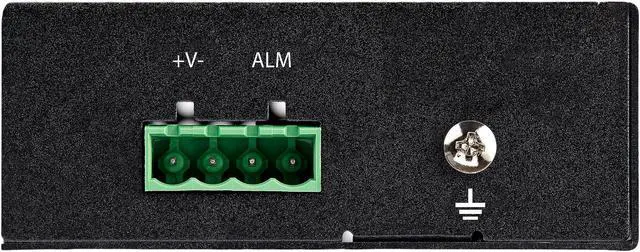

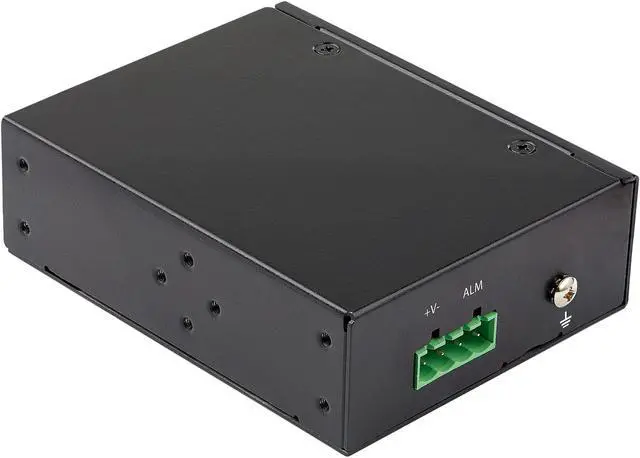

TECH SPECS: 1 Gbps | 12V-56VDC | Single Mode SMF & Multi-Mode MMF Fiber | 16K Jumbo Frames | LFP | IP-30 Housing | DIN or Wall Mountable | Terminal Block and/or Barrel Adapter for power redundancy

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Type	Media Converter

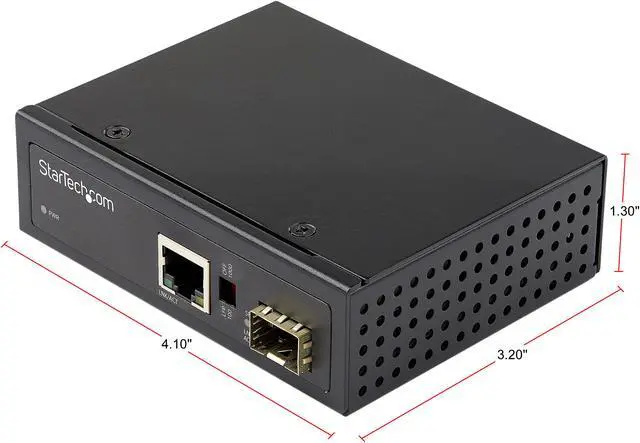

Specifications	Interfaces/Ports Total Number of Ports: 1 Network (RJ-45): Yes Number of PoE (RJ-45) Ports: 1 Media & Performance Media Type Supported: Optical Fiber Twisted Pair Fiber Mode Supported: Multi-mode Single-mode I/O Expansions Total Number of Expansion Slots: 1 Expansion Slot Type: SFP (mini-GBIC) Number of SFP Slots: 1 Network & Communication Ethernet Technology: Gigabit Ethernet Network Technology: 1000Base-T 1000Base-TX 100Base-TX 100Base-T Power Description Power Source: PoE+ Power Consumption: 60 W Plug/Connector Type: Terminal Block (3 Wire) Type N Physical Characteristics Form Factor: DIN Rail Mountable Wall Mountable Height: 1.3" Width: 3.2" Depth: 4.1" Weight (Approximate): 5.40 oz Miscellaneous Package Contents: Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block Environmentally Friendly: Yes Environmental Compliance: Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30

Learn more about the Detailed Specifications

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Model
Brand	StarTech.com
Part Number	IMC1GSFP

Item#: N82E16833114437
