StarTech.com PEXUSB312A3 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux (PEXUSB312A3)

Name: StarTech.com PEXUSB312A3 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux (PEXUSB312A3)
Brand: STARTECH
SKU: N82E16815158472
Price: 68.20 AUD
Availability: InStock

Be the first to review this product...

See more "pcie card"

In stock.

Ships from United States.

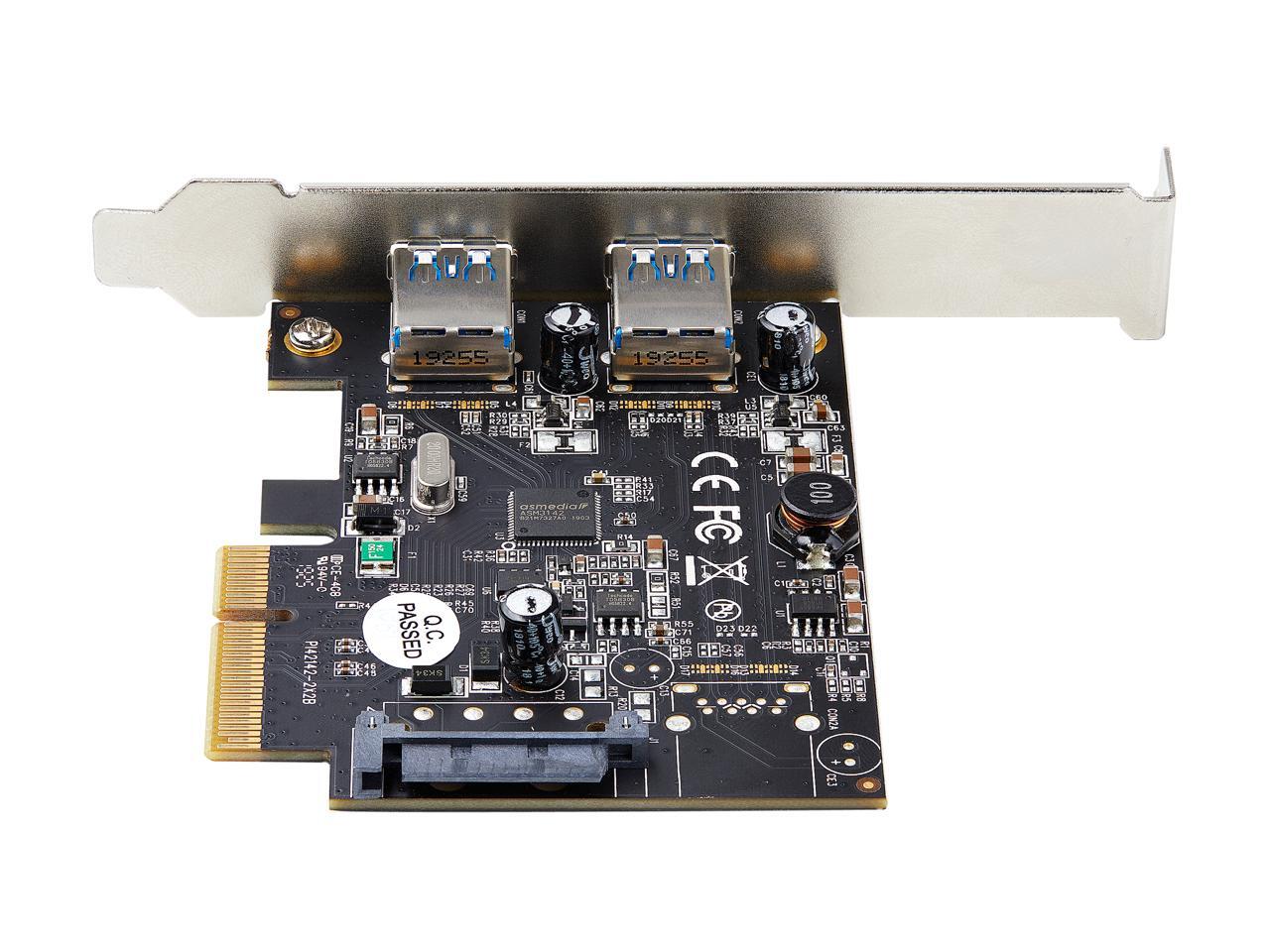

USB PCIe card has ASM3142 controller (PCIe 3.0 x2) w/2x USB-A ports
Up to 10Gbps/port
USB 3.1/3.2 Gen 2 expansion card
New version of PEXUSB312A2
USB PCI Express adapter card supports Multiple INs for max bandwidth w/mixed-speed devices
UASP optimizes performance w/ SSDs/HDDs/NVMe drives
Supports USB 3.0/2.0 devices
SATA power header provides up to 4.5W/port

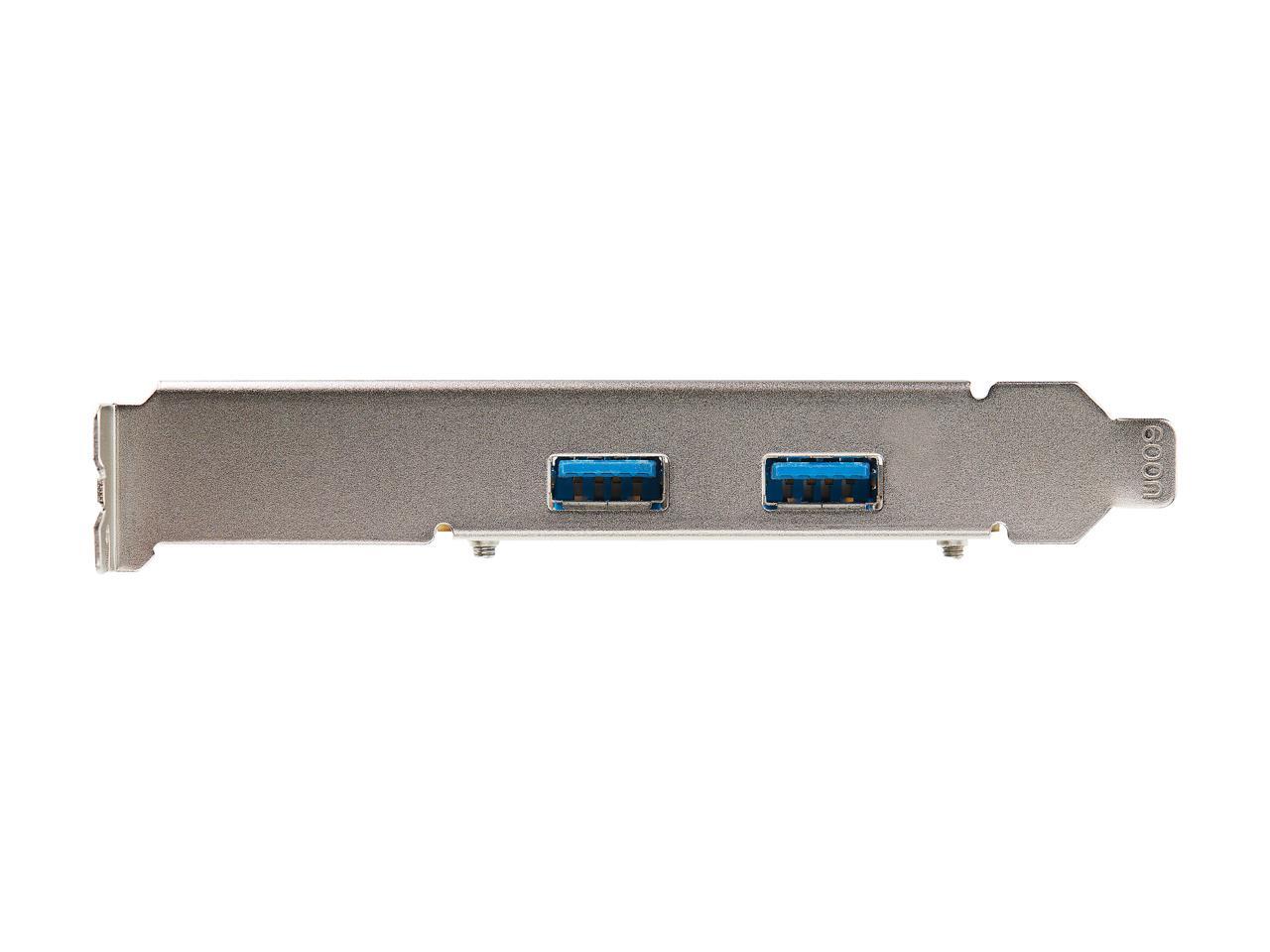

Add-on card w/ full or low-profile bracket incl.
Win/Linux/macOS and auto drivers on Win 8 and up

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law

Type	PCI Express to USB Card
External USB Ports	2 x USB 3.2 USB Type-A (9 pin, Gen 2, 10 Gbps)
Internal Ports	1 x SATA Power (15 pin)
Standard	USB 3.2 Specification PCI Express Base Specification Rev. 3.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0
Data Transfer Rate	USB 3.2 Gen 2 - 10 Gbit/s
Operating Systems Supported	Windows 7, 8, 8.1, 10 Windows Server 2012 R2, 2016, 2019 macOS 10.13 to 10.15, 11.0 Linux 3.5 or later LTS version only
Compatibility	PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16) Optional SATA power connector The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 and Gen 3.0 max throughput is 10Gbps
Specifications	Ports: 2 Interface: PCI Express x4 Bus Type: USB 3.2 Gen 2 10Gbps Card Type: Standard Profile (LP bracket incl.) Port Style: Integrated on Card Chipset ID: ASMedia - ASM3142 Total USB Power Output: 4.5W (5V @ 0.9A) nominal, per port - Current draw above 2.0A (10W) will initiate Over-Current Protection Maximum Data Transfer Rate: 10Gbps Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s UASP Support: Yes

Dimensions	0.7" x 4.7" x 4.3"
Weight	2.8 oz.

Are you an E-Blast Insider?

StarTech.com PEXUSB312A3 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux (PEXUSB312A3)

Learn more about the STARTECH PEXUSB312A3

Customer Reviews of the STARTECH PEXUSB312A3

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Model
Brand	StarTech.com
Model	PEXUSB312A3
