Tripp Lite Metered PDU, 30A, 12 Outlets (5-15/20R), 120 V, L5-30P, 15 ft. Cord, 1U Rack-Mount Power (PDUMH30)

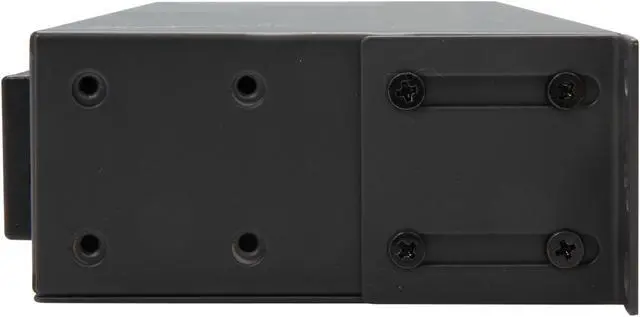

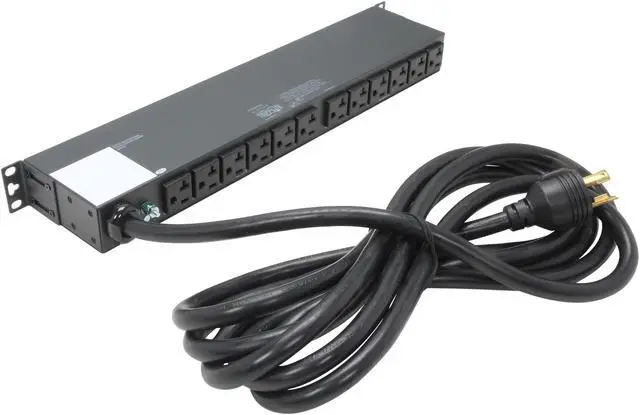

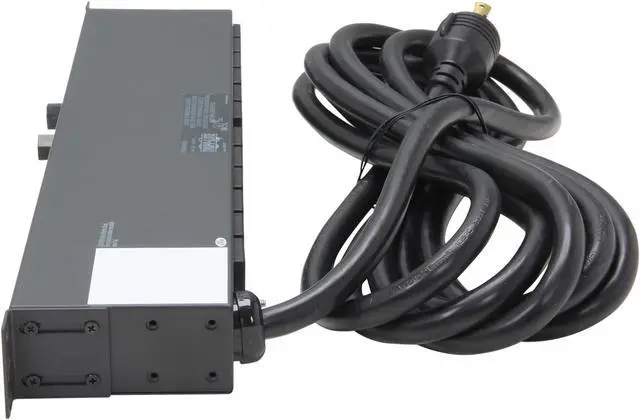

Tripp Lite's PDUMH30 AC power distribution unit offers a digital current monitor and provides 30 amps of 120 volt capacity in a versatile multi-mount cabinet (agency de-rated to 24A continuous). Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual input current monitoring data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Output is arranged in two separately breakered 20A output loading banks. Unfiltered electrical pass-through without a power switch makes the PDUMH30 ideal for distributing UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-30P input plug. TVSS grounding lug and rugged all-metal rackmount case design. Key Features 120V / 30A Metered rackmount AC power distribution unit with 30 amp max capacity (Agency de-rated to 24A continuous) and 12 AC receptacles Front panel digital current monitoring display continuously shows input current level Versatile all-metal rackmount cabinet with detachable mounting flanges allows wall-mount, under-counter, and 19-inch rackmount mounting in both 1U and zero U formats Unfiltered electrical pass-through reliably distributes AC power from UPS or generator to supported equipment 12 NEMA 5-15/20R output receptacles accept common NEMA 5-15P and 5-20P equipment plugs Output is arranged in two separately breakered 20A output loading banks 15 foot AC power cord with NEMA L5-30P plug Switch-free design prevents the potential for accidental shutoff of connected loads 120 VAC, 50/60 Hz electrical compatibility Typical Applications Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rackmount, wall-mount, and under-counter applications such as internetworking, PC systems, telecommunications, audio visual, security, sound reinforcement, and more. Ideal distribution of UPS and generator power or commercially derived AC power to connected equipment. Package Includes PDUMH30 Metered rackmount PDU Owner's manual with warranty information
