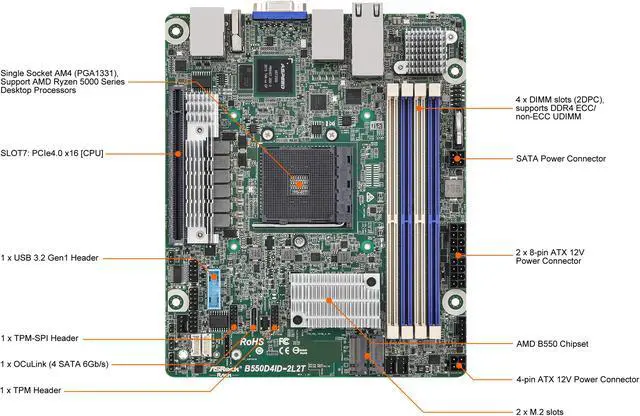

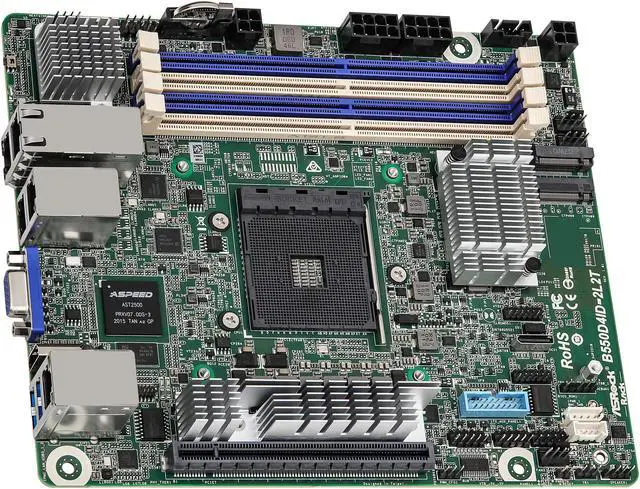

AsRock Rack B550D4ID-2L2T Deep mini-ITX Server Motherboard AMD Ryzen 5000 Series AM4 (PGA 1331) B550 Dual 1GbE+10GbE
- Deep mini-ITX (6.7" x 8.2")
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 4 x DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- Support 1 x PCIe4.0 x16
- Support 4 x SATA 6Gb/s
- Support 1 x M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- Support 2 x RJ45 (10GbE) by Intel® X710 + 2 x RJ45 (1GbE) by Intel i210 + 1 x 1 x dedicated IPMI
- Support ATX PSU and 12V DC-in
+
+
Specs
Reviews
Learn more about the ASRock Rack B550D4ID-2L2T
| Brand | AsRock Rack |
|---|---|
| Model | B550D4ID-2L2T |
| CPU Socket Type | Socket AM4 |
|---|---|
| CPU Type | Supports: AMD Ryzen 5000 and 4000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen PRO 5000, 4000 and 3000* Series Desktop Processors * Not compatible with AMD Ryzen PRO 3000 Series Desktop Processors with Radeon Graphics |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 3200 |
| ECC Supported | Yes |
| PCI Express 4.0 x16 | SLOT7: PCIe4.0 x16 [CPU] |
|---|
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| M.2 | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 22110 (BTO)*/2280 form factor [CPU] 1 M-key (PCIe3.0 x2 or SATA 6Gb/s), supports 2280 form factor (BTO)** [FCH] * M2_1 22110 form factor support is possible by depopulating BMC_SMB and IPMB header and other BOM change ** M2_2 support is possible by depopulating BMC_SMB and IPMB header and other BOM change |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | 1 Intel X710-AT2: 2 RJ45 (10GbE) |
|---|---|
| Second LAN Chipset | 2 Intel I210: 2 RJ45 (1GbE) |
| Max LAN Speed | 1Gbps |

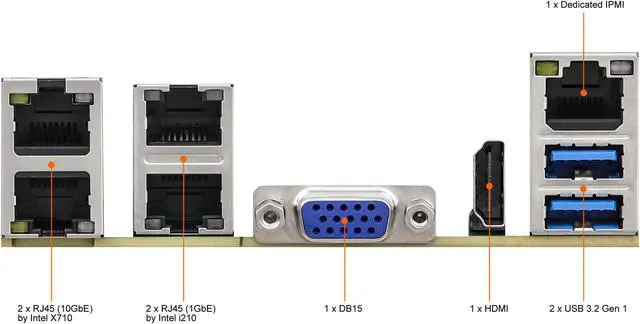

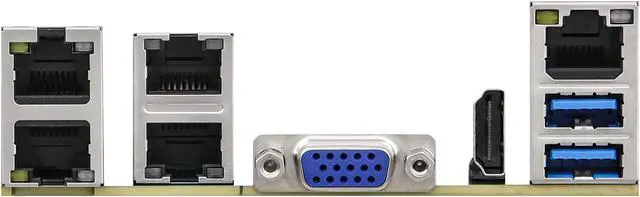

| Back I/O Ports | HDMI: 1 VGA Port: 1 DB15 USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1) Lan Port: 2 RJ45 (10GbE), 2 RJ45 (1GbE) Dedicate LAN: 1 dedicated IPMI UID Button/UID LED: 1 |
|---|
| Other Connectors | COM Header: 1 Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) Thermal Sensor Header: 1 IPMB Header: 1 PMBus CONN: 1 Fan Header: 3 (4-pin) Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) NMI Header: 1 System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in Clear CMOS: 1 NC-SI: 1 |
|---|
| Form Factor | Deep mini-ITX |
|---|---|

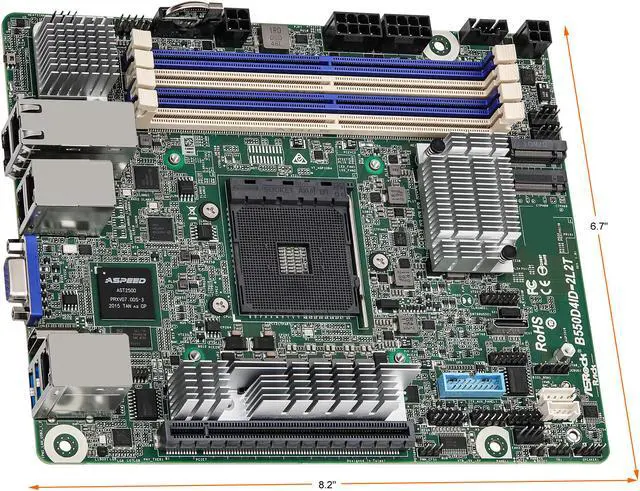

| Dimensions (W x L) | 6.7" x 8.2" |
| First Listed on Newegg | January 19, 2022 |
|---|
