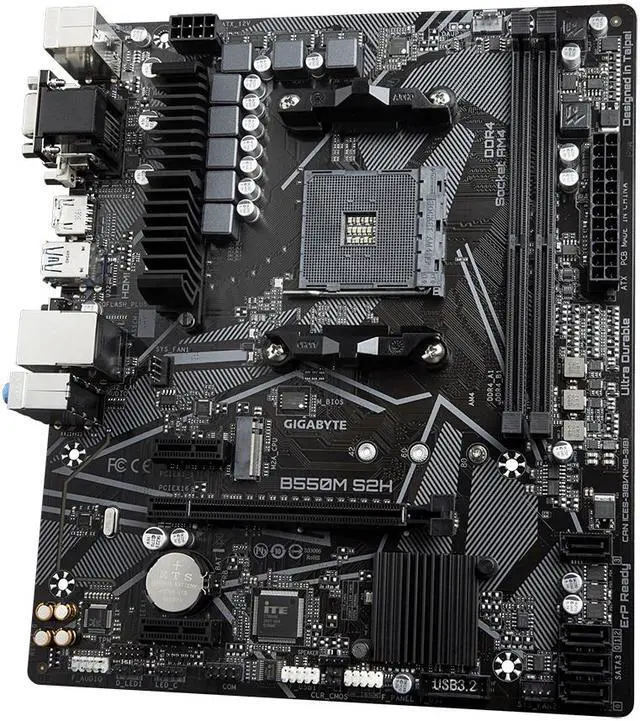

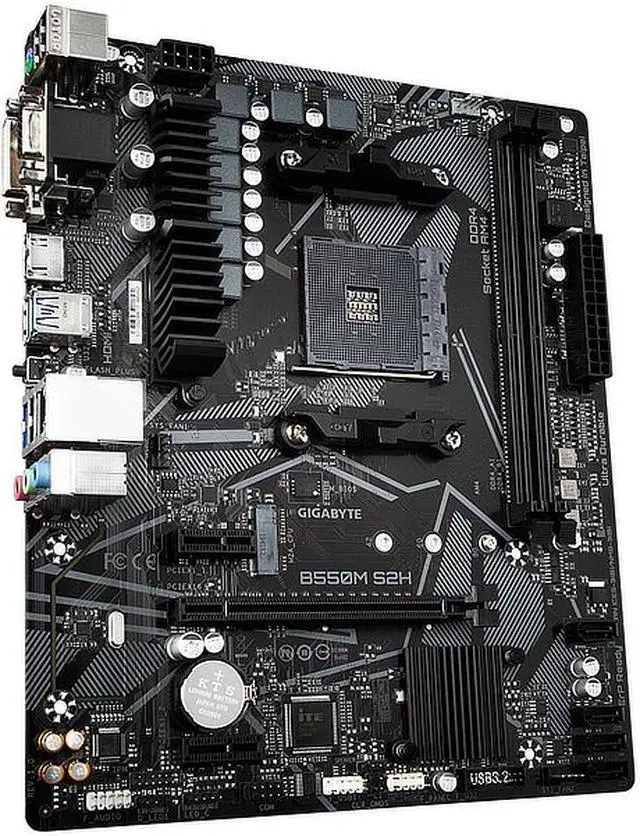

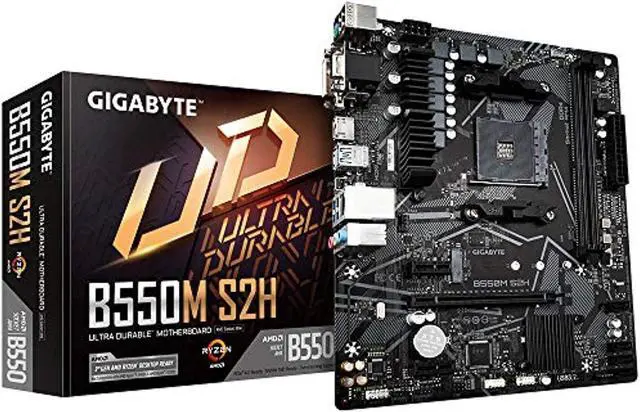

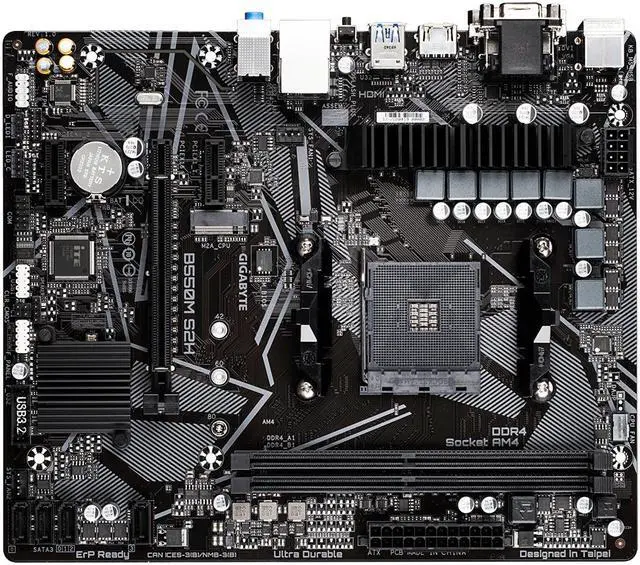

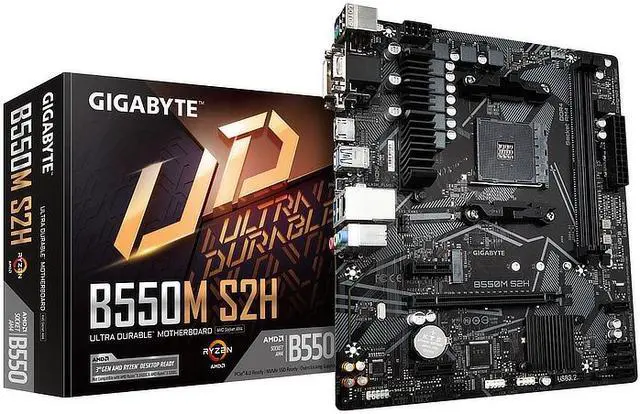

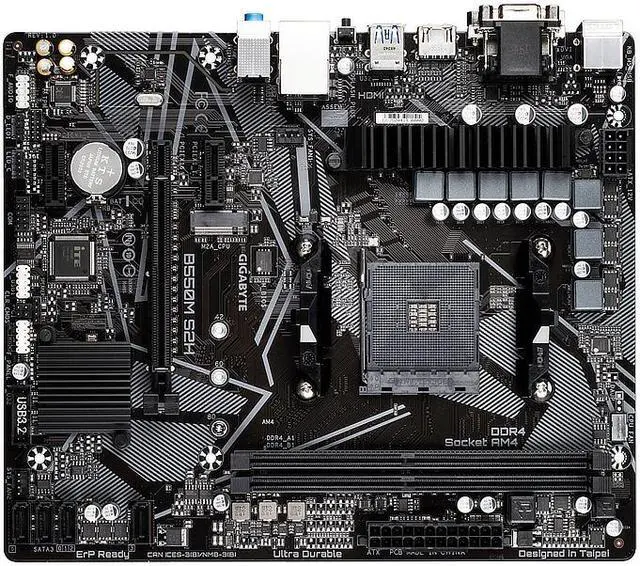

GIGABYTE B550M S2H AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard

AMD B550
Supports AMD Ryzen 5000 Series / 3rd Gen / 3rd Gen with Radeon Grapphics Processor
AMD Ryzen 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
AMD Ryzen 3rd Gen / 3rd Gen with Radeon Graphics Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133

Specs

Reviews

Model
Brand	GIGABYTE
Model	B550M S2H

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series / 3rd Gen / 3rd Gen with Radeon Grapphics Processor

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 AMD Ryzen 3rd Gen / 3rd Gen with Radeon Graphics Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
ECC Supported	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory Feature	Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express x16 slot, integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
PCI Express x1	2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: Supporting PCIe 3.0 x1 mode

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID	0/1/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1Gbps

Rear Panel Ports

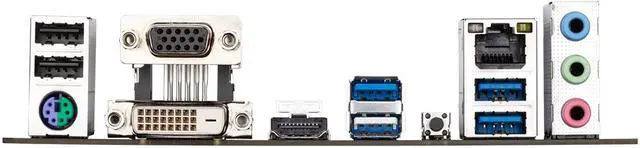

Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 2 x System fan headers 1 x Addressable LED strip header 1 x RGB LED strip header 1 x Front panel header 1 x Front panel audio header 1 x Speaker header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Serial port header 1 x Chassis intrusion header 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install

Additional Information
First Listed on Newegg	June 30, 2021
