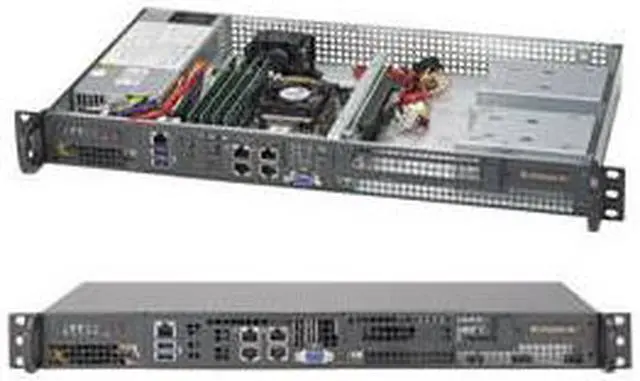

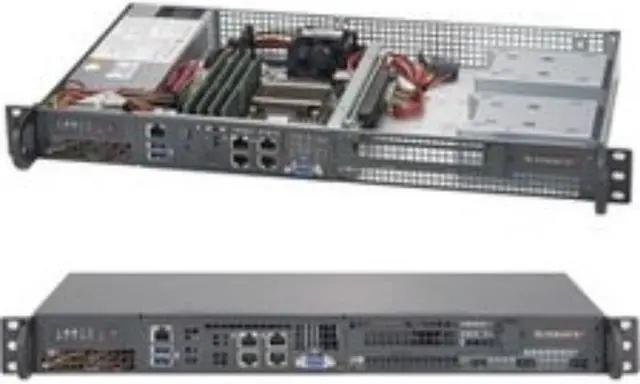

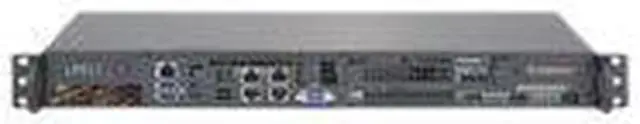

Supermicro SYS-5018D-FN4T 1U Server Xeon D-1541 DDR4 10GB LAN

(5) Write a Review
  • Intel Xeon processor D-1541
  • 2 x 3.5" or 4x 2.5" SATA3 drive bays; 3.5" peripheral bay, 2.5" optional
  • 1 x PCI-E 3.0 x16, 1 x M.2 PCI-E 3.0 x4, M Key 2242/2280slot
  • Up to 128GB ECC RDIMM DDR4 2400 MHz or 64GB ECC / non-ECC UDIMM in 4 sockets
  • Dual 10 GbE LAN and Intel i350-AM2 dual port GbE LAN
  • DOM power connector
  • 200W Low-noise power supply w/ PFC
+
+
Overview
Specs
Reviews (5)
SYS-5018D-FN4T

SUPERMICRO SYS-5018D-FN4T Tower Server Barebone

Features

SYS-5018D-FN4T
  • Front I/O
  • Space-efficient, compact design
  • Less than 10" depth
  • Best Performance per Watt
  • Fast to build and deploy
  • Intel® Xeon® processor D-1541, Single socket FCBGA 1667; 8-Core, 45W
  • 2x 3.5" or 4x 2.5" SATA3 drive bays; 3.5" peripheral bay, 2.5" optional
  • 1x PCI-E 3.0 x16, 1x M.2 PCI-E 3.0 x4, M Key 2242/2280slot
  • Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
  • Dual 10GbE LAN and Intel® i350-AM2 dual port GbE LAN
  • DOM power connector
  • 200W Low-noise power supply w/ PFC

Integrated Board

SYS-5018D-FN4T
  • Intel® Xeon® processor D-1541, Single socket FCBGA 1667; 8-Core, 16 Threads, 45W
  • System on Chip
  • Up to 128GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
  • 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
  • 2 10GbE and 2 GbE LAN ports
  • 6 SATA3 (6Gbps) ports via SoC
  • 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
  • 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
  • 12V DC input and ATX Power Source

Specifications

Product SKUs
SYS-5018D-FN4T SuperServer 5018D-FN4T (Black)
Motherboard
Motherboard Super X10SDV-8C-TLN4F
Processor/Cache
CPU
  • Intel® Xeon® processor D-1541
  • FCBGA 1667 supported
  • CPU TDP support 45W
  • System-on-Chip
System Memory
Memory Capacity
  • 4x DDR4 DIMM sockets
  • Supports up to 128GB DDR4 ECC RDIMM
  • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes 32GB, 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA SoC controller for SATA3 (6Gbps) ports
Network Controllers
  • Dual LAN via Intel® i350-AM2 Gigabit Ethernet
  • Dual LAN via SoC 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics BMC integrated ASPEED AST2400
Input / Output
SATA 6x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 2x USB 3.0 ports (rear)
Serial Port 1x COM port (header)
DOM 1x SATA DOM (Disk on Module) power connector
VGA 1x VGA Port
Others TPM 1.2 header
Chassis
Form Factor 1U Rackmount
Model CSE-505-203B
Dimensions and Weight
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 9.8" (249mm)
Weight
  • Net Weight: 8 lbs (3.62 kg)
  • Gross Weight: 12 lbs (5.44 kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Information LED (temp., status)
Expansion Slots
PCI-E
  • 1x PCI-E 3.0 x16 slot slot
  • 1x M.2 PCI-E 3.0 x4, M Key 2242/2280
Drive Bays
Internal HDD 2x 3.5" or 4x 2.5" internal SATA3 hard drive bays (optional) *
System Cooling
Fans Passive Heatsink, 40mm chassis fan
Power Supply
Power Supply 200W Low Noise AC-DC power supply with PFC
AC Voltage 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V 8.0 Amp (max.)
+5V standby 2.0 Amp (max.)
+12V 16 Amp (max.)
-12V 0.5 Amp (max.)
+3.3V 8.0 Amp (max.)
Certification 80 Plus Gold Certified
System BIOS
BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI
  • RTC (Real Time Clock) Wakeup
Operating Environment / Compliance
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Supermicro's systems based on the Intel® Xeon® processor D System-on-Chip are well-suited for Space-efficient compact design less than 10" depth Best Performance per Watt Fast to build and deploy. Fast to build and deployBest Performance per WattLess than 10" depthSpace-efficient compact designFront I/O
