Dream Machine Pro Max
UDM-Pro-Max
Security and Routing Features
- Intrusion Detection & Prevention: Using a real-time database of known threats, UniFi's IDS/IPS can detect and block suspicious activities.
- Content filtering: Helps you protect users and track attempts to restricted sites.
- Site Magic: Facilitates Site-to-Site VPN and SD-WAN setup.
- Traffic Flow Engine: Monitor, visualize and audit with detailed flow data.

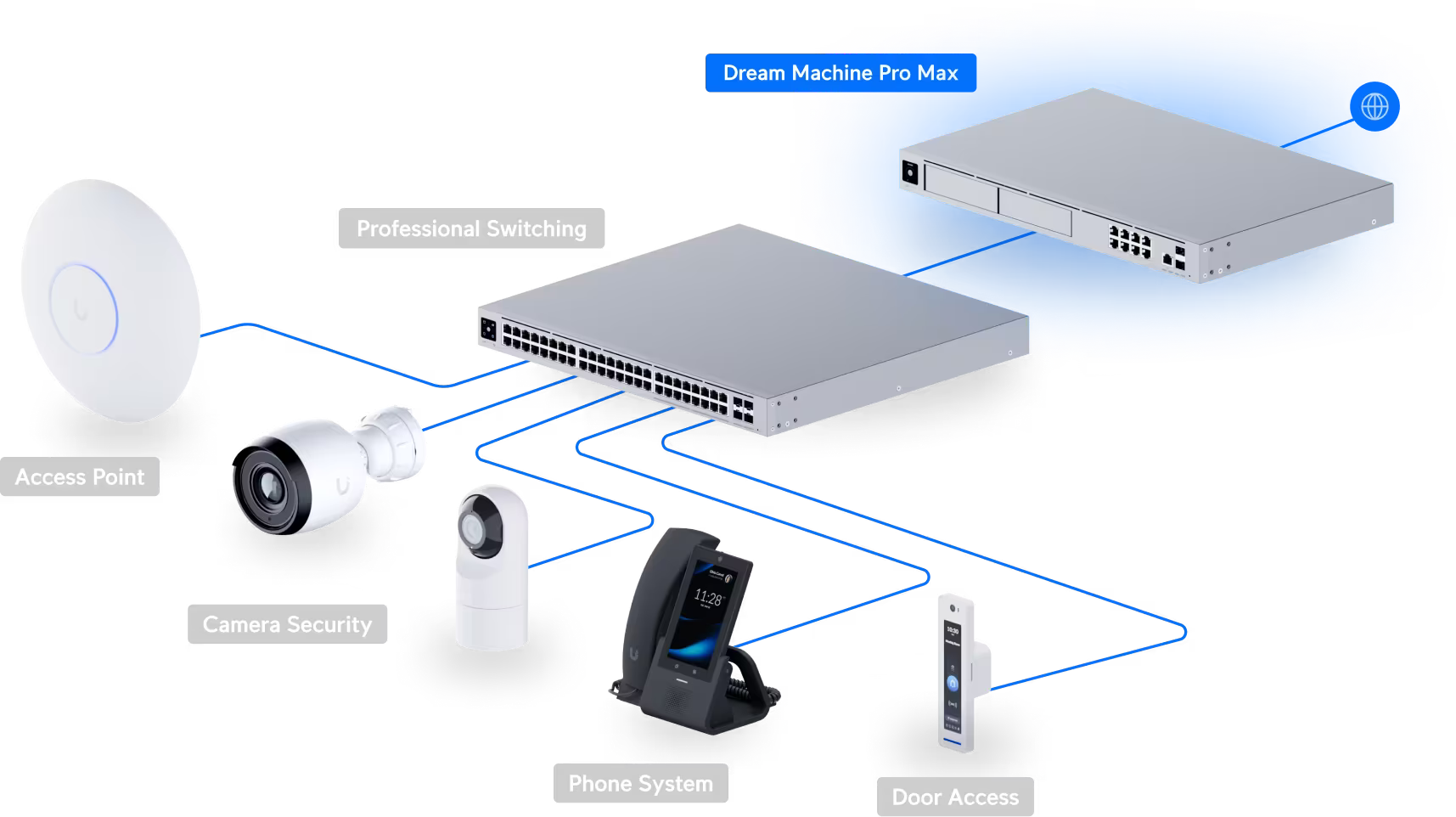

Deployment
Great for large-scale deployments, the Dream Machine Pro Max, 10G Cloud Gateway, has double the capacity of the Dream Machine Pro / SE. Ideal to manage 200+ UniFi devices and support 2000+ clients.

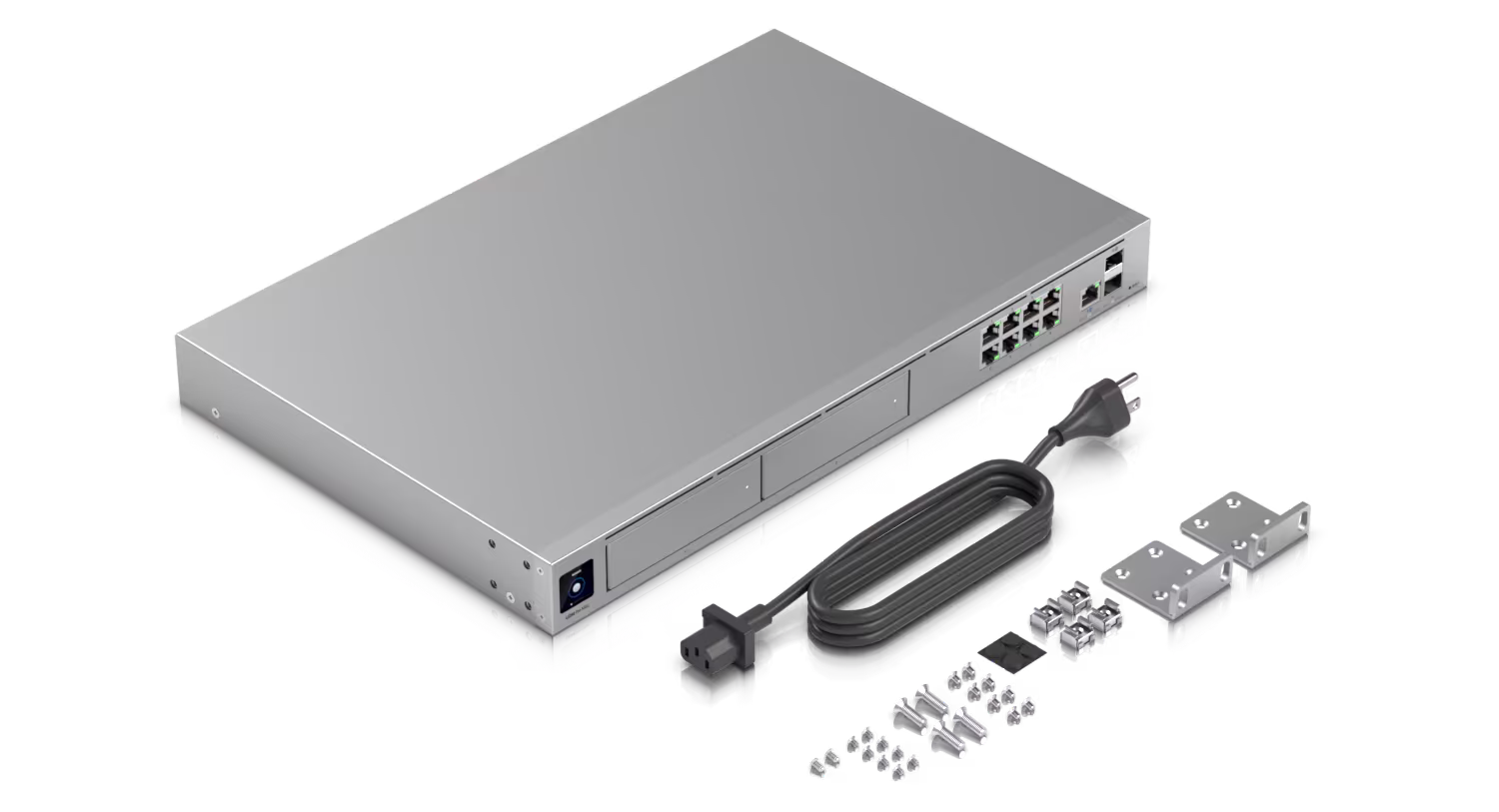

Package Content
Included:
- (1) Gateway
- (1) Power Adapter & Cable
- (1) Mounting Accessories
Product Comparison
|
Dream Machine Pro Max Double the capacity of Dream Machine Pro/SE |
Dream Machine Pro Great for large-scale deployments |
Dream Machine Special Edition Enhanced with integrated PoE switching |
|
Dimensions |
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
Managed UniFi Devices |
200+ | 100+ | 100+ |
Simultaneous Users Connected |
2,000+ | 1,000+ | 1,000+ |
Throughput |
10 Gbps | 10 Gbps | 10 Gbps |
IDS/IPS Throughput |
5 Gbps | 3.5 Gbps | 3.5 Gbps |
License-Free NeXT AI SSL Inspection |
- | - | - |
Max. WAN Port Count |
8 | 8 | 8 |
Port Layout |
(8) 1 GbE RJ45 (1) 2.5 GbE RJ45 (2) 10G SFP+ |
(9) 1 GbE RJ45 (2) 10G SFP+ |
(8) 1 GbE RJ45 (1) 2.5 GbE RJ45 (2) 10G SFP+ |
Integrated WiFi |
- | - | - |
Storage |
(2) 3.5" NVR HDD bays* 128 GB SSD for detection recordings |
3.5" NVR HDD bay |
3.5" NVR HDD bay 128 GB SSD for detection recordings |
Redundancy |
Shadow Mode (VRRP) Gateway Failover DC Power Backup** |
Shadow Mode (VRRP) Gateway Failover DC Power Backup* |
Shadow Mode (VRRP) Gateway Failover DC Power Backup* |
Mounting |
Rack mount (1U) | Rack mount (1U) | Rack mount (1U) |
|
* With RAID data protection. ** Enable DC power backup using UniFi RPS |
* Enable DC power backup using UniFi RPS |
* Enable DC power backup using UniFi RPS |
