Specifications: Device Support: Flat Panel Display / Keyboard
Maximum Screen Size Support: 24"
Color: White
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75 /100 x 100
Material: Steel
Type: WorkFit C-Mod, Single Display Sit-Stand Workstation
Specifications: LCD Size: = 22"
Capacity: 5–18 lbs/2.3–8.1 kg
Lift: 25"/63 cm
Tilt: 25°
Rotation: 360° P/L
VESA: MIS-D
Includes cart, LCD pivot, integrated worksurface, keyboard tray with left/right mouse tray, wrist rest, mouse holder, cable storage box, CPU holder, four dual casters (two locking)
Lift Range: LCD/keyboard/worksurface adjusts 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Constant Force (CF) lift-and-pivot motion technology
CPUs attach safely to rear of cart with CPU Holder. Accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)
CPU Holder capacity = 40 lbs (18 kg)
Ergonomic negative-t...
Features: Increases the reach of an LX Arm
Polished aluminum metal construction offers greater durability and enhanced aesthetics
Adds another pivot-point for more adjustment flexibility
Cable management feature routes cables under the arm, out of the way
Specifications: Compatibility: <=24" LCD
Weight Capacity: 5-30 lbs(2.3-13.6 kg)
Lift: 9"(22.9 cm)
Tilt: 10°
VESA: MIS-D
Additional Information:
Negative-tilt keyboard tray is adjustable 0° to -10°
Maximum Monitor Weight = 25 lbs (11.3 kg)
Monitor thickness greater than 3" (7.6 cm) may decrease capacity
Integrated Cable Management System can be Configured on Either Side
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)

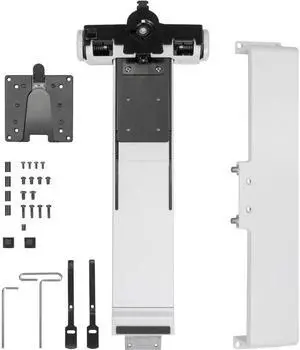

Package Contents:
StyleView 60-593-195 Vertical Mount Lift
Mouse Pad
Wrist Rest
Mouse Pouch
Specifications: Weight Capacity: Display 6–18 lbs (2,7–8,2 kg); keyboard, mouse and barcode scanner 4 lbs (1,8 kg) and up to 10 lbs (4,5 kg) on worksurface
Pan: 360°
Rotation: 90°
Specifications: Weight Capacity: Total load on height-adjustment assembly = 50 lbs (22 kg). Includes contents of Worksurface, Cable Storage Box and LCD Pivots. LCD Pivot capacity = 6–14 lbs (2.7–6.4 kg) per display, 12–28 lbs (5.4–12.7 kg) for both displays
Mounting Standards: VESA FDMI, MIS-D, 75/100 (hole patterns = 100 x 100 mm and 75 x 75 mm)
Displays can be mounted on cart in 5 different height positions
Install displays at 3.5° or 8.5° upward angle for optimized viewing conditions. Displays are not tilt adjustable
CPUs attach safely to rear of cart with CPU Holder: Adjusts from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)
CPU Holder capacity: 40 lbs (18 kg)
Cable Storage Box and space within the center column can conceal and route cords, wiring and power bricks
Barcode scanner holder provides easy access to ...
Specifications: Weight Capacity: display = 6-18 lbs (2.7-8.2 kg), worksurface = 10 lbs (4.5 kg), keyboard, mouse and barcode scanner = 4 lbs (1.8 kg), CPU = 50 lbs (22.7 kg)
Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion, LCD adjusts 5" (13 cm) independently, maximum LCD height adjustment = 25" (64 cm)
Monitor up/down tilt: +25 degree /-5 degree
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Keyboard tray: 18.6"W x 9"D (47.2 x 22.8 cm)
Back-tilt keyboard tray adjustable: 0 degree to -10 degree
CPU Size Range: 1-3/8" to 3-3/4" (35 to 95 mm) wide, accommodates most small form factor and ultra small form factor CPUs
Product Weight: 39.6 lbs (18 kg)
Specifications: Weight Capacity:
Display = 6 - 18 lbs. (2.7 - 8.2kg) or up to 25 lbs (11.4kg) with tilt and lift lock-out features engaged
keyboard, mouse and barcode scanner = 4 lbs (1.8kg)
CPU = 50 lbs (22.7kg)
Lift: 25" (64cm)
Tilt: Up +25 degree/ Down -5 degree
Mounting Pattern: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Pan: 360 degree
Rotation: 360 degree
Keyboard Tray Dimensions: 18.6" x 9" (47.2 x 22.8cm)
CPU Dimension: 1-3/8" to 3-3/4" (35 to 95mm) wide; accommodates most small form factor and ultra small form factor CPUs
Monitor Size: Up to 24"
Specifications: Description: Worksurface for WorkFit-S Sit-Stand Workstations (black)
Includes worksurface, mounting brackets with integrated handle, and mounting hardware
Worksurface Dimensions: 0.25" H x 23" W x 15 "D (6 x 585 x 380 mm)
Cannot be added to system where Tablet/Document Holder accessory 97-558-200 is installed
Installation of the worksurface will not impact normal 20" (51 cm) range of sit-stand height adjustment, but may impact the relative vertical adjustment of larger displays when in portrait orientation
When this accessory is added to the WorkFit-S, total weight capacity of the workstation is reduced by 6 lbs (2.7 kg)
Specifications: LCD Size: Up to 22"
Wt. Capacity: Up to 18 lbs. (Up to 8.2 kg)
Lift: 8"(20 cm)
Tilt: 180°
Pan: 180°
Rotation: 360° P/L
VESA: MIS-D
Description: Neo-Flex LCD Arm with Extension (silver)
Includes: desk clamp and grommet mount, 4 screws for LCD attachment, long screws with spacers for LCDs with recessed interface
Mounting Standards: VESA MIS-D, 100/75, C (hole pattern: 100 x 100 mm or 75 x 75 mm)
